Description

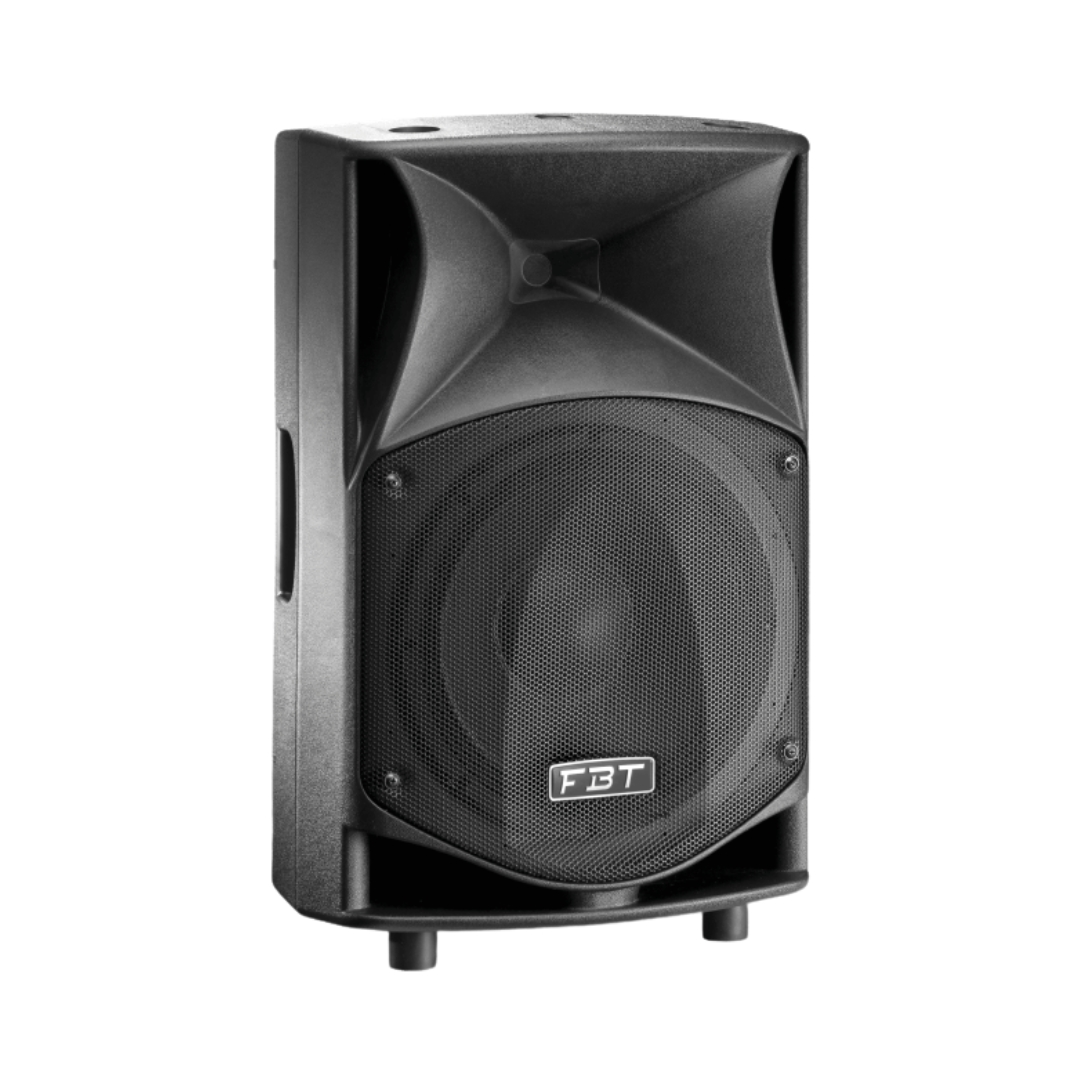

- The FBT JMAXX 110A is a 2-way active speaker for portable and fixed sound applications, featuring a 10″ woofer and 1″ B&C compression driver with a 1.4″ voice coil for clear mids, controlled lows, and smooth highs. Its Class D amplifier delivers 700W RMS to lows and 200W RMS to highs, with four EQ presets for different scenarios. The 90° × 60° constant directivity horn ensures precise coverage and flexible mounting. The durable polypropylene cabinet includes handles, M10 rigging points, and a 35 mm pole mount. Lightweight and portable, it’s ideal for DJs, live sound, and professional AV setups. This speaker combines power, clarity, and versatility in a compact design.
Powerful Amplification
Features a Class D amplifier delivering 700W RMS to the 10″ woofer and 200W RMS to the 1″ HF driver, providing clear lows, articulate mids, and smooth highs for versatile performance in any setting.
Wide Coverage
Equipped with a 90° × 60° constant directivity horn, the speaker ensures even sound dispersion and precise coverage, making it ideal for portable setups or fixed installations.
Versatile DSP & EQ
Includes four EQ presets for music or speech applications, allowing quick adjustment of tonal response to suit different venues and acoustic environments.
Durable Portable Design
Housed in a lightweight polypropylene cabinet with integrated handles, M10 rigging points, and a 35 mm pole mount, offering durability, portability, and easy setup for live sound and DJ use.
- 10 ” LF woofer and a 1’’ exit throat HF compression driver with 1.4” voice coil
- 700W RMS Low Frequency AND 200W RMS for High Frequency , Class D power amplifiers with switch mode power supply
- DSP with 4-EQ presets Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
- 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn Stage monitor angling facility with 12°, 40° or 55° taper
Configuration: 2 way
Built-in amplifier LF/HF: 700 / 200W RMS
Frequency response: 58Hz – 20kHz -6dB
Low frequency woofer: 10″ – 2″ coil
High Frequency driver: 1″ – 1″ coil
Maximum SPL cont/peak: 123.5 / 129.5dB
Dispersion: 90° x 60° H x V
Input impedance: 22 kOhm
Input connector: XLR – Jack
Power cord: 5 m / 16,4 ft
Net Dimension (WxHxD): 320 x 550 x 275 mm / 12.6 x 21.6 x 10.8 inch
Net Weight: 11.5 Kg / 25.3 lb
Transport Dimension (WxHxD): 408 x 650 x 360 mm / 16 x 25.5 x 14.2 inch
Transport Weight: 13.5 Kg / 29.7 lb
