Description
Integrated Talkback System
The built-in talkback function allows for clear communication between engineers and musicians. A dedicated XLR talkback mic input and footswitch compatibility provide hands-free operation, ensuring seamless coordination during recording sessions.
Customizable Mix Control
Each of the six headphone channels features independent level control and a mix balance between two stereo inputs (A and B). Musicians can adjust their personal monitor mix, blending the main control-room audio with a click track or an external source for a tailored listening experience.
- 6 screaming-loud (150 mW/channel) front-panel headphone outputs
- 6 unbalanced stereo ¼-inch line outputs (1 per channel); carries a copy of the channel mix
- 6 unbalanced stereo ¼-inch external line inputs (1 per channel) for “more me,” with trim controls
- 2 stereo input channels (A and B) with 4 balanced ¼-inch line inputs (L/R Mix input pairs
- 1 balanced XLR Talkback input for external dynamic microphone
- 1 ¼-inch footswitch jack for hands-free Talkback operation
- Channel controls: External input level, Headphone level for each headphone output, Mix A/B control (blends signals from input pairs A and B), Mono switch for external input and Mute switch for input pairs A and B
- Master controls: Input A level, Input B level, Talk button (momentary switch) and Talkback-mic level

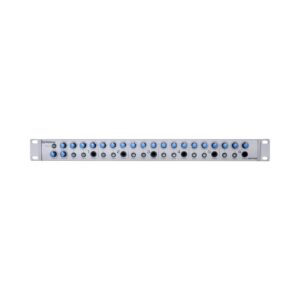

- 1U 19-inch rack-mountable, rugged steel chassis
- Internal power supply with standard IEC connector
Number of Headphone Channels: 6-Channel
Headphone Output Power: 150 mW RMS per Side into 60 Ohms (Max)
Display: No
Analog Audio I/O:
4x 1/4″ TRS Balanced Input (2 Stereo Pair)
1x 1/4″ TRS Unbalanced Stereo Input
6x 1/4″ TRS Unbalanced Headphone Output
Frequency Response:
Inputs: 10 Hz to 40 kHz ±1 dB
Outputs: 10 Hz to 70 kHz ±1 dB
THD+N: < 0.05%
Rackmount Size: 1 RU
Dimensions: 19 x 5.5 x 1.75″ / 483 x 140 x 44 mm
Weight: 5.0 lb / 2.3 kg
