Description
Powerful & Precise Sound Performance
The PVX 12 delivers 400W program and 800W peak power, featuring a 12" woofer and RX14 1.4" titanium compression driver for clear highs and deep lows. With Quadratic Throat Waveguide™ Technology, it provides 100° x 50° coverage, ensuring even sound distribution and audience engagement.
Versatile Mounting Options
Designed for flexible placement, the PVX 12 can be mounted on a speaker stand or flown vertically or horizontally, making it ideal for both portable and permanent installations. Its extra angled section also allows for floor monitor use, ensuring adaptability for various sound reinforcement applications.
Power Handling: 400 Watts program / 800 Watts peak
Top, bottom and right side flying point inserts
Full-coverage heavy-duty perforated steel grille, with powder-coat finish
Rugged construction
Patented, asymmetrical Quadratic Throat
Waveguide™ Technology – 100° x 50° coverage
15° upward and 35° downward directing sound to your audience
12″ heavy-duty woofer, 2-3/8″ voice coil
RX14 titanium compression driver
Speaker Configuration: Full Range 2-way
Speaker Type: Non-Powered
Power RMS: 200 W
Power Program: 400 W
Power Peak: 800 W
Nominal Impedance: 8 Ω
Sensitivity (1W/1m): 96 dB
Maximum SPL: 125 dB
Speaker Frequency Response: 60 Hz – 20 kHz (±3 dB)
Coverage (H x V): 100° x 50°
HF Driver: RX™ 14 – 1.4″ Titanium Diaphragma Compression Driver
LF Driver: 12″, VC 2 3/8″ Woofer

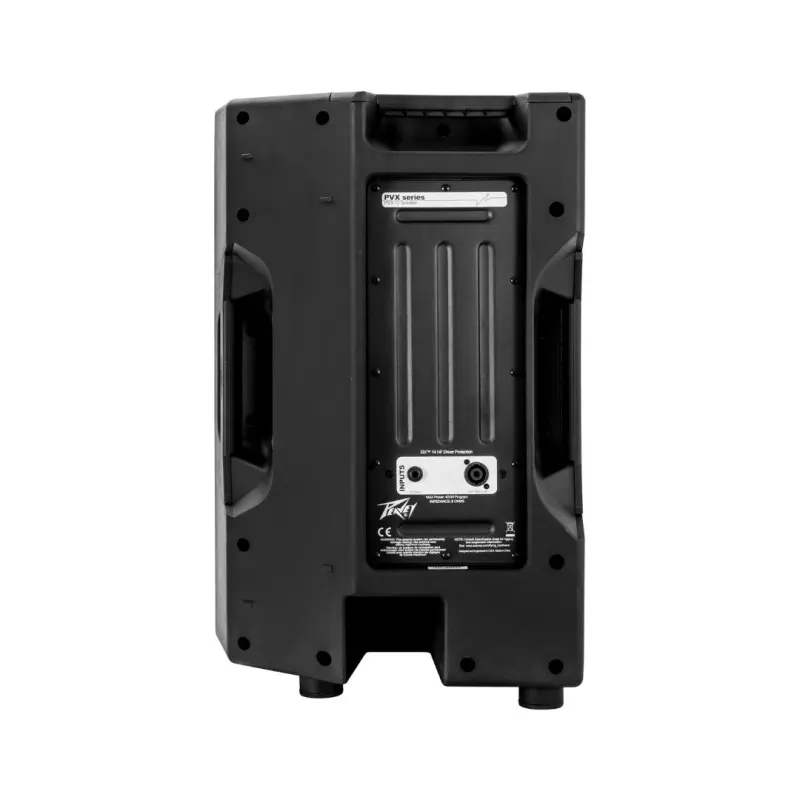

Input Connectors: 1 x 4-pin Twist-Lock & 1 x 1/4″ Jack
Suspension Points: 4 x M10 & 3 x VersaMount 70+
Pole Mount: Yes
Enclosure Material: ABS
Color: Black
Net Weight: 37.0 lbs (16.80 kg)
Product Height: 24.50″ (622 mm)
Product Width: 16.10″ (409 mm)
Product Depth: 15.00″ (381 mm)
