Description

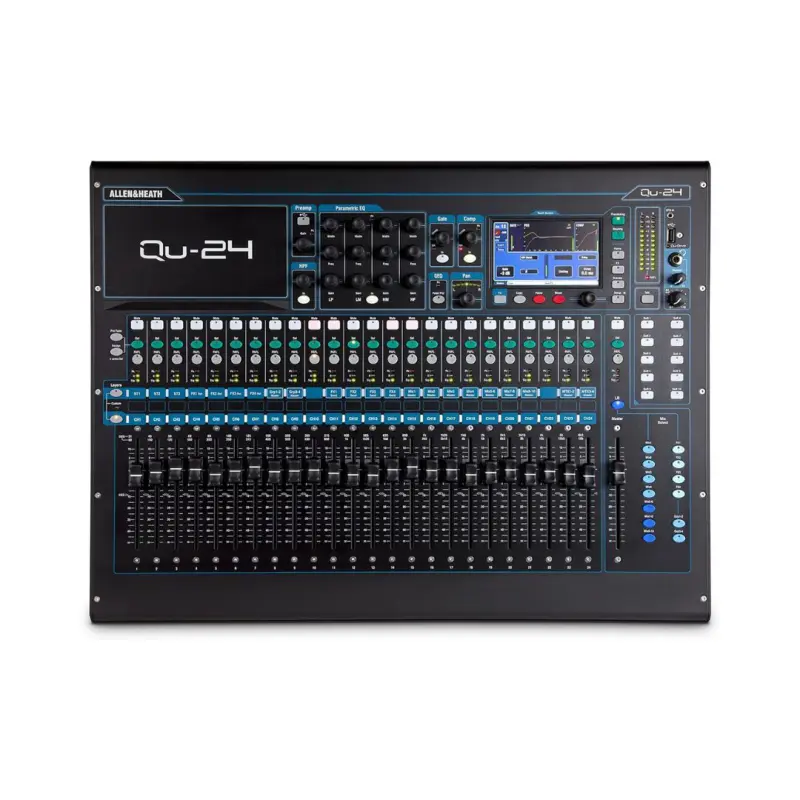

The Allen & Heath Qu-24 offers intuitive operation with a clear layout for efficient studio recording and live mixing. It features 24 AnalogiQ preamps, touchscreen control, high-quality DSP, total recall, 25 flying faders, powerful ARM core processing, studio-grade effects, and an integrated USB recorder, ensuring improved workflow and superior audio quality.
Makes Mixing Feel Natural
The Qu-24 mixer simplifies workflow with a fader dedicated to each mono input channel, minimizing fader layers for quicker access to controls. This design caters especially to users transitioning from analog to digital setups or those preferring straightforward, single-fader control over multiple layers.
Capture Every Detail
Qu has been designed from the ground up to deliver professional sound quality, from input to output. Qu-24 features thirty two AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage.
World Class Processing & FX
Top audio engineers prefer Qu's RackFX over high-end plug-ins and external FX units. Qu features 4 stereo RackFX engines with detailed emulations of classic reverbs, delays, modulators, and more. FX return through dedicated channels, freeing up mono and stereo inputs, each equipped with a dedicated 4-band PEQ for precise control.
Qu-Drive: Record without a computer
Qu features an integrated multitrack USB recorder for 18 channels of 48kHz, 24-bit recording and playback directly to/from USB key or hard drive. It simplifies capturing multitrack recordings with the ability to record a stereo pair alongside 16 mono channels, and playback to the 16 mono inputs plus ST1.
- 24 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
- Ergonomic layout and workflow is comfortable, fluid, and intuitive
- Color touchscreen and dedicated data encoder give you quick and easy access to all settings
- Key processing tools are presented clearly on the SuperStrip, with 1 function per physical control
- 25 automated, motorized ALPS faders (24 arranged over 2 layers) speed up and enhance your mixing
- 4 groups give you subgrouping flexibility to LR for level masters and/or processing
- Total recall lets you save and recall scenes (snapshots) at the press of a button
- Onboard studio-grade dynamics and FX algorithms derived A&H’s iLive pro touring series
- Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)
- Plug-and-play with any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools
- Qu-Drive delivers 18 channels of 24-bit/48kHz recording/playback to/from your USB hard drive
- Type: Digital
- Channels: 24

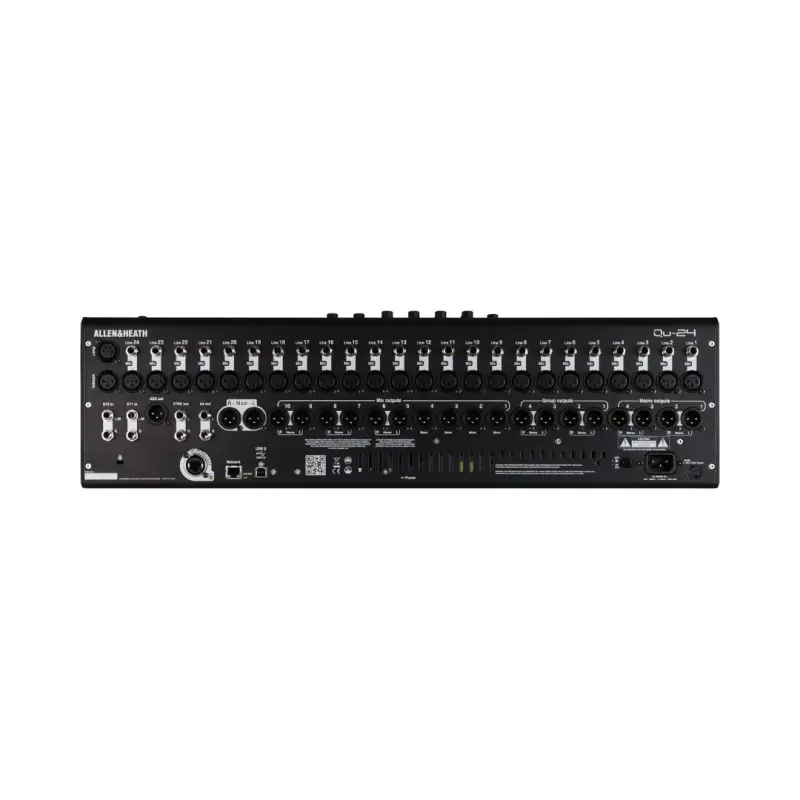

- Inputs – Mic Preamps: 24 x XLR
- Phantom Power: 24
- Inputs – Line: 24 x 1/4″
- Inputs – Other: 4 x 1/4″ (2
- stereo in), 1 x 1/8″ TRS (stereo in)
- Outputs – Main: 2 x XLR (left, right), 2 x 1/4″ (2
- track out), 2 x 1/4″ (alt out)
- Outputs – Other: 4 x XLR (mono mix outs), 3 x XLR (stereo mix outs), 2 x XLR (stereo group outs), 2 x
- XLR (stereo matrix outs)
- Outputs – Digital: 1 x Ethernet dSnake, 1 x XLR AES, 1 x USB Type A
- usses/Groups: 16-bus
- Talkback: 1 x XLR
- Data I/O: USB, Ethernet TCP/IP
- Headphones: 1 x 1/4″ TRS
- USB: 1 x Type B, 1 x Type A
- Computer Connectivity:
- USB (32 x 30), LAN port (connect iOS devices with addition of wireless router)
- Faders: 24 x 100mm
- channels, 1 x 100mm master
- EQ Bands: Parametric EQ, 28-band graphic EQ
- Effects: Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
- DAW Control: MIDI DAW control driver for Mac (HUI, Mackie Control)
- Height: 7.32″ (desktop position), 7.48″ (rackmounted)
