Description

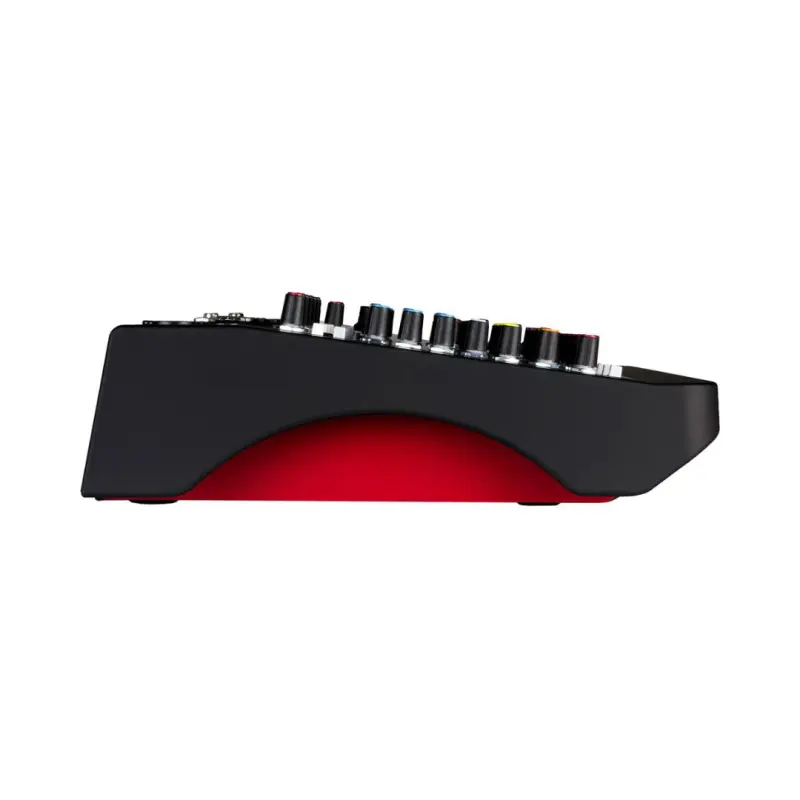

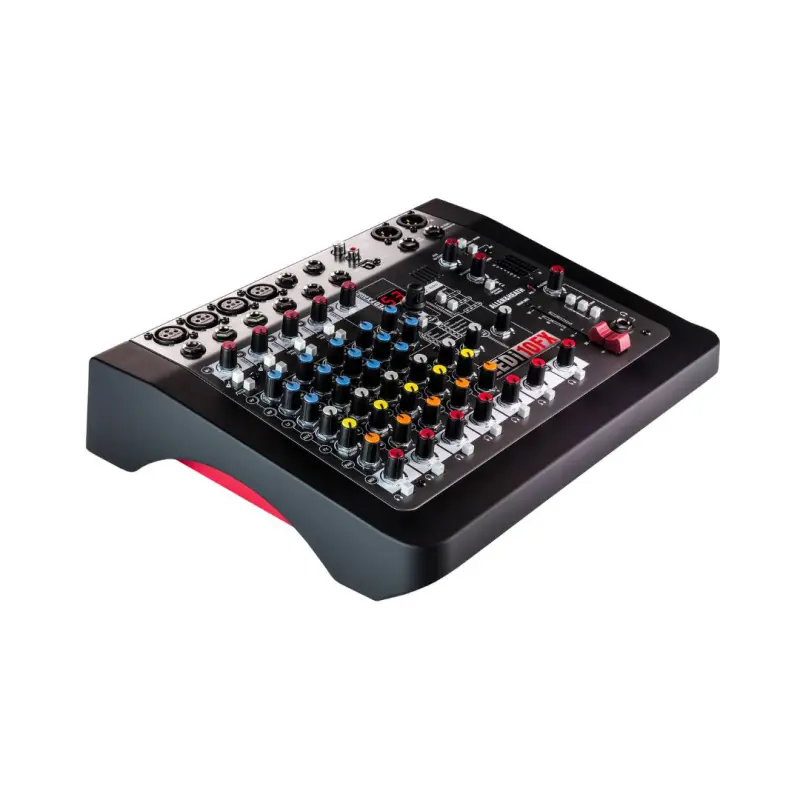

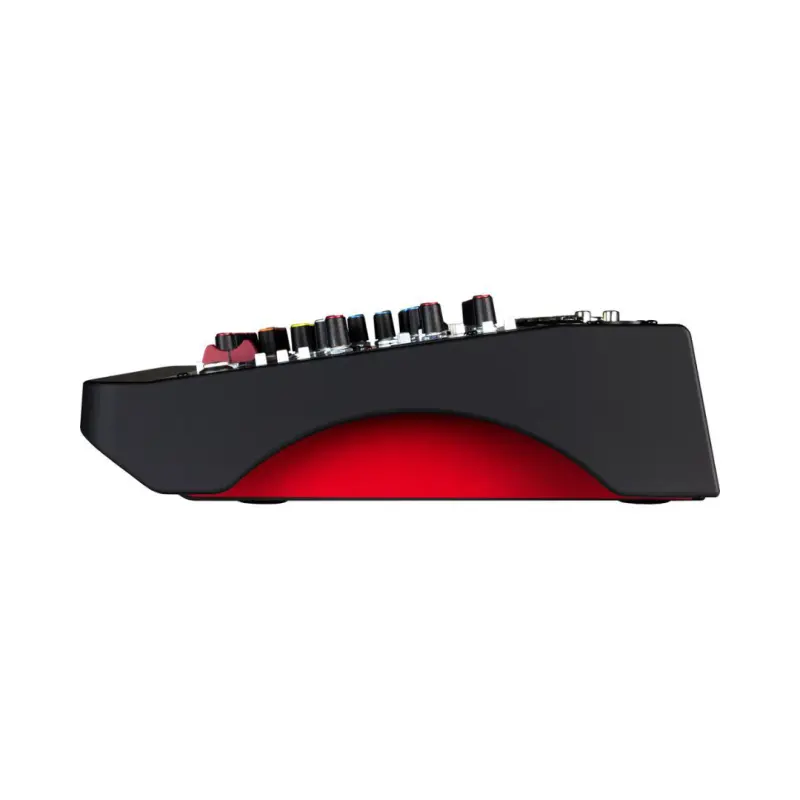

- The ZEDi-10FX by Allen & Heath is a compact, ten-channel mixer and USB interface, ideal for live mixing and instrument tracking. It features reverb, delay, chorusing, tap-tempo, and four channels of analog-to-digital and digital-to-analog conversion. The mixer includes four XLR inputs, four line inputs, two instrument ports, and two stereo line inputs. As a USB interface, it comes with Cubase LE for recording and editing. The preamps, modeled after the GS2-R24, offer warmth, low noise, and ample headroom. Additional features include on-board EQs, high-impedance guitar input, a USB routing switch, 60mm fader, LED signal metering, 48V phantom power, and an internal power supply.
USB Interface and Software Integration
The ZEDi-10FX doubles as a USB interface with four channels of analog-to-digital and digital-to-analog conversion. It comes with Cubase LE software, enabling users to record, sequence, and edit both audio and MIDI tracks. This makes it perfect for integrating live performances and studio recording sessions.
High-Quality Preamps and EQs
Crafted with preamps modeled on the Allen & Heath GS2-R24, the ZEDi-10FX provides warmth, low noise, and ample headroom. It features on-board 3-band EQs for tonal shaping, ensuring professional sound quality. Two channels include high-impedance switches, allowing guitarists to plug in directly without needing a DI box.
On-Board Effects and Control
The ZEDi-10FX is equipped with an on-board effects module that provides delay, reverb, chorusing, and tap-tempo functionality. A USB switch controls the routing of the USB output, allowing for flexible management of how analog signals are sent to your DAW. The unit also features an internal power supply, 60mm smooth-travel fader, LED signal metering, and 48V phantom power for condenser mics.
Versatile Inputs and Outputs
This mixer includes four XLR inputs, four line inputs, two instrument ports, and two pairs of stereo line inputs, making it highly versatile for various audio sources. Additionally, it offers two XLR main outputs and two RCA monitor outputs, ensuring compatibility with a wide range of sound systems.
- USB audio interface (24-bit/96 kHz)
- Cubase LE software included
- Cubasis LE App included
- 4 x mic/line Inputs with separate XLR and TRS jack sockets
- 2x stereo inputs with TRS jack sockets
- 2x guitar DI high-impedance inputs, eliminating the need for DI boxes
- 4 x high-pass filters (channels 1 through 4) for cleaning up unwanted low-frequency noise
- 3-band EQ on channels 1 through 4 enable tonal shaping
- On-board effects module with delay, reverb, chorusing, and tap-tempo functionality
- 60mm smooth-travel fader on main mix
- 2 x XLR main outputs
- 2 x RCA monitor outputs
- 8x LED signal metering
- 48V Phantom Power for condenser mics
- Internal power supply
Number of Analog Input Channels: 8 (4 Mono / 2 Stereo)
Number of Mic Preamps: 4
Analog Output Channels:
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone OutputFaders & Level Adjustment: 7x Channel Fader
- EQ:
Input Channels:
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels) - Filters: 4x High-Pass
- Built-In Effects: Yes
- Sample Rates: Up to 96 kHz
- Bit Depth: Up to 24-Bit
- Analog Inputs:
2x 1/4″ TS Hi-Z Input
4x XLR 3-Pin Input
4x XLR 3-Pin Mic Input
2x 1/4″ Line/Hi-Z Input
2x 1/4″ Line Input
4x 1/4″ Line Input (2 Stereo Pairs) - Analog Outputs:
1x 1/4″ TRS Headphone Output
1x 1/4″ Aux Output
1x 1/4″ FX Output
1x Stereo RCA Monitor Output
2x XLR 3-Pin Balanced Main Output - Phantom Power: Yes
- USB I/O: 1x USB-B
- USB I/O Capacity: 4x Input / 4x Output
- Rack Mountable: No
- Dimensions: 3.8 x 13.1 x 10.8″ / 96.5 x 332.7 x 274.3 mm
- Weight: 5.1 lb / 2.3 kg
