Description
Analog Sound
Two genuine analog VCOs per voice deliver rich, warm tones inspired by the Prophet-5. The classic 4-pole resonant low-pass filter is based on the Prophet-5 Rev4 design. This architecture produces deep, punchy bass and expressive leads suited for modern and vintage sounds.
5-Voice Engine
True 5-voice polyphony allows complex chords and evolving textures. Features include hard sync, sub-oscillator, analog FM, and continuously variable wave shapes. This engine supports both classic subtractive synthesis and advanced sound design.
Modulation & FX
Dual LFOs and flexible modulation routing enable precise movement and expression. Integrated reverb, multi-effects, and dedicated overdrive enhance depth and character. Effects and modulation are fully controllable for studio or live performance use.
Compact Control
Desktop module design saves space while retaining hands-on, knob-per-function control. MIDI, USB, expression, sustain, and stereo outputs ensure seamless integration. Ideal for compact studios, mobile rigs, and performance setups.
True 5-voice analog polyphony with dual VCOs per voice
Prophet-5 Rev4–inspired 4-pole resonant low-pass filter
Continuously variable oscillator wave shapes and analog FM
Hard sync and square wave sub-oscillator for rich timbres
Dual LFOs (global and per-voice) with five waveform options
Two 5-stage envelope generators with flexible routing
Extensive modulation with assignable sources and destinations
Integrated effects including reverb, multi-effects, and overdrive
Vintage knob for subtle voice-to-voice character variation
64-step polyphonic sequencer and MIDI-syncable arpeggiator
Polyphonic portamento (glide) and unison modes
MIDI In/Out/Thru, USB MIDI, sustain and expression inputs
Stereo main outputs and headphone output
Compact, performance-ready desktop design with hands-on control
Synth Type: Keyboard Synth
Sound Generation: Analog
Keyboard: 44 Full-Size Keys with Semi-Weighted Action
Aftertouch: Yes (Destination Assignable)
Expression Controls:
1x Pitch Bend
1x Modulation
Display: Monochrome LCD
Number of Sounds, Kits, or Samples:
128x Factory Sound Preset
128x User Sound Preset
Maximum Polyphony: 5 Voice
Built-In Effects:
1x Reverb
1x Multi-Effect: Bucket Brigade Delay, Chorus, Digital Delay, Distortion, Flanger, HPF, Overdrive, Phaser, Ring Modulator, Rotary, Tape Delay
1x Distortion/Drive: Overdrive
Performance Functions: Arpeggiator, Dual Zone, Octave Shift, Sequencer, Split/Layer
Oscillators:
2x Variable (Sawtooth, Sine, Square)
1x Fixed Sub (Square)
Mixer: Oscillator, Sub-Oscillator, Oscillator 2, White Noise, Pink Noise (Level)
Amplifiers: 1x VCA
Envelopes: 2x Filter/VCA/Assignable Envelope Generator: Delay, Attack, Decay, Sustain, Release
Filters:
Number of Filters: 1
Characteristic: Analog CEM 3320 Chip
Type: Low-Pass
Slope: 4-Pole/24 dB (LPF)
Controls: Cutoff, Resonance, Drive
LFOs:
Number of LFOs: 1x Global
Waveforms: Sawtooth Up, Sawtooth Down, Square, Triangle, Random, Sample & Hold
Controls/Modes: Clock Sync
Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 1 and 2 Pulse Width, Low-Pass Filter Cutoff, VCA, VCF, VCO, Filter Cutoff, Amp
Aftertouch Destinations: Amplifier Envelope Amount, Filter Cutoff Frequency, LFO Amount, Low-Pass Filter Cutoff, Oscillator 1 Frequency, Oscillator 2 Frequency, VCA
Glide/Portamento: Yes
Sequencer: Yes
Arpeggiator: Yes

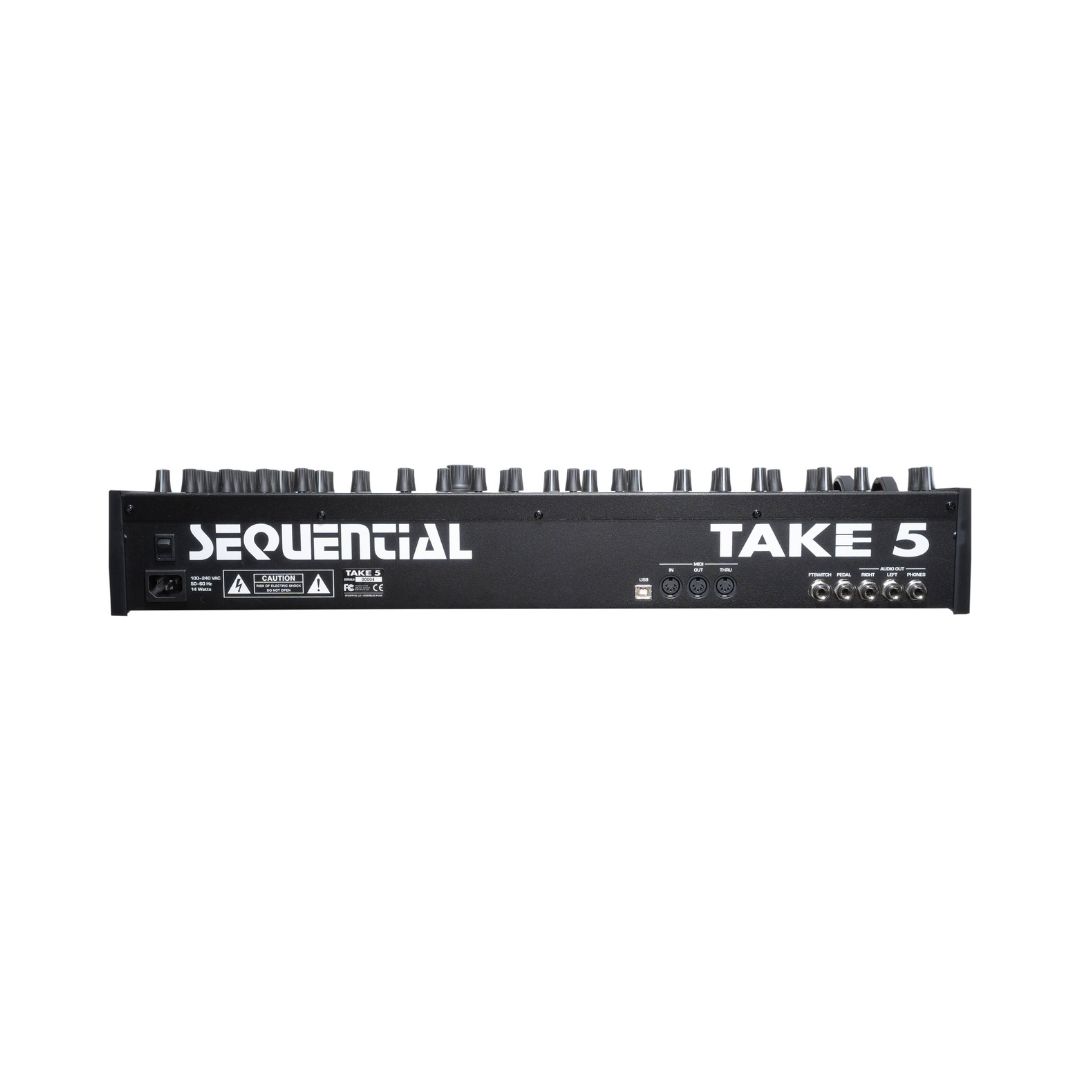

Audio I/O:
2x 1/4″ TRS Main Output (1 Stereo Pair)
1x 1/4″ TRS Unbalanced Stereo Headphone Output
Pedal Support:
1x 1/4″ Footswitch/Sustain
1x 1/4″ Expression
MIDI I/O:
1x DIN 5-Pin Input
1x DIN 5-Pin Output
1x DIN 5-Pin Thru
USB I/O: 1x USB-B (Host Connection, MIDI)
Power Requirements: AC Input
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 14 W
Color: Black
Dimensions: 25 x 12.8 x 4.4″ / 63.5 x 32.5 x 11.2 cm
Weight: 17 lb / 7.7 kg
