Description

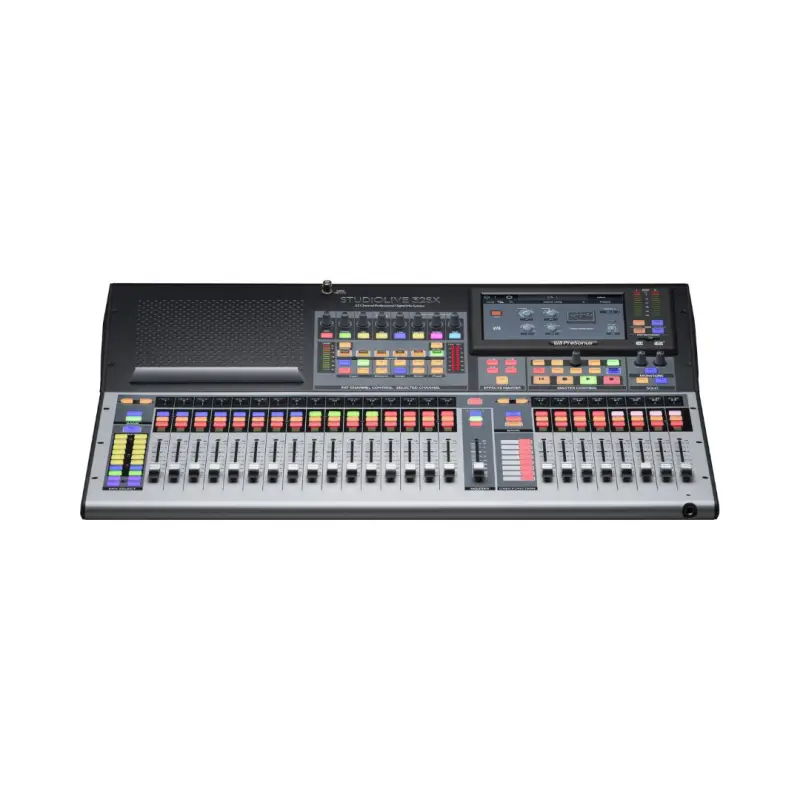

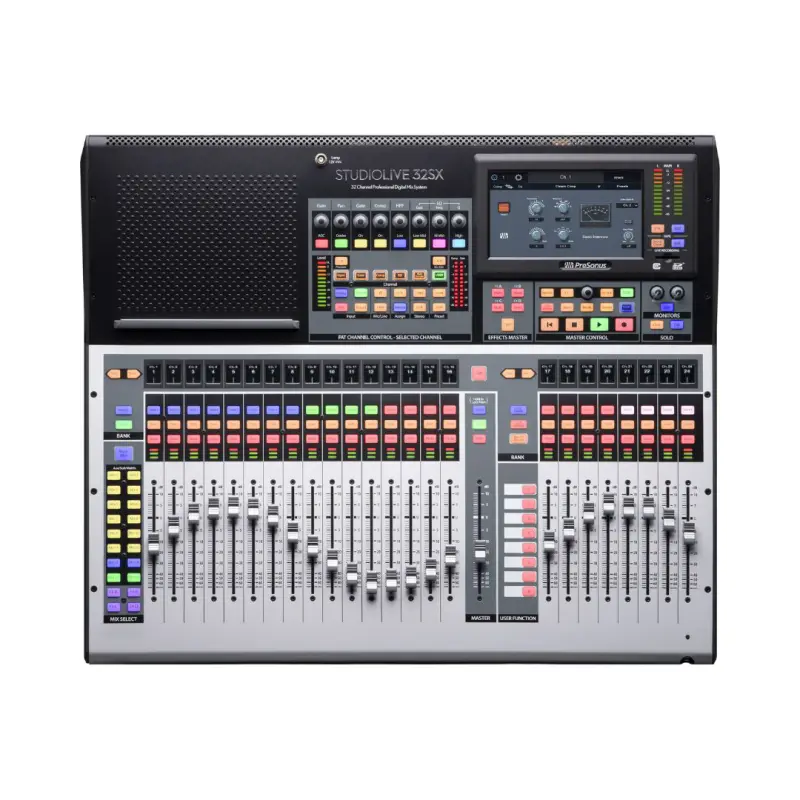

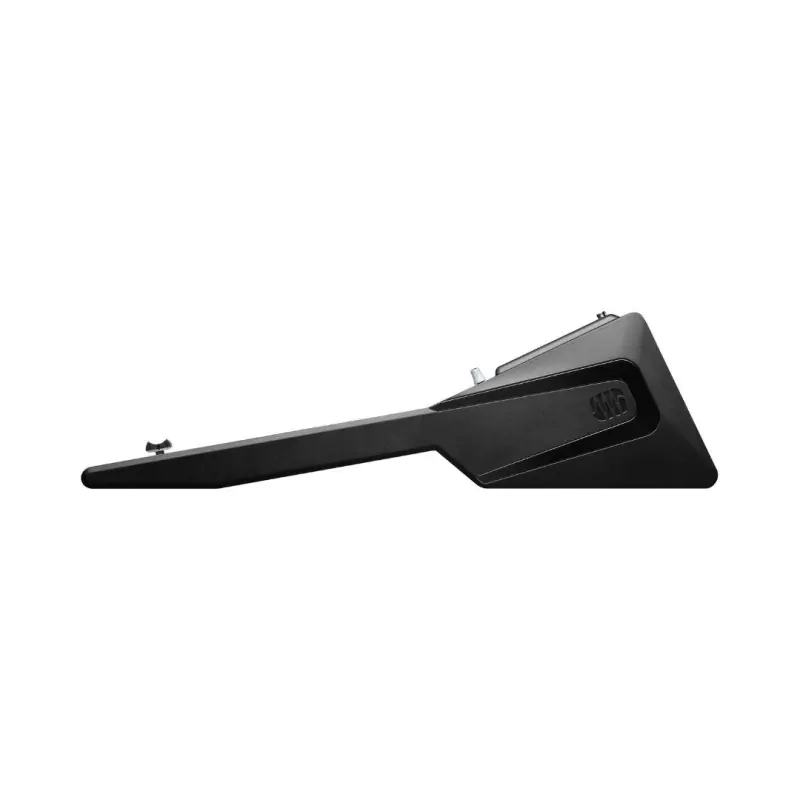

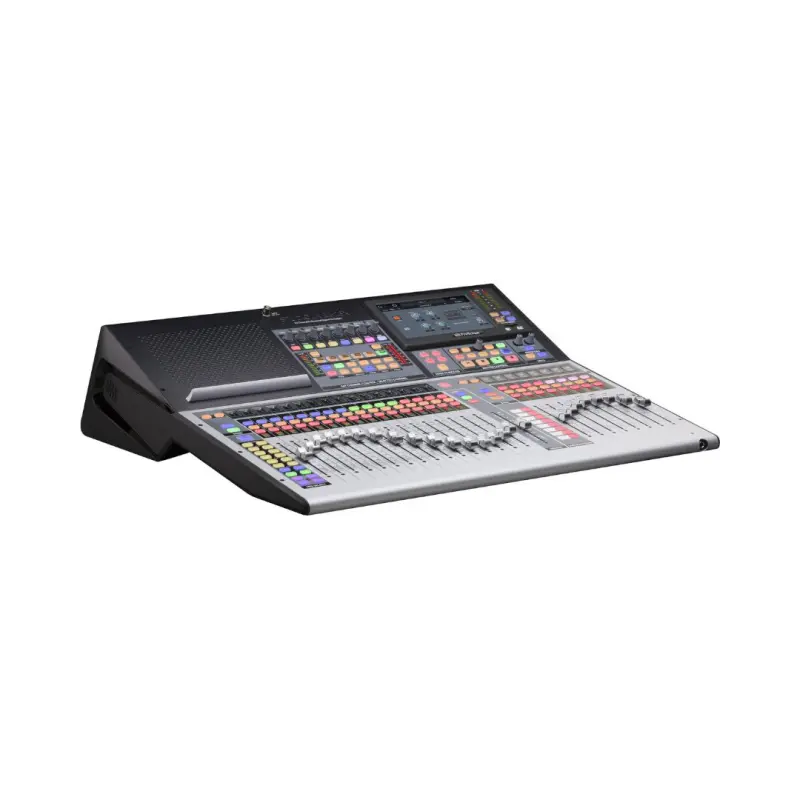

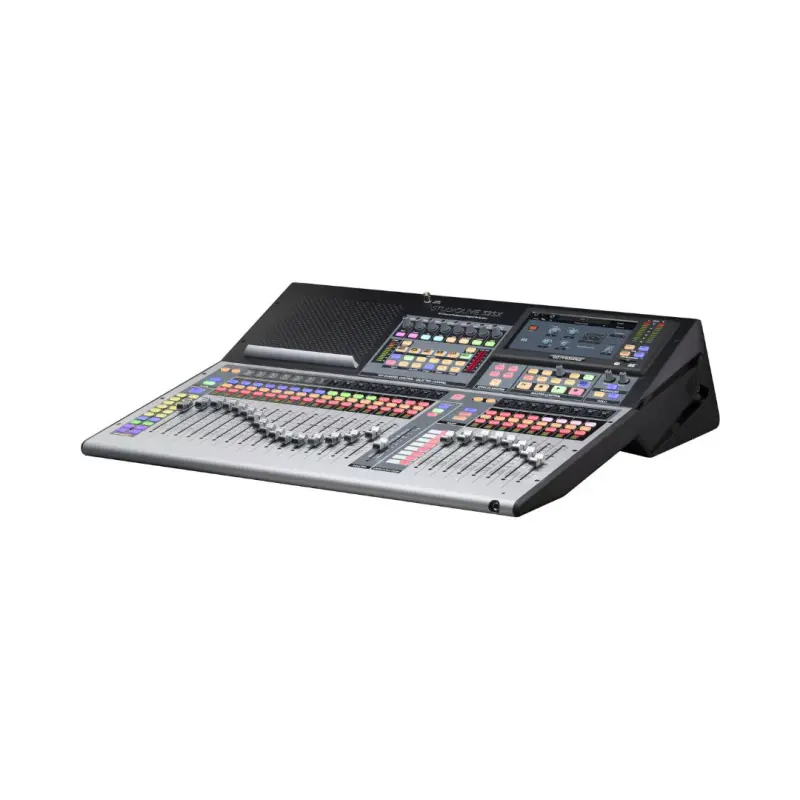

The PreSonus StudioLive 32SX is a versatile 32-channel digital console suitable for live sound, recording, and studio applications. Featuring a touchscreen, 25 motorized faders, and 32 XMAX preamps, it offers vintage-style EQs, compressors, and FLEX FX processing for reverbs and delays. With 16 mic inputs, 16 combo inputs, multiple outputs, and a 34-track SD recorder, it supports 128-channel USB streaming and AVB networking. Remote control is available via PreSonus Metro, and it comes with a software suite for recording, mixing, and editing, making it adaptable for a range of audio tasks.
Dual-Core FLEX DSP Engine
The PreSonus StudioLive 32SX is powered by a dual-core FLEX DSP engine, boasting 286 simultaneous processors. This robust engine enhances performance, enabling seamless operation of various processing tasks for live sound reinforcement, live recording, and studio recording applications.
Built-in AVB Networking
With built-in AVB networking capabilities, the StudioLive 32SX facilitates the creation of a complete ecosystem, allowing seamless integration with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and the SW5E AVB switch. This networking feature enhances flexibility and scalability, making it suitable for diverse audio setups.
Onboard Multitrack Recording
Equipped with an onboard multitrack SD card recorder, the StudioLive 32SX enables true Virtual Soundcheck capabilities. This feature allows users to record 34 tracks (32 channels plus a stereo mix) without a computer, providing a convenient way to review and refine live performances.
Comprehensive Software Bundle
The StudioLive 32SX includes essential software like Studio One® Artist DAW, Capture® recording app, UC Surface touch-control software, and QMix-UC personal monitor mix control. This bundled software suite offers all the necessary tools for recording, mixing, mastering, and remote monitoring, providing a complete professional solution for audio production needs.
- Portable, and flexible digital console for installed sound, mobile application, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
- Fully recallable, 40-input, 32-channel digital mixing console
- Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
- Built-in 128-channel (64×64) USB interface – the most of any mixer
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
- FLEX FX multieffects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: suite of integrated software, including Studio One® Artist DAW and Capture®
- Number of Analog Input Channels: 32
- Number of Mic Preamps: 32
- Mix Routing: 26x Bus
- Faders & Level Adjustment: 25 Fader
- Gain/Trim Range: Mic: 0 dB to +60 dB
- EQ:
Input Channels:
4-Band EQ
Outputs:
6-Band EQ - Solo/Mute: Solo, Mute per Input Channel
- Sample Rates: 44.1 / 48 kHz
- Bit Depth: AD/DA Conversion: 24-Bit
- DSP: Dual-Core 32-Bit Floating Point
- Converter Dynamic Range: 115 dBA at 48 kHz
- Jitter: < 20 ps RMS
- Jitter Attenuation: > 60 dB
- Latency: 1.9 ms (Analog Input to Analog Output)
- dBFS Reference Level: +18 dBu = 0 dBFS
- Frequency Response:
Headphone Output:
20 Hz to 20 kHz ±0.5 dB
Mic/Line Input to Main Output:
20 Hz to 20 kHz ±0.5 dBu (2901653073) - Max Input Level:
Mic Input:
+12 dBu
Line Input:
+18 dBu
Tape Input:
+12 dBu - Output Level:
Line Output:
+18 dBu (2901653168)
Tape/Record Output:
+18 dBu (2901653168)
XLR Output:
+24 dBu (2901653168) - Headphone Output Power: 100 mW per Channel into 60 Ohms
- I/O Impedance:
Mic Input:
1 Kilohms
Line Input:
10 Kilohms
XLR Output:
100 Ohms
Line Output:
100 Ohms
Tape Output:
100 Ohms - Crosstalk:
Input to Output:
-90 dB
Adjacent Channels:
-87 dB - CMRR: 65 dB at Unity Gain
- SNR:
Mic/Line Input to Main Output:
94 dBA at Unity Gain (+4 dBu Reference)
Headphone Output:
96 dB at Max Gain - THD:
Mic/Line Input to Main Output:
< 0.005% at Unity Gain (+4 dBu, 2901653246) - THD+N:
Headphone Output:
0.01% at Max Gain (Unweighted)

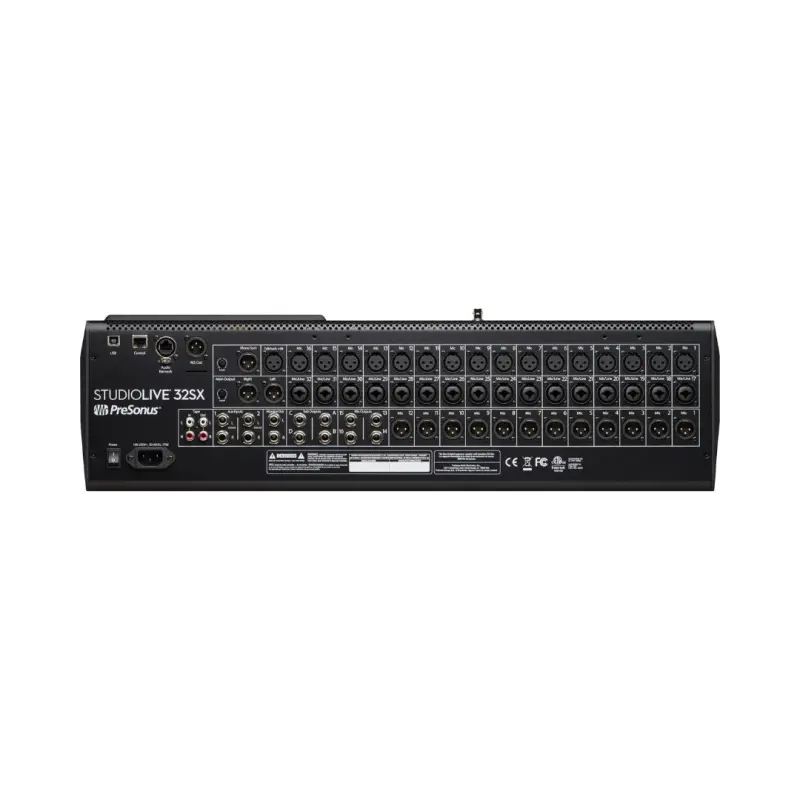

- Analog Inputs:
1x XLR Talkback Input
16x XLR 3-Pin Mic Input
16x Combo XLR-1/4″ TRS Mic/Line Input
4x 1/4″ TRS Aux Return (2 Stereo Pairs)
1x Stereo RCA Tape Input (1 Stereo Pair) - Analog Outputs:
1x Stereo RCA Tape Output (1 Stereo Pair)
12x XLR 3-Pin Subgroup/Aux/Matrix Output
4x 1/4″ TRS Subgroup/Aux/Matrix Output
2x XLR 3-Pin Main Output
1x XLR 3-Pin Mono-Summed Output
2x 1/4″ TRS Monitor Output
1x 1/4″ TRS Headphone Output
4x 1/4″ TRS Subgroup Output - Phantom Power: +48 V ±2 V (Selectable on Individual Inputs)
- Digital I/O:
1x RJ45 (Control, 1 Gb/s)
1x RJ45 AVB (I/O)
1x XLR AES3 Output - MIDI I/O: No
- USB I/O: 1x USB-B 2.0()
- Wireless: Bluetooth 4.1
- OS Compatibility:
macOS 10.8.5 or Later
Windows 7
Windows 8.1
Windows 10
10 or Later
5.0 or Later - Processor Requirement: Intel Core 2 Duo
- RAM Requirements: 4 GB, 8 GB Recommended
- Storage Requirements: 30 GB
- Mobile Device Compatibility:
iPad
Android Smartphone
Android Tablet - Minimum Display Resolution: 1366 x 768
- Internet Connection: Yes
- Required Hardware: Available USB 2.0 Port
- Input Power: 90 to 230 VAC, 50 / 60 Hz
- Power Consumption: 85 W
- Lamp Power: 12 VDC
- Rack Mountable: No
- Operating Temperature: 32 to 104°F / 0 to 40°C
- Dimensions: 26 x 23 x 6.5″ / 66 x 58.4 x 16.5 cm
- Weight: 30 lb / 13.6 kg
