Description

  • The Allen & Heath XONE:96 is a professional six-channel DJ mixer designed for nightclubs and venues. It features a dual 32-bit/96kHz soundcard with two USB connections for 24 channels of I/O, dual headphone circuits, and various input options including turntable, line, and XLR microphone inputs. It includes classic dual VFC filters with a “Crunch” circuit, four-band EQs, and user-replaceable faders. Outputs include balanced XLR, RCA, and stereo auxiliary sends/returns. The XONE:96 offers extensive connectivity and is built for high-quality performance.



Dual 32-bit, 24-Channel Soundcard

The XONE:96 features a dual 32-bit/96kHz soundcard with two USB connections, enabling up to 24 channels of I/O. This setup ensures professional-grade audio quality and supports seamless back-to-back DJ sessions, making it ideal for complex, multi-channel software configurations and smooth transitions between DJs.

Dual XONE VCF Filters with Crunch

The mixer includes classic dual Voltage-Controlled Filters (VCF) with high-pass, band-pass, and low-pass options. Updated with a "Crunch" circuit, these filters add controlled harmonic distortion for a powerful new effect. Each of the six main channels can be routed to either filter, offering extensive sound-shaping capabilities.

Extensive Connectivity

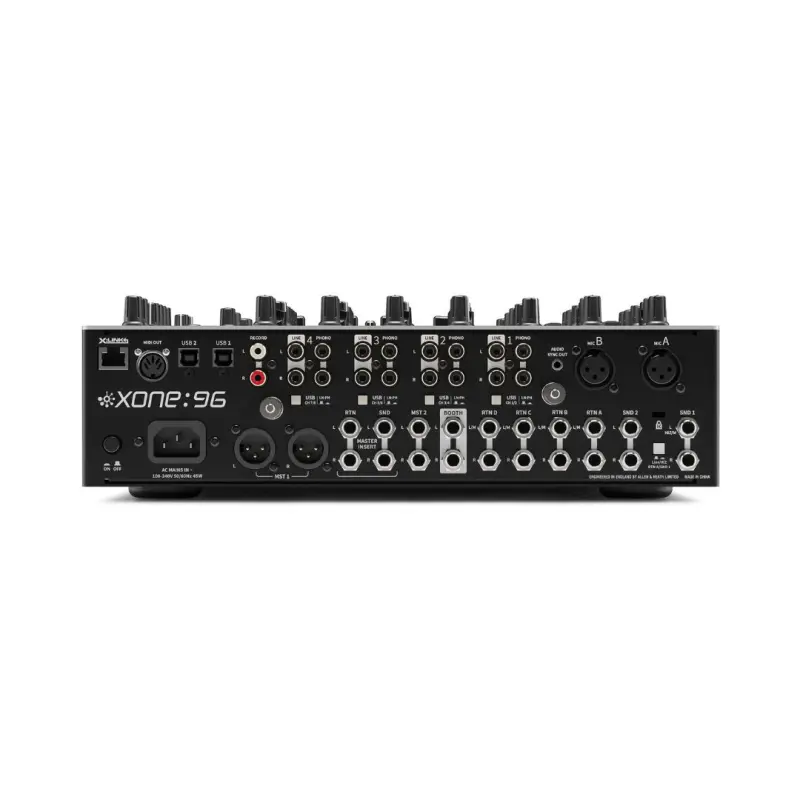

The XONE:96 boasts a fully-loaded rear panel with four RCA line inputs, RCA phono inputs, two stereo sends, four stereo returns, and a dedicated master insert. The X-Link allows easy connection to XONE series controllers, saving USB ports on your laptop. Additionally, MIDI I/O is available via two USB ports and a 5-pin DIN connector, offering versatile connectivity options for any setup.

Analog Remastered

Drawing on Allen & Heath's rich heritage, the XONE:96 delivers advanced analog sound in a flexible format. It features the latest incarnation of the XONE 4-band EQ on all four main stereo input channels and 3-band parametric EQ on stereo return channels A and B. This ensures precise control over your sound, satisfying the most demanding DJs.

  • Four 4-band EQ mix channels.
  • Two 3-band parametric EQs.
  • Dual Xone:VCF filters.
  • 24 Channel 32-bit/96kHz soundcard.
  • Traktor Scratch certified.
  • MIDI & X:Link.
  • Number of Channels: 6x Stereo / 2x Mic

  • Platter/Jog Wheel: No

  • Faders:
    6x 2.4″ / 60 mm Channel Level (Replaceable, Adjustable Fade Curve)
    1x 1.8″ / 45 mm Crossfader (Replaceable, Adjustable Fade Curve)

  • Meters:
    Channel Meter:
    4x 9-Segment LED
    Main Meter:
    2x 9-Segment LED

  • Meter Range: No

  • Display: No

  • Sample Pads: No

  • EQ:
    2x Mic/Aux EQ:
    Hi
    Mid (Semi-Parametric)
    Low
    4x Channel EQ:
    Hi
    Hi-Mid
    Lo-Mid
    Low

  • Performance Controls: Band-Pass Filter, High-Pass Filter, Low-Pass Filter

  • Built-In Effects: Distortion

  • Sample Rates: 96 kHz

  • Bit Depths: 32-Bit

  • Stems Processing: No

  • Audio Inputs:
    4x Stereo 2RCA Coaxial DVS Return/Phono Input
    4x Stereo 2RCA Coaxial Line Input
    2x XLR 3-Pin Mic Input
    4x 1/4″ TRS Line Input
    1x 1/4″ TRS Hi-Z/Return Input
    3x 1/4″ TRS Return Input
    2x 1/4″ TRS Return Input
  • Audio Outputs:
    2x XLR 3-Pin Balanced Master Output
    2x 1/4″ TRS Balanced Master Output
    2x 1/4″ TRS Balanced Booth Output
    1x Stereo 2RCA Coaxial Unbalanced Record Output
    1x 1/4″ TRS Send Output
    3x 1/4″ TRS Send Output
    2x 1/4″ TRS Headphone Output
    2x 1/8″ / 3.5 mm TRS Headphone Output
  • Other I/O:
    1x DIN 5-Pin MIDI Output
    1x RJ45 Link Output
    2x Phono Ground Terminal
  • Phantom Power: No
  • USB: 2x USB-B 2.0 (Class Compliant/Audio I/O)
  • Wireless: No
  • Media Card Slots: No
  • Headroom: 20 dB
  • Crosstalk: <-83 dB
  • THD: <0.05%
  • Included Software: No
  • Compatible Software (Not Included): Traktor Pro Traktor Scratch pro 2
  • OS Compatibility: macOS / Windows
  • Mobile App Compatible: No
  • Required Hardware: USB 2.0 Port
  • Internet Connection: Required for Registration, Software/Driver Download
  • Power Requirements: AC/DC Power Adapter (Included)
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • AC Power I/O: 1x IEC
  • Power Consumption: 45 W (Maximum)
  • Anti-Theft Features: Kensington Security Slot
  • Dimensions (W x D x H): 13.3 x 16.2 x 4.3″ / 336.0 x 410.0 x 109.0 mm
  • Weight: 15.4 lb / 7 kg

Additional information

Weight 10.2 kg
Dimensions 53.34 × 47 × 20.32 cm
