Description

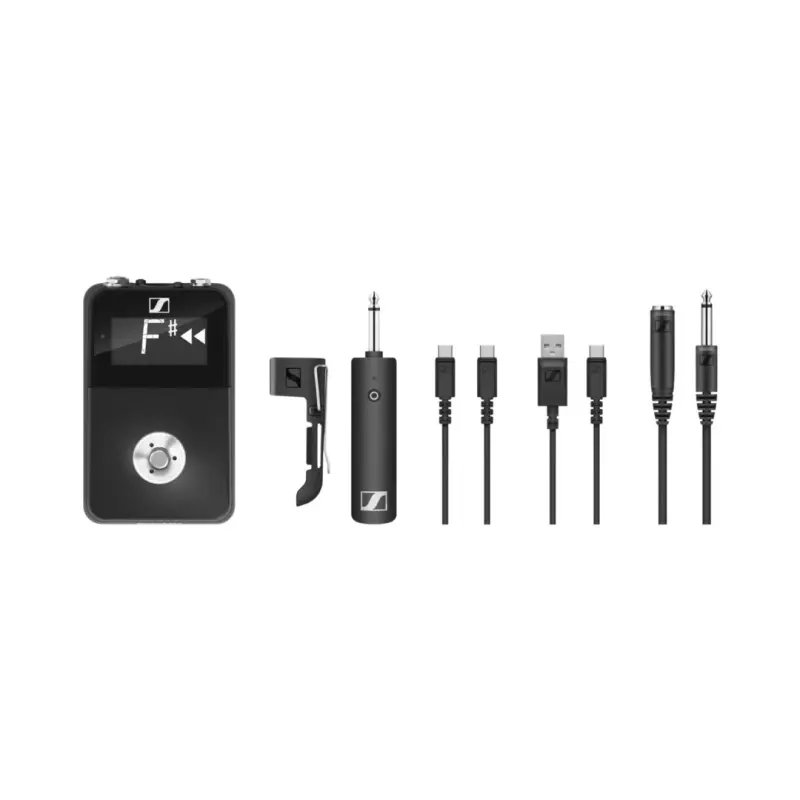

Versatile Pedalboard Receiver
Designed for convenience, the pedalboard receiver includes a built-in tuner with an LED display, a footswitch for muting, and both 1/4" and XLR outputs for flexible routing. It integrates seamlessly into your setup, eliminating the need for additional gear while preserving your instrument’s tone.
Seamless Wireless Performance

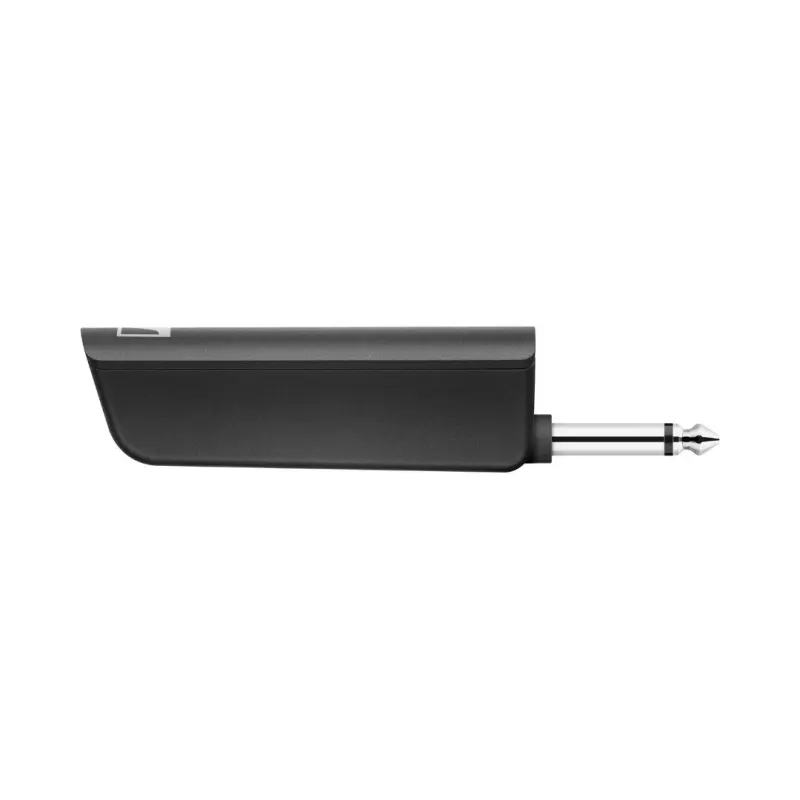

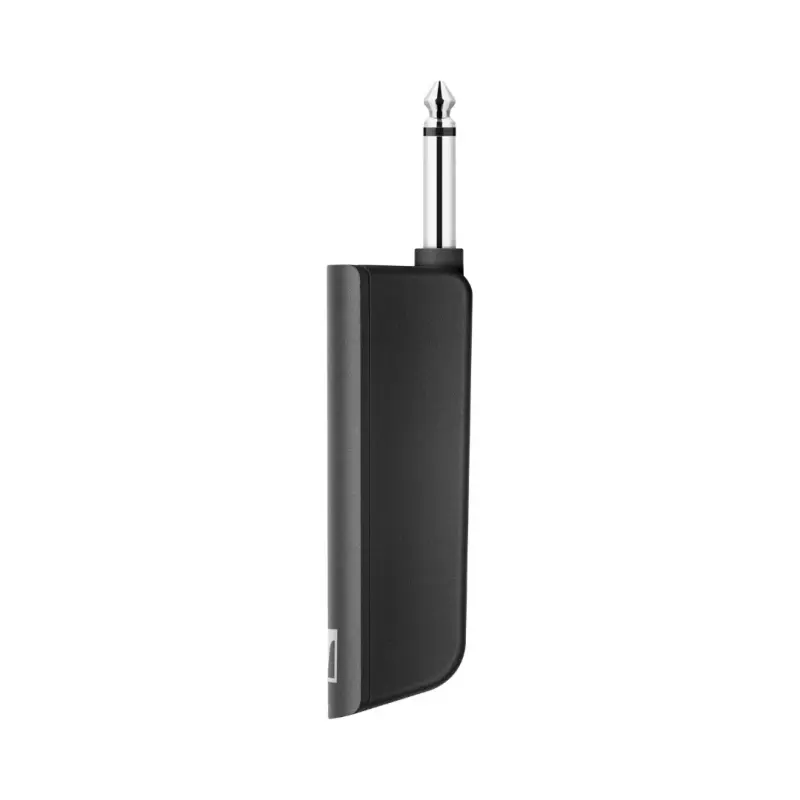

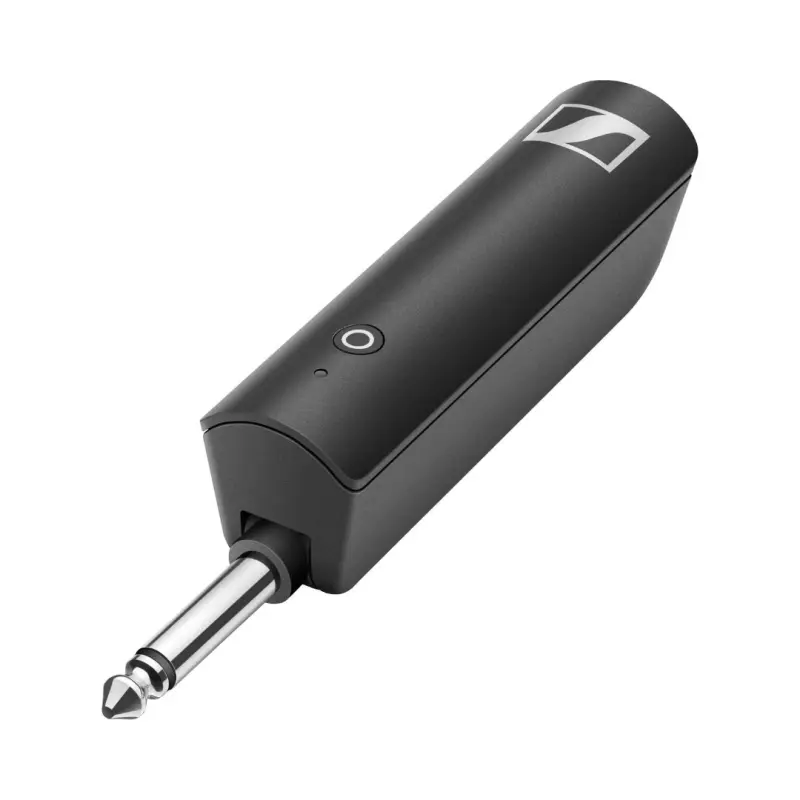

The XSW-D Pedalboard Set delivers a seamless wireless experience with a one-touch digital system. Its plug-on transmitter connects directly to your instrument, while the pedalboard receiver ensures a stable, low-latency connection for clear, uninterrupted sound.
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Eco-friendly USB-rechargeable lithium-ion batteriy on the transmitter—1-hour charging to reach 50% of battery timeÂ
- Conveniently recharge transmitter batteries via USB while in operation or during breaks throughout the day
- Pedalboard receiver is powered via included power adapter
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
- Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)
Diversity: Non-Diversity
RF Frequency Band: 2400 to 2483.5 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 250′ / 76.2 m
Max Transmitters per Band: 1
Latency: < 4 ms
Mobile App Compatible: No
Number of Audio Channels: 1
USB/Lightning Connectivity: 1x USB-C Female (Charging)
Frequency Response: 10 Hz to 18 kHz
Power Requirements: Battery
Included Transmitters: 1x Plug-On Microphone
RF Output Power: 10 mW
Input Level: Instrument
USB I/O: 1x USB-C (Charging)
Muting: Off/On Switch
Frequency Response: 10 Hz to 18 kHz
Receiver Battery Life: 5 Hours
Transmitter Battery Life: 5 Hours
Battery Charging Time: 3 Hours
AC/DC Power Adapter: 5 VDC (Included)
