Description
Dual Sound Mixes & Pro Audio Support
The Bridge Cast X enables dual sound mixes for personal and audience adjustments, offering broadcast-quality XLR mic support and an integrated preamp for professional sound. Its versatile headphone jack accommodates both pro headphones and headset mics, eliminating the need for external equipment.
Advanced Voice Processing & Control

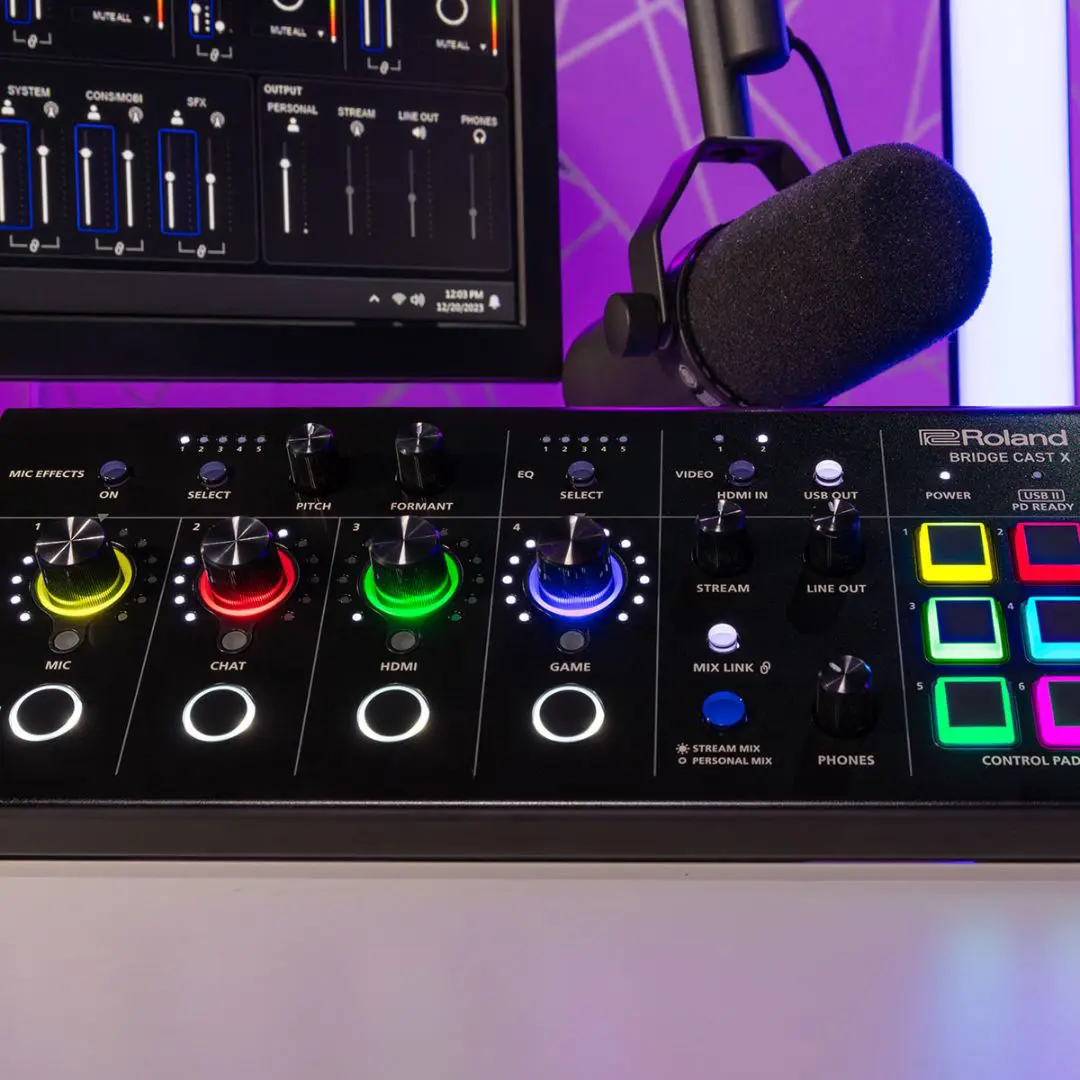

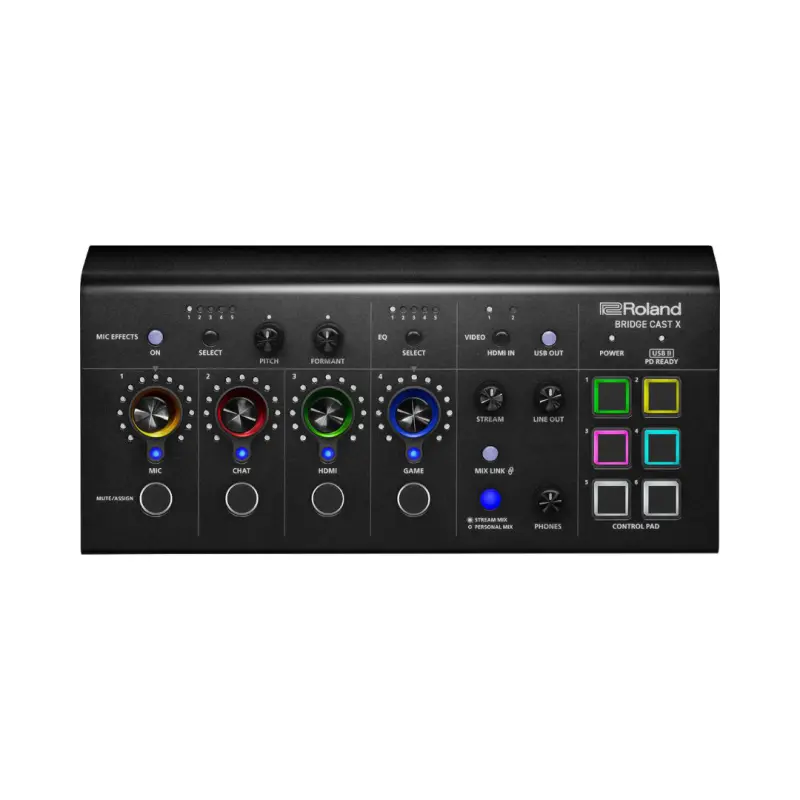

Bridge Cast X provides advanced voice processing with pitch adjustment, EQ, compression, noise suppression, and reverb. Customize your control setup with six assignable pads for sound effects and OBS shortcuts. The intuitive panel offers real-time control with dedicated knobs and buttons.
Seamless Multi-Device Connectivity

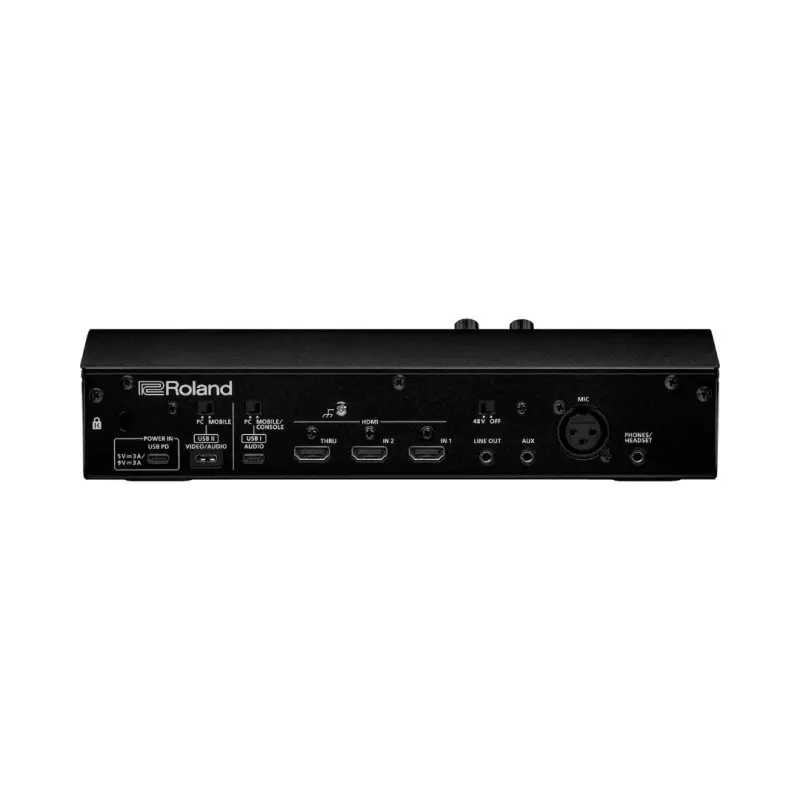

Connect multiple devices like PCs, gaming consoles, and cameras with Bridge Cast X's two USB-C ports and HDMI inputs. The HDMI throughput facilitates a dedicated monitor, ideal for intricate streaming setups with consoles like PlayStation 5.
BRIDGE CAST App & BGM CAST Integration

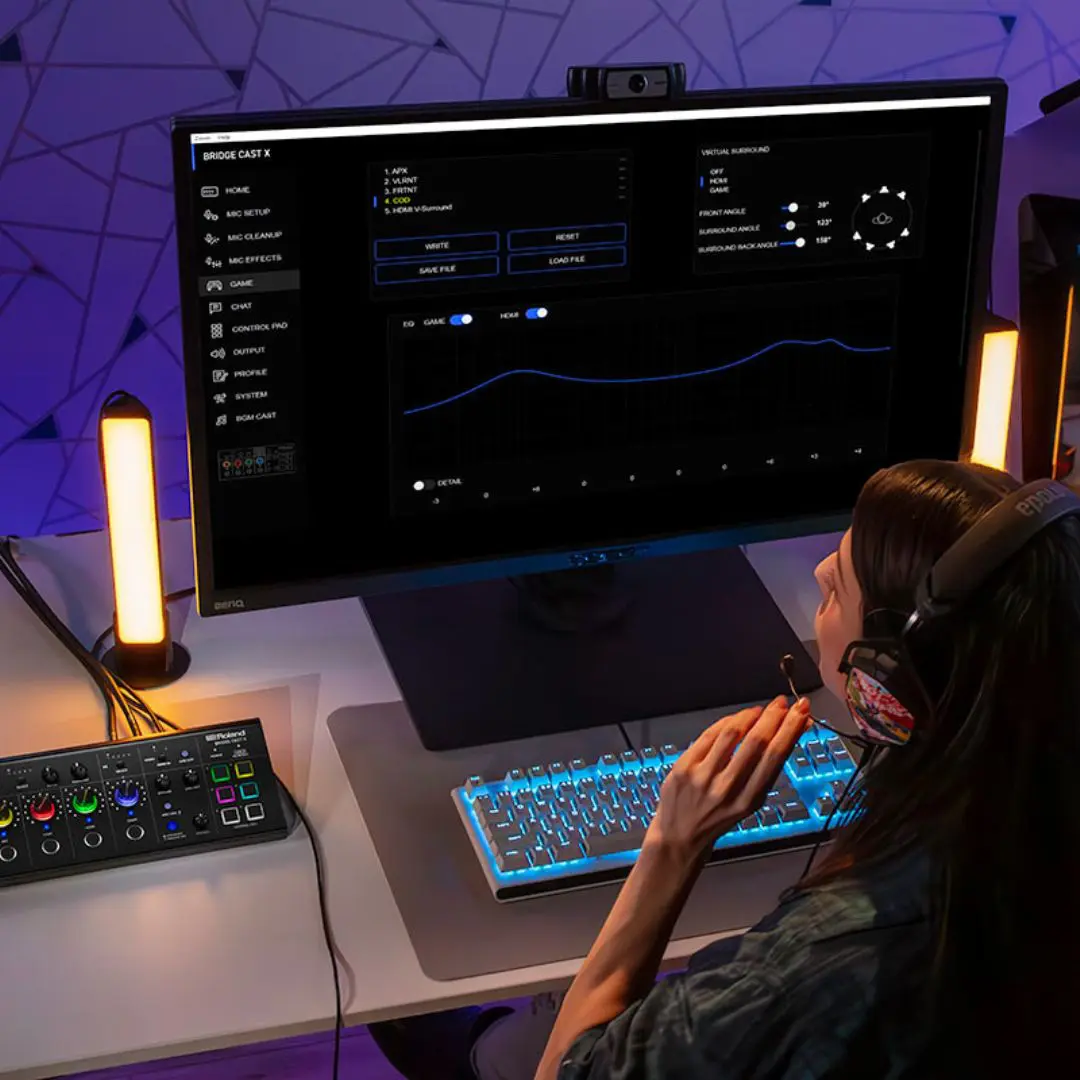

Improve streaming using the BRIDGE CAST app for detailed audio mixing, signal routing, and hardware customization. Access royalty-free music and sound effects with BGM CAST, creating custom playlists for ideal stream ambiance. Customize LED colors and save hardware setups for various streaming configurations.
- Professional AV streaming interface for online gamers, podcasters, and vloggers
- Connect multiple devices at once and switch up your streaming setup without having to repatch cables
- Two USB-C ports for computers and mobile devices
- Two HDMI inputs for gaming consoles, cameras, and more
- HDMI Thru for connecting to an external video monitor
- Powerful 32-bit hardware DSP allows you to dedicate all your sources to gaming and streaming
- Create independent mixes for you and the online audience with dual audio busses
- High-quality XLR microphone preamp with phantom power for broadcast-grade mics
- Headphones jack with a professional high-sensitivity output and support for a headset or inline mic
- Hands-on knobs and buttons for quick sound control
- Six assignable control pads for sound FX, Game EQ presets, OBS shortcuts, and more
- Solid, streamlined design with adjustable knob LED colors
- Voice Changer effects derived from the Roland VT series
- High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
- Enhance your gaming performance with five customizable Game EQ presets
- Delay function to synchronize audio with video when needed
- Aux input for playing audio from a smartphone or external device
- Customize settings and save hardware configurations with the BRIDGE CAST app
- Add royalty-free background music and sound effects to your streams with BGM CAST, available through the BRIDGE CAST app and Roland Cloud
Max I/O Capacity: 6x Input / 5x Output
Number of Analog Input Channels: 2 (1 Mono / 1 Stereo)
Number of Mic Preamps: 1
Number of Analog Output Channels: 2
Mix Routing: 2x Stereo Bus
Presets: 5x Preset (User)
Faders & Level Adjustment: No
Meters: Channel Meter: 4x Multi-Segment LED
- DC Input Power: 5 VDC at 1 A
- Input Polarity: Fixed
- Dynamic Processing: Compressor, Gate
- EQ: No
- EQ Parameters: 1x Shelf
- Graphic EQ: No
- Filters: 1x High-Pass
- Solo/Mute: Mute per Input Channel, Bus
- Channel Output/Source Monitoring: AFL, Post-Preamp, Post-EQ, Post-Compressor, Post-FX
- Built-In Effects:
2x Stereo Pitch Shift
1x Stereo Reverb
1x Stereo Delay
2x Stereo De-Esser - Real Time Analyzer: Yes
- Audio Delay: Yes
- Sample Rates: 44.1 / 48 / 96 kHz
- Bit Depth: AD/DA Conversion: 24-Bit
- DSP: 32-Bit Floating Point
- Max Input Level:
XLR Mic Input:
+1.5 dBu
1/8″ / 3.5 mm Talkback Input:
-8.5 dBu (Headset Mic)
1/8″ / 3.5 mm Aux Input:
+2 dBu - Output Level:
1/8″ / 3.5 mm Line Output:
+8 dBu (Maximum)
1/8″ / 3.5 mm Headphone Output:
+11 dBu (Maximum, Headphones or Headset) - Headphone Output Power:
1/8″ / 3.5 mm:
78 mW per Channel into 32 Ohms
1/8″ / 3.5 mm:
35 mW per Channel into 250 Ohms - I/O Impedance:
XLR Mic Input:
3.4 Kilohms
1/8″ / 3.5 mm Talkback Input:
1.3 Kilohms (Headset)
1/8″ / 3.5 mm Aux Input:
10 Kilohms
1/8″ / 3.5 mm Line Output:
1 Kilohm
1/8″ / 3.5 mm Headphone Output:
10 Ohms (Headphone or Headset) - Signal Generator: Yes
- Analog Inputs:
1x XLR 3-Pin Balanced Mic Input
1x 1/8″ / 3.5 mm TRS Stereo Aux Input - Analog Outputs:
1x 1/8″ / 3.5 mm TRS Stereo Line Output (Post-Fader)
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output (Post-Fader) - Phantom Power: +48 V, Selectable On/Off
- Digital I/O: No
- MIDI I/O: No
- USB I/O:
1x USB-C 2.0 (Audio Playback, Audio Streaming, Control, Host Connection, I/O, Multitrack Record)
1x USB-C 2.0 (Audio Streaming)
1x USB-C (Device Charging) - Wireless: No
- Mobile App Compatible:
Yes: iOS Only
App Name: BRIDGE CAST
Functionality: Adjust Settings, Remote Control, Setup
- Max Multitrack Recording: 2 Tracks
- File Format Support: Playback: PCM, WAV
- OS Compatibility:
Windows 10 or Later
macOS 11 or Later - Mobile Device Compatibility: iPhone
- Internet Connection: Required for Software/Driver Download
- Required Hardware: USB 2.0 Port, USB Cable
- Rack Mountable: No
- Dimensions: 10.6 x 5.1 x 2.8″ / 26.9 x 13 x 7.1 cm
- Weight: 3 lb / 1.4 kg
