Description
1400W Class-D Amplification
Delivers high-efficiency power with fast transient response and low distortion through a lightweight chassis. Ensures stable performance even during transport with aluminum housing and fanless cooling. Suitable for demanding live audio environments with consistent output.
High-Performance Transducer Design

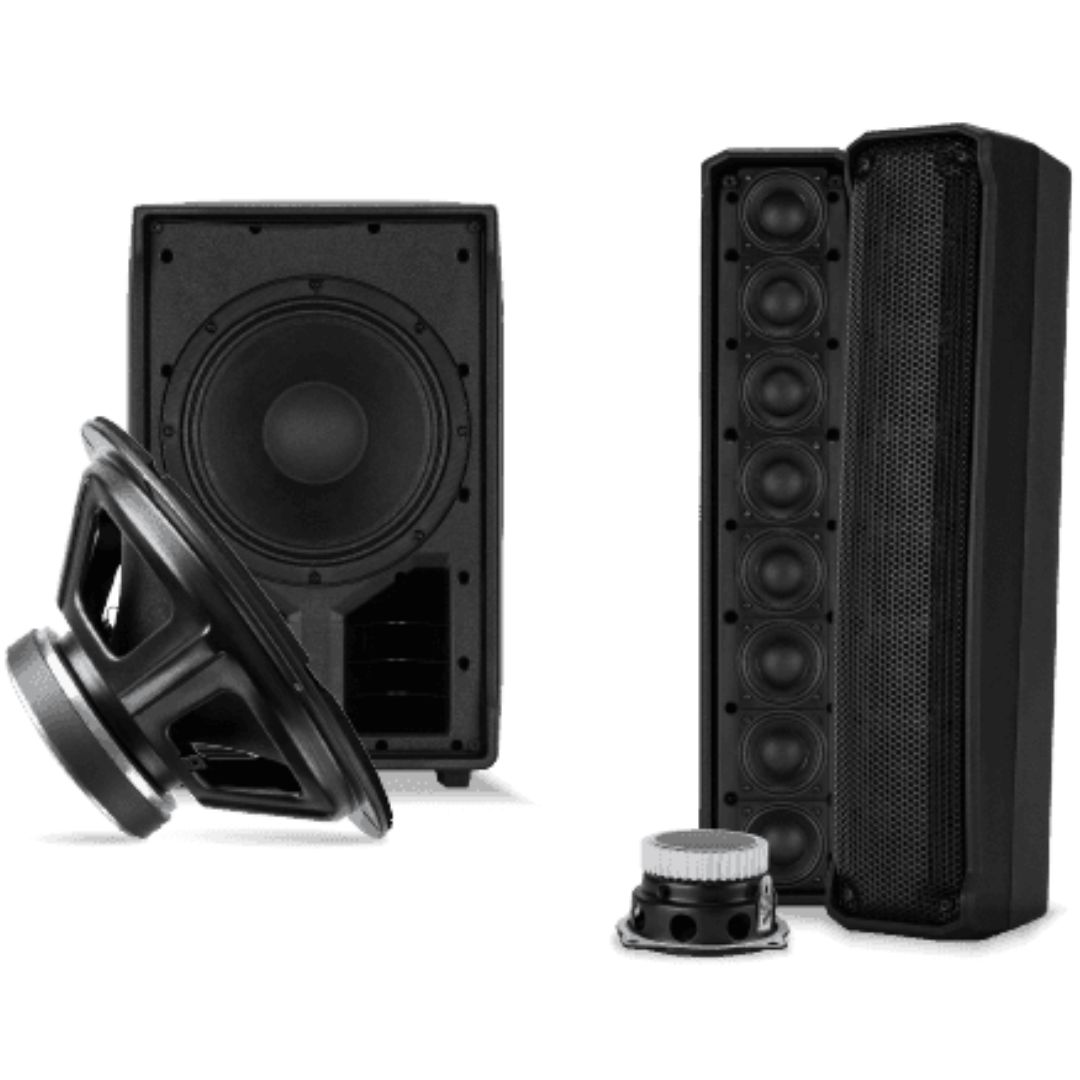

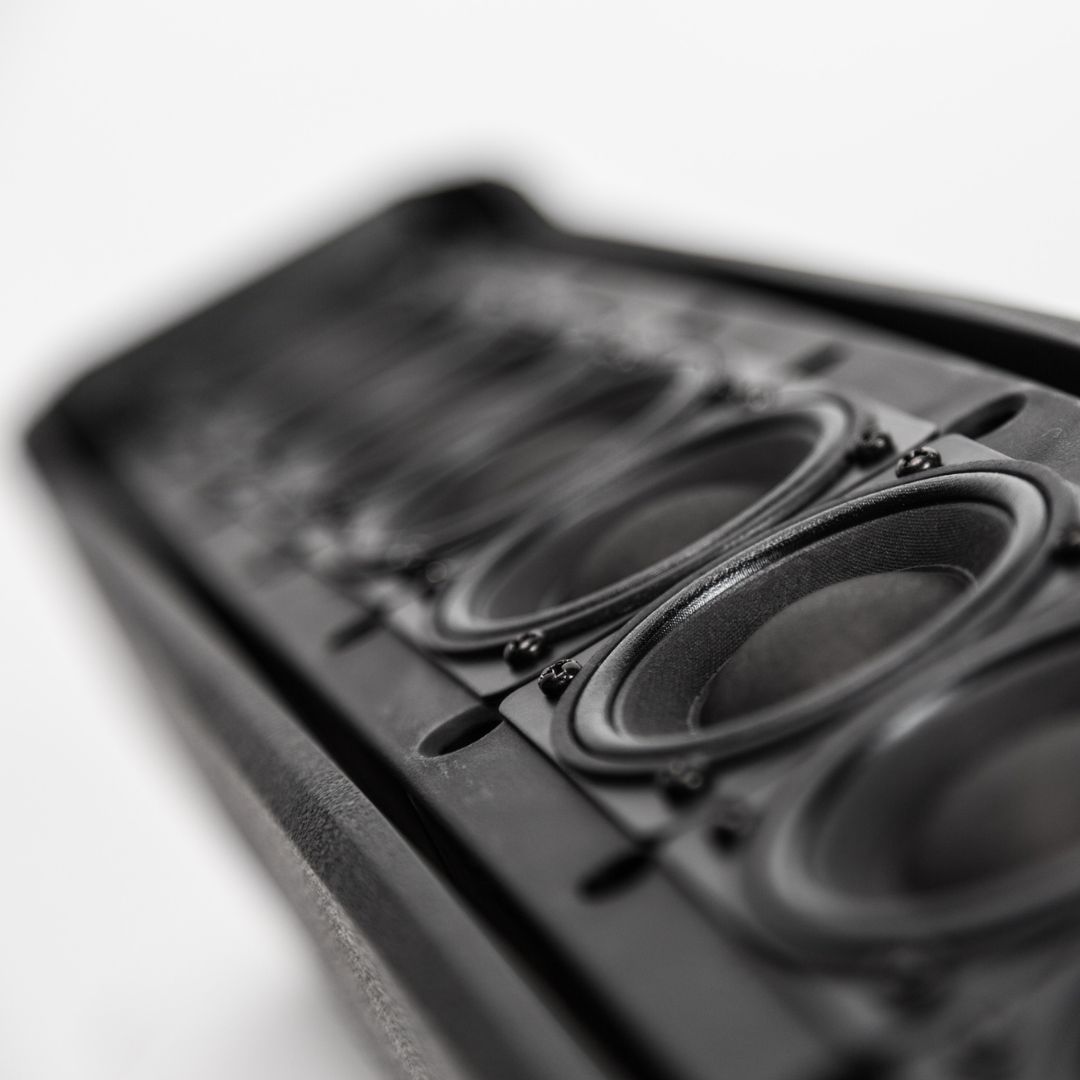

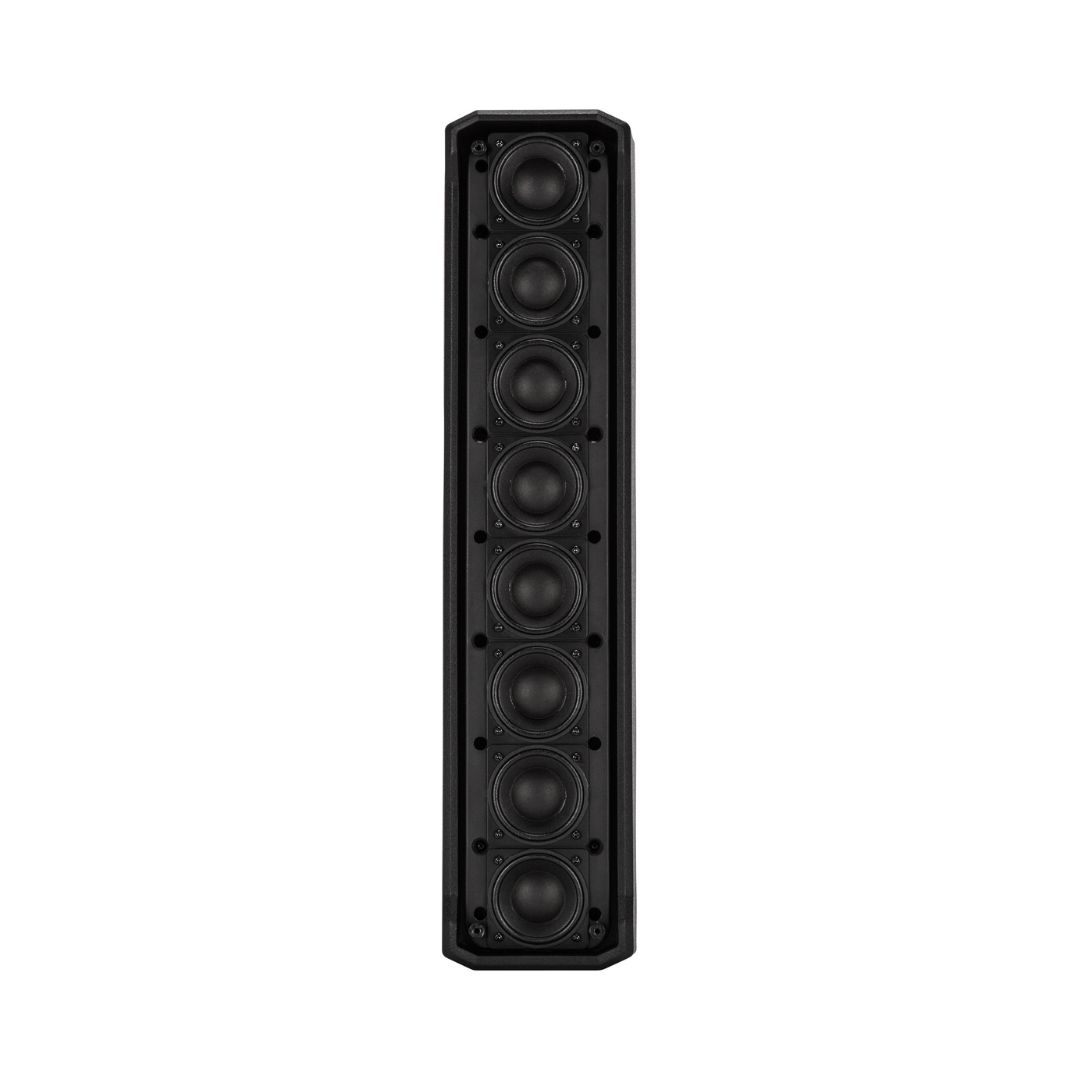

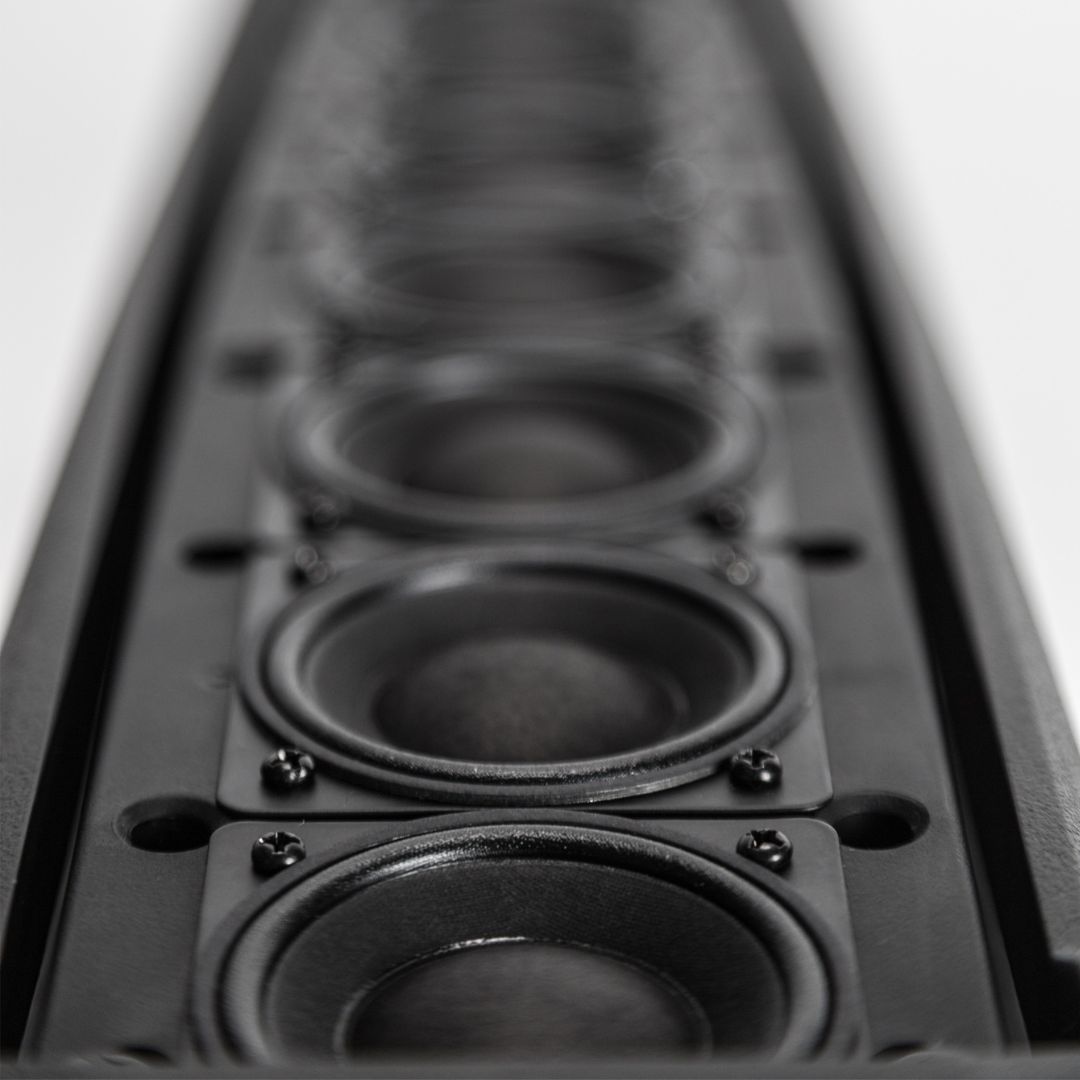

Equipped with a 12" woofer and eight 2" drivers arranged in a vertical array for full-range clarity. The 120° x 30° dispersion provides even coverage from front to back. FiRPHASE DSP technology enhances phase coherence and stereo imaging for detailed sound.

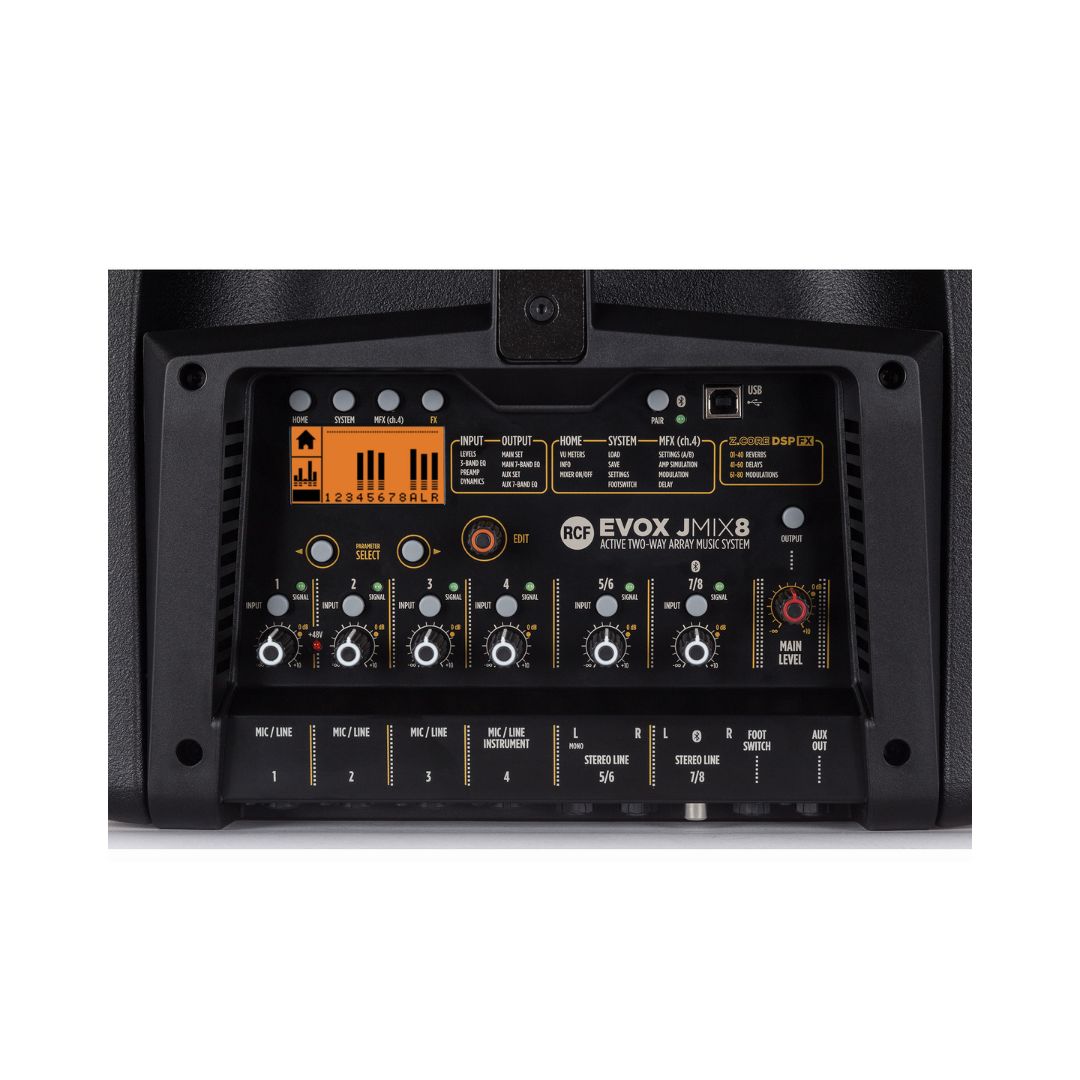

Built-in Digital Mixer
An 8-input digital mixer with high-quality FX, dynamic compression, and amp simulations is fully integrated. Control all parameters via the onboard panel or remotely through the EVOX app. Ideal for solo artists, bands, and mobile performers needing flexibility on stage.
Portable & App Control
The lightweight polypropylene cabinet includes a carry handle and optional trolley for easy mobility. Quick pole-mount setup with secure connections makes deployment effortless. Bluetooth-enabled app allows remote mixer control on iOS and Android devices.
1400W Class-D amplifier delivers high-efficiency, powerful performance in a lightweight design.
8-channel digital mixer with built-in FX, dynamic compression, and amp simulations.
Bluetooth remote control via EVOX app for iOS and Android devices.
12″ woofer and eight 2″ drivers offer clear, full-range sound with wide 120° x 30° coverage.
FiRPHASE DSP ensures transparent, phase-coherent audio with minimal latency.
Hi-Z input for direct instrument connection with realistic amp modeling.
Compact polypropylene cabinet with handle and optional trolley for easy transport.

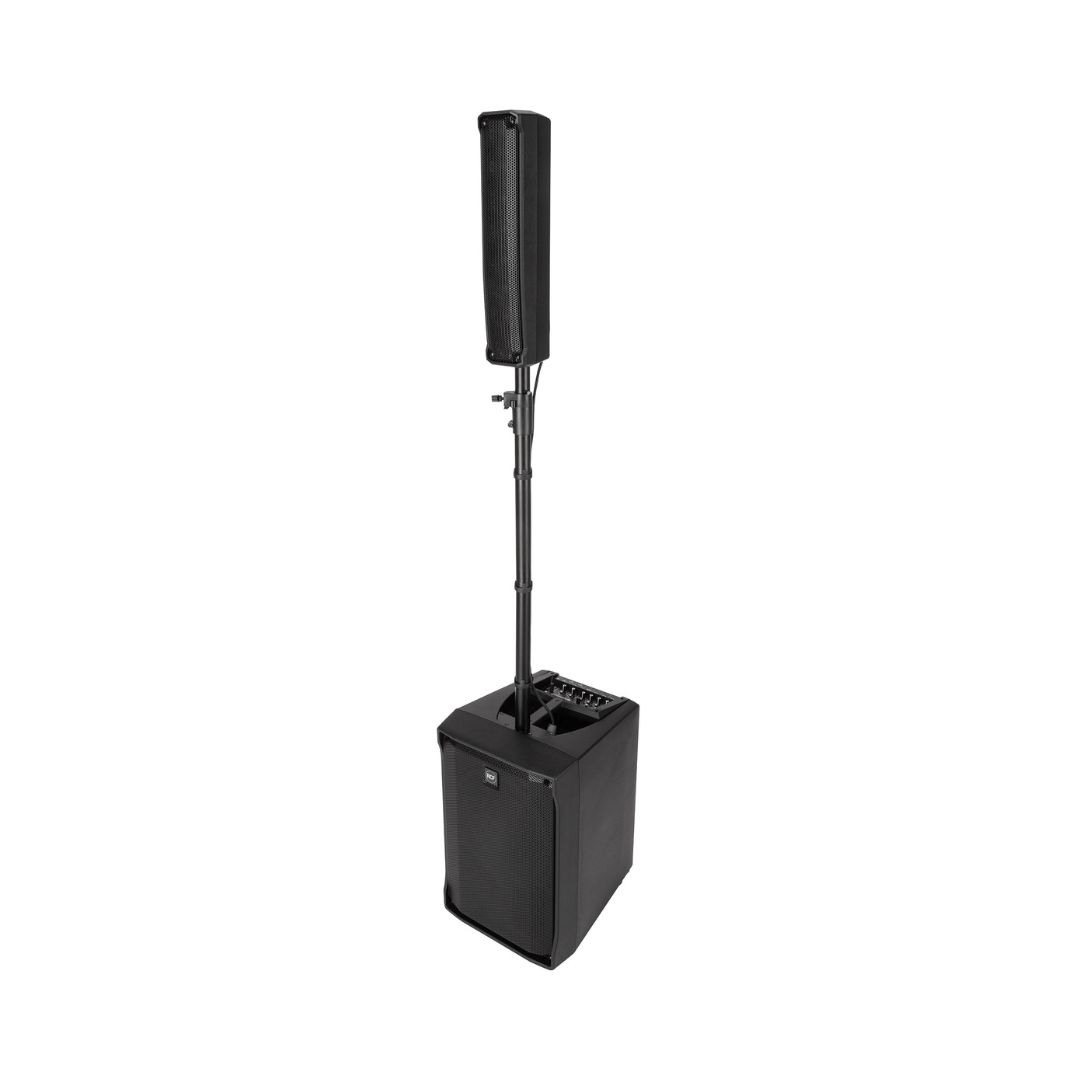

Quick and secure setup with pole mount, SpeakON connections, and app integration.
Configuration: Active 2-Way
Total Power Capacity:
1400 W Peak
700 W RMS
Amplifier Power Rating:
LF:
1000 W Peak
500 W RMS
HF:
400 W Peak
200 W RMS
Amplifier Class: Class-D

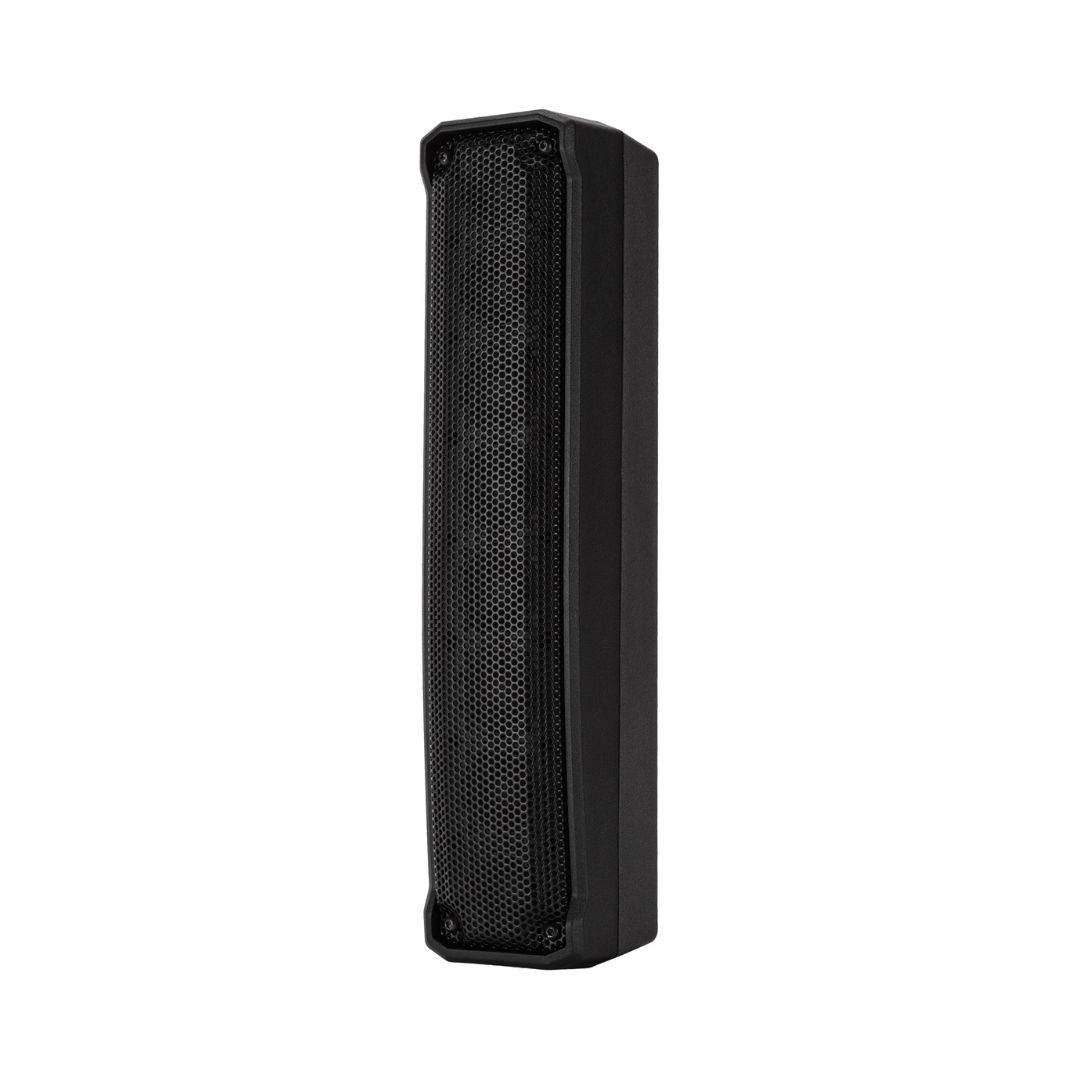

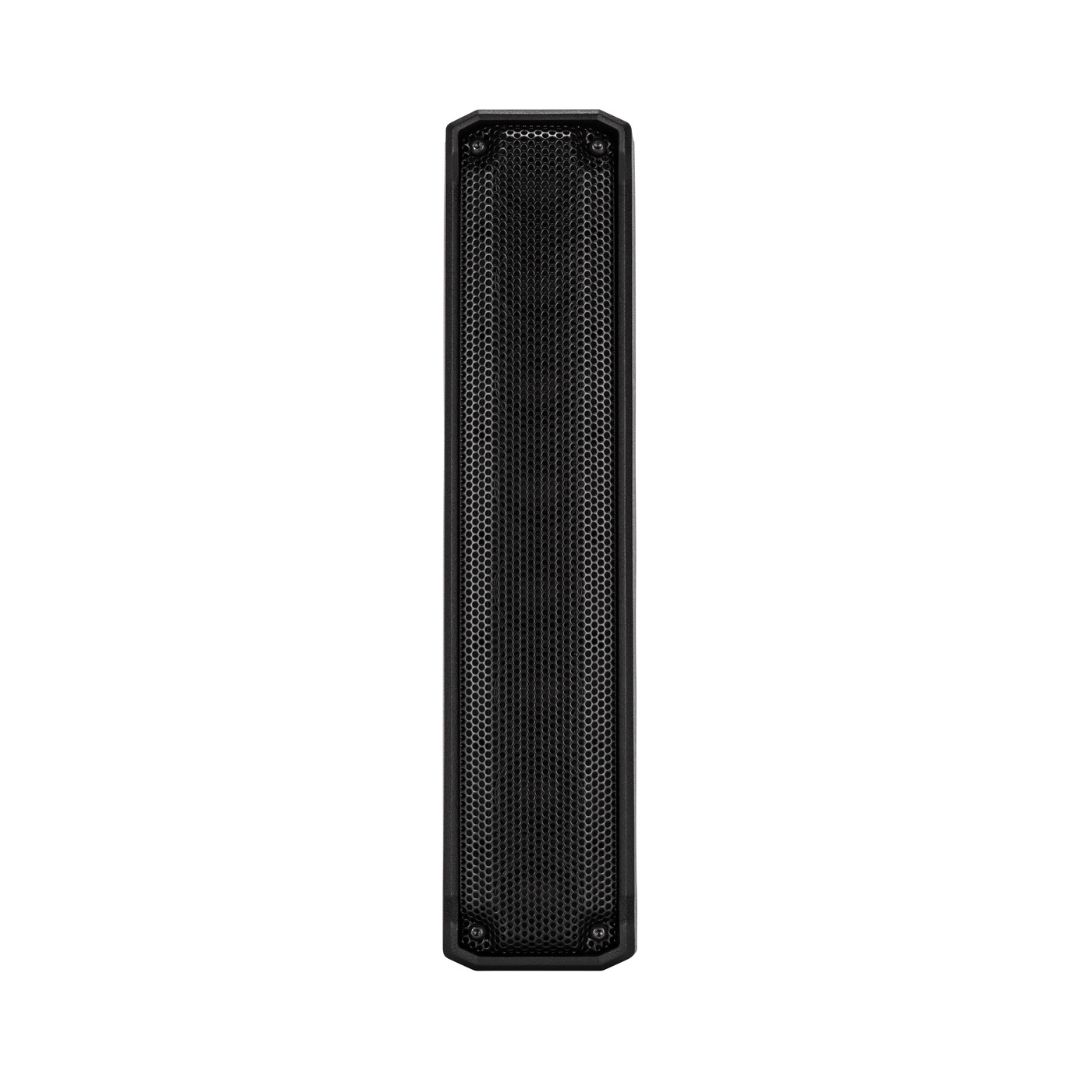

Full-Range Driver: 8x 2″ / 5.1 cm
HF Voice Coil: 1″ / 2.5 cm

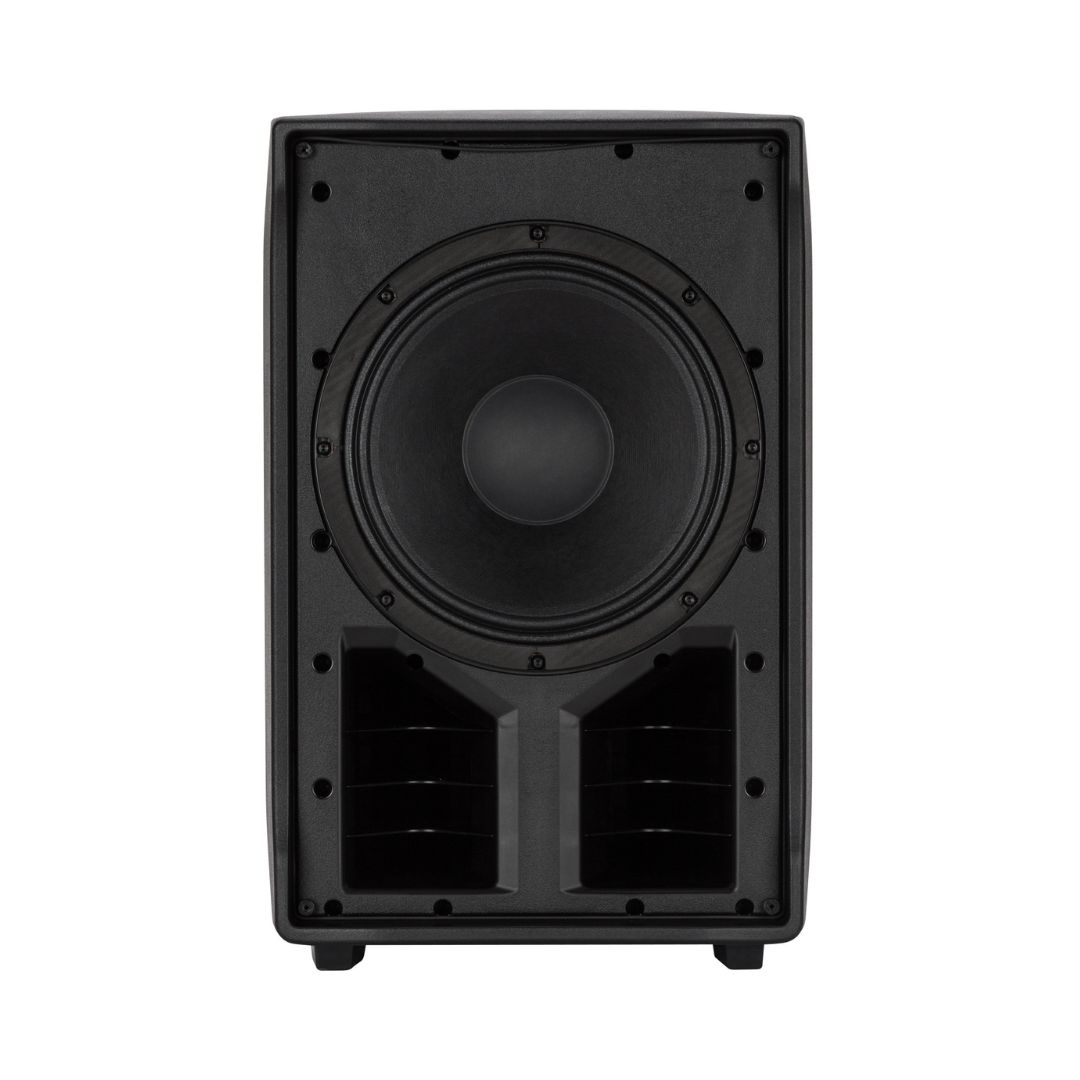

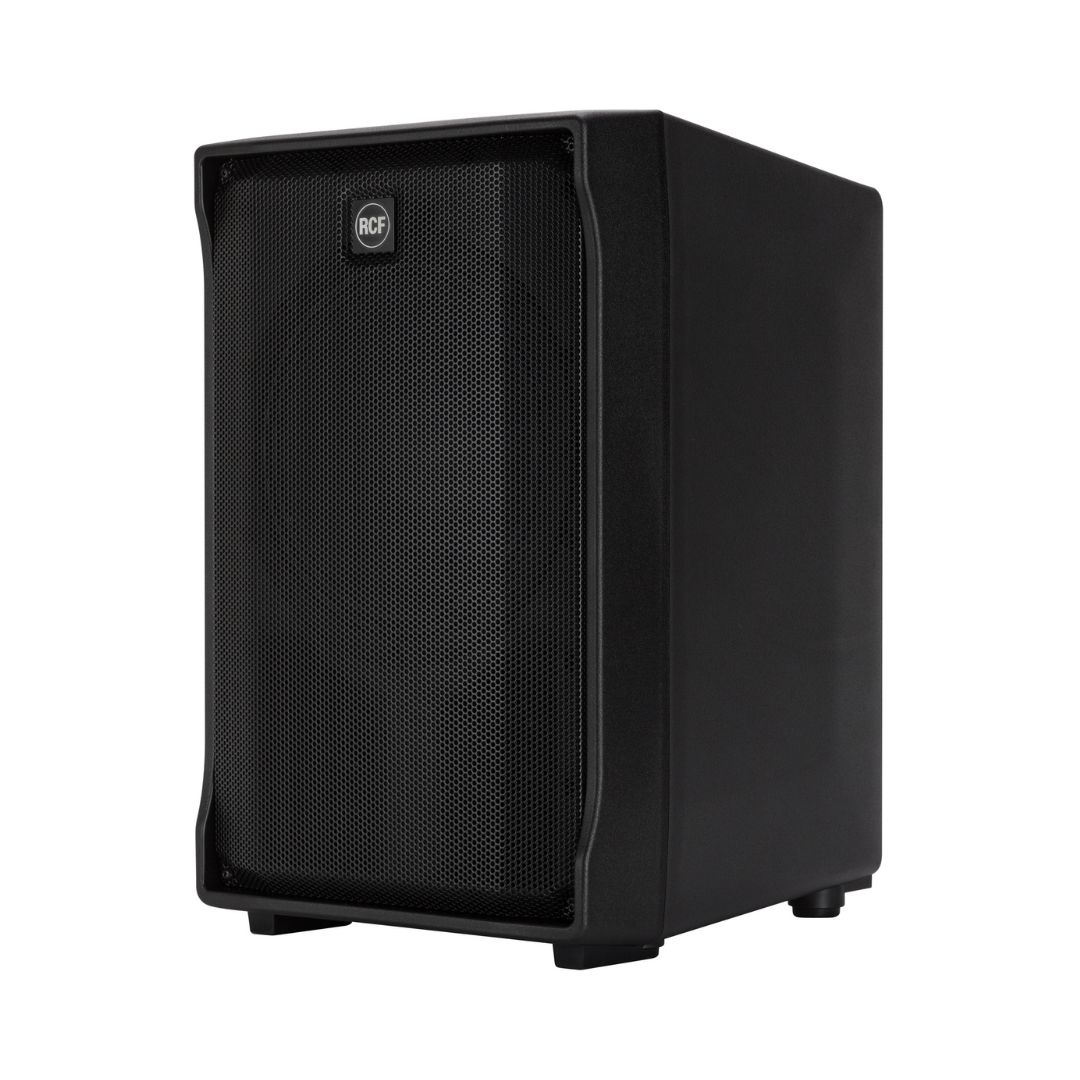

LF Driver: 1x 12″ / 30.5 cm Woofer
LF Voice Coil: 2.5″ / 6.4 cm
Frequency Response: 40 Hz to 20 kHz
Maximum SPL: 128 dB
Coverage Angle: 120° H x 30° V
Input Sensitivity: +4 dBu / -2 dBu
Gain Range: 0 to 45 dB
I/O Impedance:
Mic Input: 3 Kilohms
Line Input: 11 Kilohms
Hi-Z Input: 1 Megohms
Output: 150 Ohms
Total Harmonic Distortion/Noise: 0.004%
Protections: RMS, Thermal

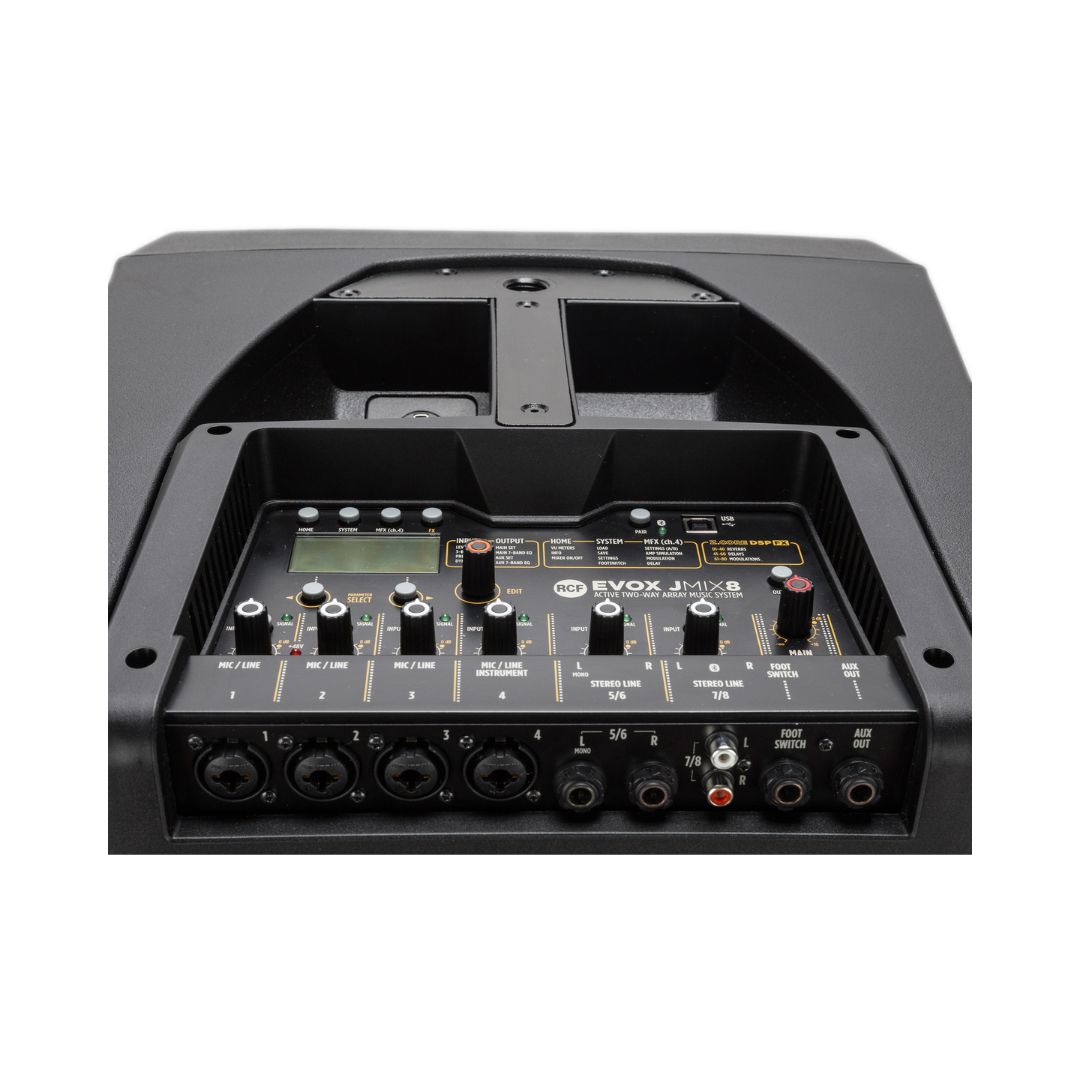

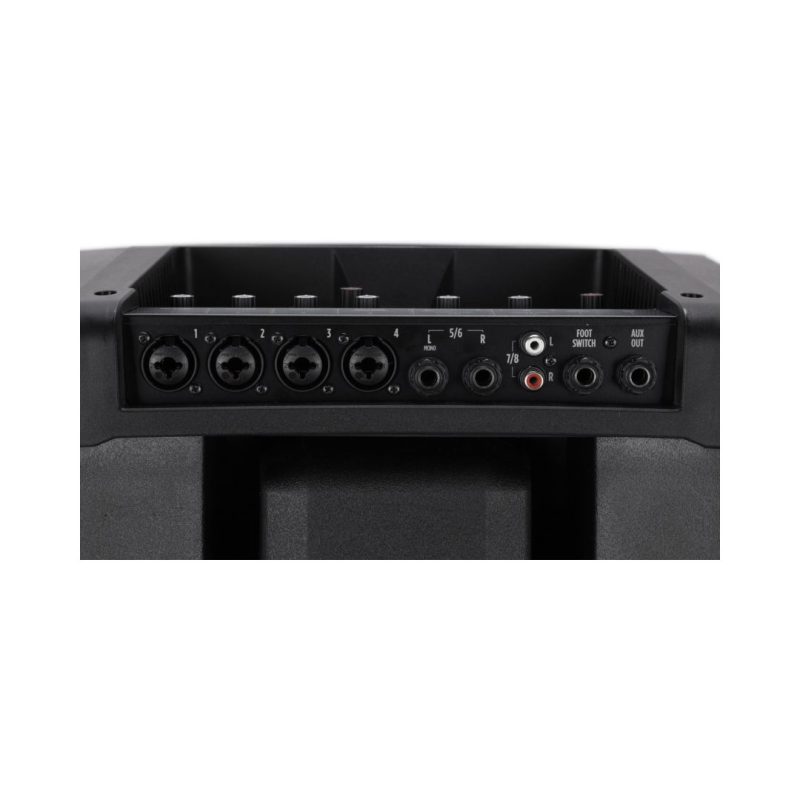

Audio I/O:
1x 1/4″ TRS Footswitch Input
4x Combo XLR-1/4″ TRS
1x XLR 3-Pin Input
1x XLR 3-Pin Output
2x 1/4″ TS Input
1x Stereo 2RCA Input

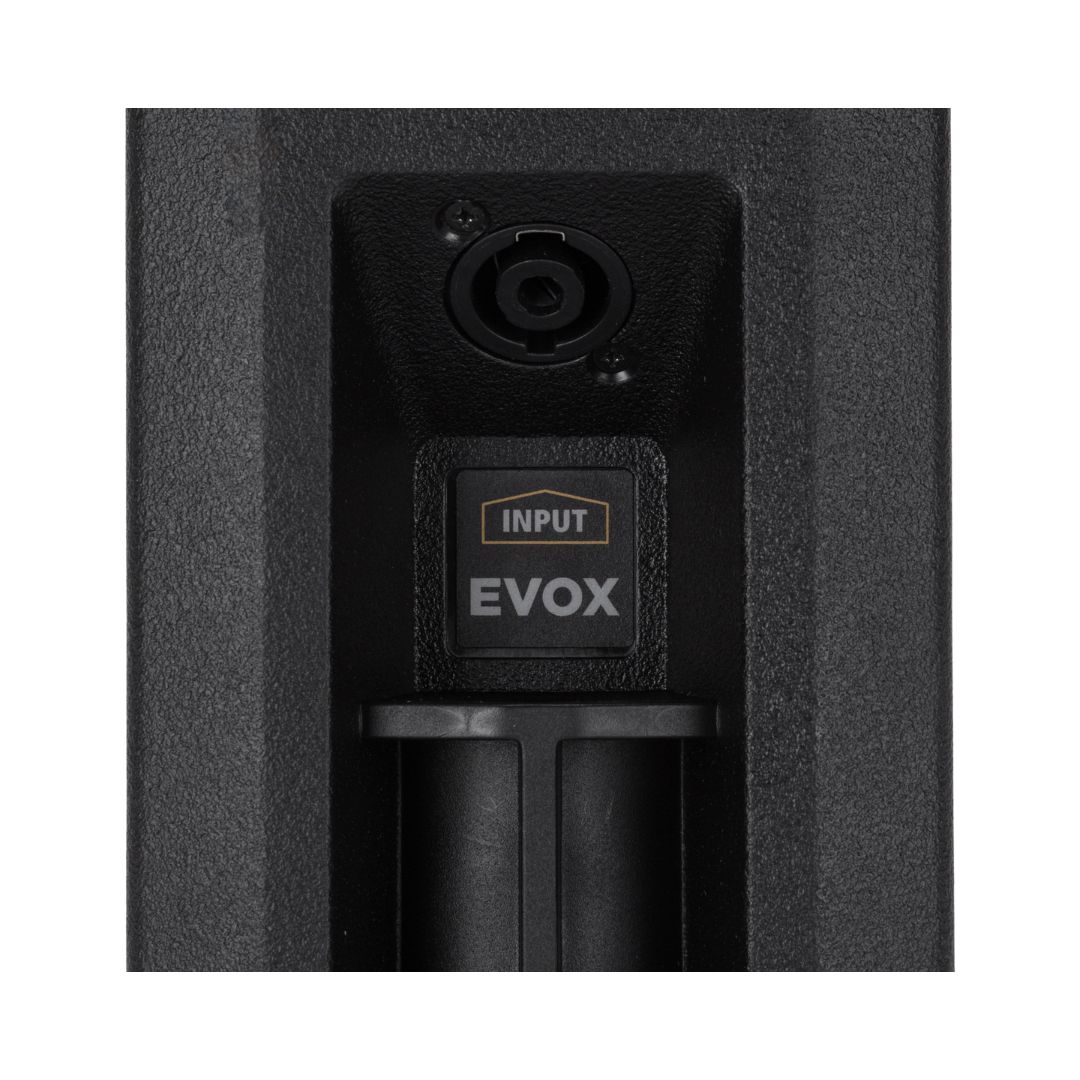

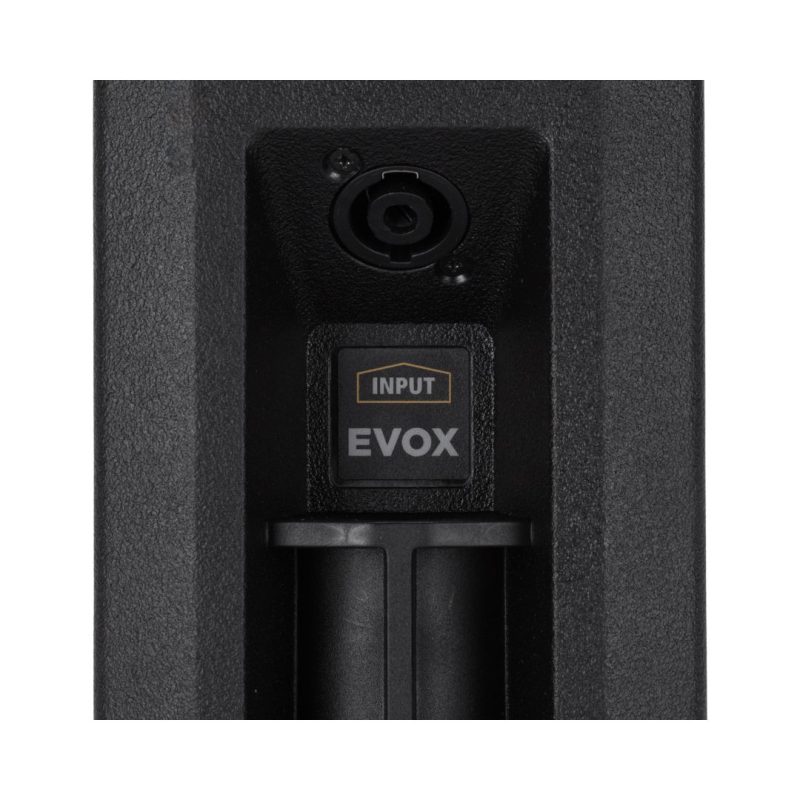

1x speakON NL2 Input
1x speakON NL2 Output
1x 1/4″ TRS Aux Output
USB I/O: 1x USB-B
Crossover: 220 Hz
Filters: High-Pass: 20 Hz to 1 kHz
Dynamic Processing: Soft Limiter
Maximum Sampling Rate: 48 kHz / 24-Bit

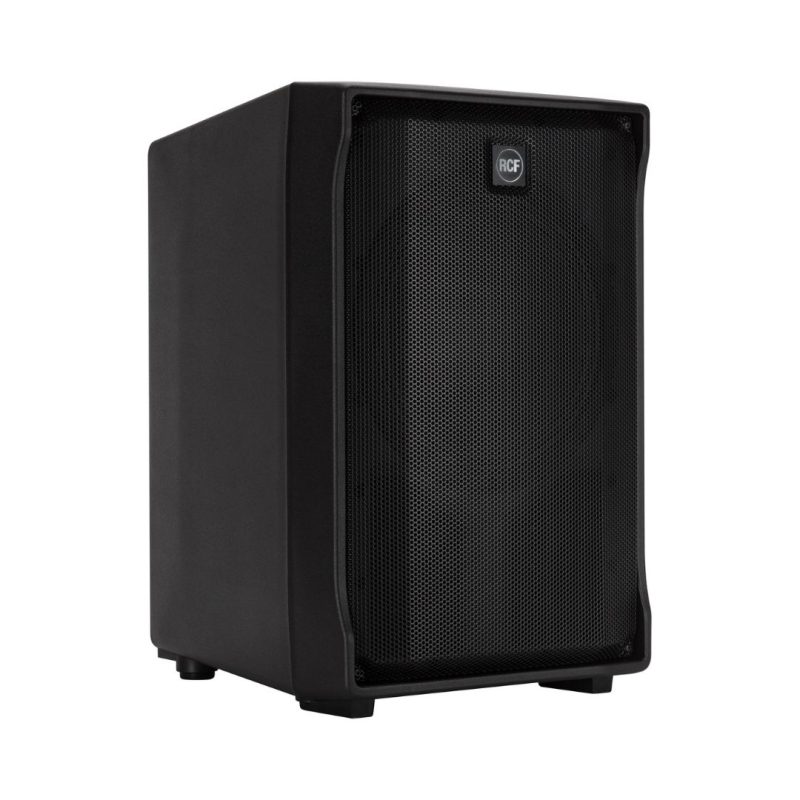

Construction Material: Metal Grille, Polypropylene
Certifications: CE
Dimensions: 24.5 x 15.7 x 18.1″ / 62.3 x 40 x 46 cm
Weight: 53.8 lb / 24.4 kg
