Description

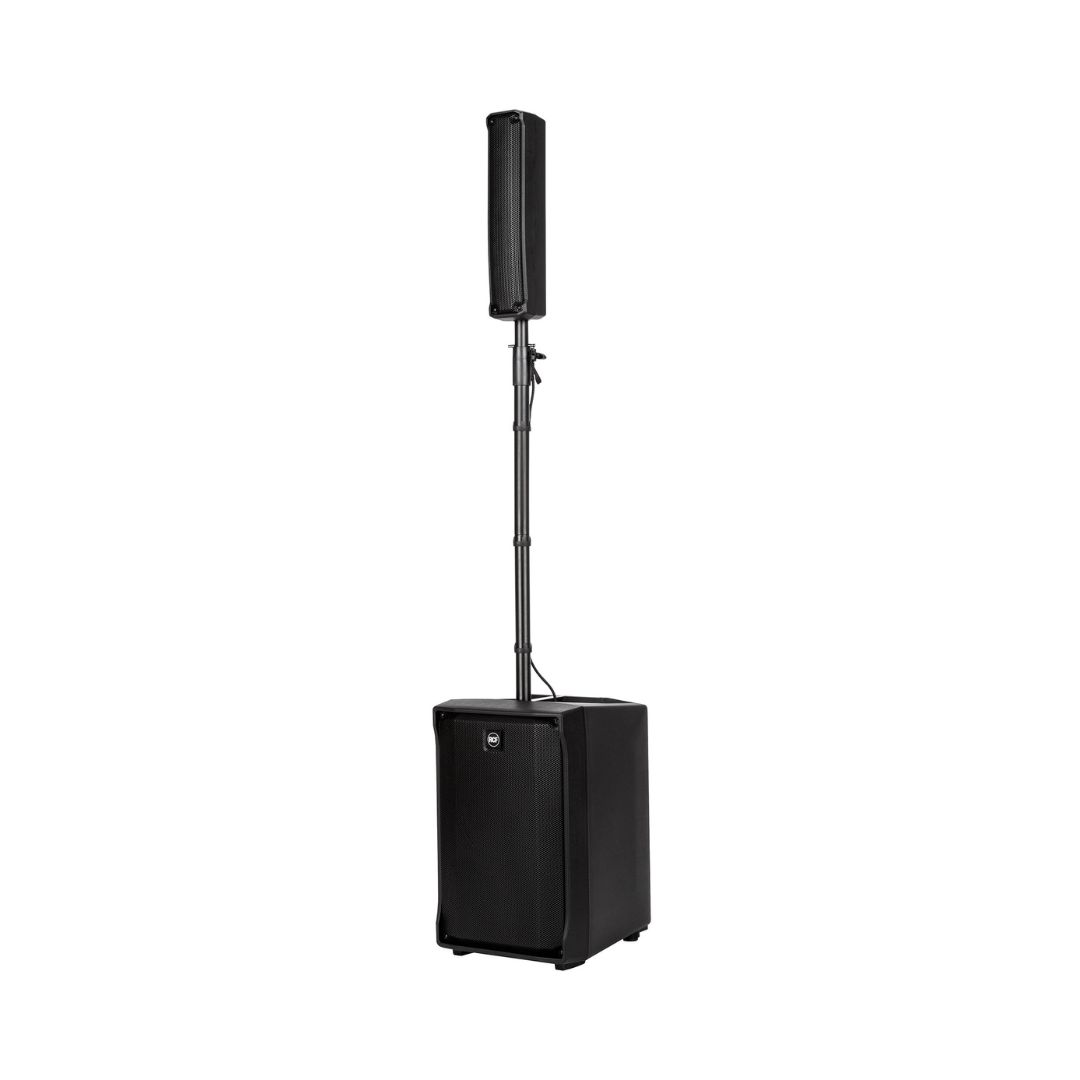

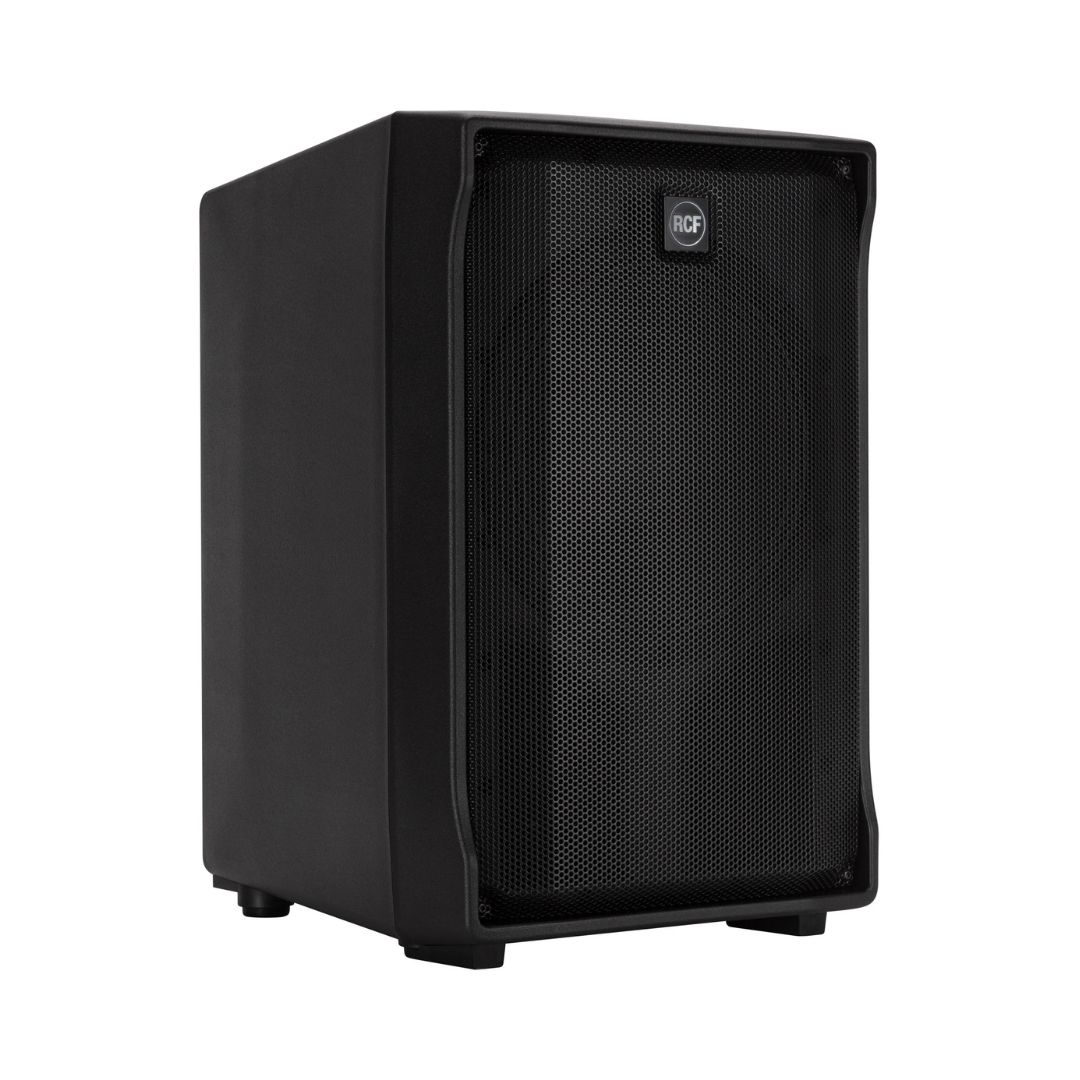

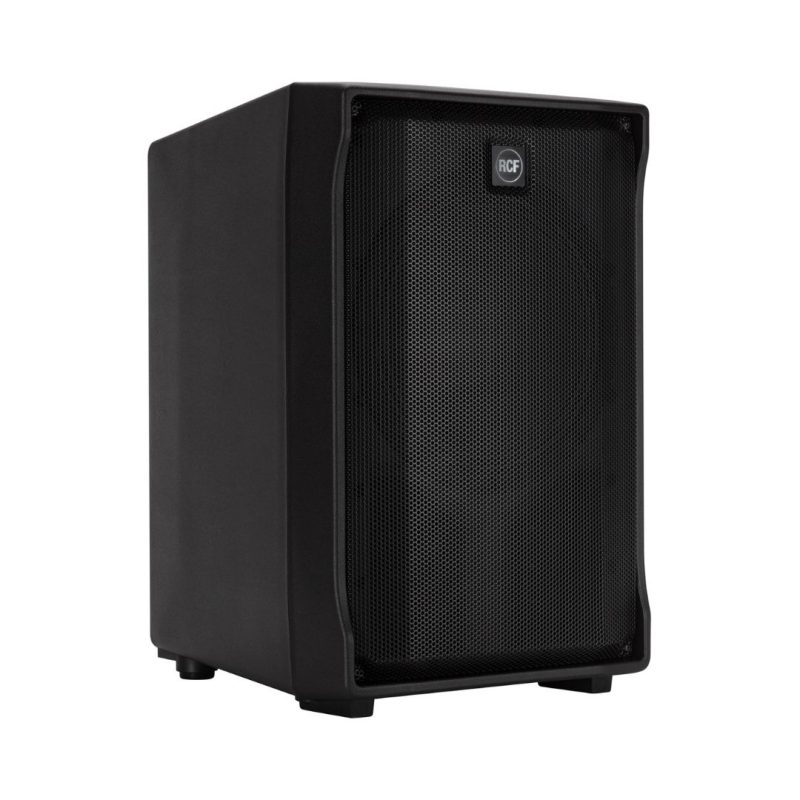

The RCF EVOX J8 is a compact and powerful portable line array system that delivers exceptional audio performance for live music, DJs, and presentations. It features a 12″ high-excursion woofer and eight 2″ full-range drivers, powered by a 1400W Class-D amplifier for rich, dynamic sound with wide 120° horizontal and 30° vertical coverage. Integrated DSP processing with FiRPHASE technology ensures clear, phase-coherent audio and precise imaging. The lightweight polypropylene composite cabinet is designed for easy transport, with a built-in handle and an optional trolley system. Simple to set up with a secure pole-mount connection, the EVOX J8 includes switchable EQ modes and a Mic/Line input selector, making it a flexible and efficient solution for a variety of performance environments.

1400W Class-D Amplification
The 1400W Class-D amplifier delivers high-output performance with ultra-fast response and minimal distortion. Its robust aluminum housing ensures durability and fanless heat dissipation. This efficient design keeps the system lightweight and road-ready.

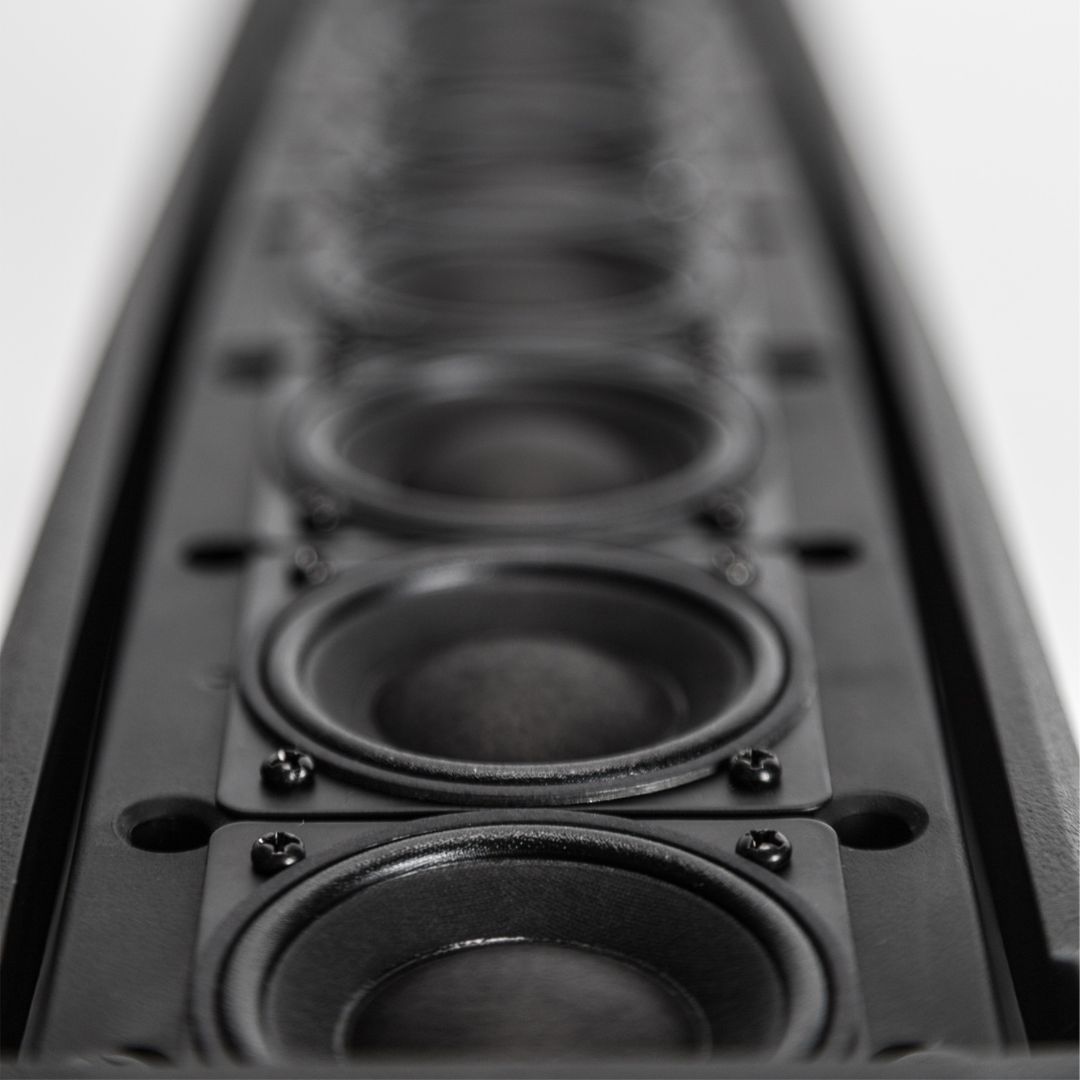

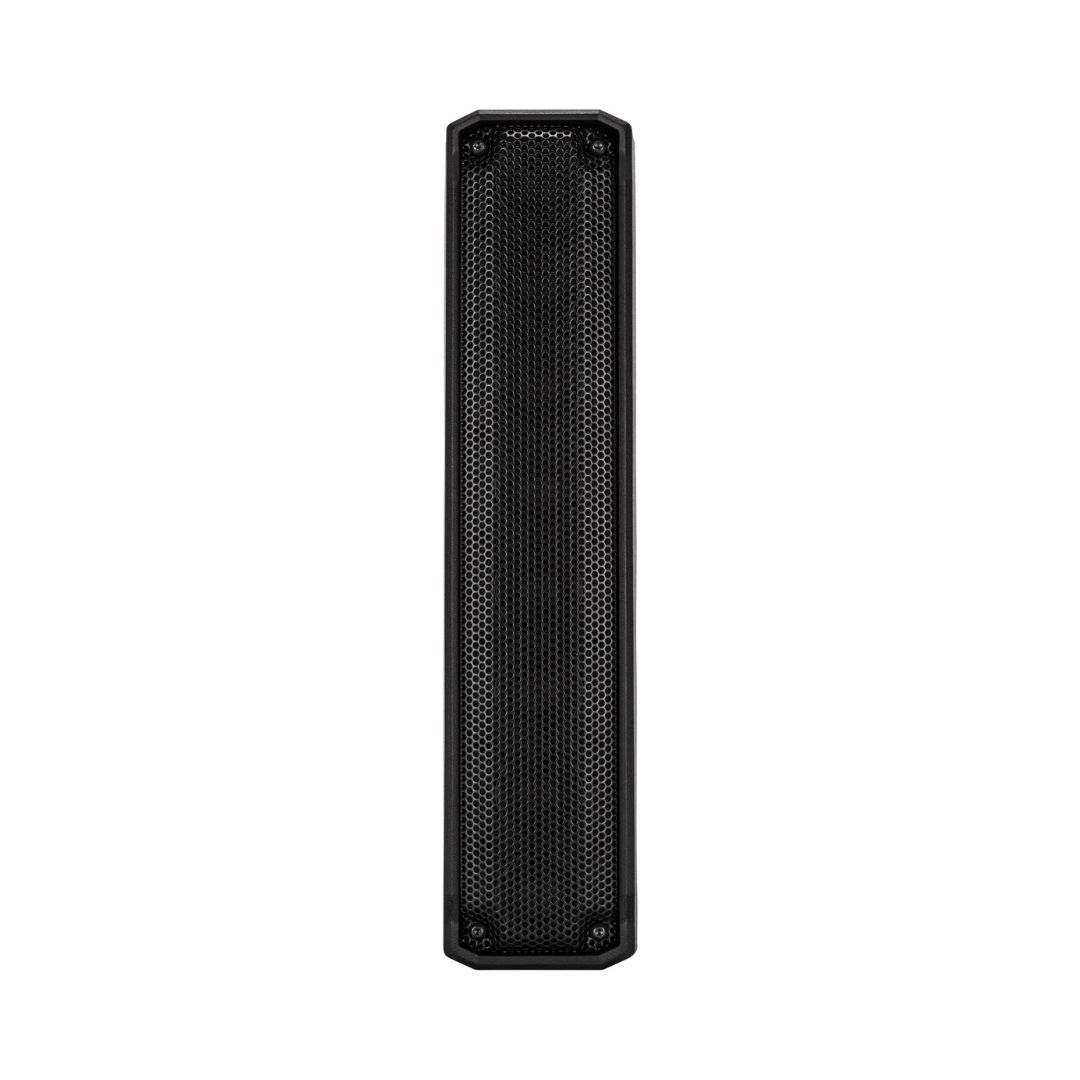

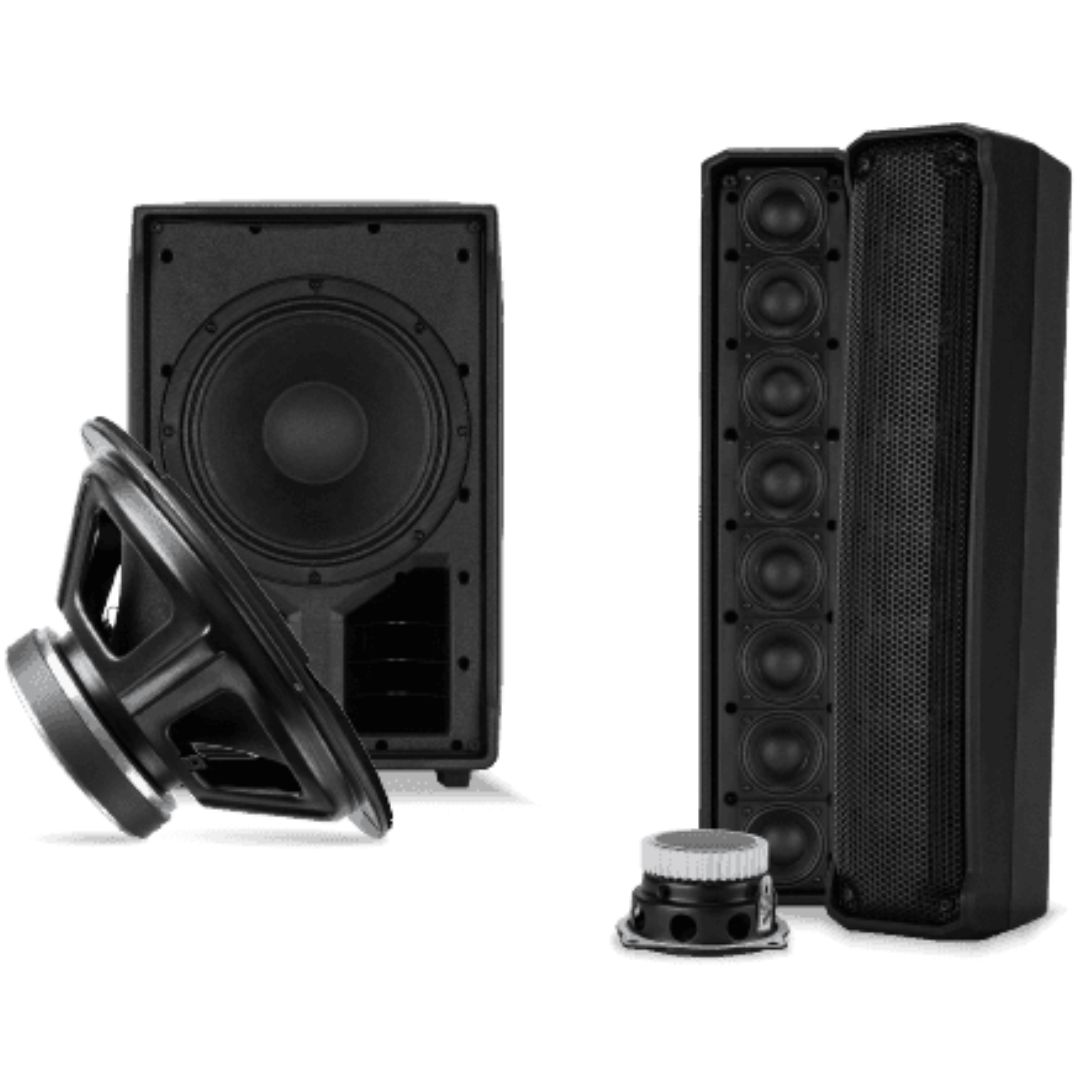

Optimized Speaker Array

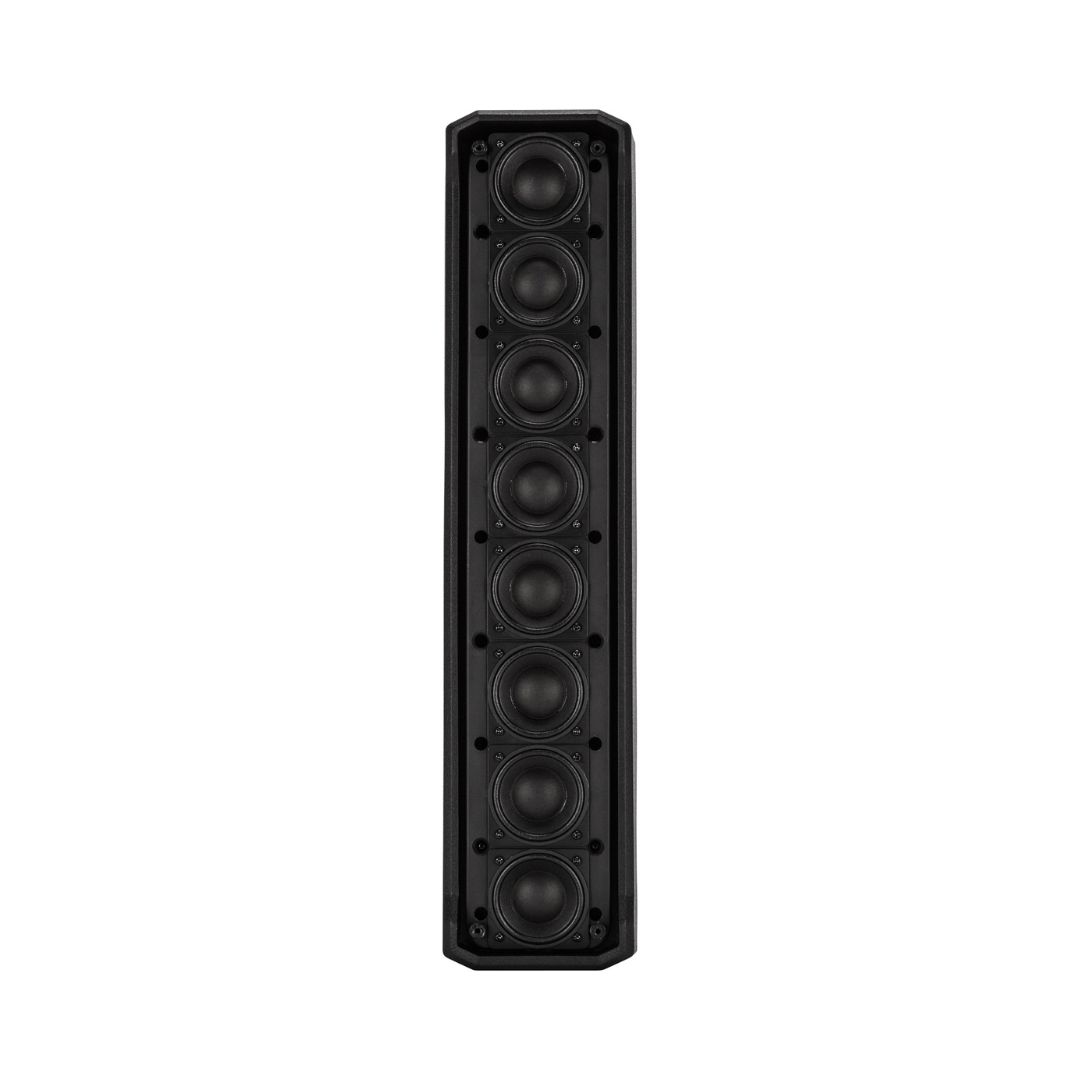

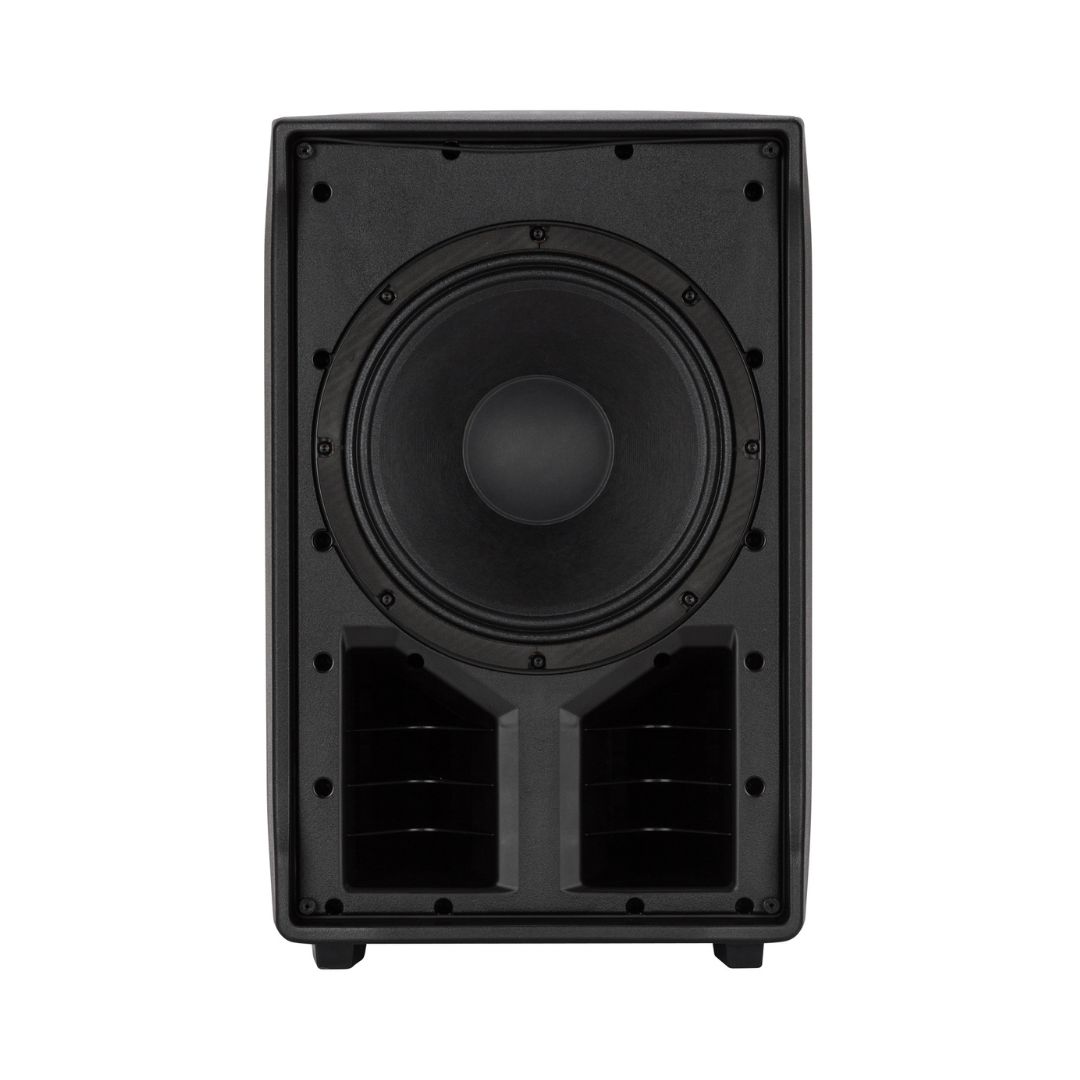

A 12" high-excursion woofer pairs with eight 2" full-range drivers for deep bass and detailed highs. The vertical array offers 120° x 30° consistent coverage across the venue. Ideal for clear sound projection in both indoor and outdoor setups.

FiRPHASE DSP Processing
RCF’s proprietary FiRPHASE technology delivers transparent sound with linear phase and enhanced stereo imaging. It optimizes time, amplitude, and phase response with no added latency. The result is a more natural and immersive listening experience.

Portable & Quick Setup

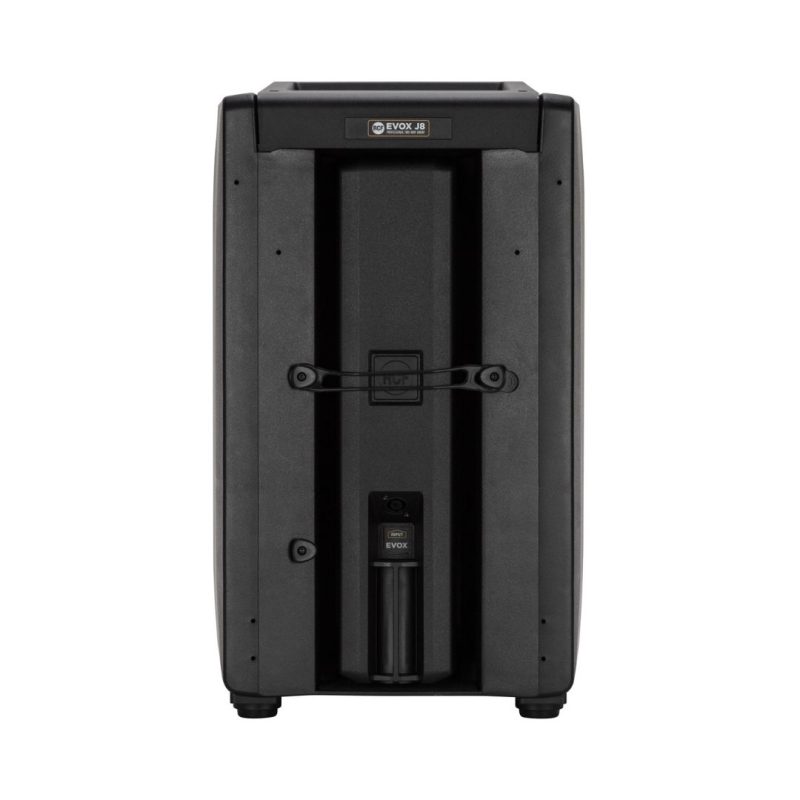

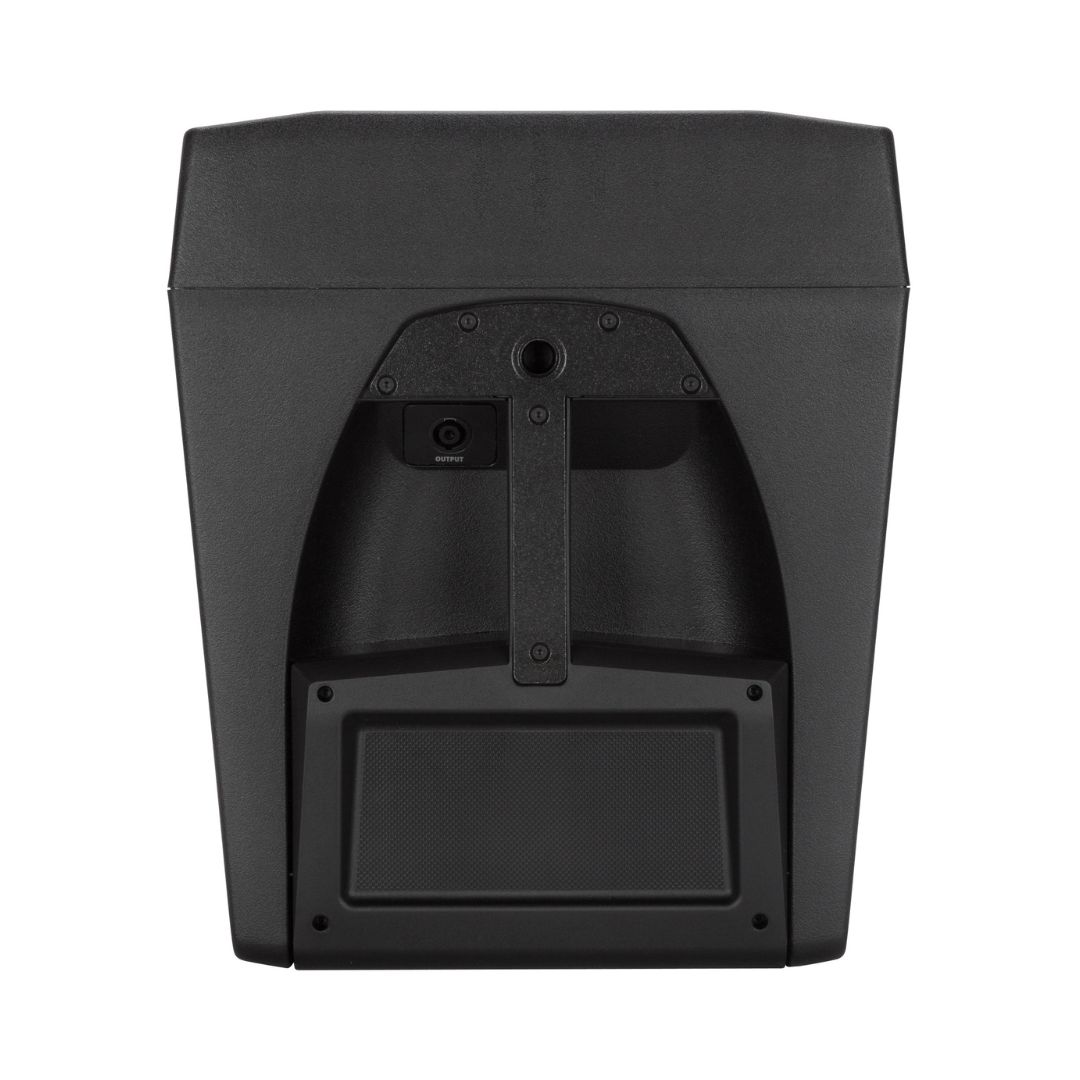

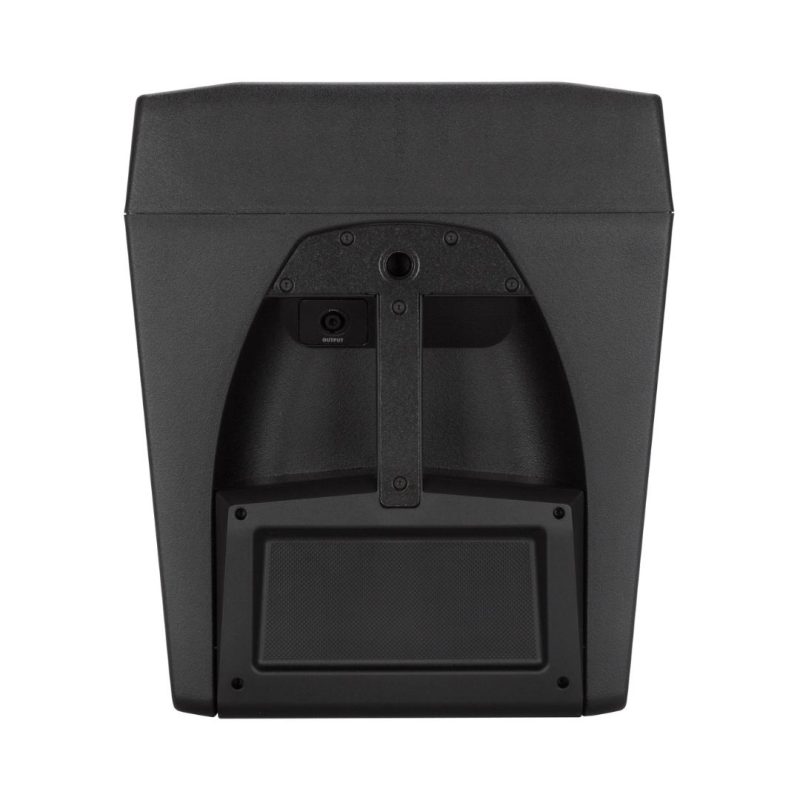

The lightweight polypropylene enclosure includes a built-in handle and optional trolley for easy transport. Setup is fast with a secure pole mount and integrated cable management. Perfect for musicians, DJs, and mobile performers on the move.
1400W Class-D amplifier delivers efficient, high-performance audio in a lightweight design.
12″ woofer and eight 2″ drivers provide powerful lows and crisp highs with wide coverage.
FiRPHASE DSP processing ensures clear, phase-aligned sound with no added latency.
Compact composite cabinet with handle and optional trolley allows easy transport.

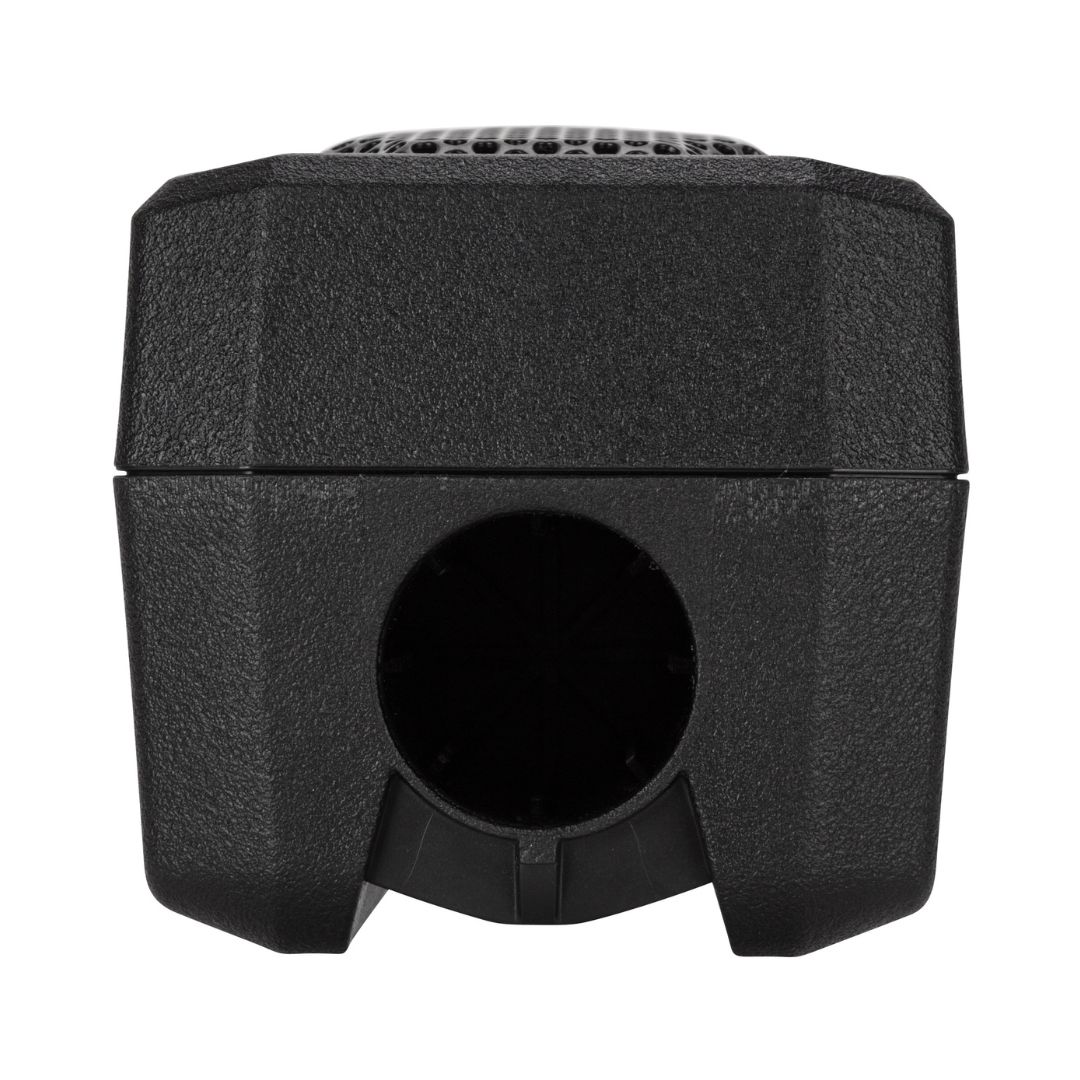

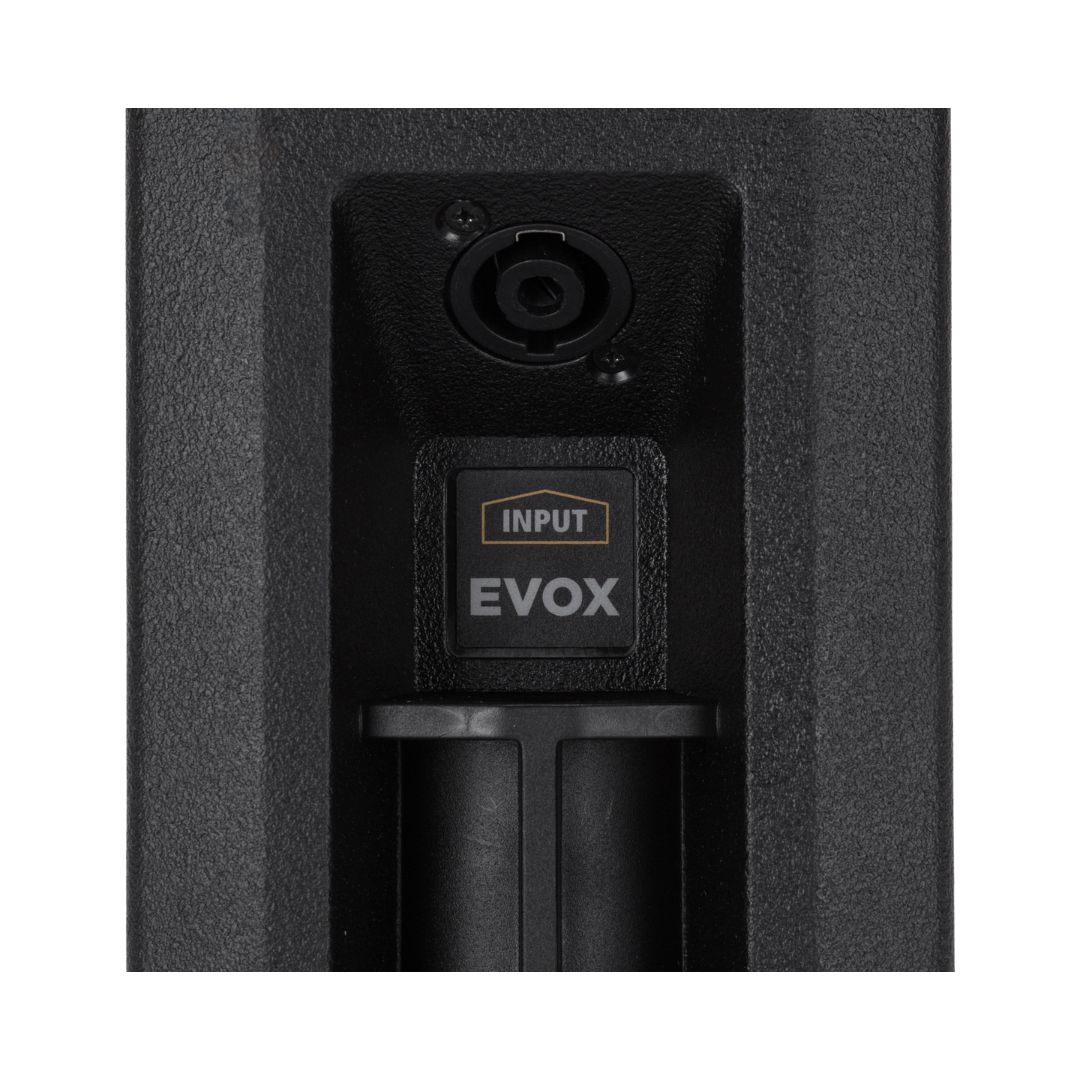

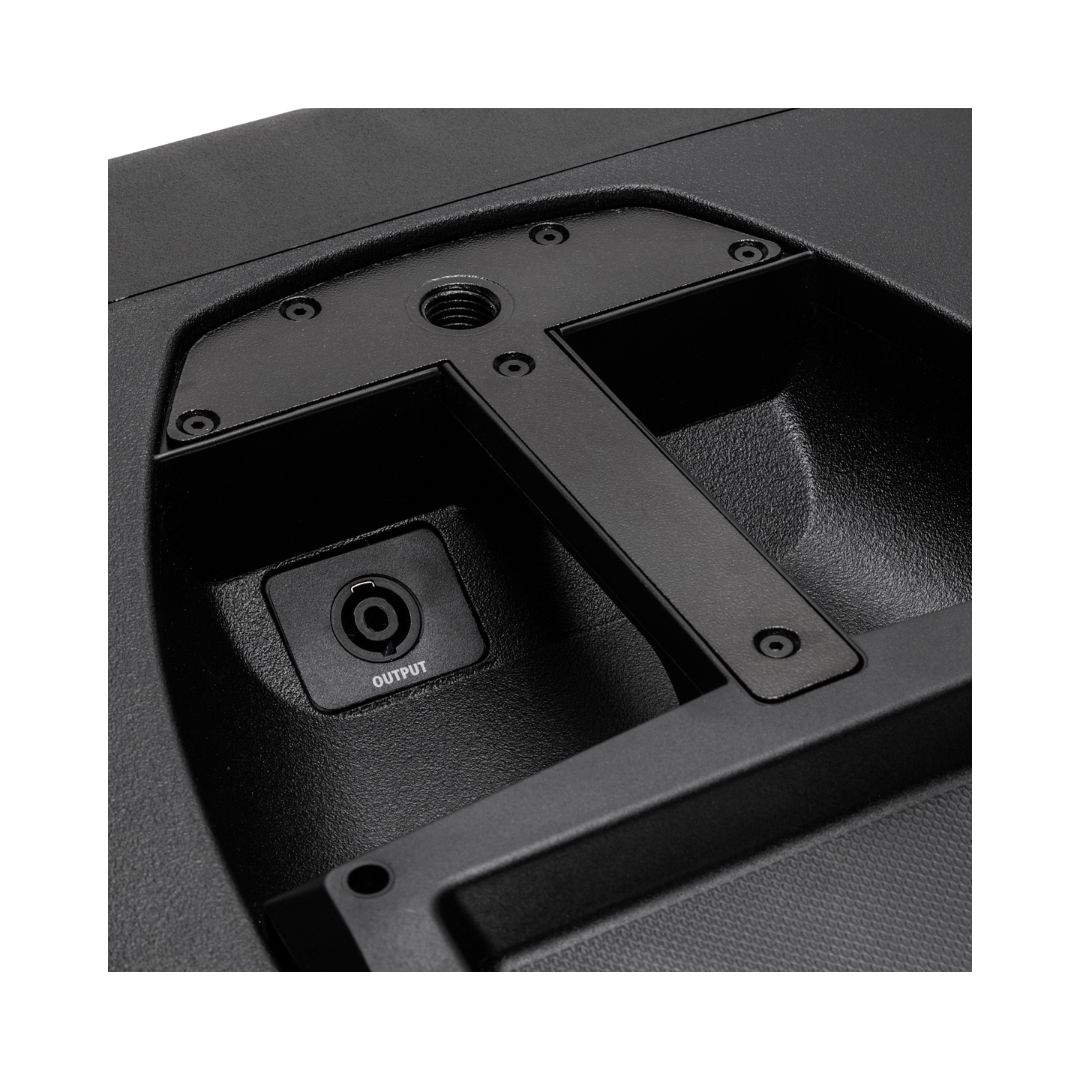

Simple setup with pole mount, SpeakON connection, and quick assembly system.
Switchable EQ presets and Mic/Line input adapt easily to different applications.
Speaker Configuration: 1x 2-Way Speaker Column with Subwoofer
Amplifier Power Rating
Total:
1400 W Peak
700 W RMS
LF:
1000 W Peak
500 W RMS
HF:
400 W Peak
200 W RMS
Amplifier Class: Class-D
HF Driver: 8x 2″ / 5.1 cm
HF Voice Coil: 1″ / 2.5 cm
LF Driver: 1x 12″ / 30.5 cm Woofer
LF Voice Coil: 2.5″ / 6.4 cm
Crossover: 220 Hz
Dynamic Processing: Soft Limiter
Frequency Response: 40 Hz to 20 kHz
Maximum SPL: 128 dB
Coverage Angle: 120° H x 30° V
Input Sensitivity: +4 dBu / -2 dBu
Protections: RMS, Thermal
Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Input
1x 1/4″ TRS Balanced Mic/Line Input
1x XLR 3-Pin Male Link Output
1x speakON NL2 Link Output
Construction Material: Metal Grille, Polypropylene
Dimensions: 24.5 x 15.7 x 18.1″ / 62.3 x 40 x 46 cm
Weight: 52.5 lb / 23.8 kg
