Description

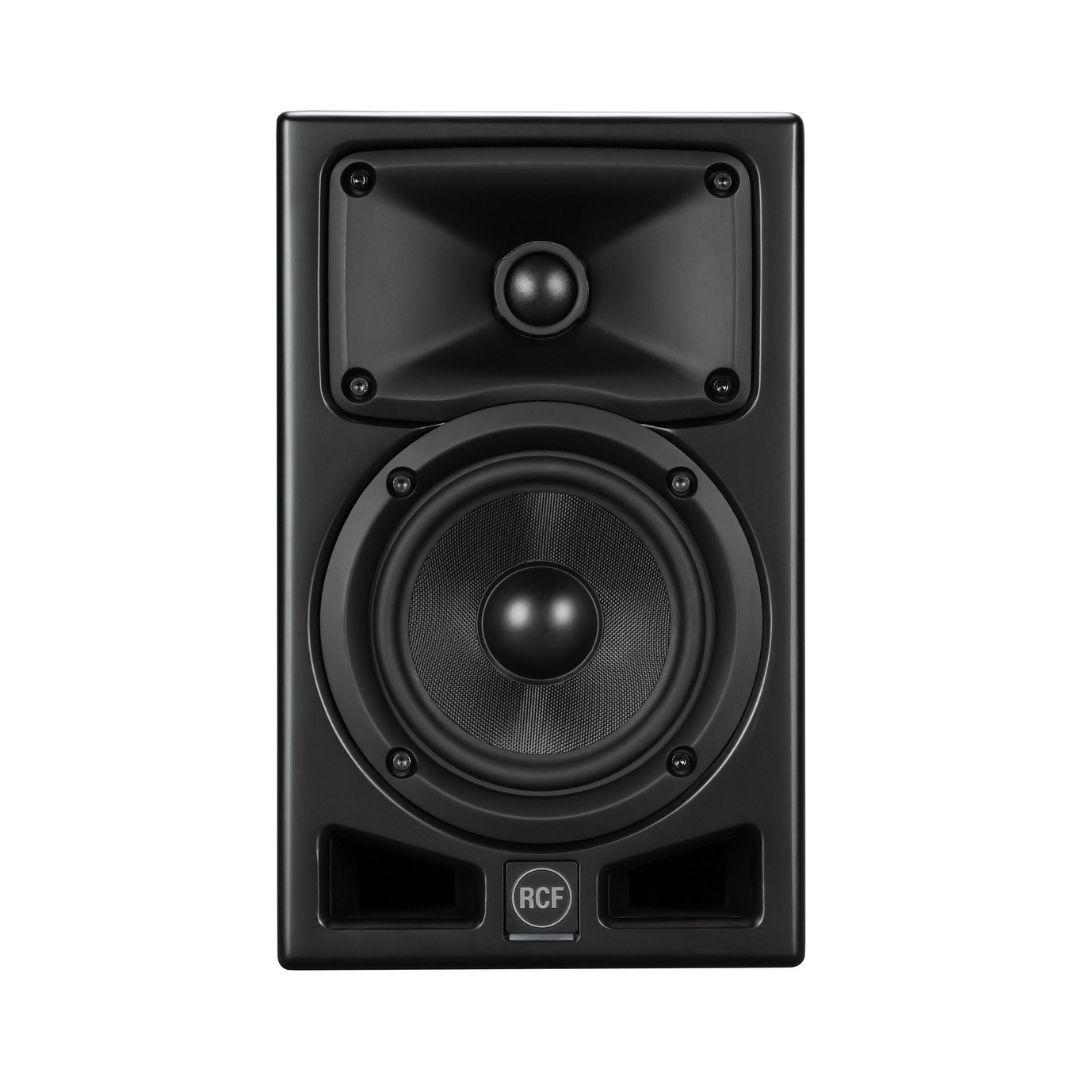

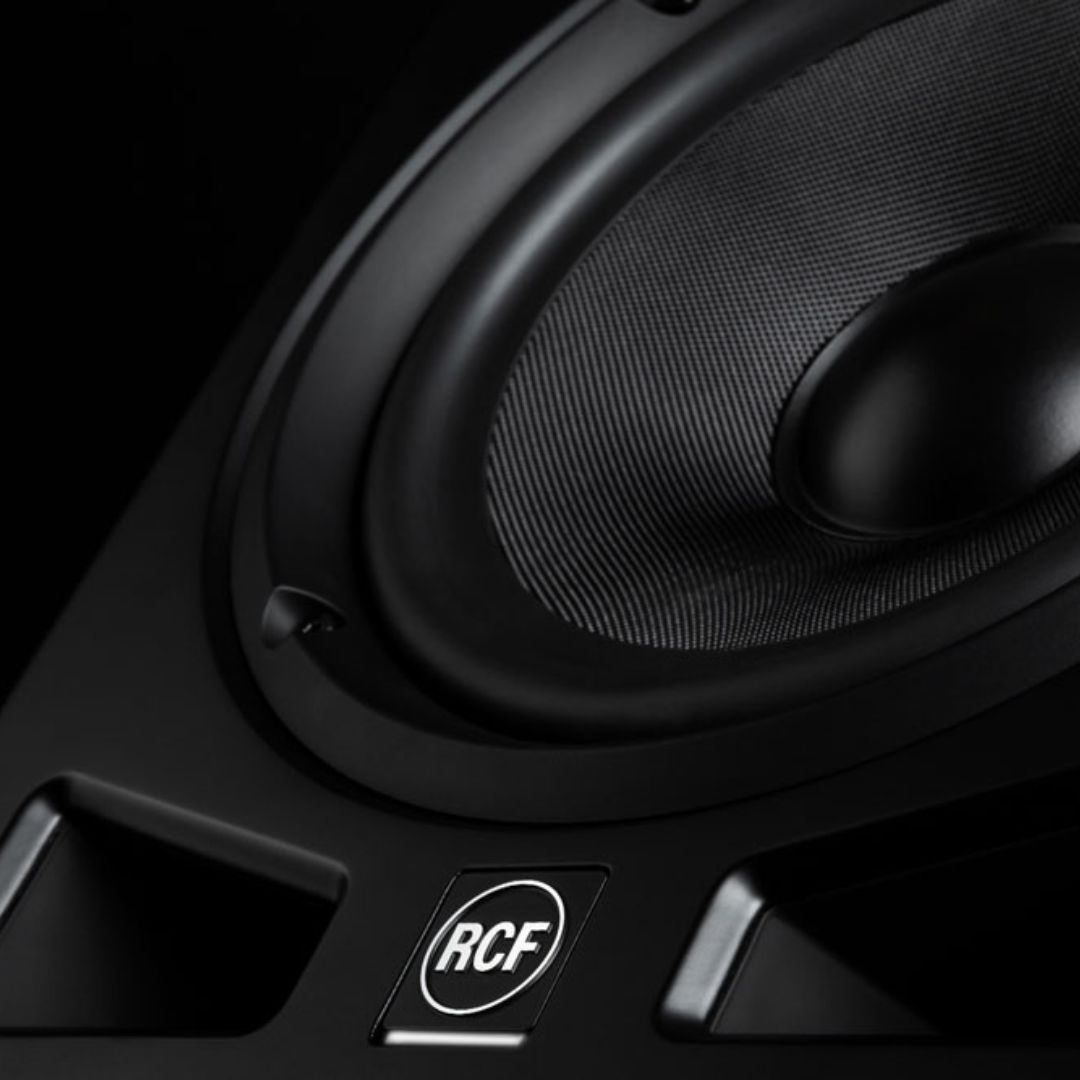

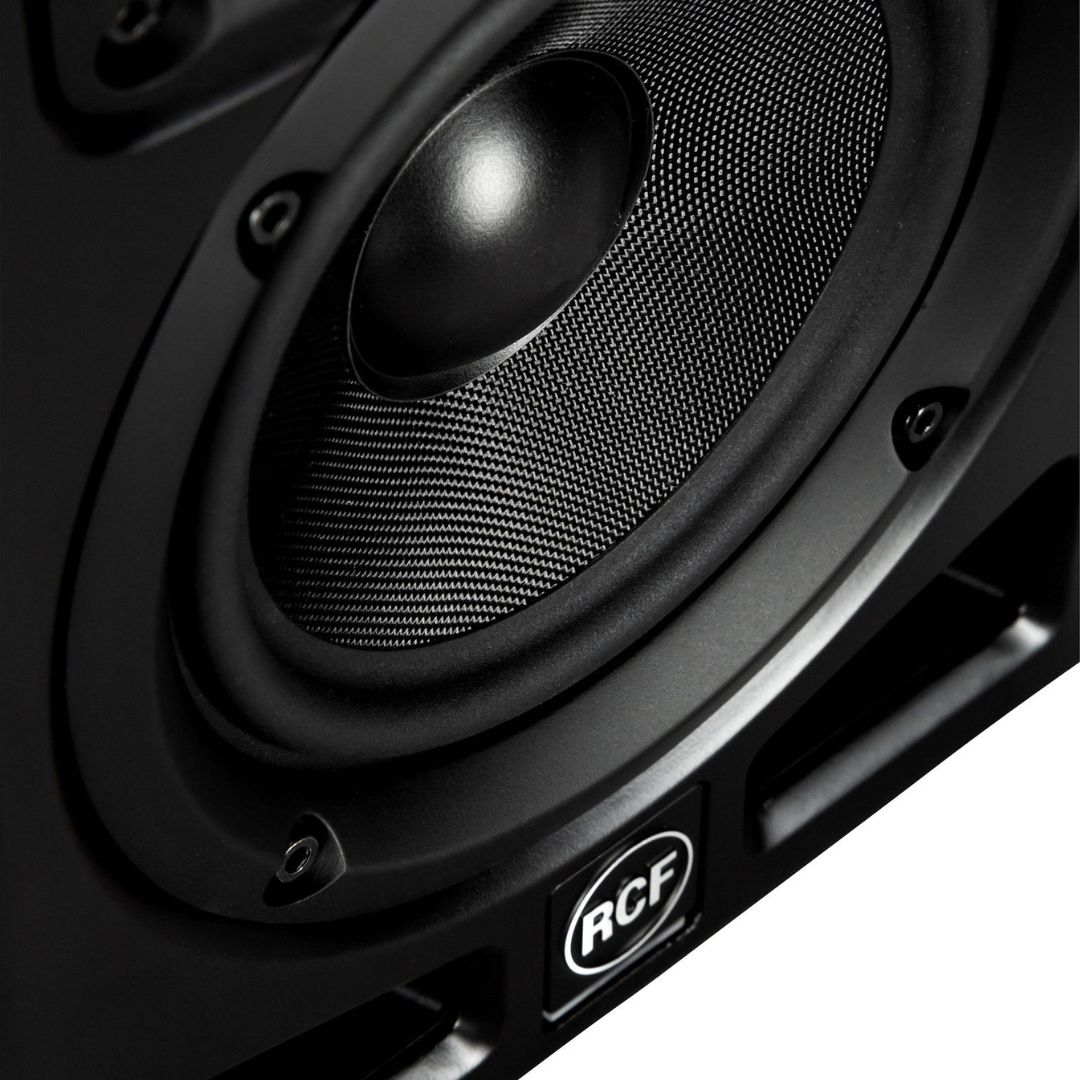

5" Composite Woofer
The 5-inch composite fiberglass woofer is designed for tight, punchy bass and natural low-end extension. Its rigid structure and optimized voice coil enhance damping, making it ideal for accurate low-frequency reproduction in any studio setup.
Class-D Amplification
Equipped with high-efficiency 75W + 25W Class-D amplifiers, the AYRA PRO5 ensures powerful output with low distortion. Built-in limiters protect the drivers from clipping, providing consistent clarity and headroom at all listening levels.
Front Bass Reflex Port
The frontal bass reflex port directs energy forward, minimizing boundary interference and enhancing bass clarity in confined or in-wall installations. It supports cleaner low-end performance in nearfield environments or desktop production spaces.
Accurate Phase Response
Featuring proprietary FiRPHASE technology, the AYRA PRO5 delivers an outstanding 0° phase response for precise stereo imaging and transparent sound. A powerful internal DSP optimizes frequency response and dynamics, making it ideal for critical listening and mix accuracy.
50Hz–20kHz frequency response ensures balanced and accurate audio monitoring.
0° phase response with FiRPHASE DSP delivers precise stereo imaging and clarity.
75W + 25W Class-D amplifiers provide powerful, low-distortion output.
5” composite fiberglass woofer delivers tight, clean low-end performance.
1” soft dome tweeter with ferrofluid cooling enhances high-frequency detail.
RCF Precision Waveguide ensures consistent sound dispersion.
Front-facing vented port improves bass output and placement flexibility.
Balanced XLR/TRS and unbalanced RCA inputs support various audio sources.
Number of Included Monitors: Single Monitor
Enclosure: Bass-Reflex/Ported
Total Power Output: 100 W RMS
Tweeter:
1x 1″ / 25.4 mm Soft Dome
Voice Coil: 1″ / 25.4 mm
Woofer:
1x 5″ / 12.7 cm Fiberglass Cone
Voice Coil: 1.2″ / 30.5 mm
Amplifiers:
LF: 75 W RMS / 150 W Peak Class-D
HF: 25 W RMS / 50 W Peak Class-D
Frequency Response: 50 Hz to 20 kHz
Maximum Sound Pressure Level (SPL): 107 dB
Maximum Input Level: +4 dBu
Analog Input Sensitivity/Gain: 0 dB (Continuously Variable)
Dispersion: 110 x 70° (Horizontal x Vertical)
Protections and Limiting: Limiter
EQ: 1x HF Shelf: -1 to +1 dB (1 dB Increments)
Crossover Frequency: Low-Pass: 2000 Hz

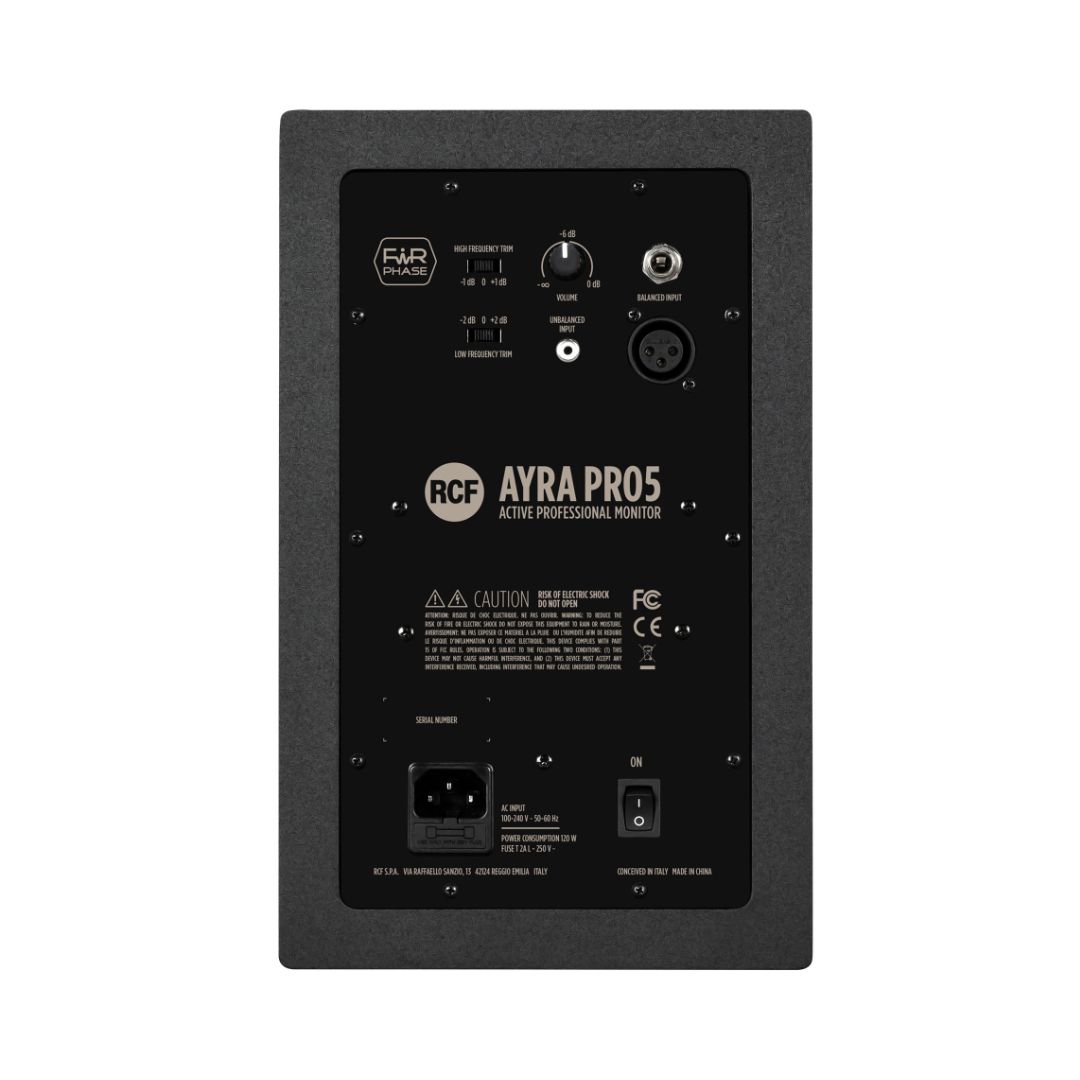

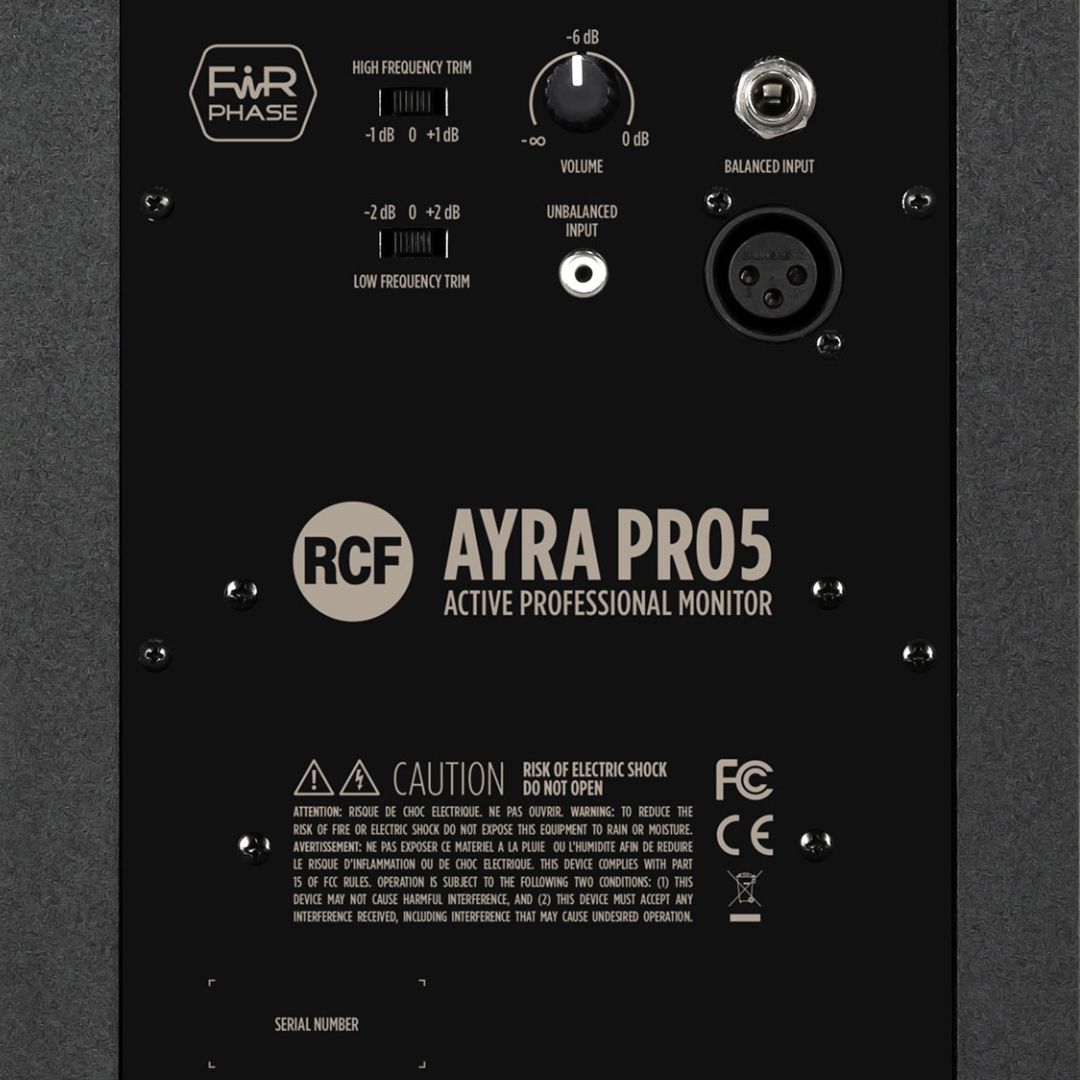

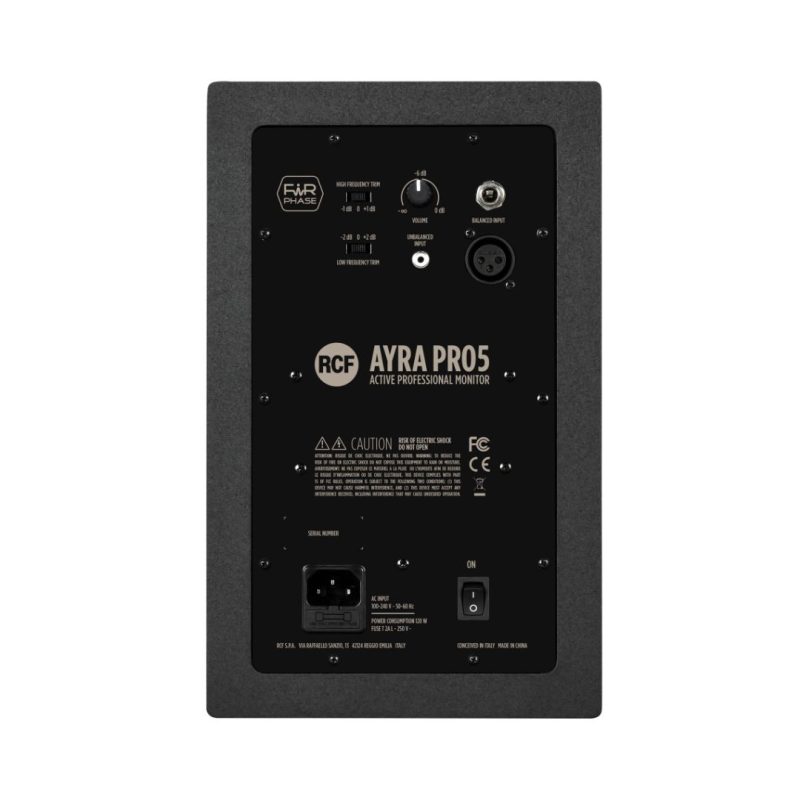

Audio I/O:
1x 1/4″ TRS Balanced/Unbalanced Input
1x XLR 3-Pin Balanced Input
1x RCA Unbalanced Input
AC Input Power: 100 to 240 VAC, 50/60 Hz
Power Consumption: 120 W
Color: Black
Monitor Orientation: Vertical
Enclosure Material: MDF
Dimensions (W x H x D): 7.3 x 11.8 x 9.6″ / 18.5 x 30 x 24.3 cm
Weight: 9.5 lb / 4.3 kg
