Description
1400W Class-D Amplifier

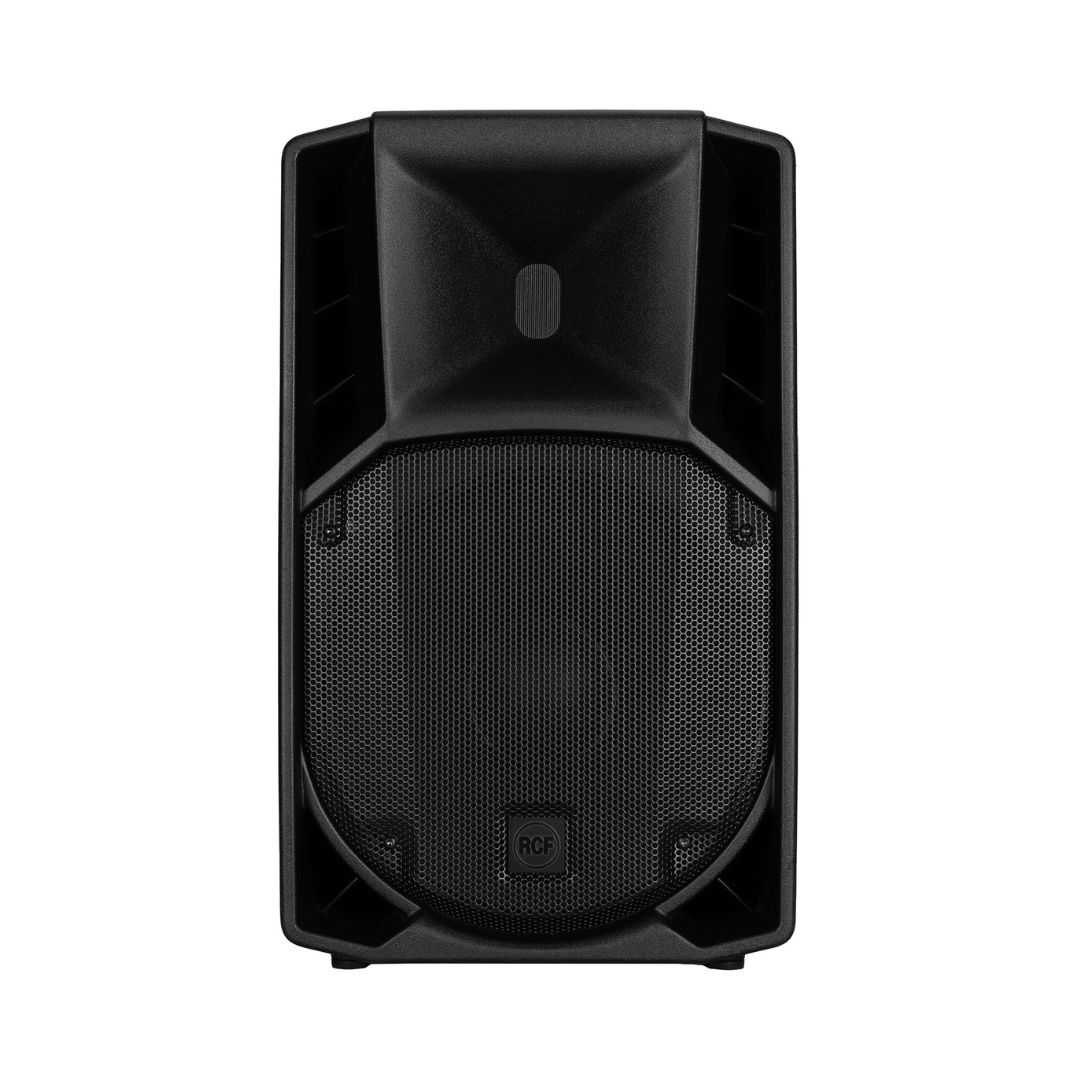

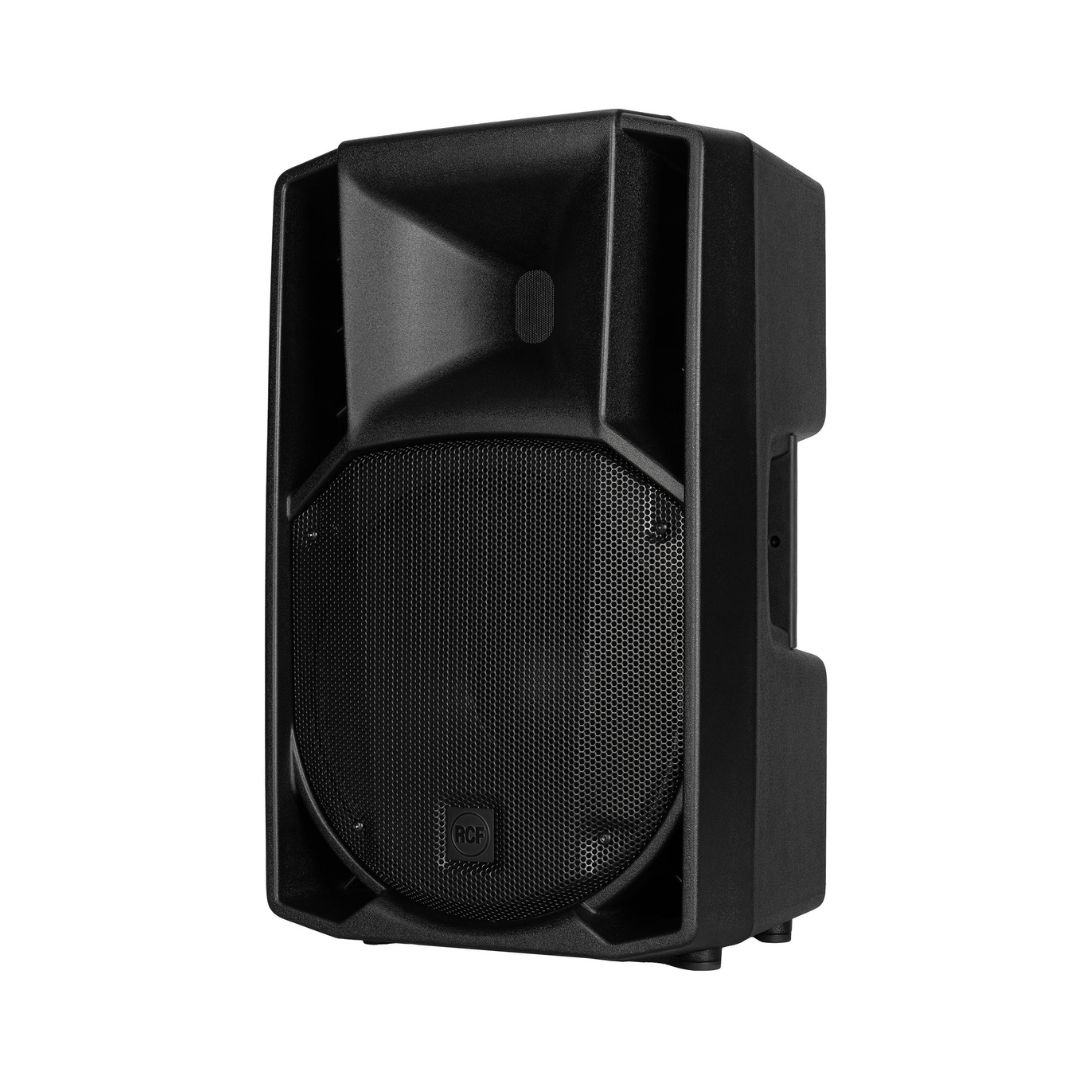

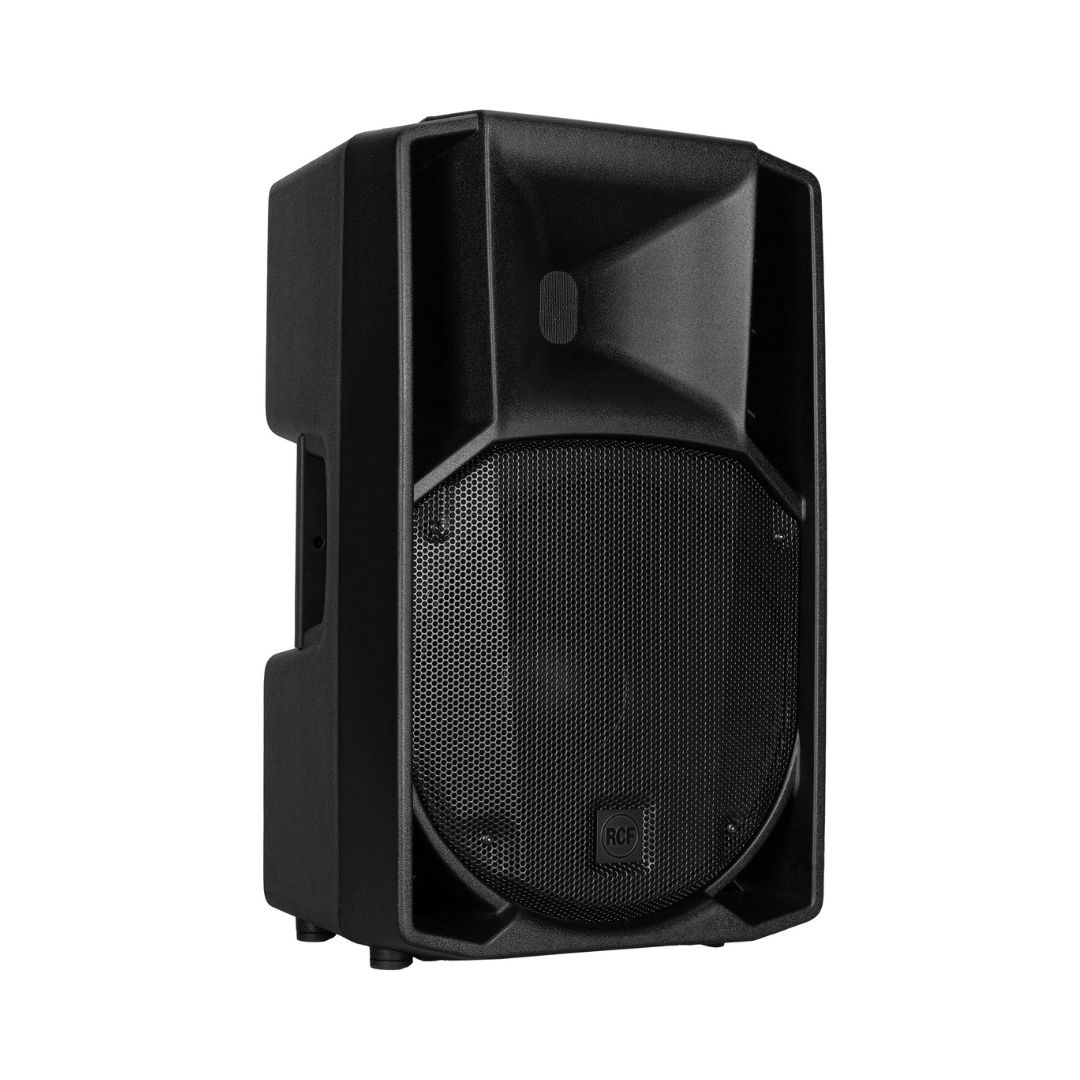

The ART 712-A MK5 is powered by a 1400W Class-D amplifier that delivers fast attack and high efficiency with minimal heat. Its solid aluminum construction aids in passive heat dissipation, eliminating the need for a fan. This design ensures reliable performance in demanding environments while keeping weight low.
XBOOST Low-Frequency Enhancer
With a simple rear-panel activation, XBOOST enriches low-frequency response for a deeper, punchier bass experience. It enhances clarity and control without compromising woofer stability, even at high volumes. Ideal for music playback or live performance, it adds weight and warmth to the mix.
FiRPHASE DSP Technology
RCF’s FiRPHASE processing ensures accurate phase alignment and clear sound imaging throughout the audience area. It eliminates phase distortion and provides a natural, transparent audio experience with precise timing. This technology is essential for achieving high-quality sound in professional applications.
Precision Transducers

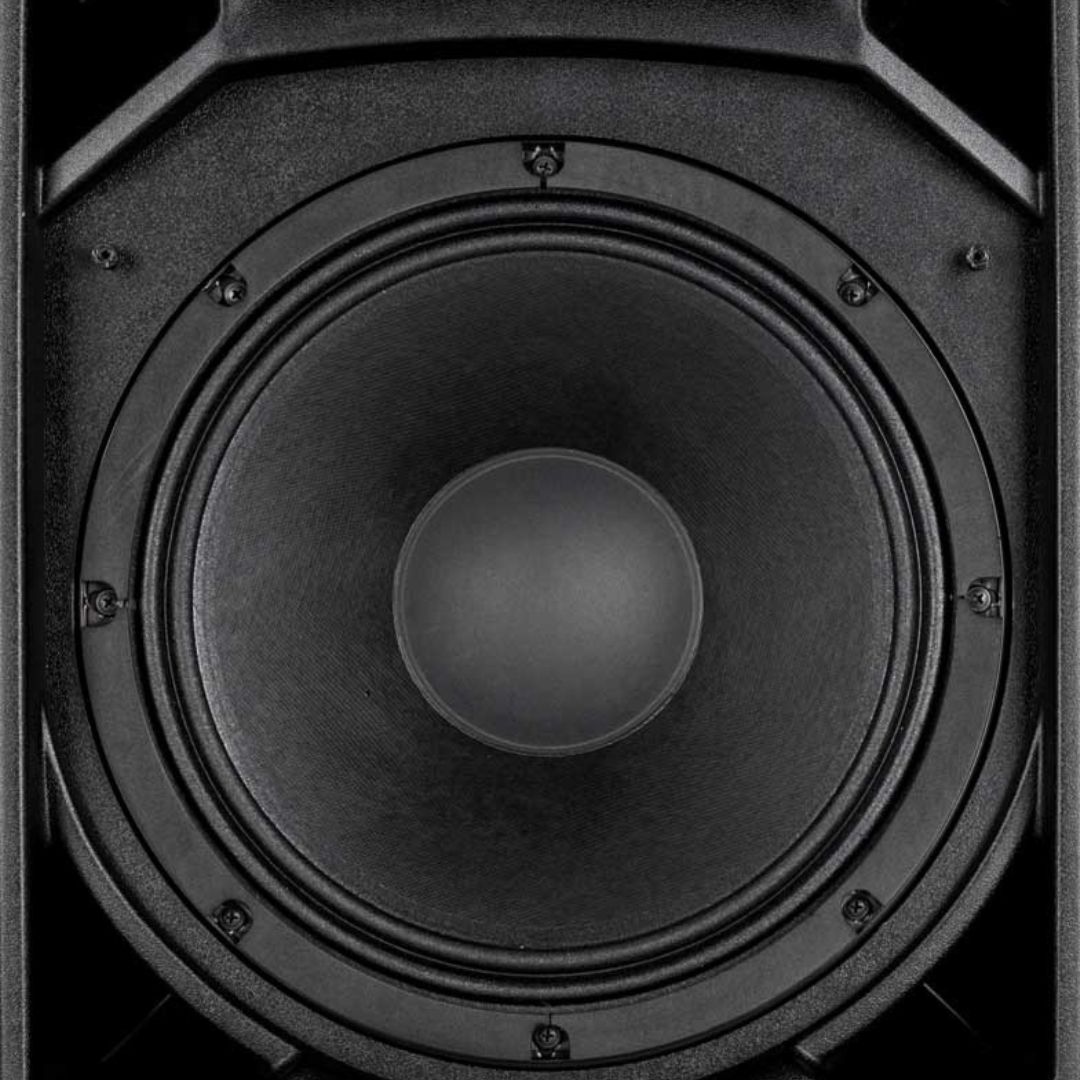

Equipped with a 1.75" compression driver and an 12" woofer, the ART 712-A MK5 delivers clean highs and tight, controlled lows. Both drivers are built using advanced RCF manufacturing for exceptional reliability and sound detail. This combination provides a full-range, balanced performance across various applications.
1400W Class-D Bi-Amplifier – Delivers high power with fast transient response and energy efficiency.
129 dB Max SPL – Offers strong, clear output ideal for live sound and portable PA setups.
12″ Woofer + 1.75″ Compression Driver – Ensures balanced low and high-frequency reproduction.
FiRPHASE Technology – Provides phase-coherent sound imaging with minimal latency.
XBOOST Bass Enhancer – Enhances low-end response for deeper and more powerful bass.
90° x 60° Wide Dispersion Horn – Projects sound evenly across the listening area.

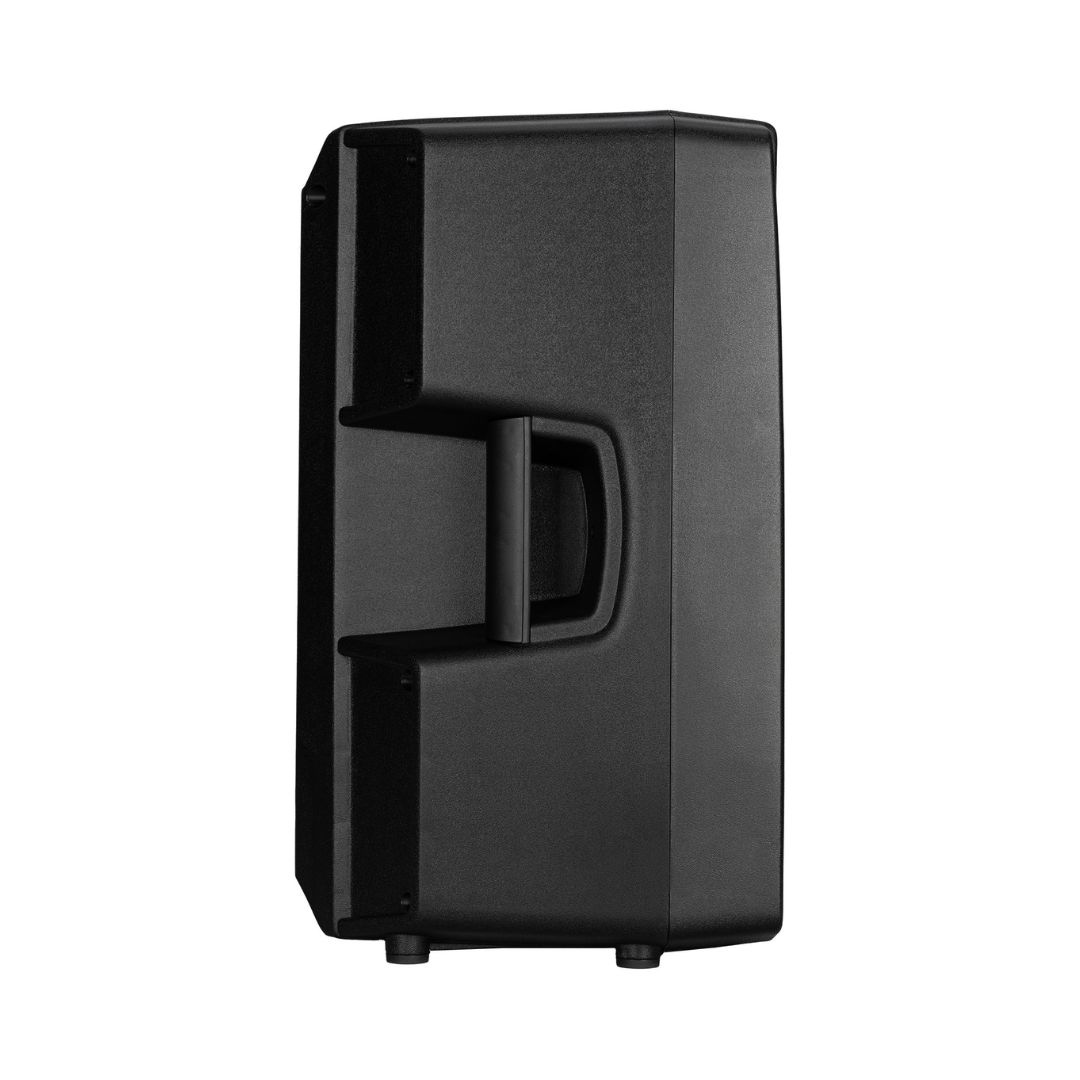

Durable Polypropylene Cabinet – Lightweight, rugged build with ergonomic handles and pole mount.
Flexible Mounting Options – Can be pole-mounted, wall-hung, or used as a floor monitor.
Configuration: 2-Way
Total Output Power: 700 W RMS / 1400 W Peak
Amplifier Power Rating
Low Frequency (LF): 500 W RMS / 1000 W Peak
Mid Frequency (MF): 200 W RMS / 400 W Peak
Amplifier Class: Class-D
LF Driver:
1x 12″ / 30.5 cm Woofer
Voice Coil: 2.5″ / 63.5 mm
HF Driver:
1x 1″ / 51 mm Mylar Dome Tweeter
Voice Coil: 1.75″ / 44.45 mm
Frequency Range/Response: 50 Hz to 20 kHz
Maximum SPL: 129 dB
Coverage Angle: 90° H x 60° V
Protections: RMS, Thermal
Crossover Frequency: 1600 Hz
EQ & Filters: No
Dynamic Processing: Soft Limiter
Alignment Delay: No
Digital Signal Processing: No
Audio I/O:
1x XLR 3-Pin Input
1x 1/4″ TRS Input
1x XLR 3-Pin Output
AC Input Power:
100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
200 to 240 VAC, 50 / 60 Hz (3.15 A L 250 V)
AC Power I/O: 1x VDE Input
Color: Black
Mounting

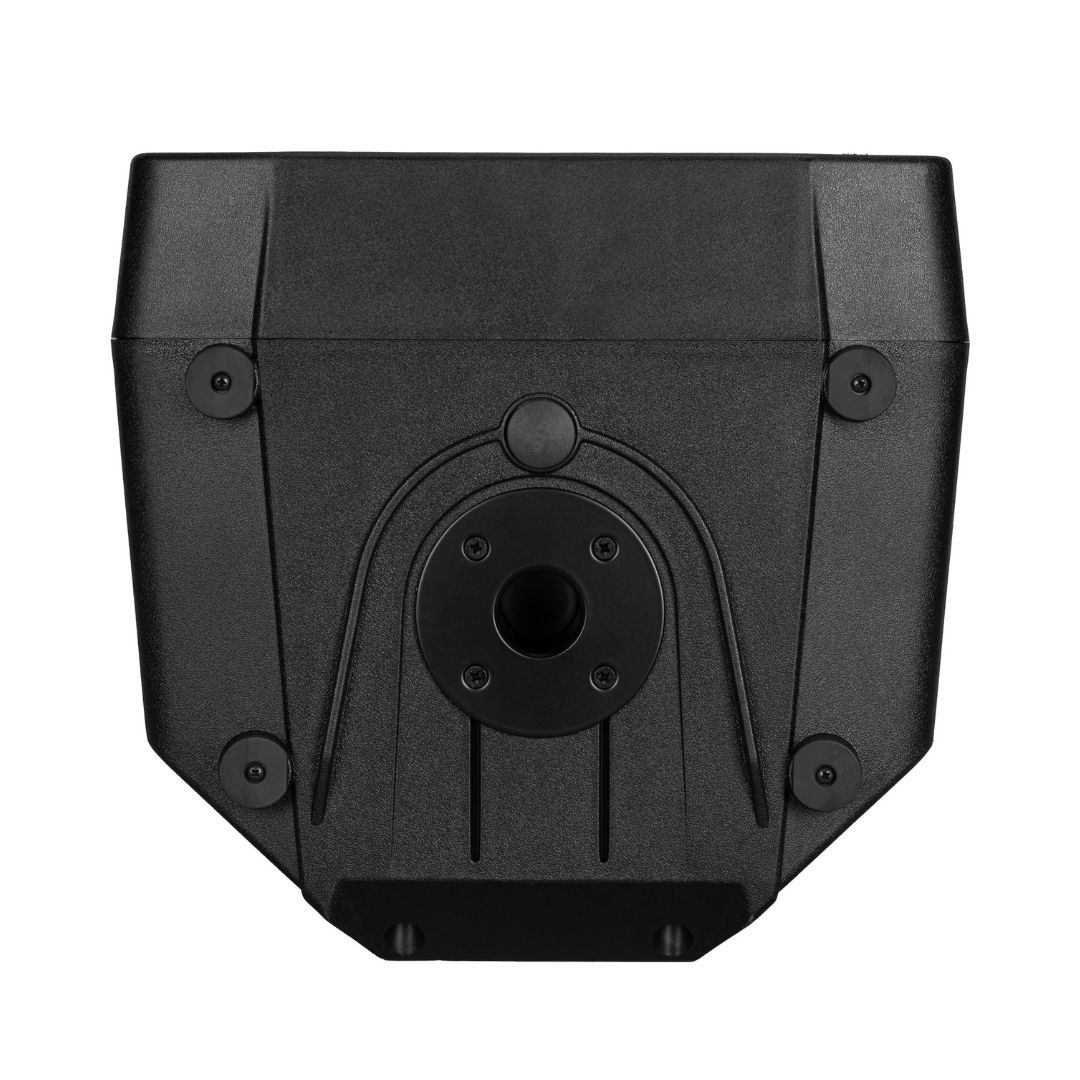

Stand Mount: 1 x 1.38″ / 35 mm Pole Socket
Suspension Points: 2 x M10 Fly Point
Handles: 1x Top, 1x Each Side
Dimensions: 25 x 15.2 x 14.3″ / 63.5 x 38.6 x 36.3 cm
Weight: 39.2 lb / 17.8 kg
