Description
Advanced Diamond Stylus

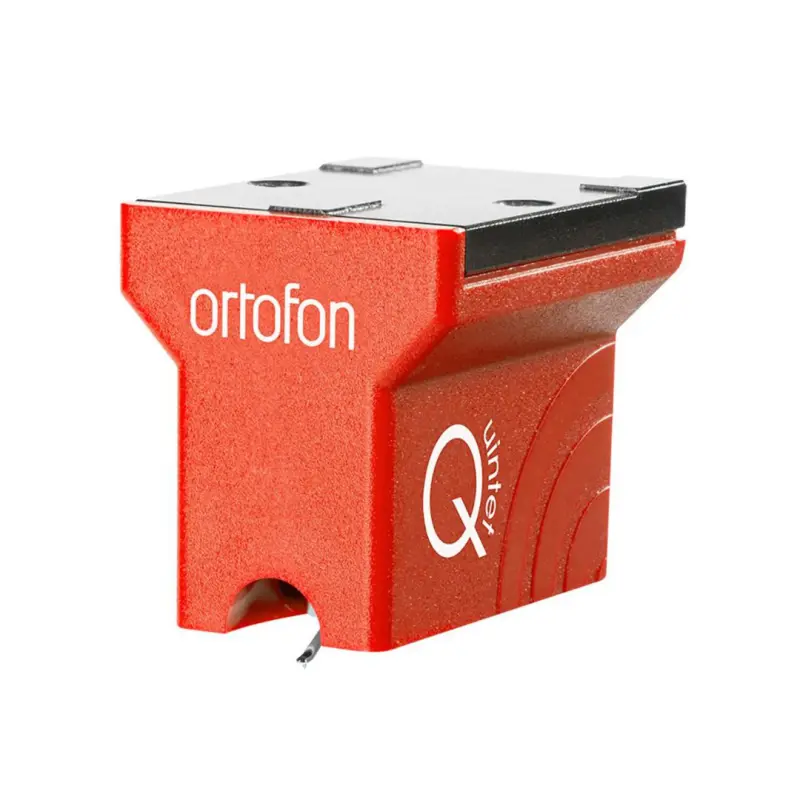

The MC Quintet Red features an Elliptical diamond stylus, meticulously cut and polished to Ortofon's high standards. This precision stylus ensures accurate tracking and playback, capturing the nuances of your favorite records with clarity and detail.
Innovative Materials and Design
The MC Quintet Red by Ortofon showcases the company's dedication to innovation with its special PC thermoplastic body and neodymium magnets. These materials not only enhance durability and scratch resistance but also optimize output and compatibility with diverse preamps and transformers. This ensures reliable performance and fidelity across different setups.
Channel balance at 1 kHz: < 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 0.5 mV
Channel seperation at 1 kHz: > 21 dB
Channel seperation at 15 kHz: > 14 dB
Frequency response 20 Hz – 20 kHz: +/-2,5
Tracking ability at 315Hz at recommended tracking force: 65 μm
Compliance, dynamic, lateral: 15 μm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 2.1-2.5 g
Tracking force, recommended: 2.3 g
Tracking angle: 20°
Internal impedance, DC resistance: 7 Ohm
Recommended load impedance: >20 Ohm
Coil Wire Material: Pure 4-nines Copper
Cartridge body material: ABS/Alu
Cartridge colour: Red
Cartridge weight: 9 g
