Description

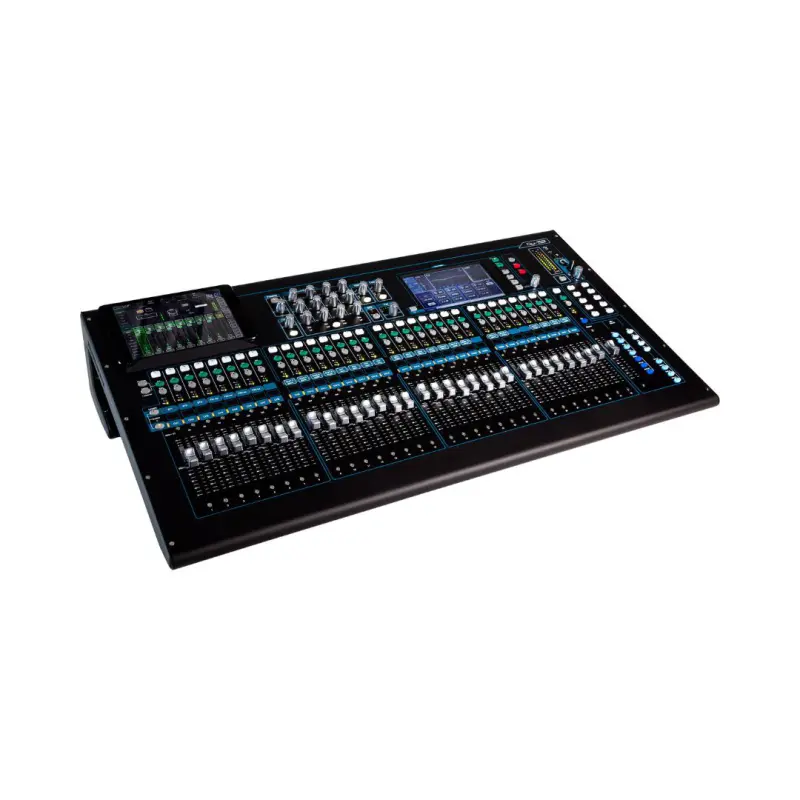

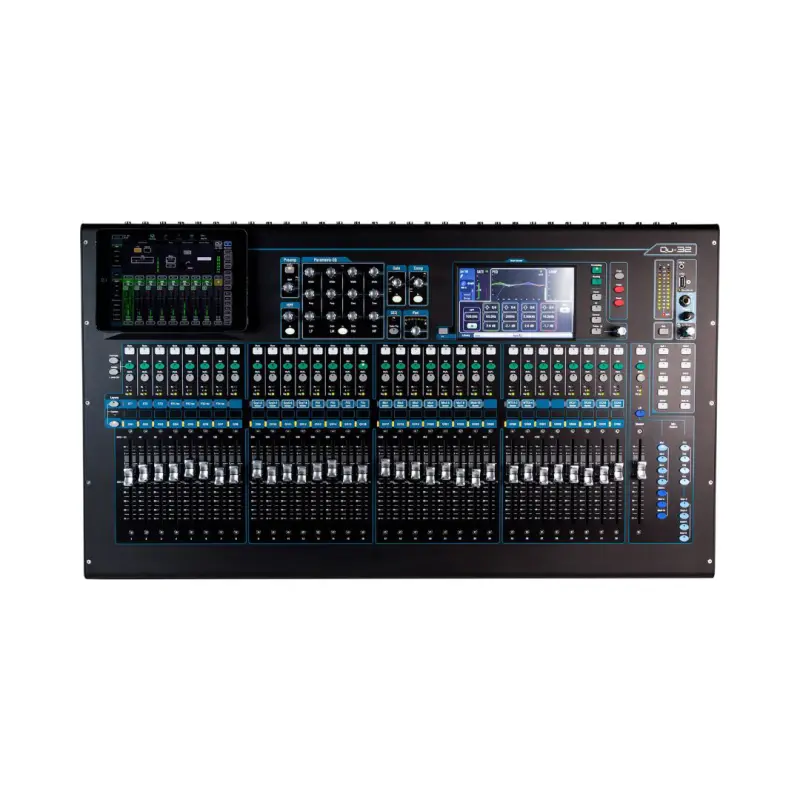

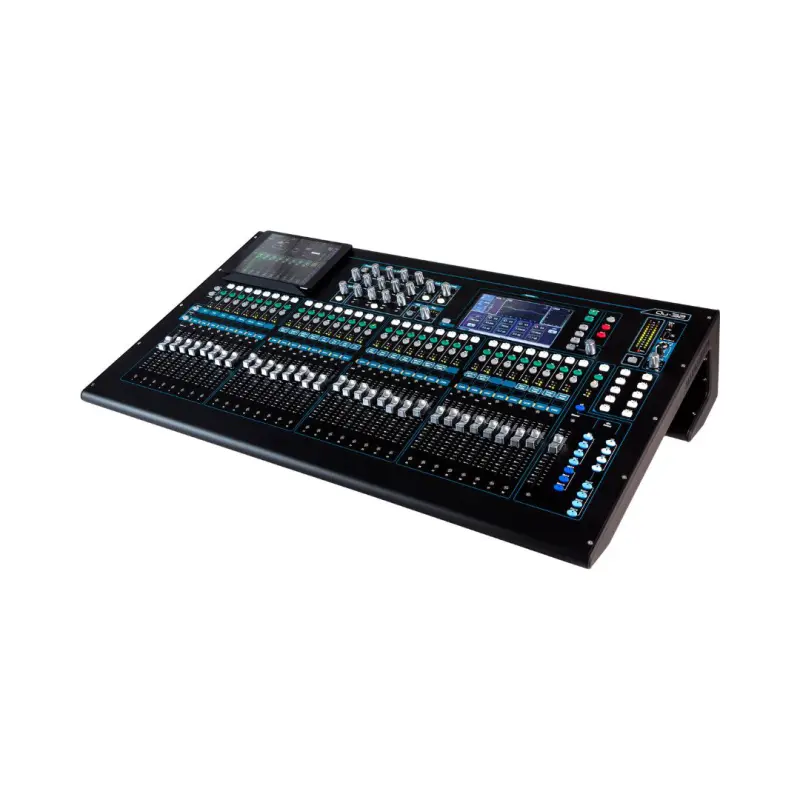

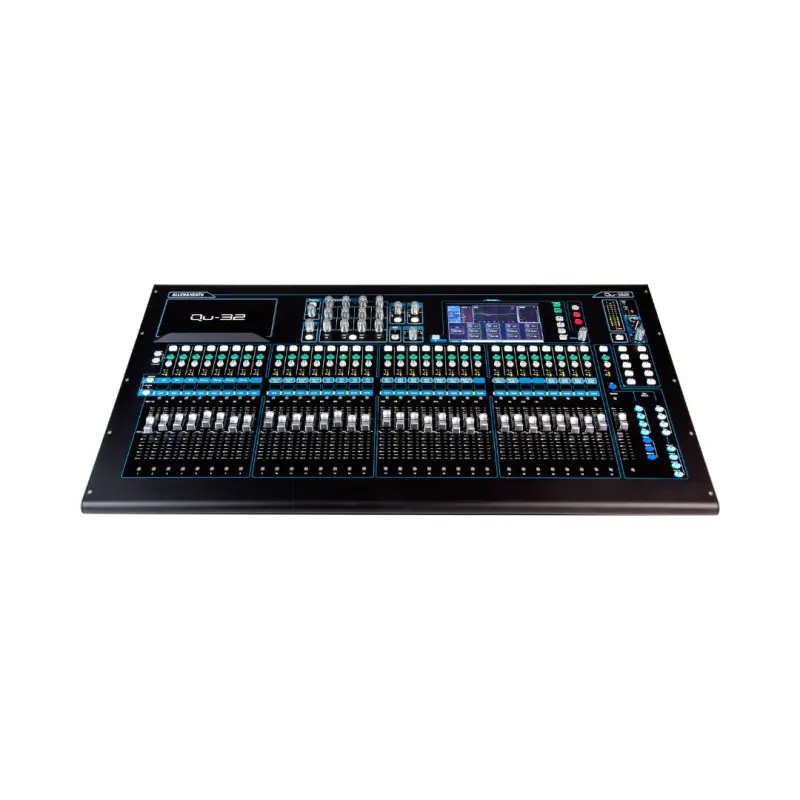

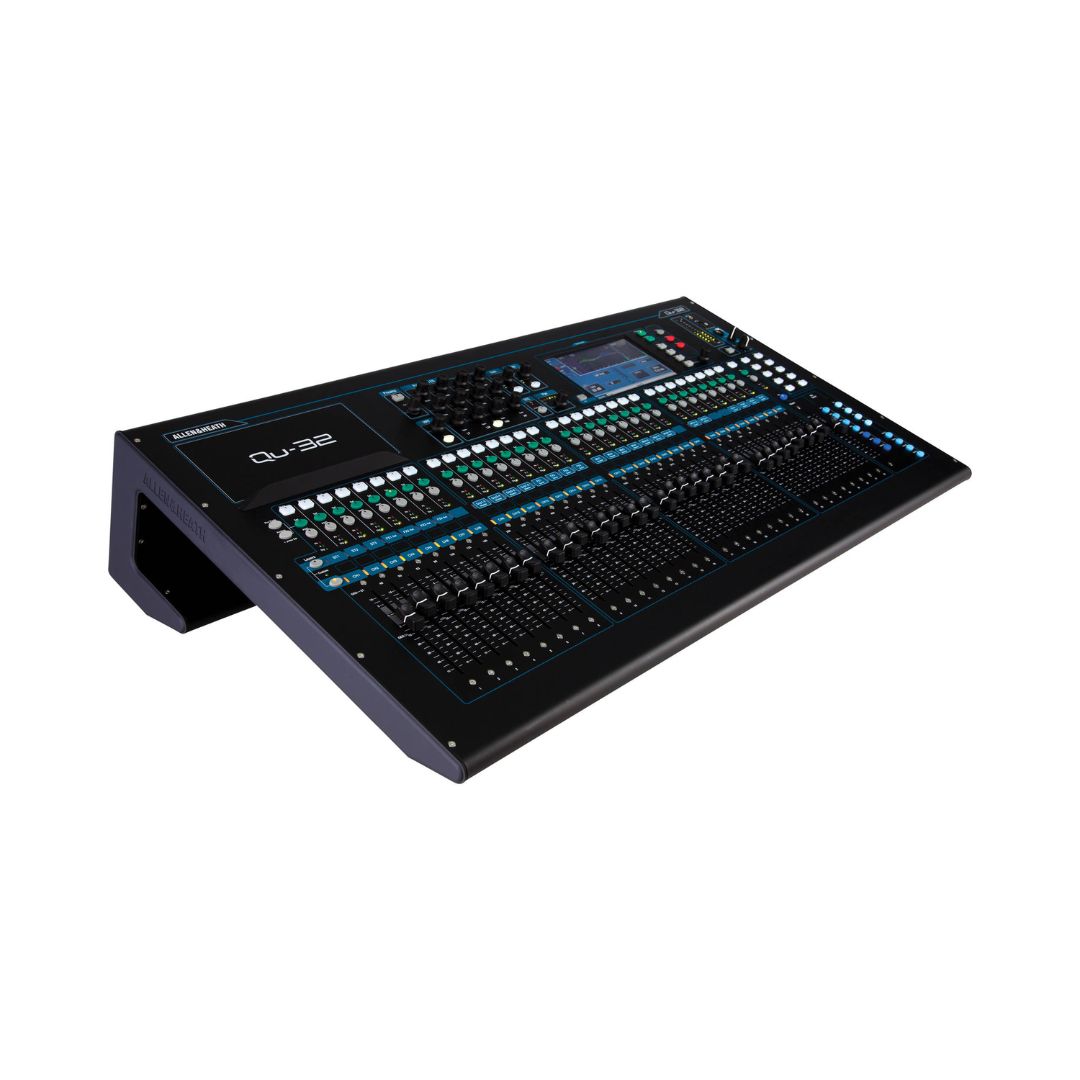

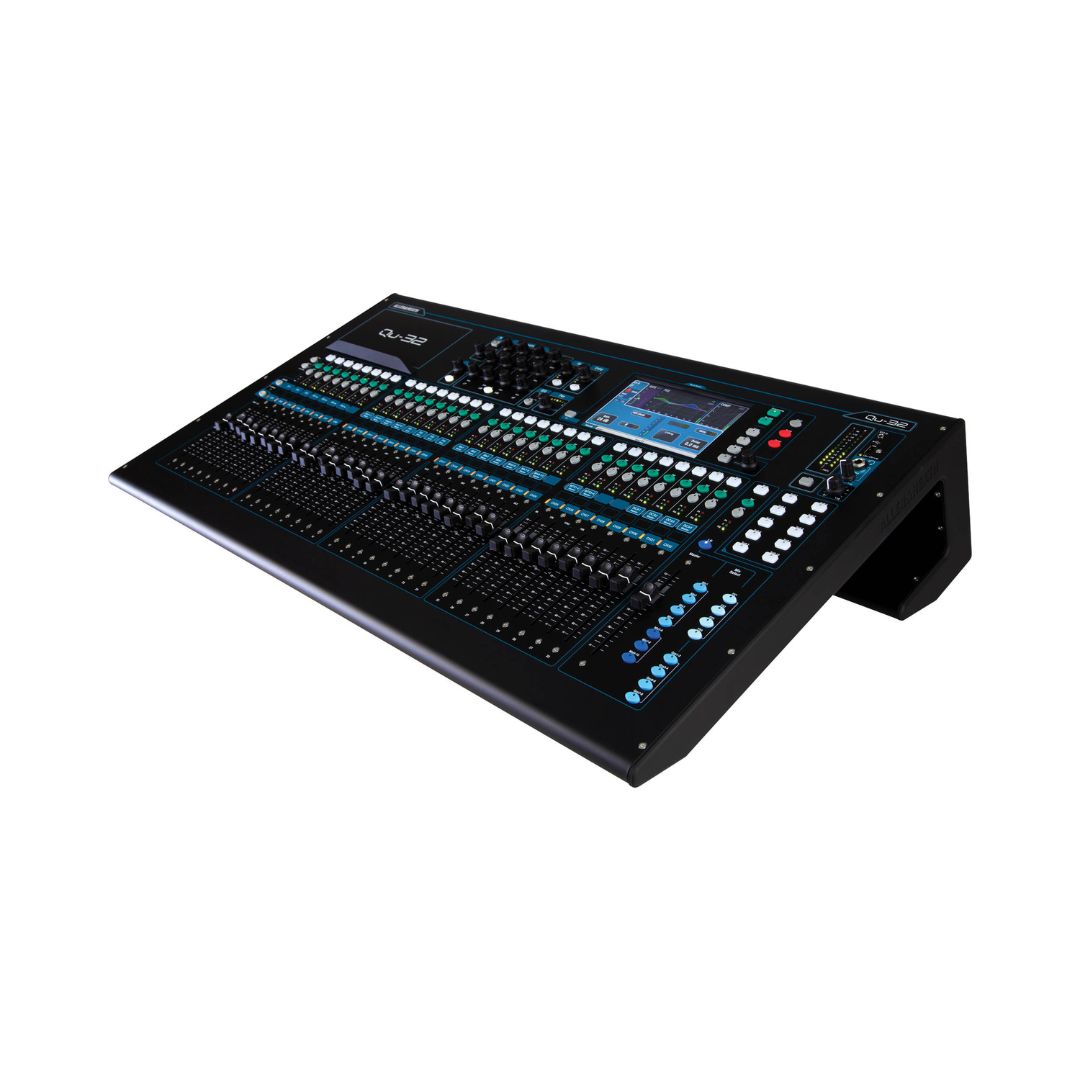

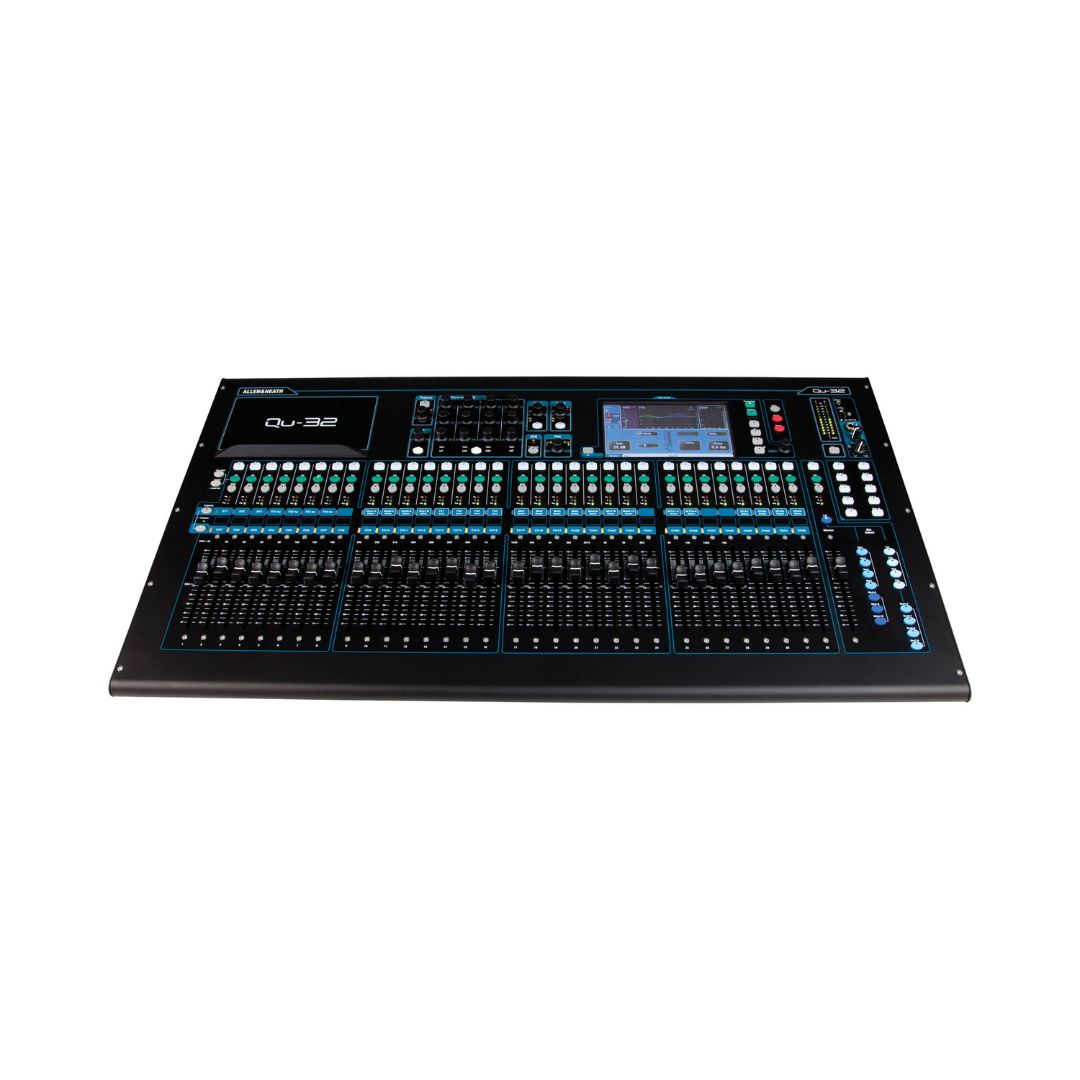

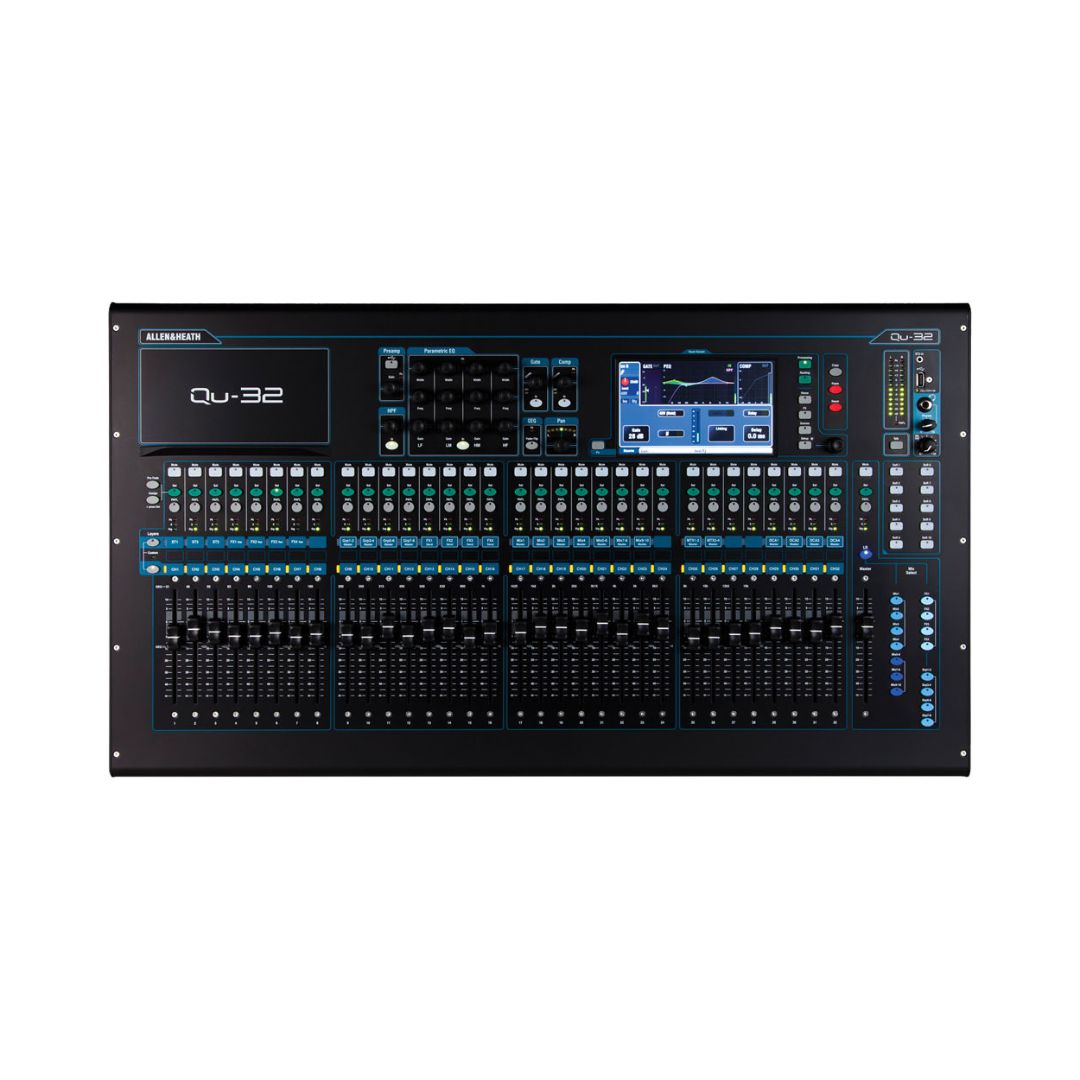

- The Allen & Heath Qu-32 is a powerhouse 38-in / 28-out digital mixing console that doubles as a 32×32 USB multitrack interface, making it ideal for live sound, studio recording, and broadcast workflows. It features 32 recallable AnalogiQ microphone preamps driven by a 5-core ARM processor, delivering transparent, low-noise audio with professional-grade clarity. The console includes 33 motorised faders, a 7″ full-colour touchscreen, and intuitive workflow design for fast, hands-on mixing. Built-in dynamics, 4-band parametric EQs, compressors, delay, reverb, and a full FX engine provide comprehensive processing without external gear. With flexible routing, multiple mixes, matrix outputs, and USB/DAW integration, Qu-32 meets the needs of complex sound environments and multichannel production setups.
Makes Mixing Feel Natural
The Qu-32 offers a fader per mono input channel and fewer fader layers for a simpler, quicker workflow, making it ideal for those transitioning from analog to digital mixing and those who prefer fewer fader layers.
Capture Every Detail
Qu has been designed from the ground up to deliver professional sound quality, from input to output.Qu-32 features thirty two AnalogiQ digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage.
World Class Processing & FX
Qu features four stereo RackFX engines with emulations of classic reverbs, delays, modulators, and flangers. FX return to the mix on dedicated channels, preserving mono and stereo inputs, with each return having a dedicated 4-band PEQ.
Digital Mixing Reshaped
The Allen & Heath Qu-32 delivers professional-grade digital mixing inspired by GLD and iLive systems, combining powerful processing and versatile routing in a compact, flexible format.
- 32 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
- Ergonomic layout and workflow is comfortable, fluid, and intuitive

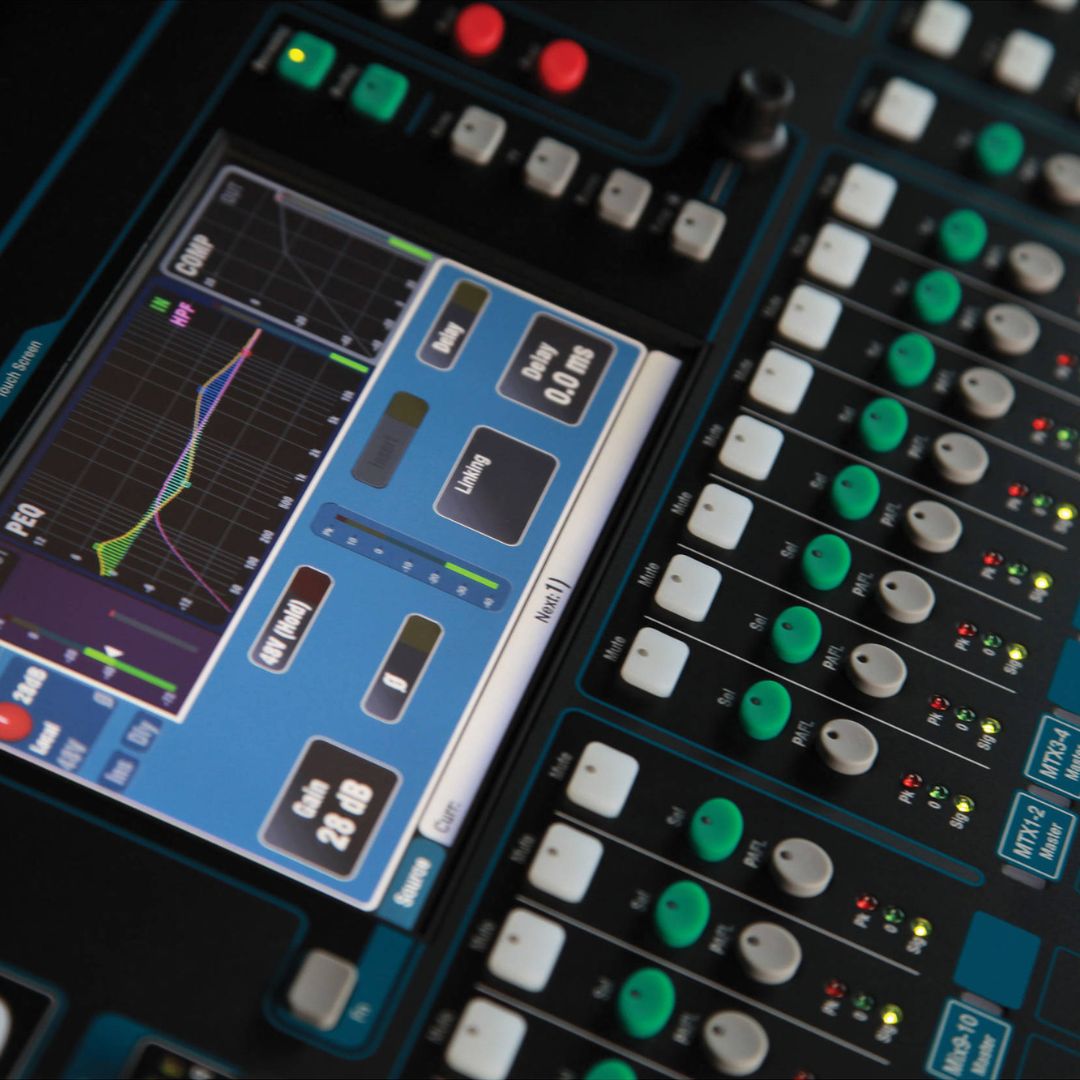

- Color touchscreen and dedicated data encoder give you quick and easy access to all settings

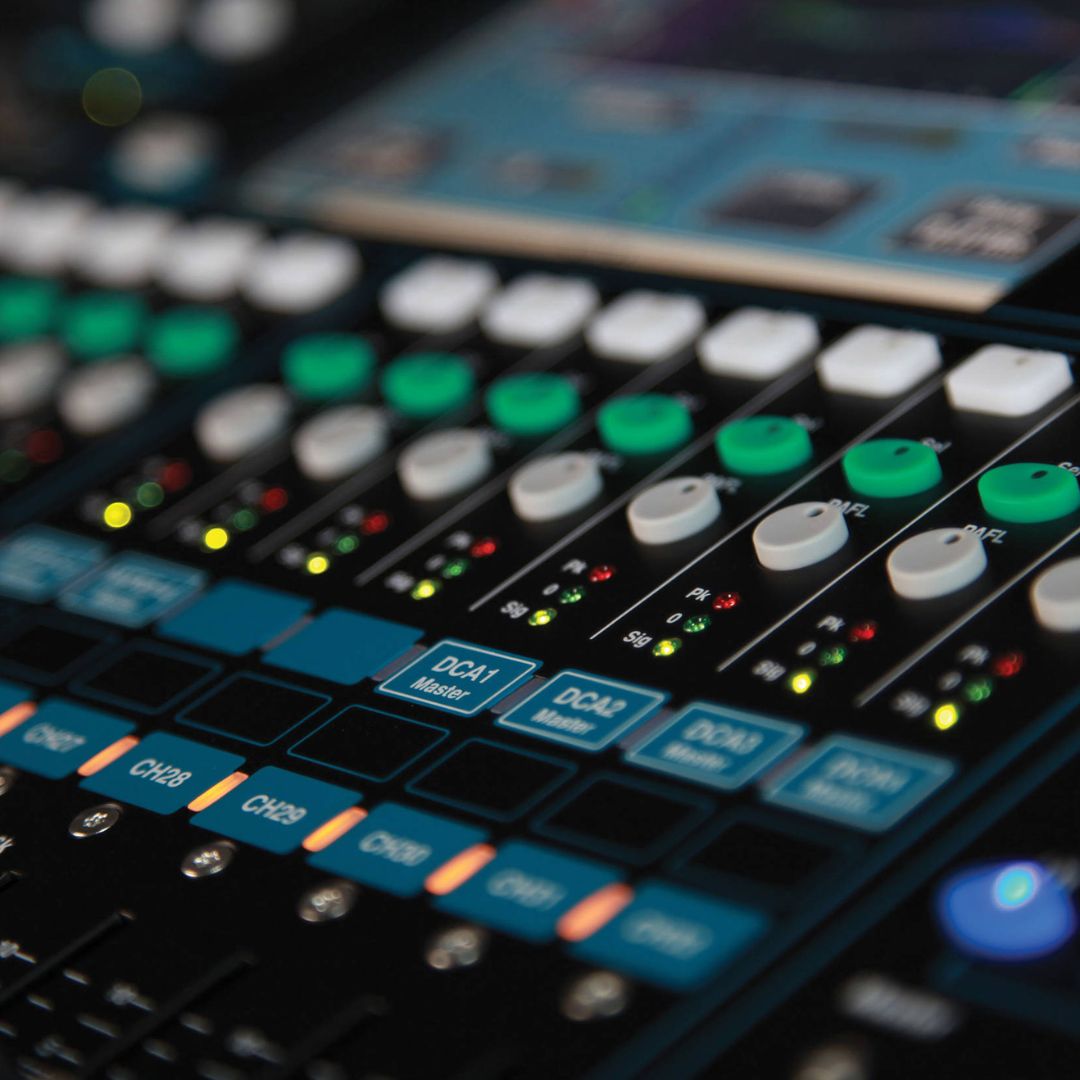

- Key processing tools are presented clearly on the SuperStrip, with 1 function per physical control
- 33 automated, motorized ALPS faders (32 arranged over two layers) speed up and enhance your mixing
- 4 groups give you subgrouping flexibility to LR for level masters and/or processing
- Instant recall lets you save and recall scenes (snapshots) at the press of a button
- Onboard studio-grade dynamics and FX algorithms derived A&H’s iLive pro touring series
- Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)

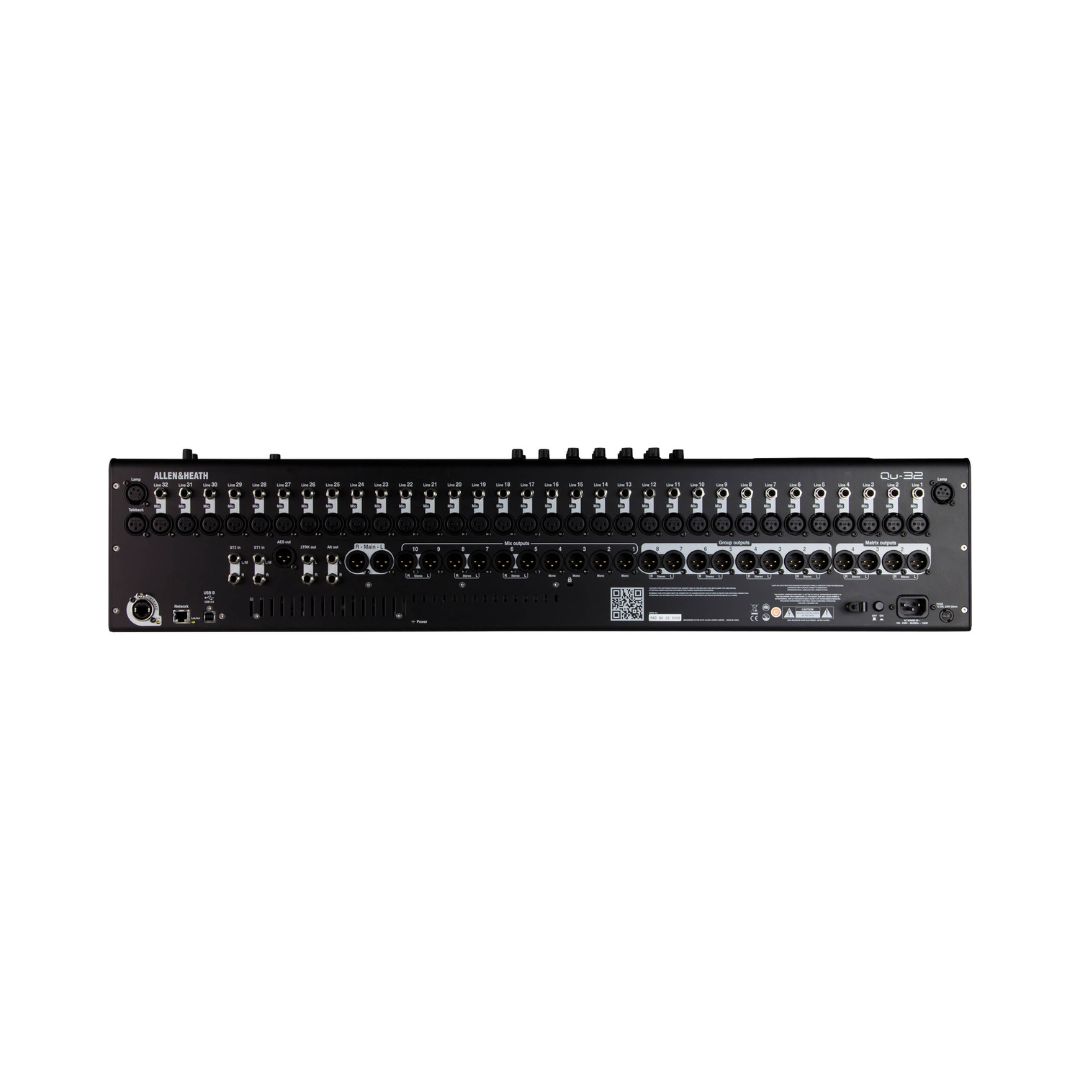

- Type: Digital
- Channels: 32 Mono, 3 Stereo

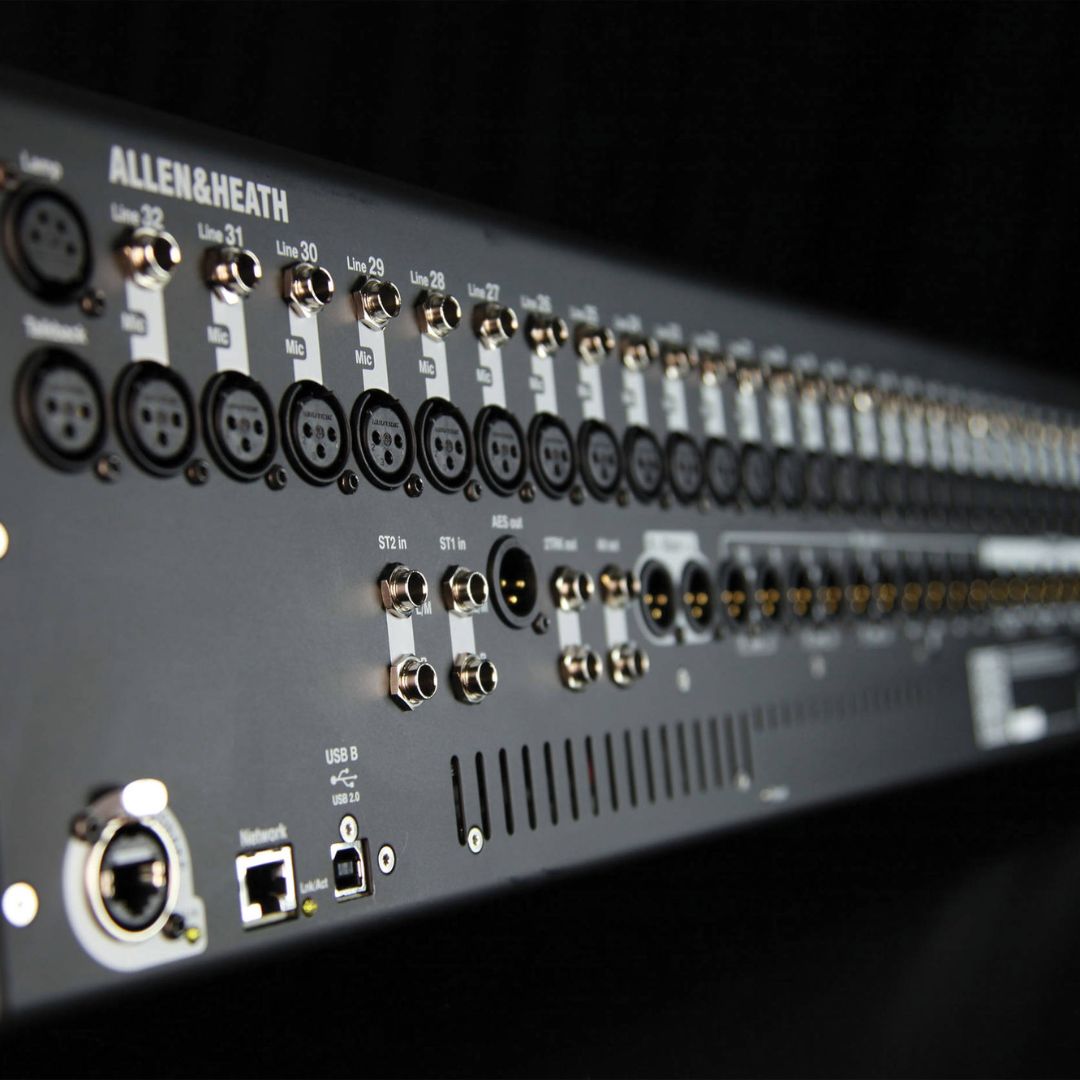

- Inputs – Mic Preamps: 32 x XLR
- Phantom Power: 32
- Inputs – Line: 32 x 1/4″
- Inputs – Other: 4 x 1/4″ (2 stereo in), 1 x 1/8″ TRS (stereo in)
- Outputs – Main: 2 x XLR (left, right), 2 x 1/4″ (2 track out), 2 x 1/4″ (alt out)
- Outputs – Other: 4 x XLR (mono mix outs), 3 x XLR pairs (stereo mix outs), 4 x
- XLR pairs (stereo group outs), 2 x XLR pairs (stereo matrix outs)
- Outputs – Digital: 1 x Ethernet dSnake, 1 x XLR AES, 1 x USB Type A
- Busses/Groups: 16-bus
- Talkback: 1 x XLR
- Data I/O: 1 x Ethernet TCP/IP
- USB: 1 x Type B, 1 x Type A
- Computer Connectivity: USB (32 x 30), Ethernet
- Headphones: 1 x 1/4″ TRS
- Faders: 32 x 100mm channels, 1 x 100mm master
- EQ Bands: Parametric EQ, 28-band graphic EQ
- Effects: Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
- DAW Control: MIDI DAW control driver for Mac (HUI, Mackie Control)
