Description
TonePrint Customization
Download the free TonePrint app to tweak every detail of your reverb or load artist-created sounds into six dedicated slots. You can even beam custom settings wirelessly from your phone through your guitar’s pickup (no cables required).
10 Reverbs & 8 Presets
Explore 10 reverb types including Hall, Plate, Spring, and the ethereal Shimmer. With two preset banks and four footswitches, you can store and access up to 8 personalized setups which make it ideal for switching tones instantly during gigs or recording sessions.
Stereo & MIDI Ready
Equipped with stereo inputs/outputs, MIDI I/O, and an expression pedal input, this pedal works seamlessly in any rig. From simple boards to complex stereo or MIDI-controlled environments, offering both flexibility and remote control options.
MASH Footswitch Control
Four pressure-sensitive MASH switches respond to your touch, letting you manipulate multiple effect parameters in real time. This gives you expressive control over your reverb, allowing swells, pitch shifts, or decay changes directly underfoot. Perfect for live dynamics.
Famous reverb pedal with 4 pressure-sensitive footswitches for complete control of ambience
4 MASH footswitches let you toggle between reverb sounds instantly
New Shimmer reverb uses SUB ‘N’ UP OCTAVER algorithm for other-worldly sounds
Preset bank switch lets you easily access up to 8 stored reverb presets
10 quality reverb types plus 6 TonePrint slots that let you store effects and artist TonePrints
Pre-delay knob for fine tuning reverb response time provides total reverb control
MASH footswitches give you powerful effect-specific real-time parameter control
Craft reverbs and assign MASH functionality with free TonePrint App (PC, Mac, iPhone, Android and iPad)
Works flawlessly with both guitar and FX loop level signals
Expression pedal and MIDI inputs let you control parameters and switch presets remotely
Mono and Stereo inputs and outputs give optimal versatility
Analog-Dry-Through maintains integrity of analog dry signal path even when reverb is on
Audio Circuit Type: Digital
Buffer: Selectable True or Buffered Bypass
Input Impedance: 1 Megohm
Output Impedance: 100 Ohms
Controls:
1 x 16-Way Rotary Switch (Reverb Type/TonePrint Effect)
4 x Rotary Knob (Decay, Pre Delay, Tone, Level)
3 x 2-Way Switch (Bank 1/2, True/Buffered Bypass, Kill Dry On/Off)
4 x Footswitch (Effect A, B, C, D)

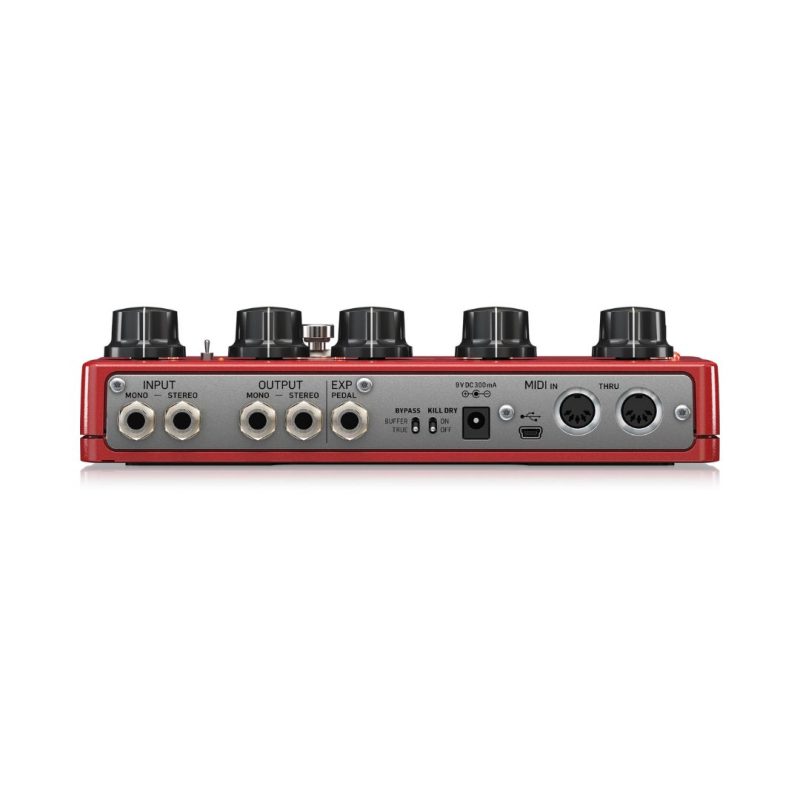

USB I/O: 1 x Mini-USB Female Input/Output
Audio I/O:
2x 1/4″ TS Hi-Z/Instrument Input (1 Stereo Pair)
1x 1/4″ TRS Input (Expression)
1x DIN 5-Pin MIDI Input
2x 1/4″ TS Line Output (1 Stereo Pair)
1x DIN 5-Pin MIDI Output
Power Source: AC Adapter with Power Brick (Included)
DC Input Power: 9 VDC
Operating Current: 300 mA
Color: Red
Material of Construction: Metal
Dimensions: 9.3 x 5.7 x 2.2″ / 23.6 x 14.5 x 5.6 cm
Weight: 2.9 lb / 1.3 kg
