Description
Hands-Free Performance

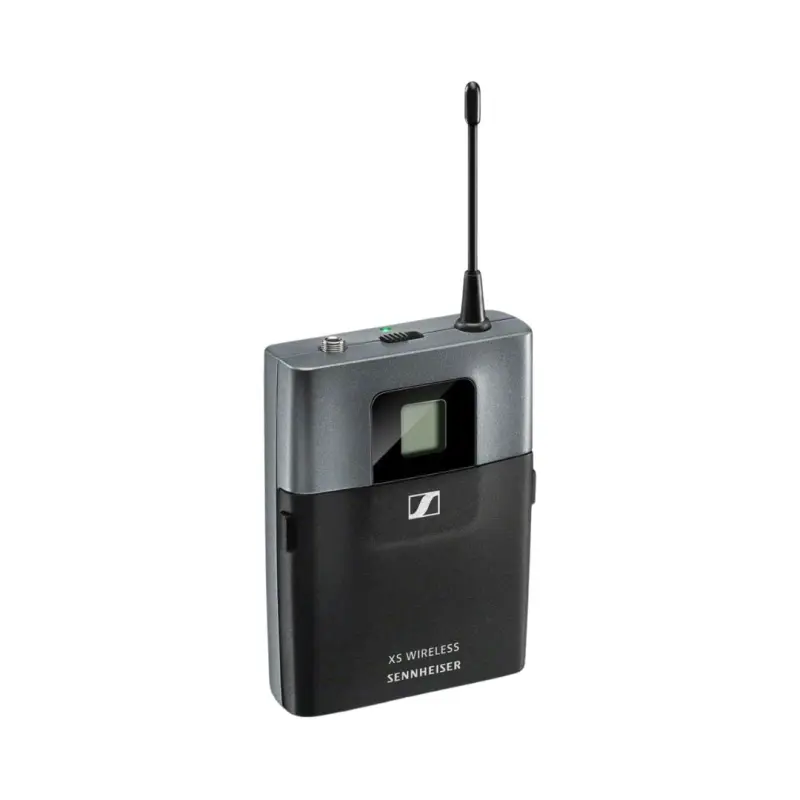

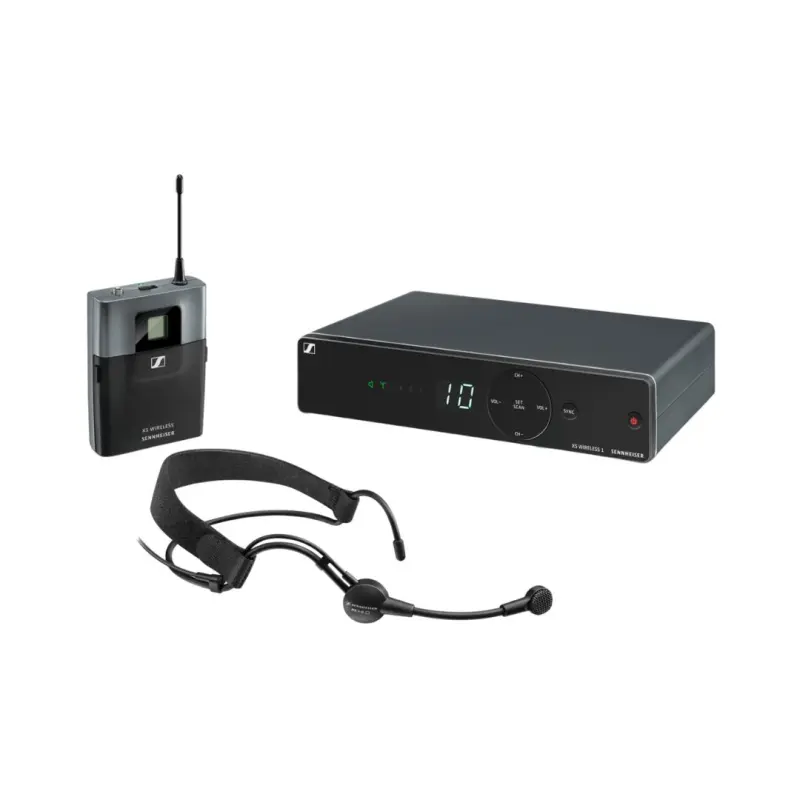

The XS Wireless 1 Headmic Set offers a lightweight headset microphone and compact bodypack transmitter, providing freedom for performers to sing and dance without the limitations of handheld microphones.
Reliable Wireless Transmission
With up to 10 selectable UHF channels and antenna-switching diversity reception, the system ensures stable, interference-free audio, perfect for live performances and presenters in dynamic environments.

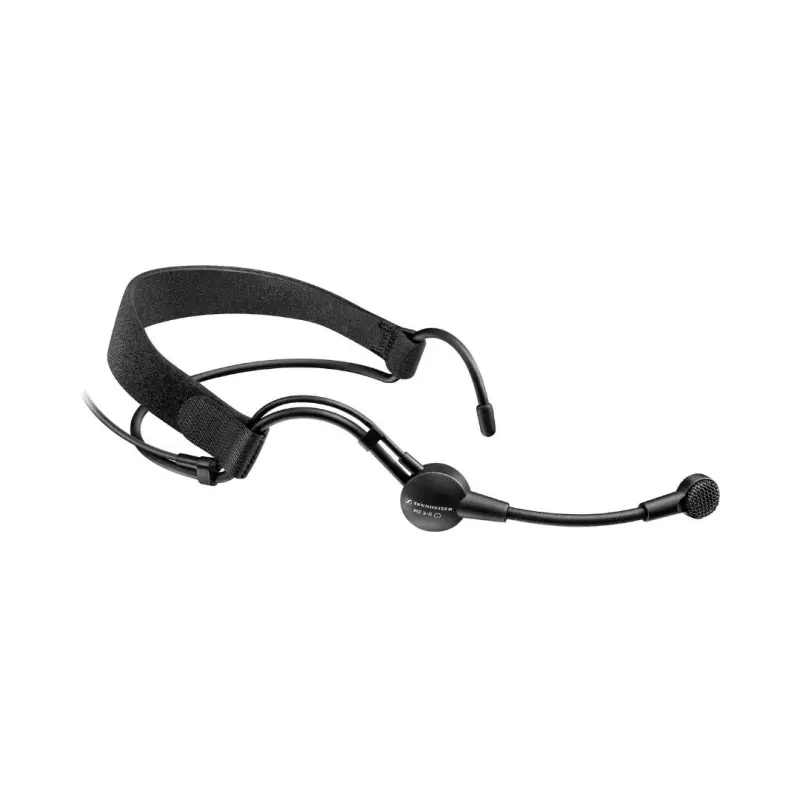

- Featuring Sennheiser’s evolution ME 3-II headmicLightweight headmic and compact bodypack transmitter
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Modulation: Wideband FM
Frequency Range: A: 614 to 638 MHz
Switching Bandwidth: Up to 24 MHz
Signal to Noise Ratio: ≥ 103 dBA
Total Harmonic Distortion: ≤ 0.9%
Temperature Range: Operation: 32 to 104°F (0 to +40°C)
Storage: -4 to 158°F (-20 to 70°C)
Transmitter Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Principle: Double superheterodyne
Diversity: Antenna switching diversity via internal antennas
Sensitivity: < 3 μV at 52 dBA RMS S/N (at peak deviation)
Frequency Response: 50 Hz to 16 kHz (-3 dB)
Max Output Voltage:
At Peak Deviation, 1 kHz AF

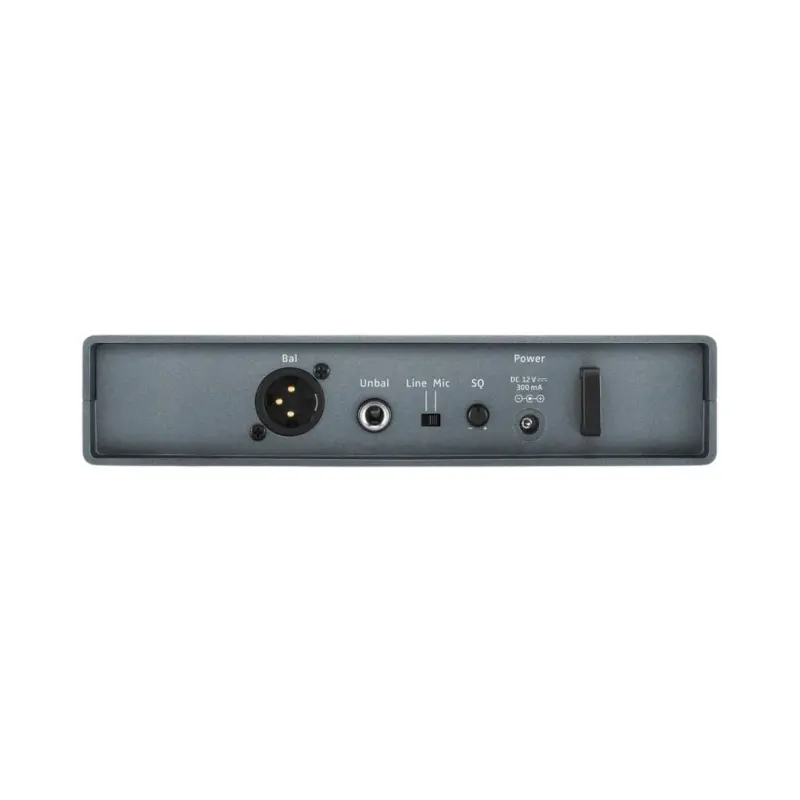

1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range: Audio: 45 dB, adjustable in 5-dB steps
Power Supply: 12 VDC nominal, 300 mA
Squelch: Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level: 20 dB, switchable
Material of Construction: ABS housing
Dimensions: 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight: 12 oz (340 g)
Output Power: 10 mW
Frequency Response:
Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input: 1/8″ (3.5 mm) jack socket
Input Voltage: Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply: 2 x AA batteries, 1.5 V
Operating Time: Approximately 10 hours
Adjustment Range: Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction: Rugged ABS housing
Dimensions: 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight: 3.4 oz (95 g)
Microphone Type: Condenser, pre-polarized
Sensitivity: 1.6 mV/Pa
Polar Pattern: Cardioid
Max SPL: 150 dB
