Description

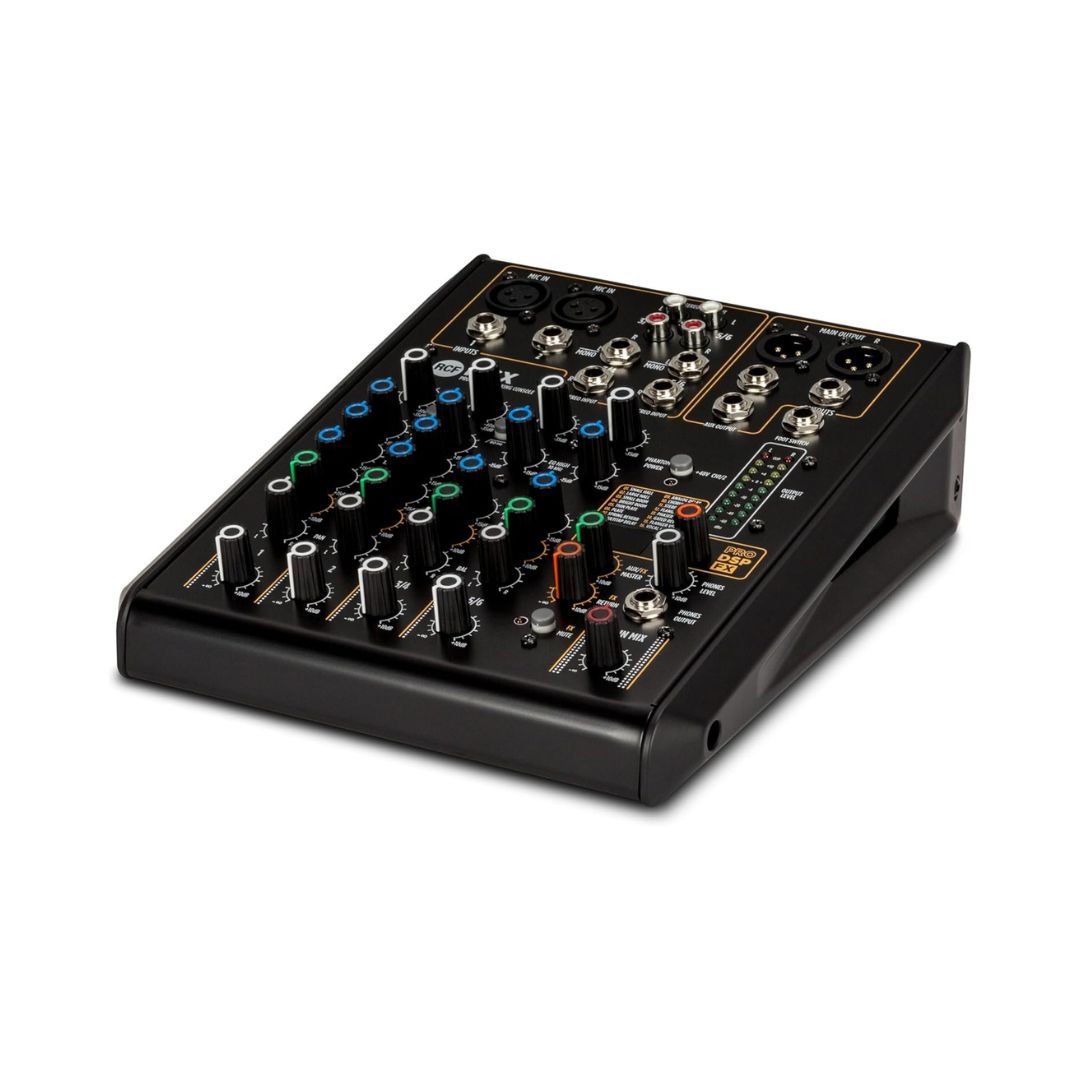

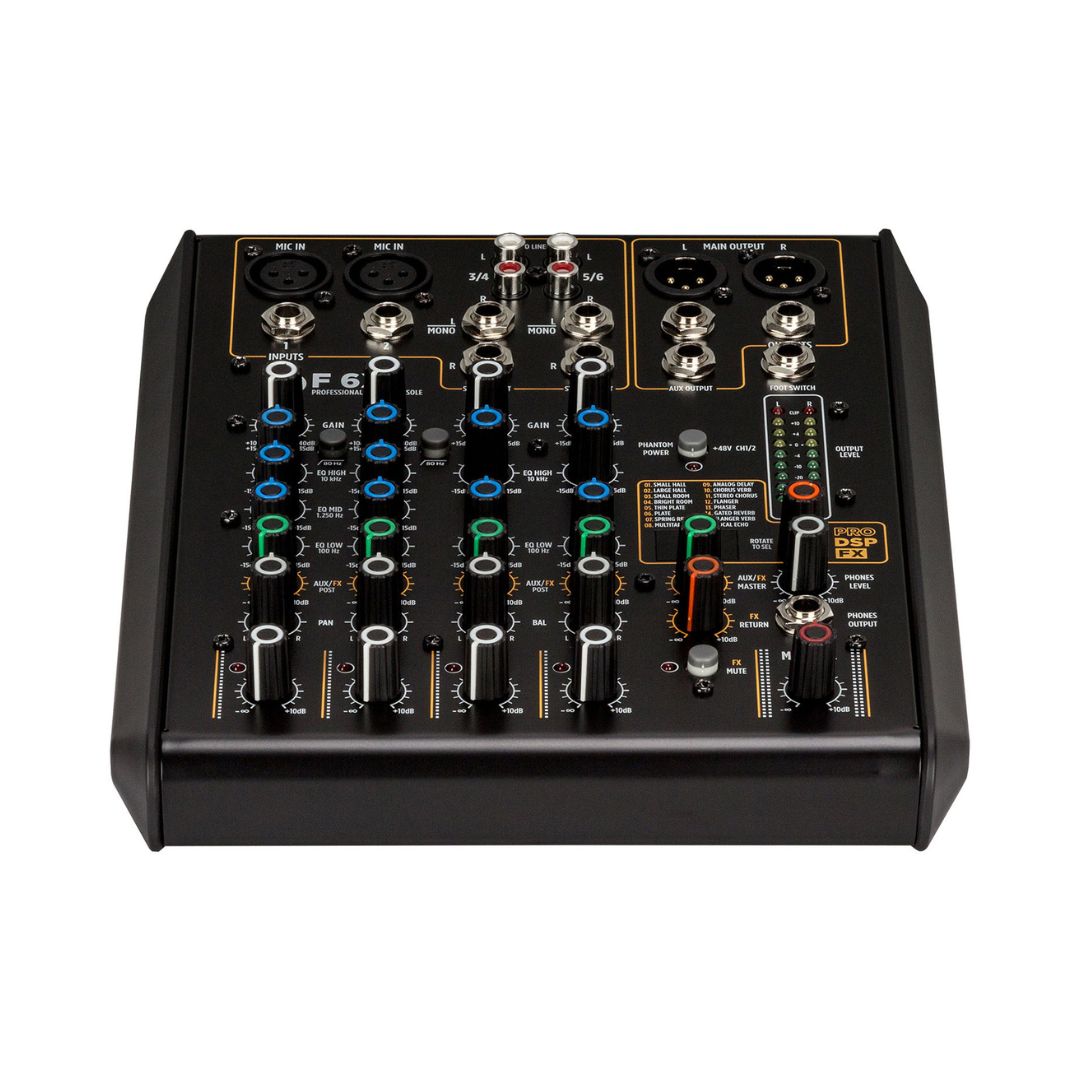

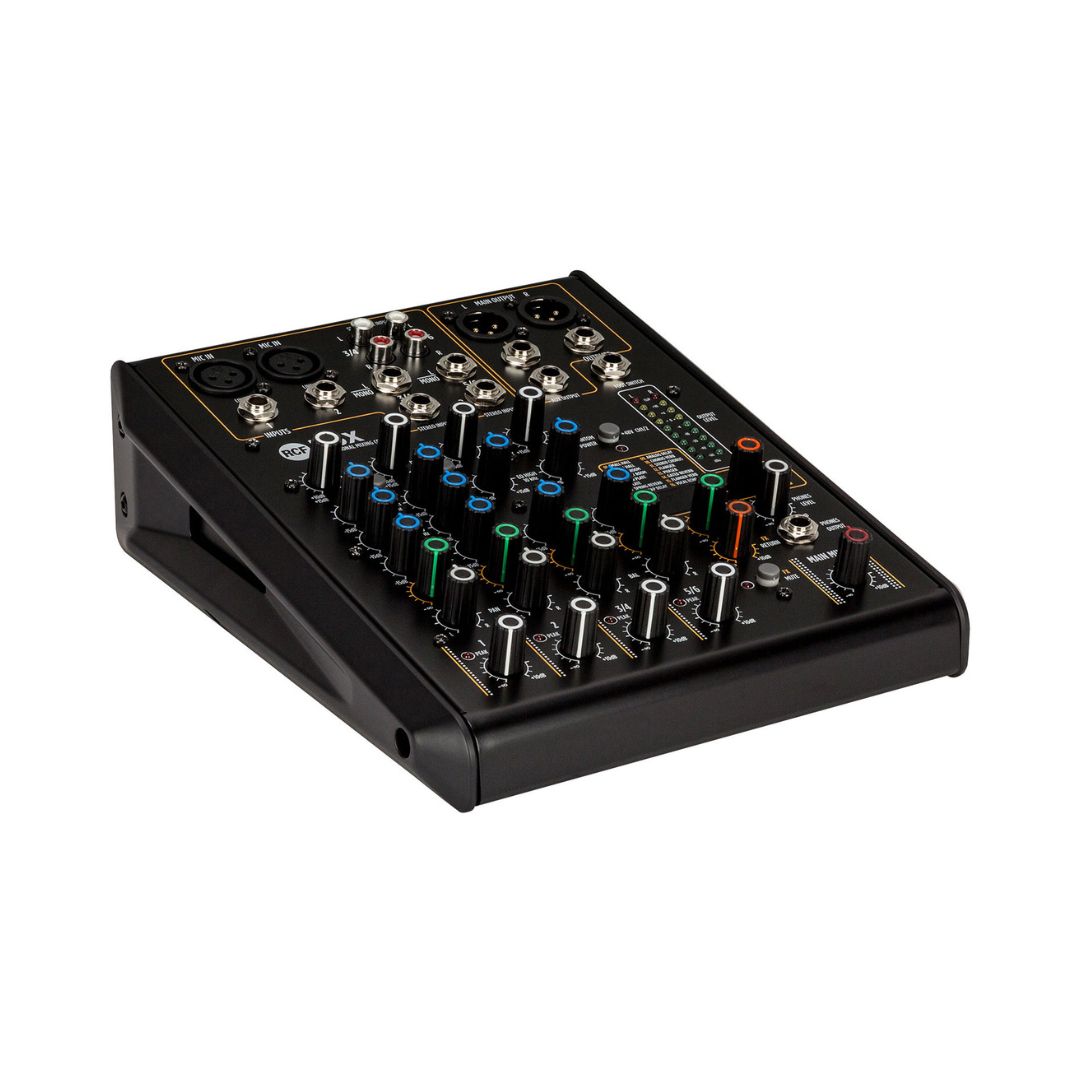

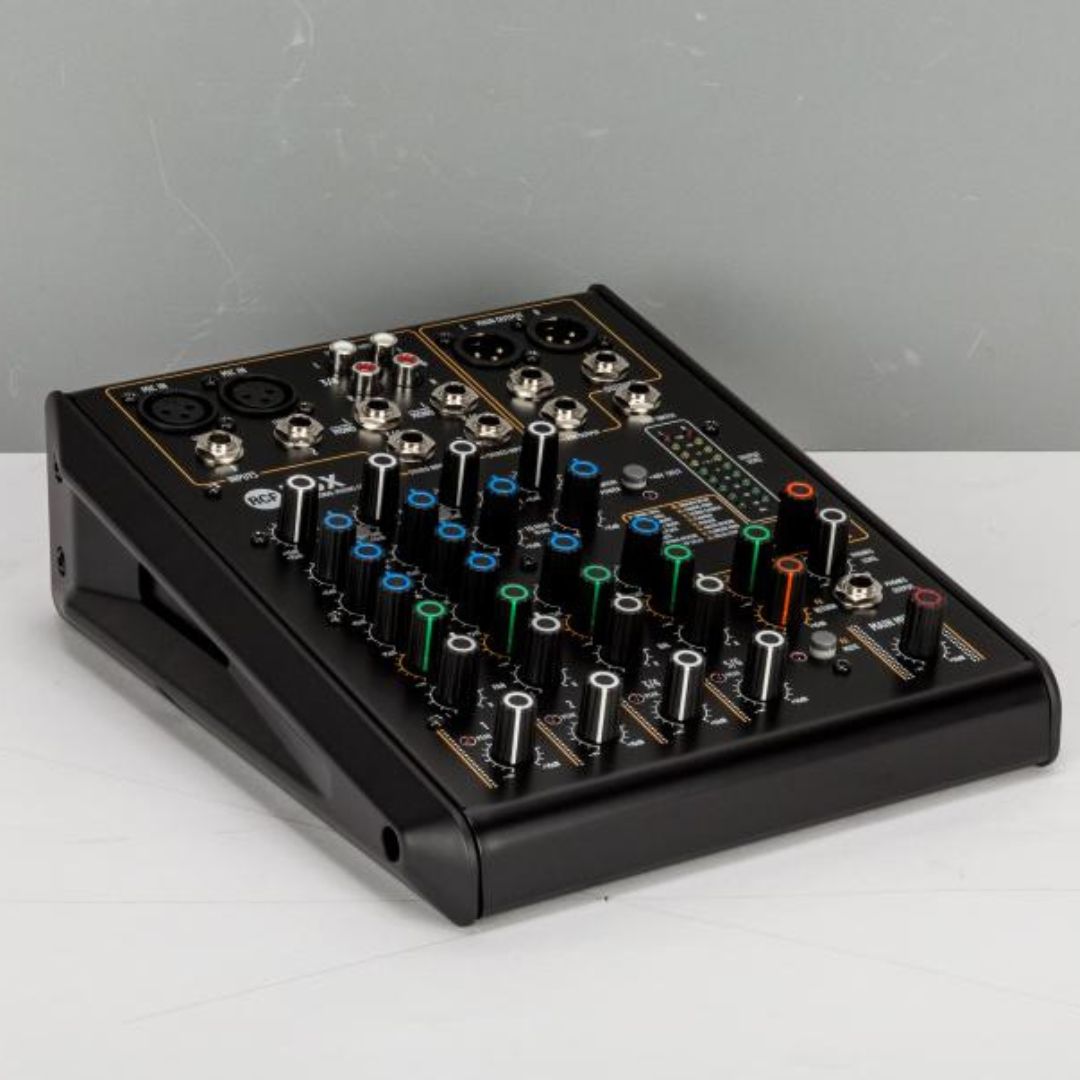

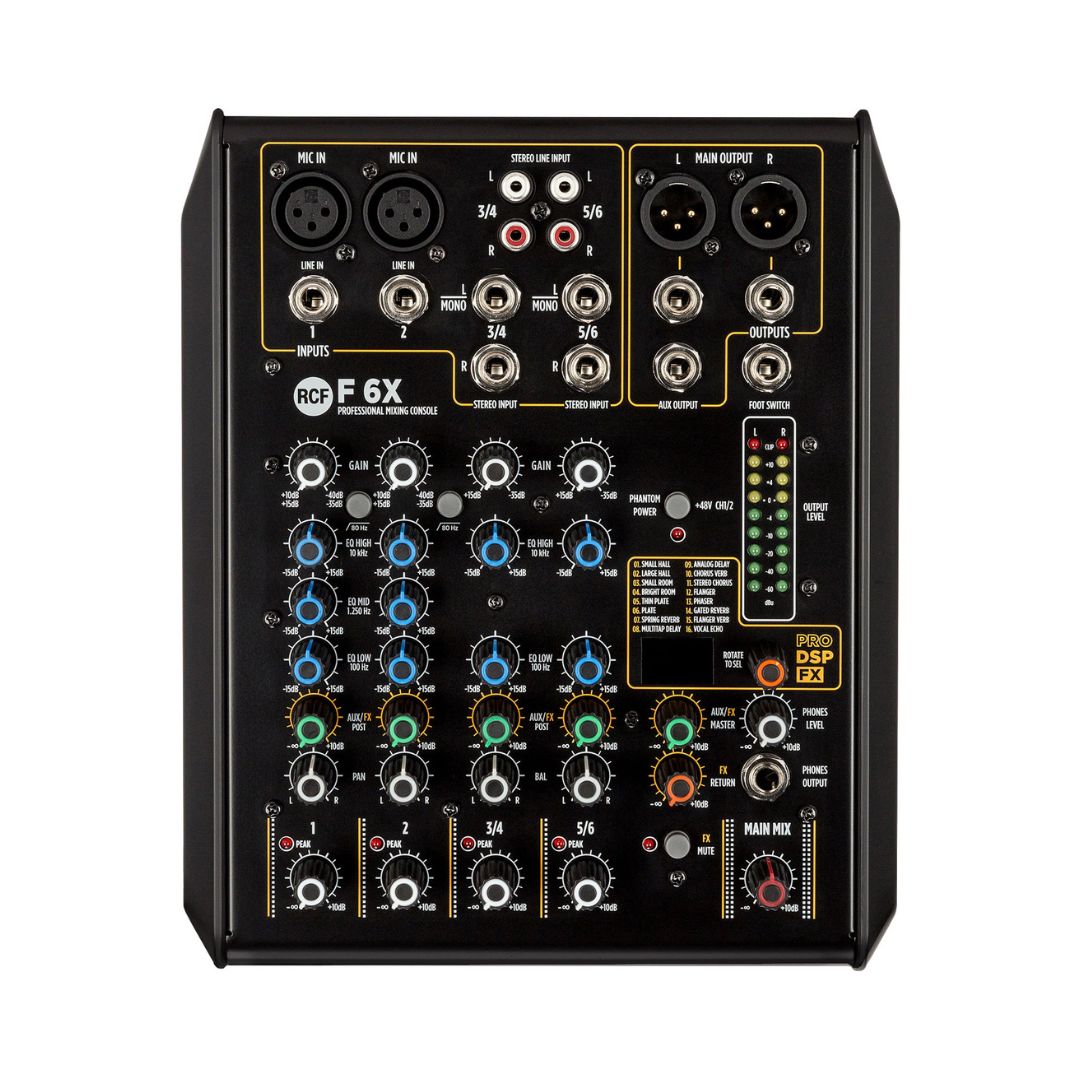

The RCF F 6X is a compact 6-channel analog mixing console designed for musicians, small venues, and audio enthusiasts seeking reliable performance and versatile features. It includes 2 mic/line inputs with 3-band EQs, 2 stereo line inputs with 2-band EQs, and a post-fader Aux/FX send. A balanced audio path ensures clean signal flow from input to output, supported by high-quality preamps and 48V phantom power for condenser mics. Built-in 24-bit PRO DSP FX offers 16 presets including reverb, delay, chorus, and flanger. Housed in a rugged metal chassis and powered by a universal external supply, the F 6X delivers dependable sound mixing for live setups. Designed and engineered in Italy by RCF’s R&D team.

Flexible Input Options

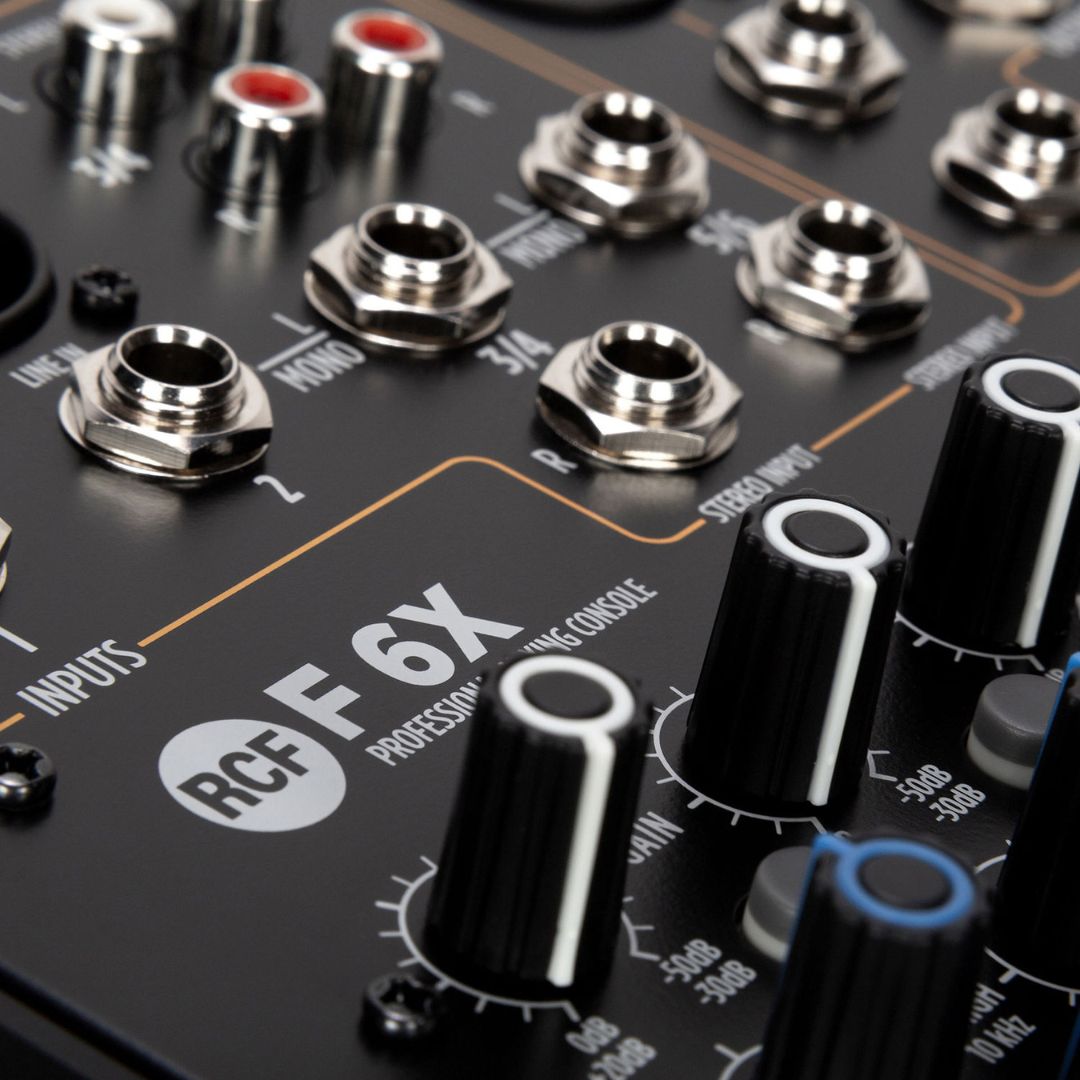

The RCF F 6X offers 2 mic/line inputs with 48V phantom power and 2 stereo line inputs, supporting XLR, 1/4", and RCA connections—ideal for microphones, instruments, or external devices in live or studio settings.

Studio-Quality Built-In FX
With 16 professional-grade 24-bit DSP effects including reverbs, delays, choruses, and flangers, the F 6X lets you enhance your sound instantly without needing external processors, making it perfect for dynamic performances.
2 mic/line inputs with 48V phantom power
2 stereo line inputs with 2-band EQ
16 onboard 24-bit digital FX presets
Balanced main outputs with XLR and 1/4” jacks
One post-fader Aux/FX send
High-quality preamps inspired by RCF E Series

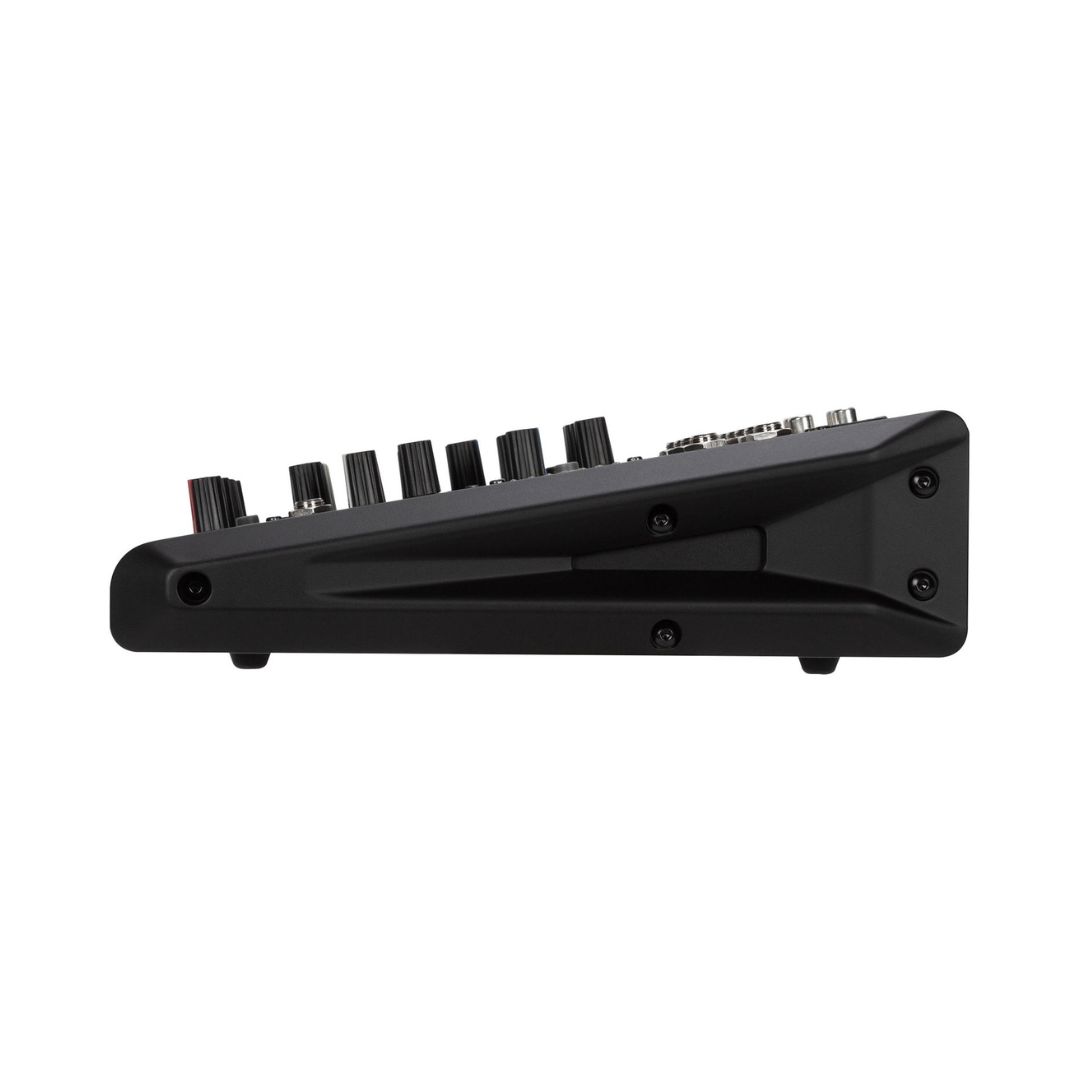

Rugged metal chassis for durability
Compact and portable with external universal PSU
Designed and engineered in Italy
Input Connections:
2 x XLR Inputs
6 x 1/4″ Inputs (2 x Stereo Pairs, 2 Mono)
4 x RCA Inputs (2 x Stereo Pairs)
1 x 1/4″ Footswitch Input
Gain Range: 0 to -50 dB
Input Impedance:
Mic: 14 Kilohms
Line: 21 Kilohms
Stereo Line: 15 Kilohms
Frequency Response: 20 Hz to 20 kHz
Gain Selection: 20 dB to -30 dB
Low Cut Filters: 80 Hz
Phantom Power: +48 V
Output Connections:
2 x XLR Main Outputs
2 x 1/4″ Main Outputs
1 x 1/4″ Auxiliary Output
1 x 1/4″ Headphones Output
Output Level: 28 dBu
Headphone Impedance: 150 Ohms
Equalization:
Input Channels: 2 Shelving / 1 Generic
High: ±15 dB at 10 kHz, Shelving
Mid: ±15 dB at 1250 Hz, Bell
Low: ±15 dB at 100 Hz, Shelving
Case Material: Metal
Frequency Response: 20 Hz to 20 kHz
THD+N: < 0.02% (20 dB Gain, 0 dBu Out, A-Weighted)

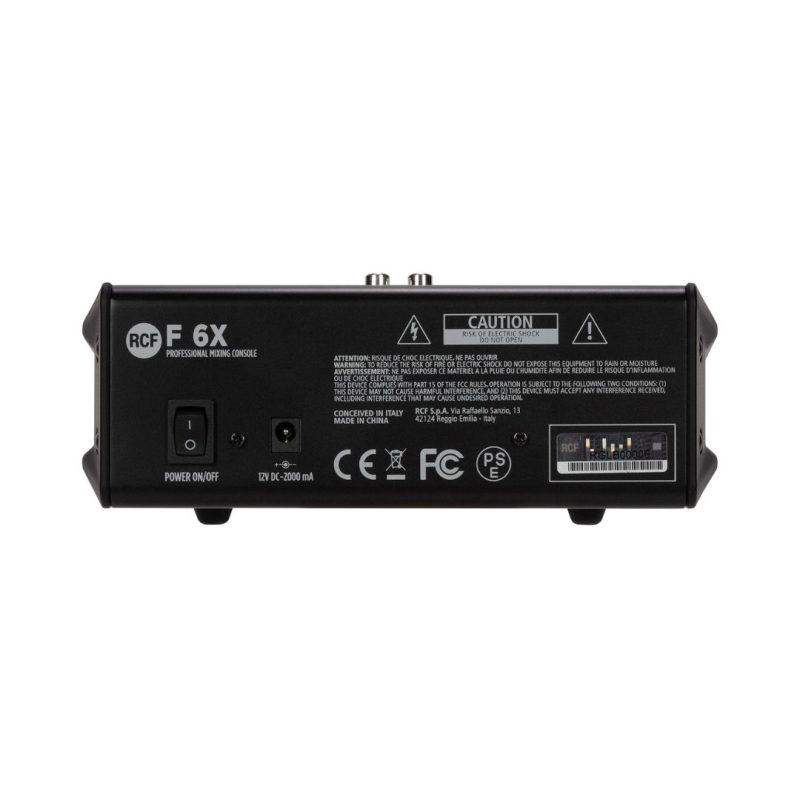

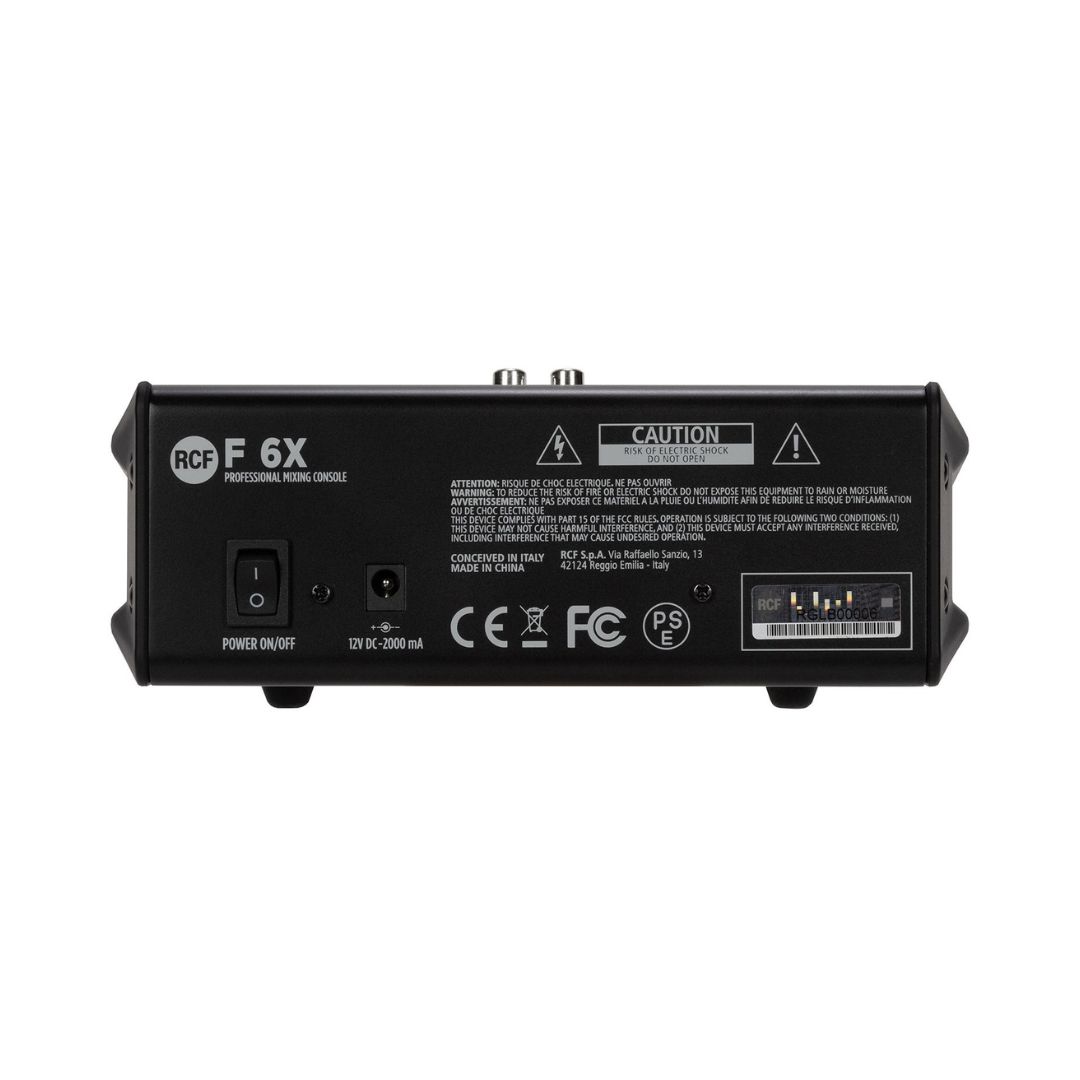

Power Requirements: 12 VDC, 2000 mA (Center Pin Positive)
Power Consumption: 12 W
External Power Supply (AC Adapter): 100 to 240 VAC, 50/60 Hz
Dimensions (D x H x W): 10 x 3.1 x 8.3″ / 255 x 79 x 210 mm
Weight: 4 lb / 1.8 kg
