Description
Flexible Channel Control & EQ

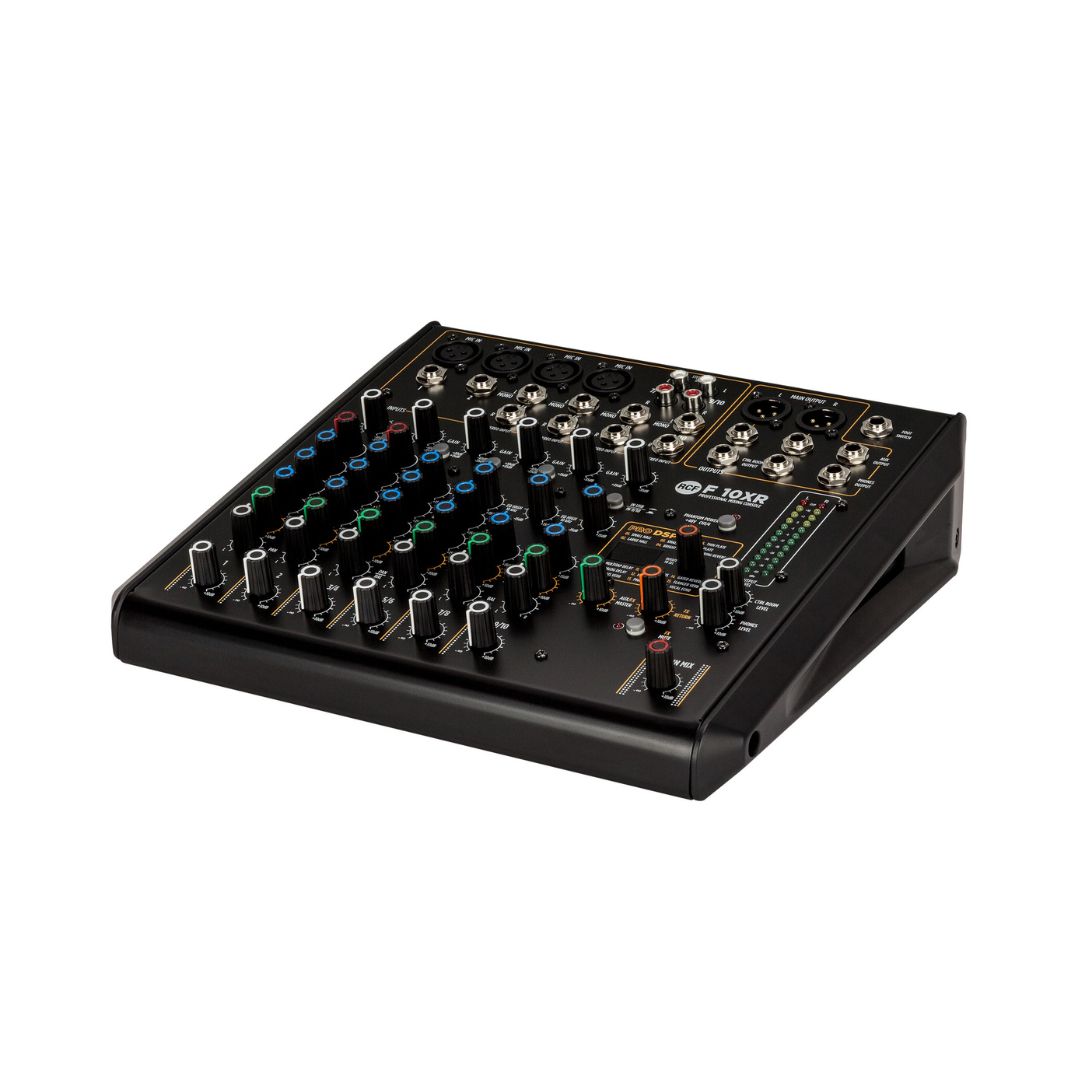

Equipped with four mic preamps, two mono line channels with 3-band EQ, and four stereo channels with 2-band EQ, this mixer delivers clean, adjustable sound shaping. It also features single-knob compressors on channels 1 and 2 for taming dynamic audio sources efficiently.
USB Recording & Onboard Effects

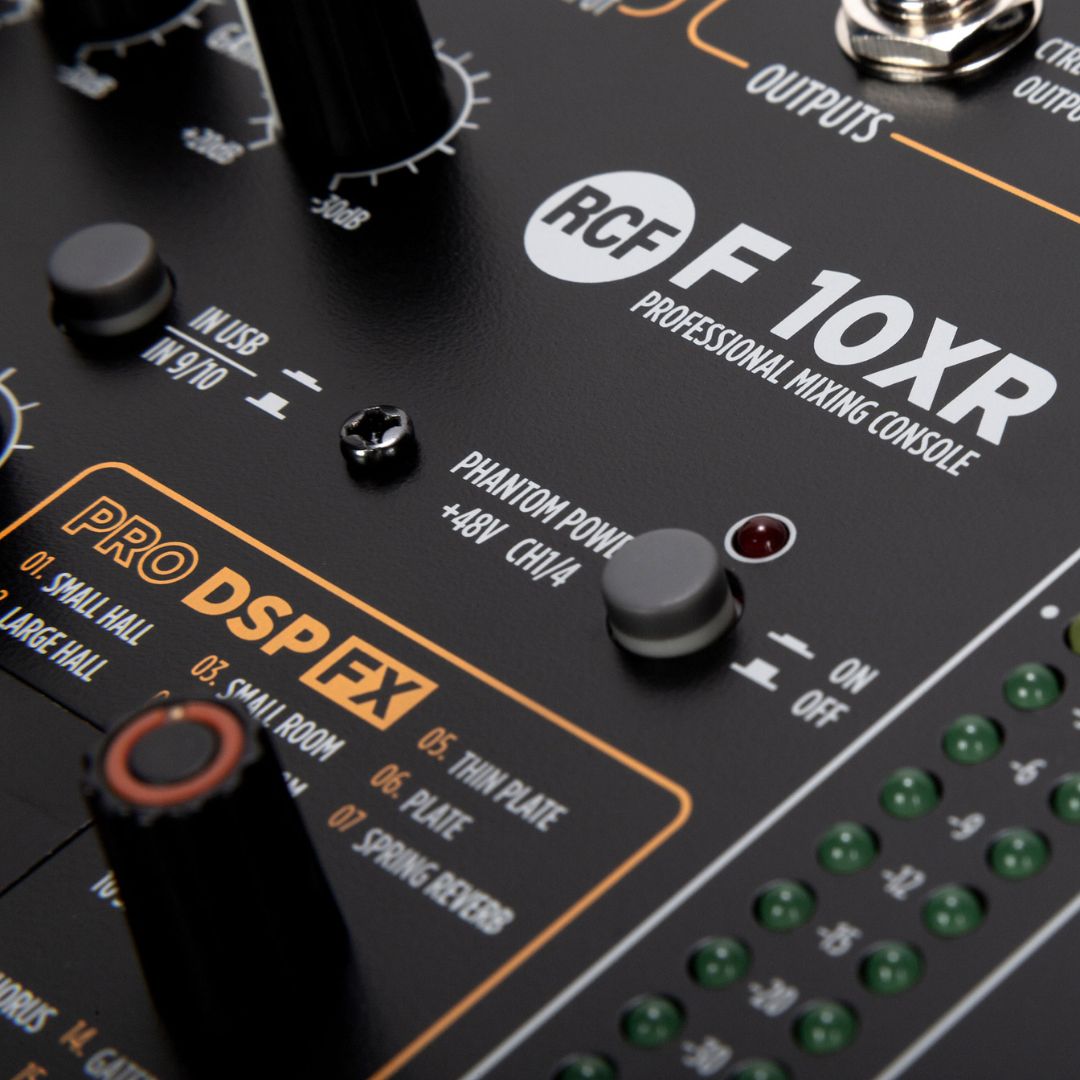

The F 10XR features a built-in 2-in/2-out USB audio interface for easy stereo recording and playback with Windows, macOS, and iOS devices. It also includes 16 onboard 24-bit DSP effects—like reverbs, delays, chorus, and flanger—making it perfect for both live performances and studio sessions.
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
- 2 single control compressors
- Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
- Robust, compact and attractive design.
- Designed and Engineered in Italy
- External Universal Power Supply

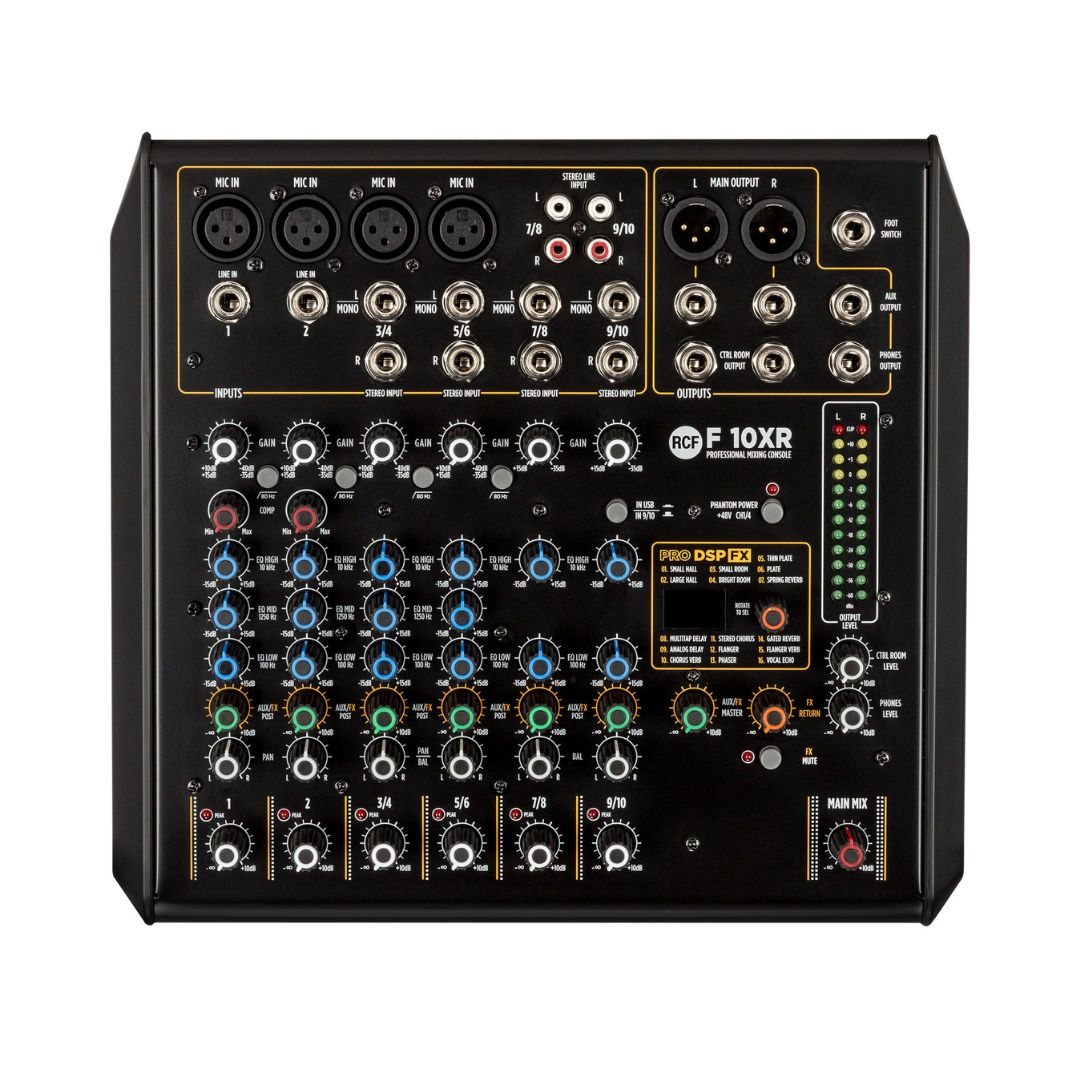

Input Connections
4 x XLR Inputs
10 x 1/4″ Inputs (4 x Stereo Pairs, 2 Mono)
4 x RCA Inputs (2 x Stereo Pair)
1 x 1/4″ Footswitch Input
Gain Range: 0 to -50 dB
Input Impedance:
Mic: 14 Kilohms
Line: 21 Kilohms
Stereo Line: 15 Kilohms
Frequency Response: 20 Hz to 20 kHz
Gain Selection: 20 dB to -30 dB
Low Cut Filters: 80 Hz
Phantom Power: +48 V
Output Connections:
2 x XLR Main Outputs
2 x 1/4″ Main Outputs
2 x 1/4″ CTL Room Outputs
1 x 1/4″ Auxiliary Output
1 x 1/4″ Headphones Output
Output Level: 28 dBu
Headphone Impedance: 150 Ohms
Compressor: Single-Control Compressors on Channels 1 and 2
Equalization:
Input Channels: 2 Shelving / 1 Generic
High: ±15 dB at 10 kHz, Shelving
Mid: ±15 dB at 1250 Hz, Bell
Low: ±15 dB at 100 Hz, Shelving

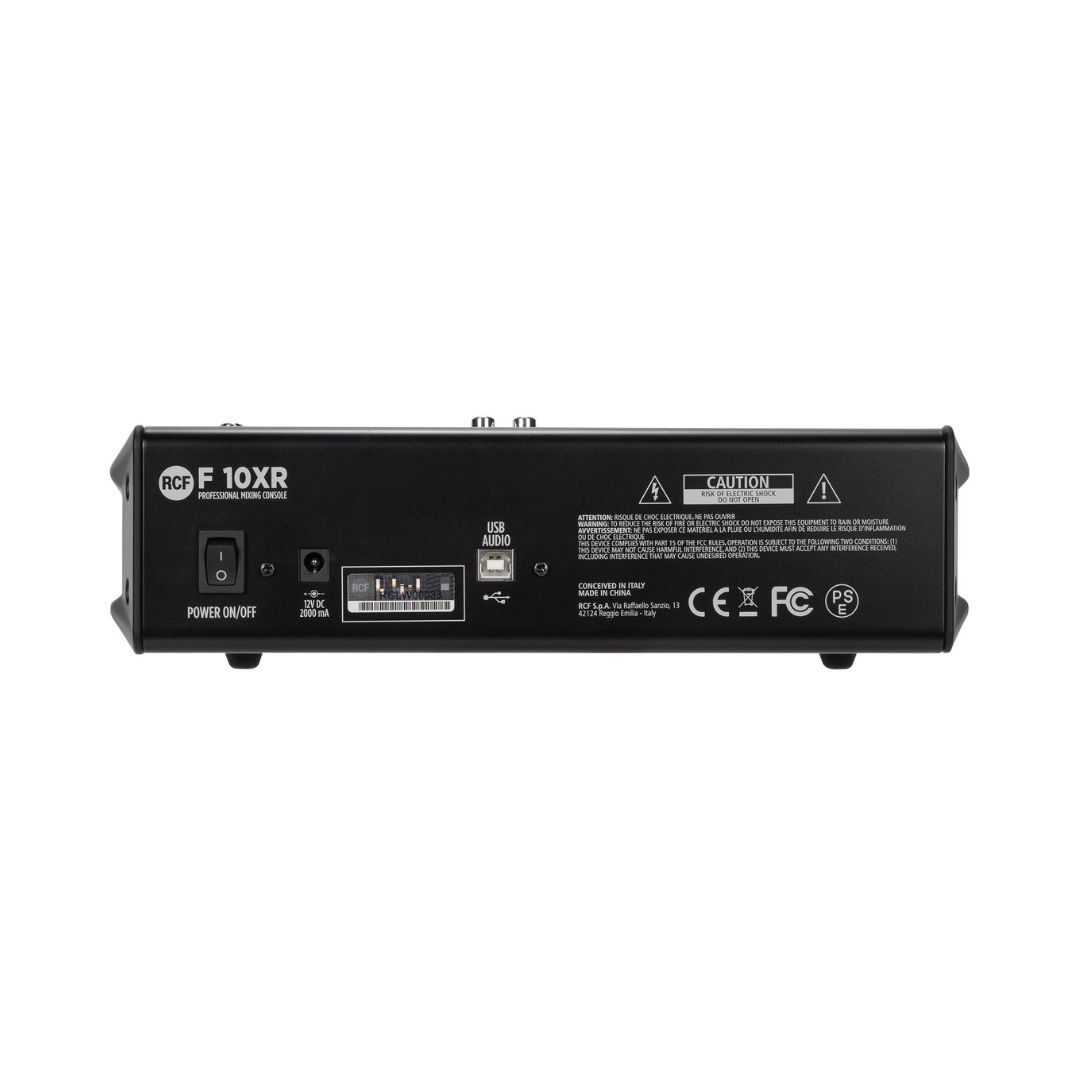

USB Audio: Type-B, 2-Channel I/O, 44.1 or 48 kHz Sample Rate
Case Material: Metal
Frequency Response: 20 Hz to 20 kHz
THD+N: < 0.02% (20 dB Gain, 0 dBu Out, A-Weighted)
Voltage Requirements: 100 to 240 VAC
Power Consumption: 18 W
Power Supply: External
Dimensions (D x H x W): 10.8 x 3.2 x 11.6″ / 27.5 x 8.2 x 29.4 cm
Weight: 6.2 lb / 2.8 kg
