Description
Wide and Even Coverage

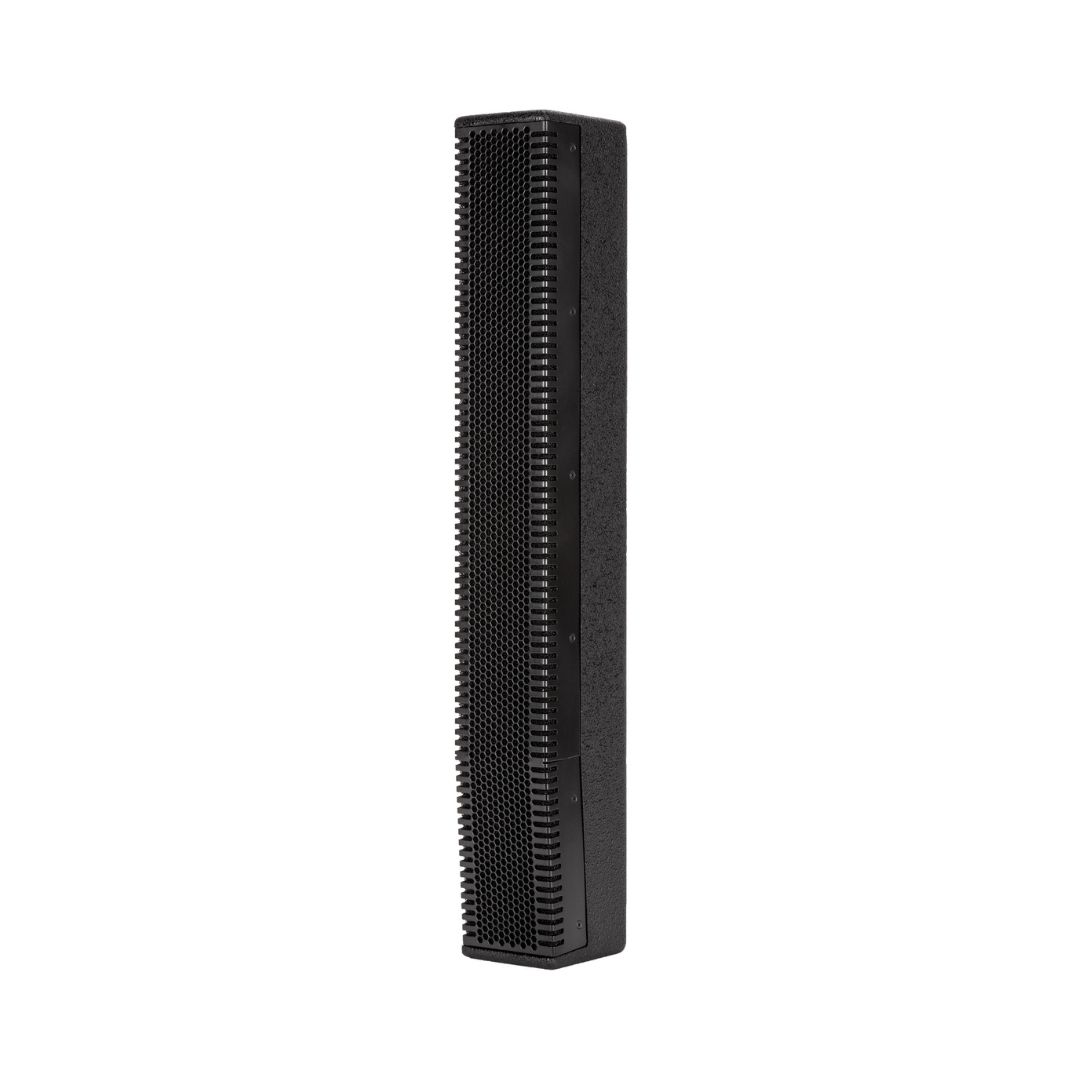

Its 90° horizontal by 30° vertical dispersion pattern offers consistent sound projection across the audience area. The vertical array is progressively shaped to maintain clarity from front to back. This design minimizes beaming and ensures balanced coverage.
Refined DSP Processing
Advanced DSP with FiRPHASE technology provides phase-coherent audio with high transparency and accurate stereo imaging. It enhances both speech and music by maintaining natural dynamics. The system operates with low latency for real-time performance.
High-Powered Performance

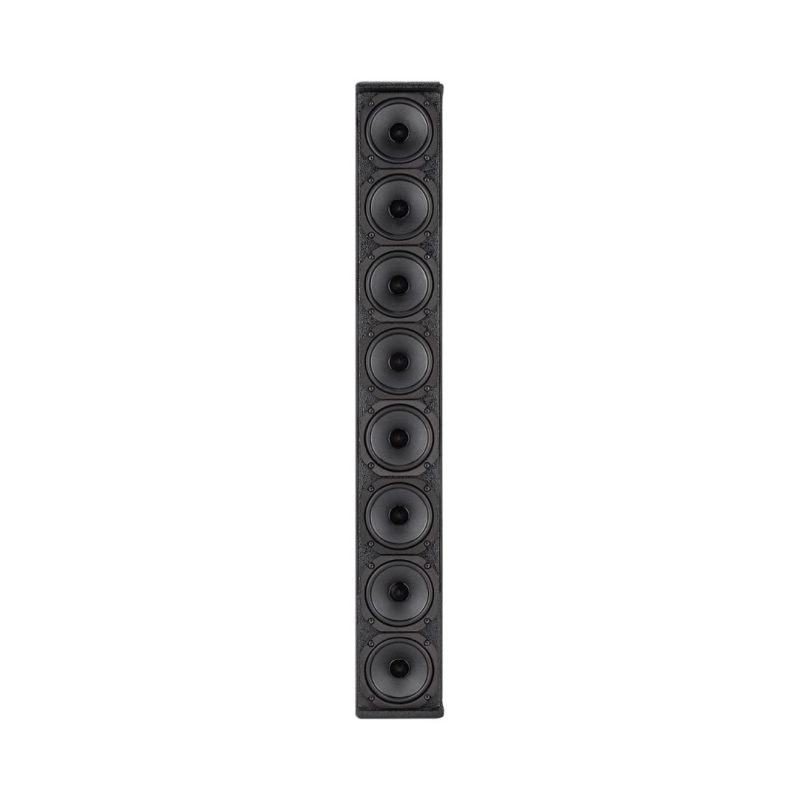

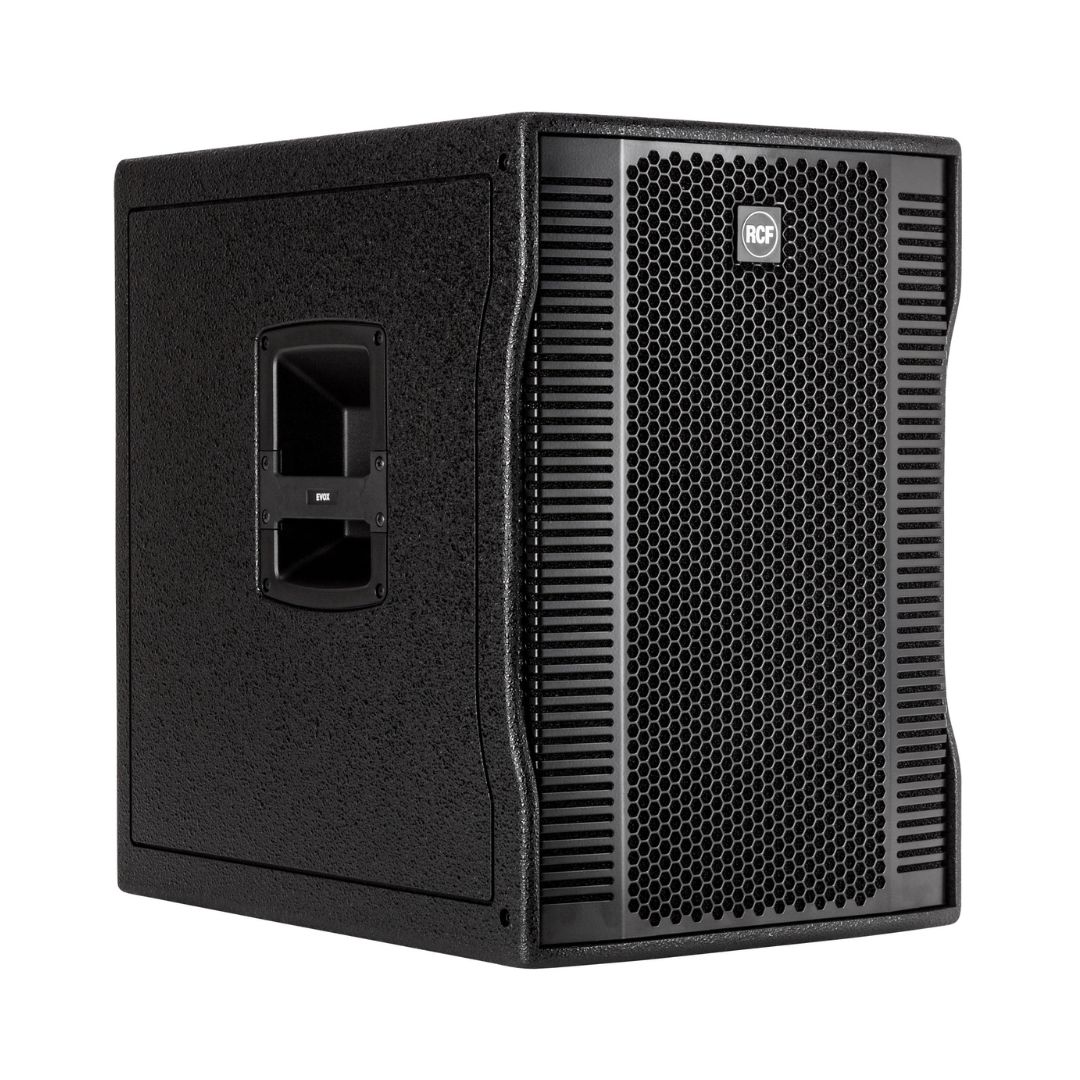

The EVOX 12 delivers 1400W of power through a 15" high-excursion woofer and eight 4" neodymium drivers. This setup ensures powerful low-end response and clear mids and highs. With a 130 dB max SPL, it easily fills large venues with dynamic sound.
Effortless Portability and Setup

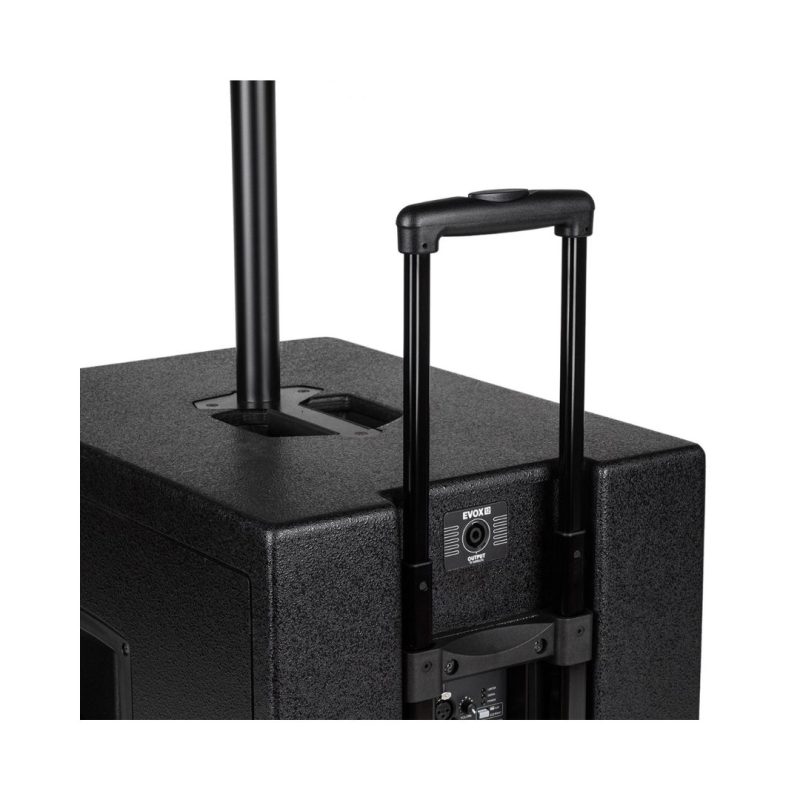

Despite its power, the EVOX 12 is housed in a compact cabinet with built-in wheels and a telescopic handle. All components—including the top column and pole—assemble quickly. It's ideal for performers who need professional sound on the move.
1400W Class-D amplifier with 130 dB max SPL output.

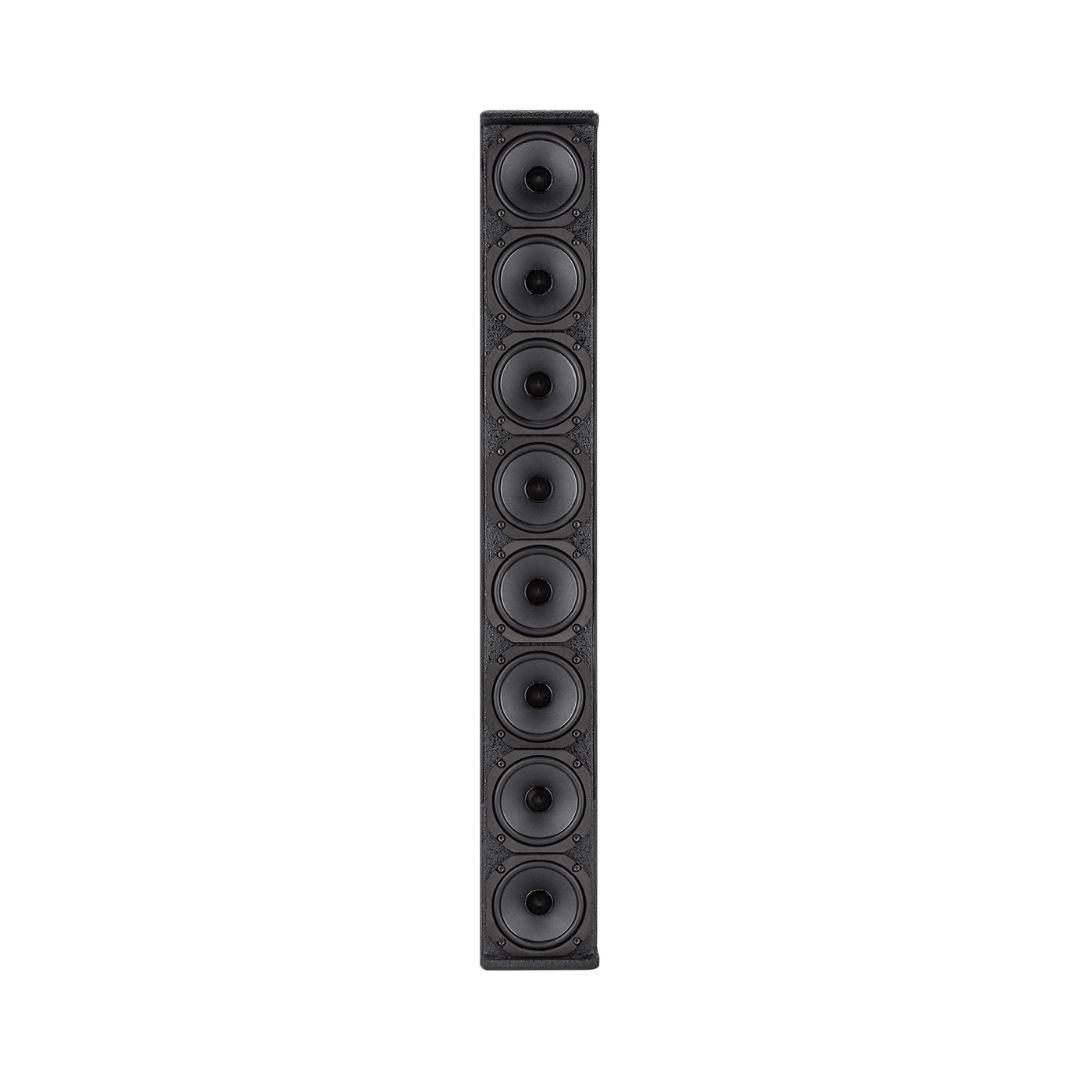

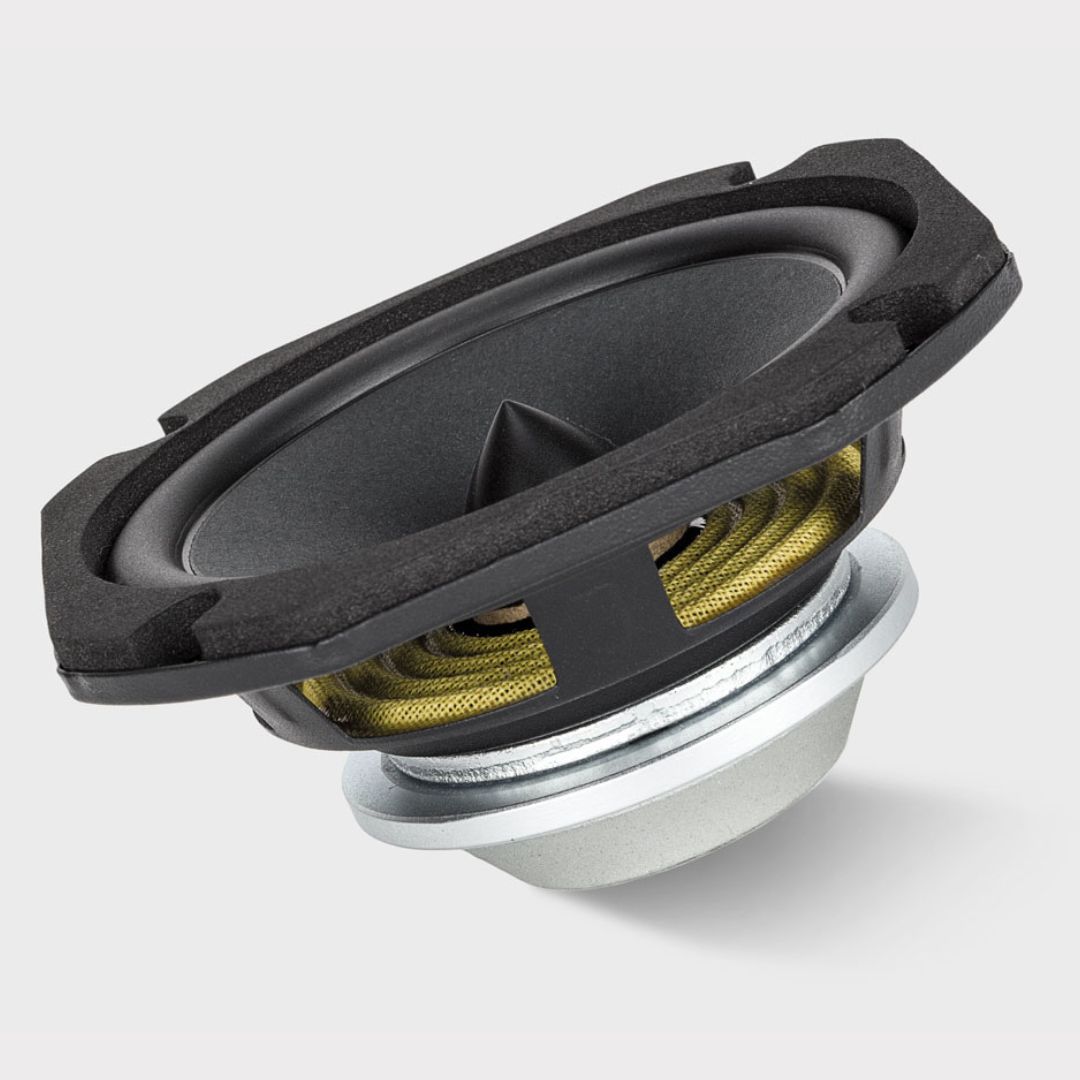

15″ woofer and 8 x 4″ neodymium full-range drivers.
90° x 30° constant directivity coverage pattern.
DSP processing with FiRPHASE for clear, phase-aligned sound.

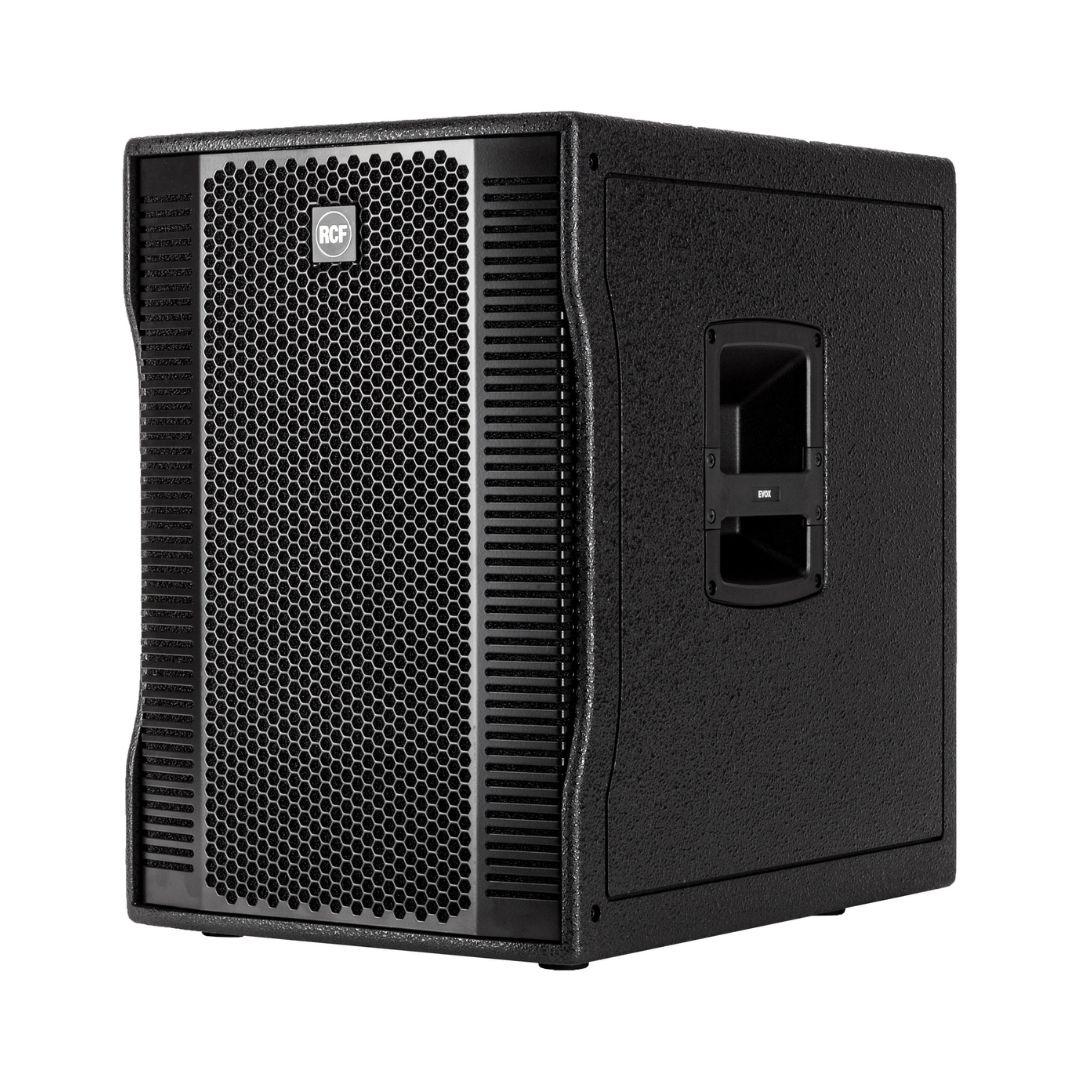

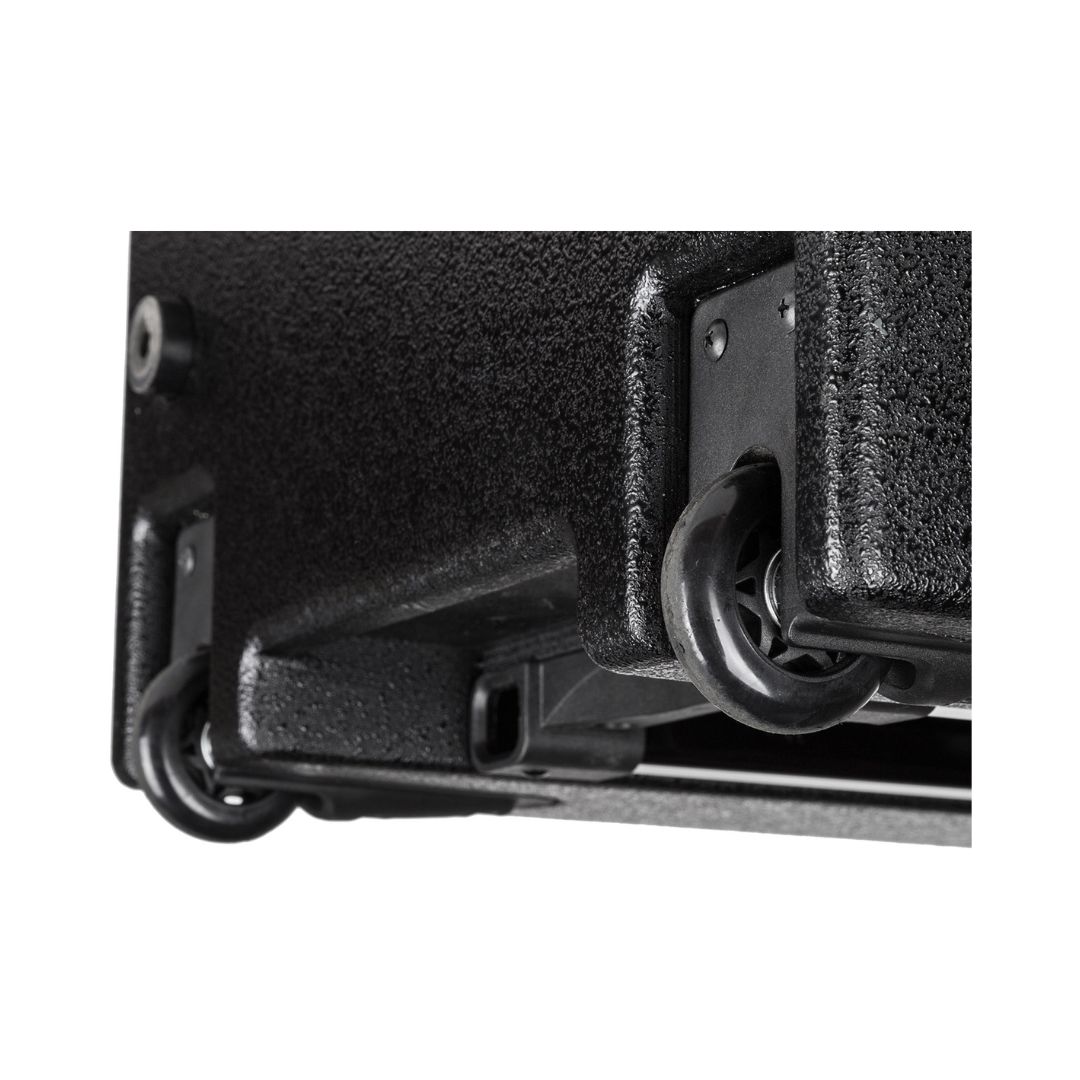

Compact enclosure with built-in wheels and telescopic handle for easy transport.

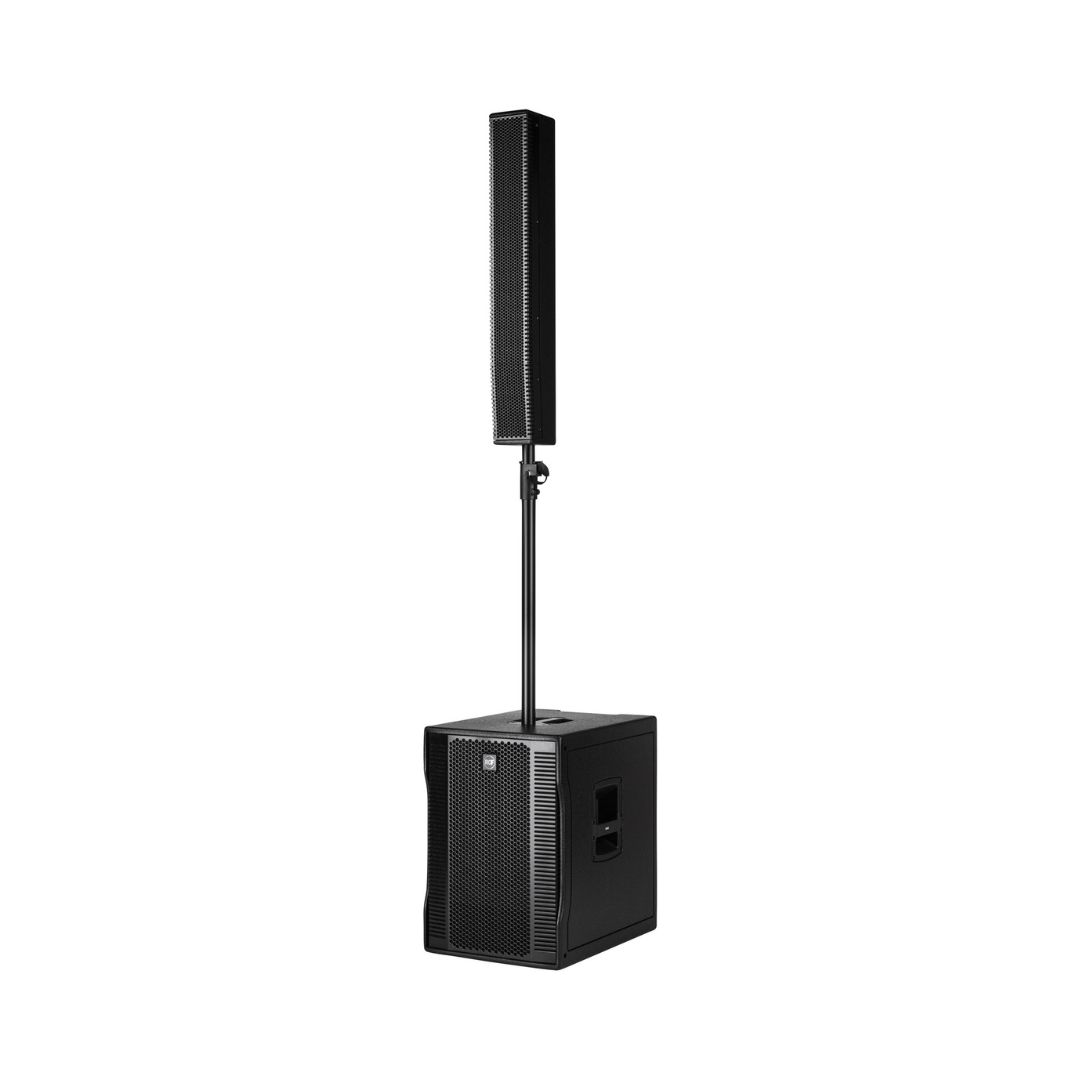

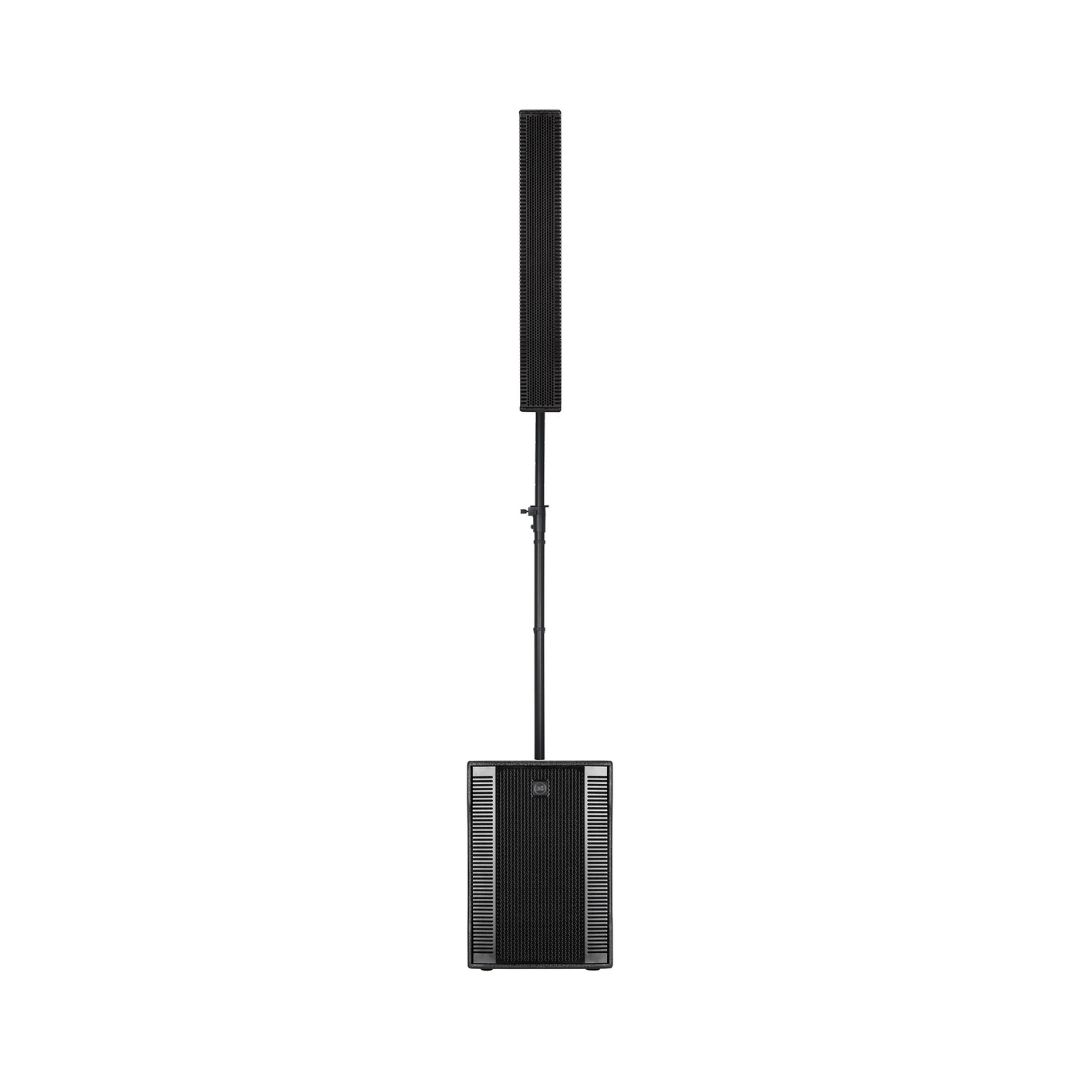

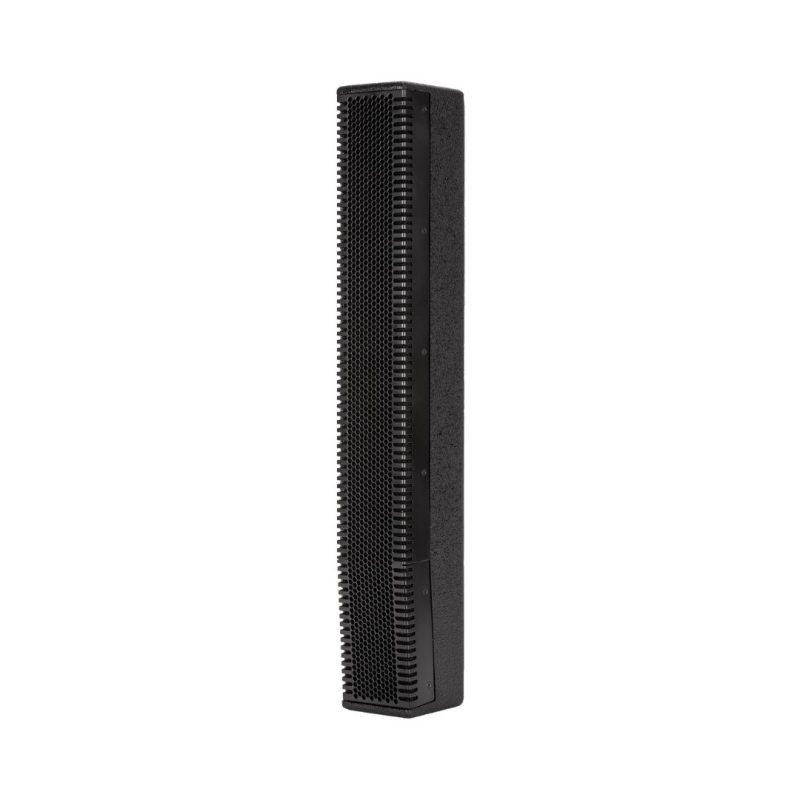

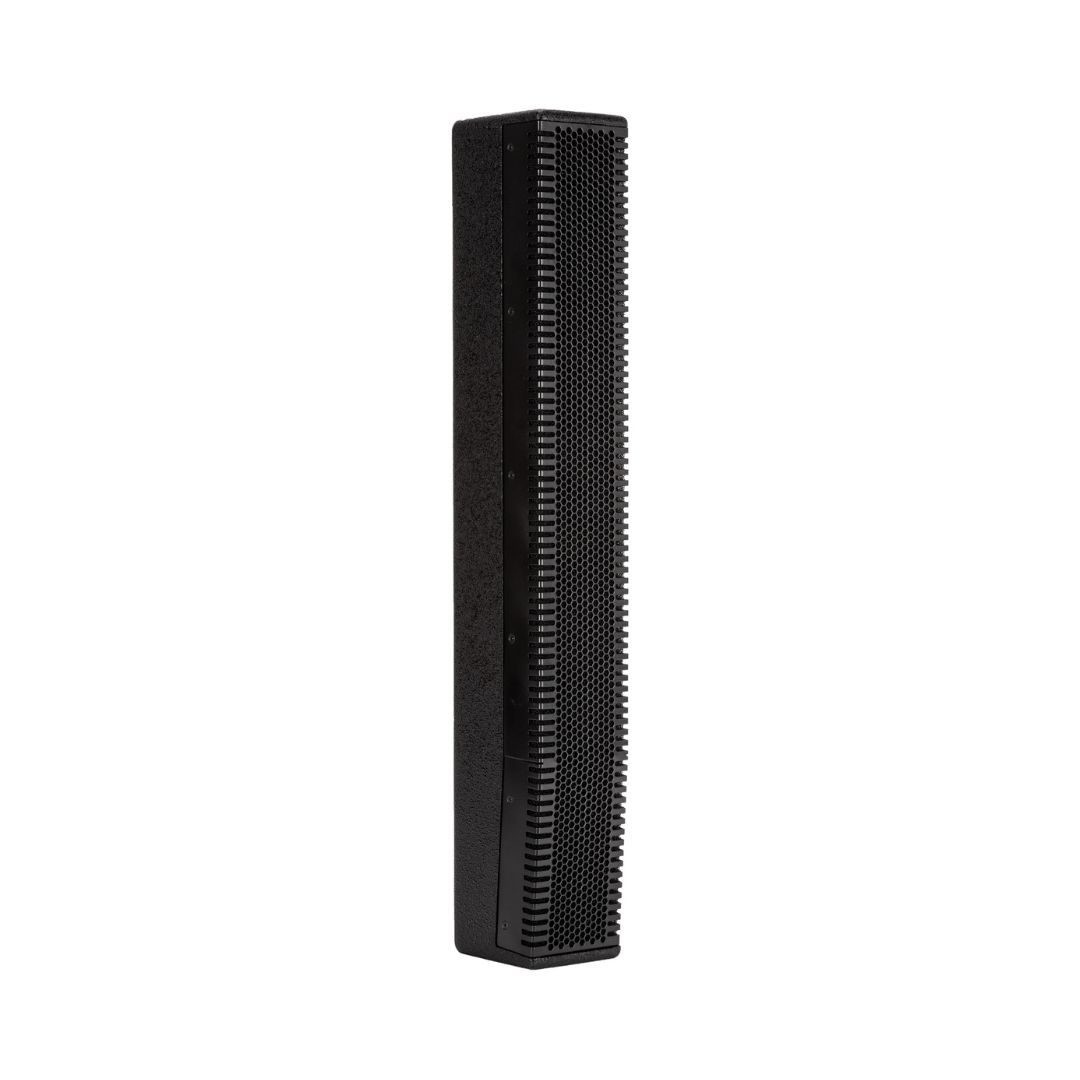

Quick pole-mount setup with integrated sub and column array design.
40 Hz – 20 kHz wide frequency response for full-range performance.
Durable birch cabinet construction suited for live and mobile use.
Speaker Configuration: 1x 2-Way Speaker Column with Subwoofer
Number of Input Channels: 1 (1 x Mono)
Amplifier Power Rating:
Total:
1400 W Peak
700 W RMS
LF/Subwoofer:
1000 W Peak
500 W RMS
HF:
400 W Peak
200 W RMS
Amplifier Class: Class-D

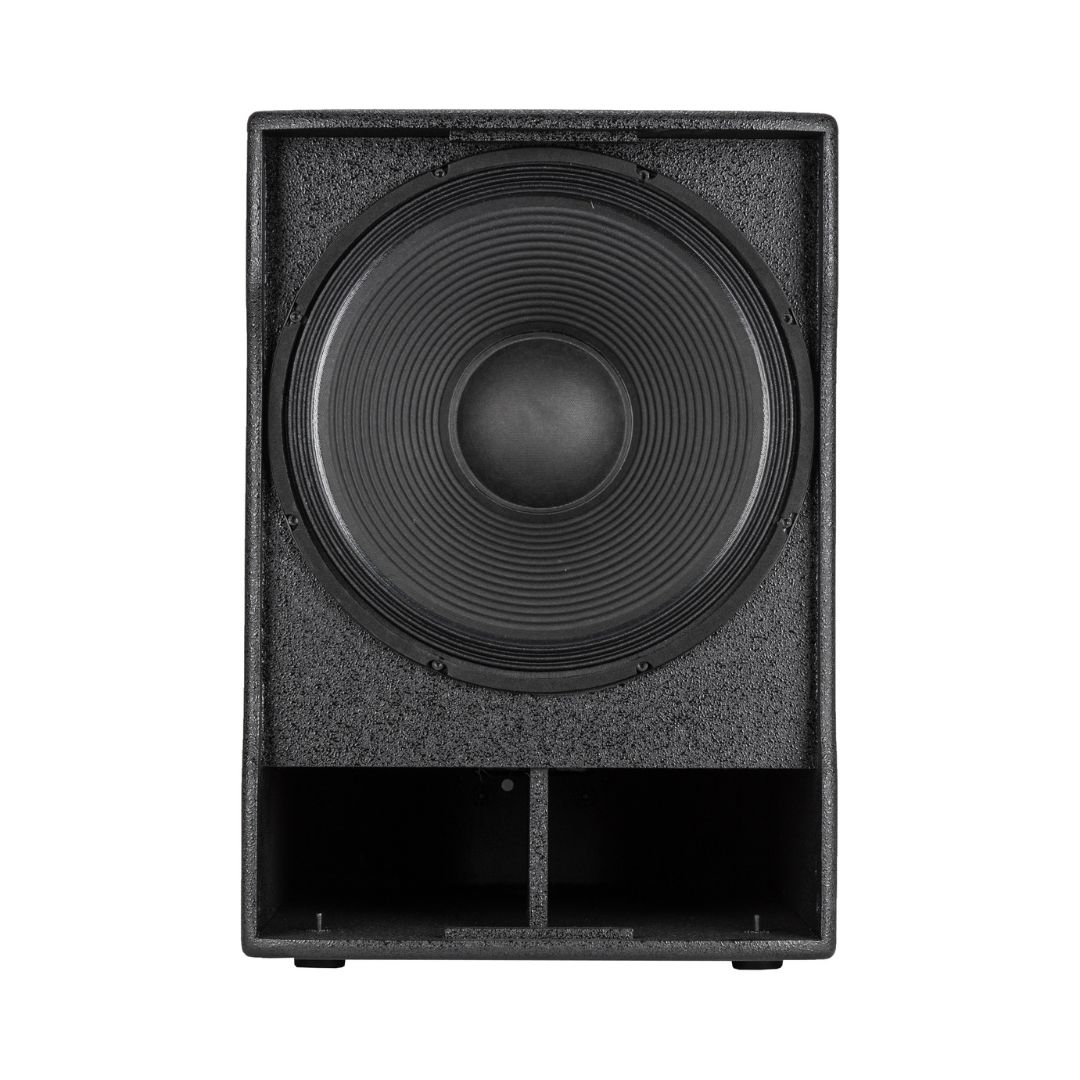

LF Driver: 1x 15″ / 38.1 cm Woofer
LF Voice Coil: 3″ / 7.6 cm
Crossover: 180 Hz
Input Pad: No
EQ: Yes
Effects: No
Dynamic Processing: Soft Limiter
Frequency Response: System: 40 Hz to 20 kHz
Maximum SPL: System: 130 dB
Coverage Angle: 90° H x 30° V
Input Sensitivity: +4 dBu / -2 dBu
Protections: RMS, Thermal

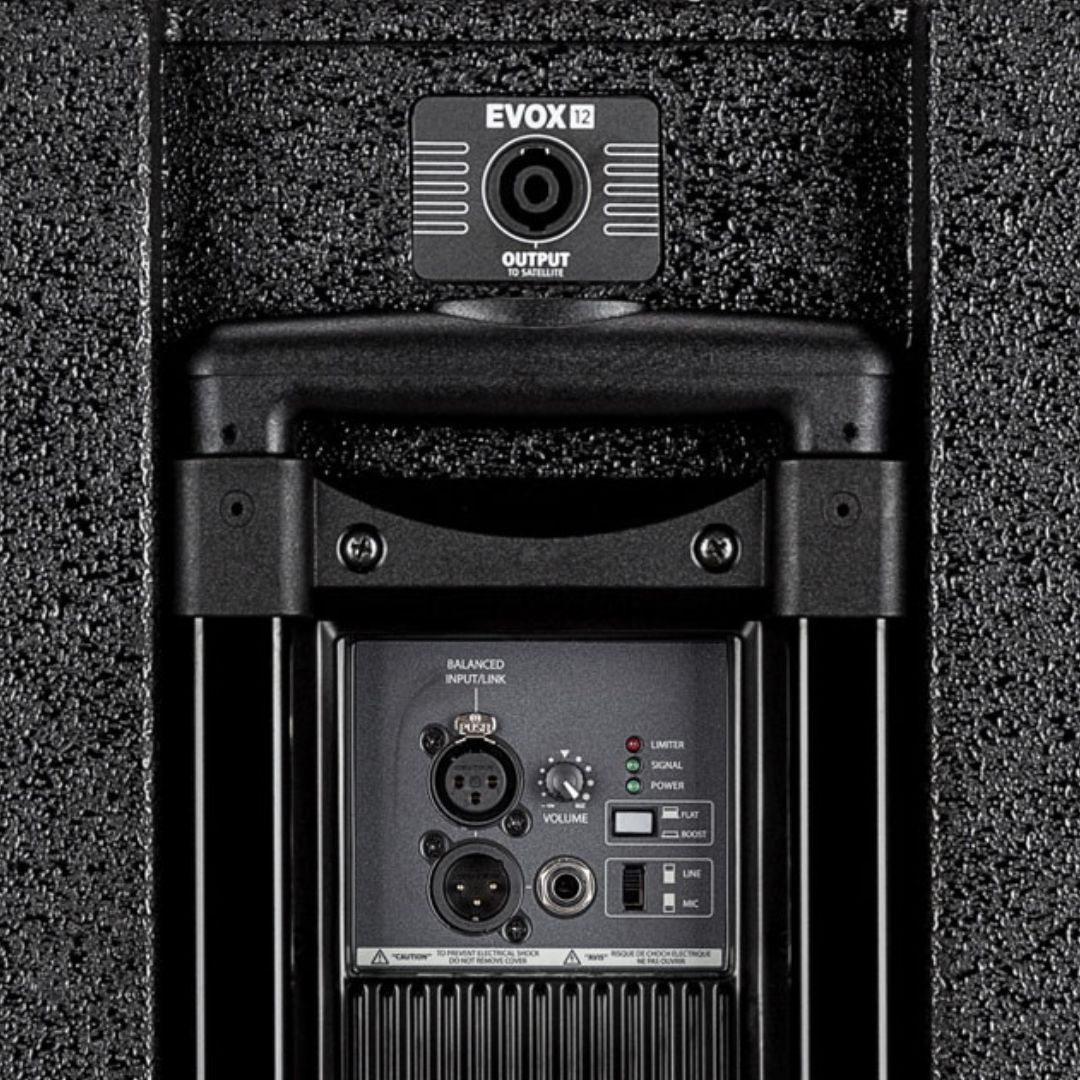

Audio I/O:
1x XLR 3-Pin Female Mic/Line Input
1x 1/4″ TRS Balanced Mic/Line Input
1x XLR 3-Pin Male Link Output
1x speakON NL2 Speaker Output
AC Input Power: 115 VAC, 60 Hz
Current Consumption: 10.1 A (Max)
AC Power I/O: 1x IEC Input

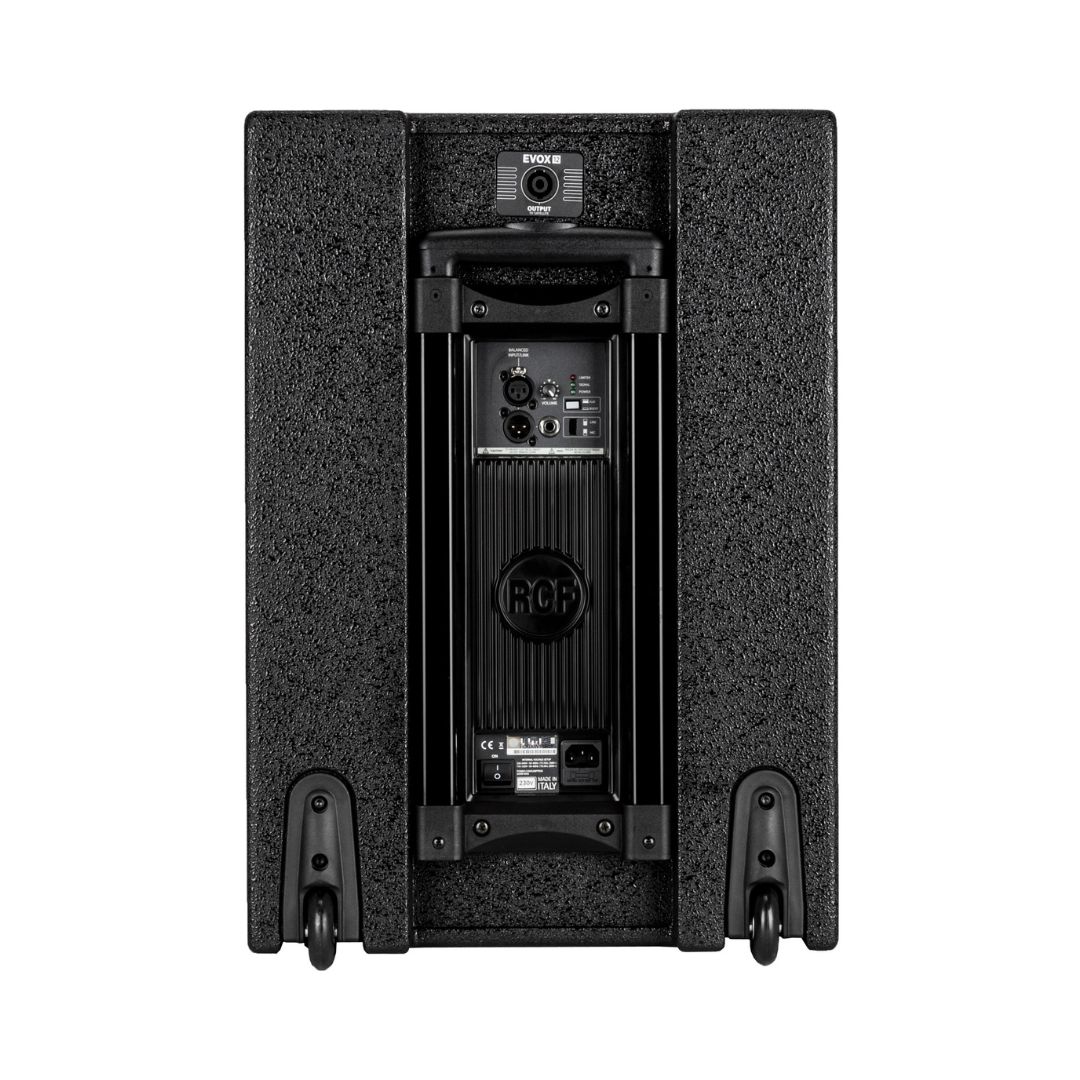

Transport Options:
Subwoofer: 2x Wheels (Rear)

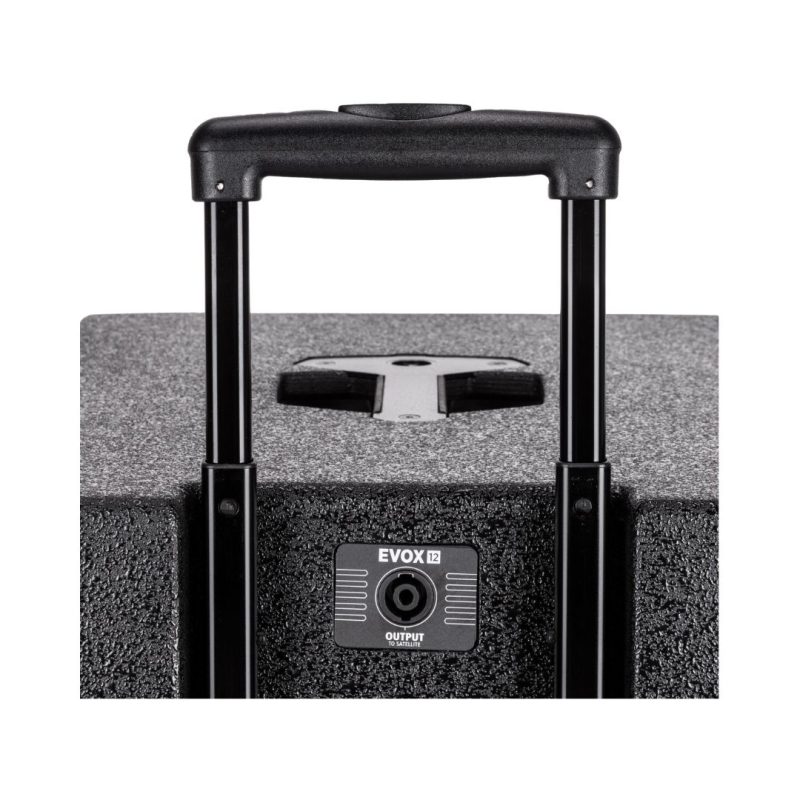

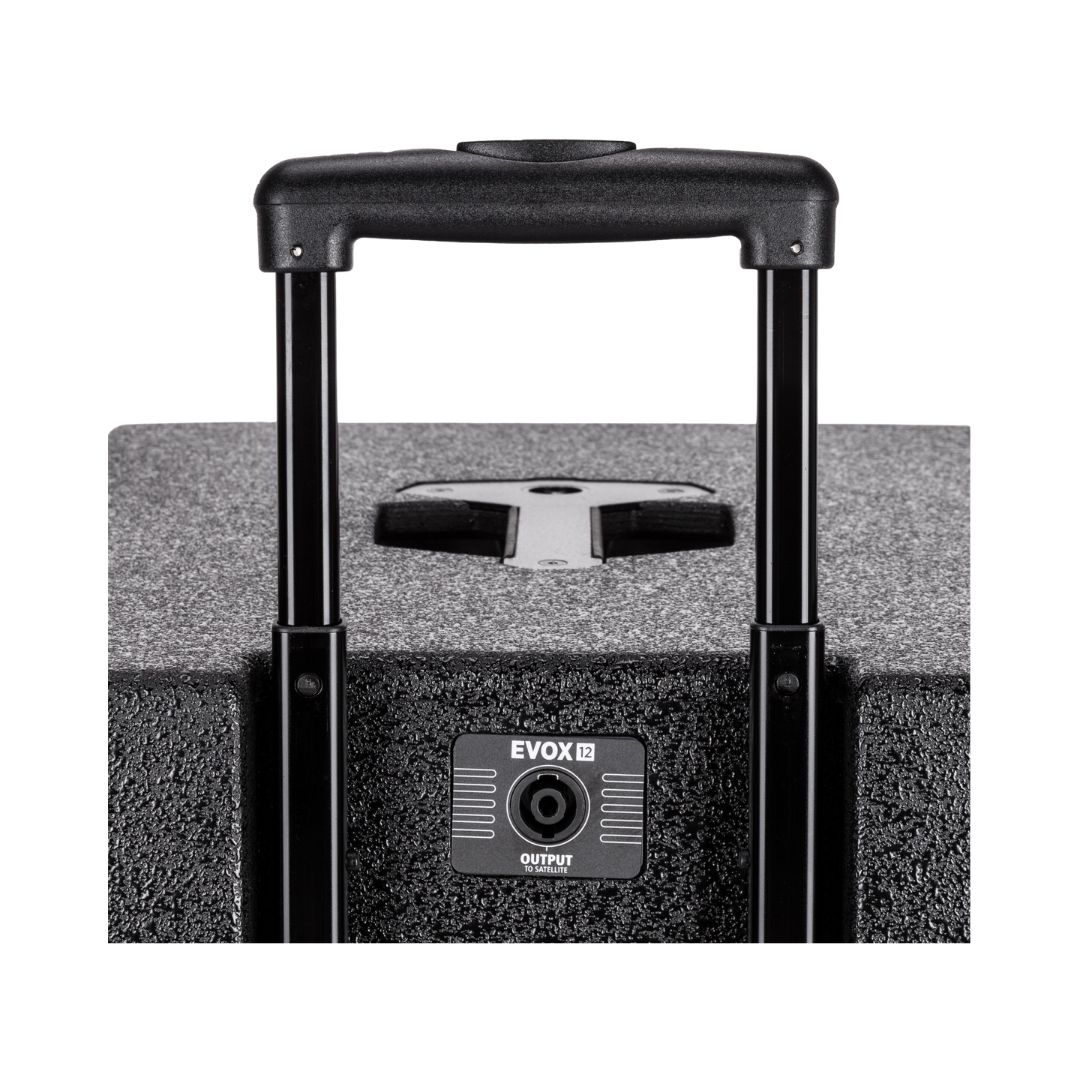

Subwoofer: 1x Telescopic Handle (Rear)
Subwoofer: 1x Handle (Each Side)

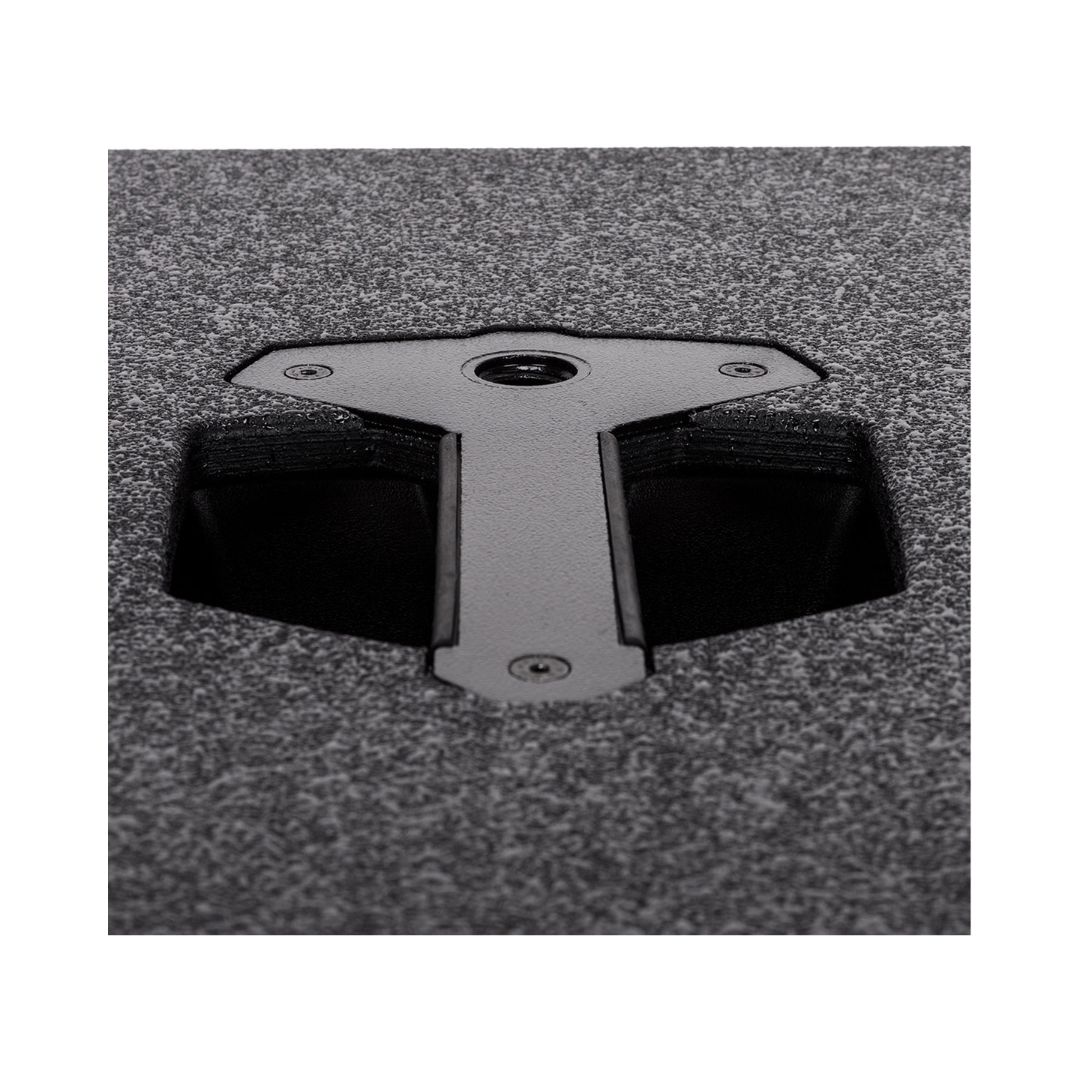

Mounting: 1 x Pole Socket (Top)
Construction Material: Metal Grille, Plywood
Certifications: CE
Dimensions: 86.6 x 22 x 16.1″ / 2200 x 560 x 410 mm (Full Assembly)
Weight: 80.25 lb / 36.4 kg (Full Assembly)
