Description
- The QSC CP12 delivers powerful, full-range sound with extended low-frequency performance, ideal for live music, DJ, and sound reinforcement applications. Its 1000W Class-D amplifier with advanced DSP and Intrinsic Correction™ provides clean, accurate audio and reliable speaker protection. Directivity Matched Transition® (DMT) ensures consistent coverage, while selectable contour presets tailor output for live, dance, or speech settings. Featuring a 3-input mixer, mic boost, and flexible connectivity, the CP12 offers professional versatility in a durable, stylish enclosure—perfect for larger venues and demanding performances.
Powerful Sound & DSP
The CP12 delivers 1000W peak power through a Class-D amplifier, delivering powerful, full-range audio with deep bass and crystal-clear highs. Advanced DSP with Intrinsic Correction™ ensures optimal performance and speaker protection. Ideal for medium to large venues, live performances, and sound reinforcement applications.
Versatile Use & Connectivity
Equipped with three inputs, XLR Thru, and MIC Boost, the CP12 functions as a main PA, floor monitor, or instrument amplifier. One-touch contour presets optimize sound for music, speech, or stage monitoring. Its larger cabinet delivers greater output while remaining portable and easy to set up.
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
Configuration: 2-Way
Enclosure Type: Bass-Reflex
Total Output Power: 1000 W
Amplifier Power Rating:
Low Frequency (LF): 800 W Peak
Mid Frequency (MF): 200 W Peak
Amplifier Class: Class-D
LF Driver: 1x 12″ / 30.5 cm Woofer
HF Driver: 1x 1.4″ / 35.6 mm Compression Driver
Frequency Range/Response:
47 Hz to 20 kHz (-10 dB)
49 Hz to 20 kHz (-6 dB)
Maximum SPL: 126 dB
Coverage Angle: 75° Conical
Digital Signal Processing: Voicing Modes

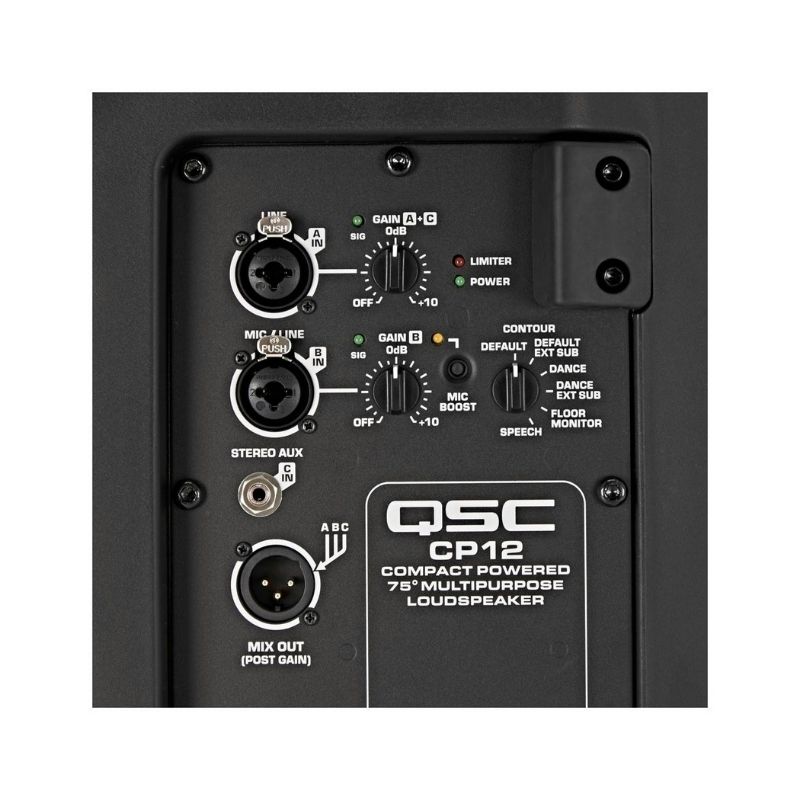

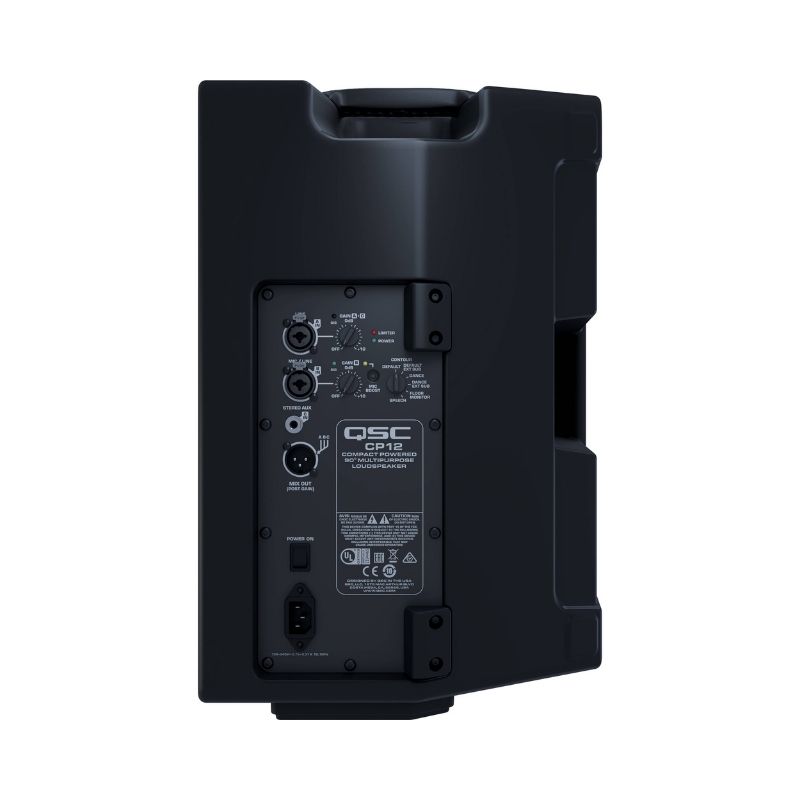

Audio I/O:
2x Combo XLR-1/4″ TRS Line/Mic Input
1x 1/8″ / 3.5 mm TRS Aux Input
1x XLR 3-Pin Mix Output
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O: 1x IEC Input
Current Consumption:
100 VAC: 0.75 A (1/8 Power)
120 VAC: 1 A (1/8 Power)
240 VAC: 0.31 A (1/8 Power)
Color: Black
Mounting:

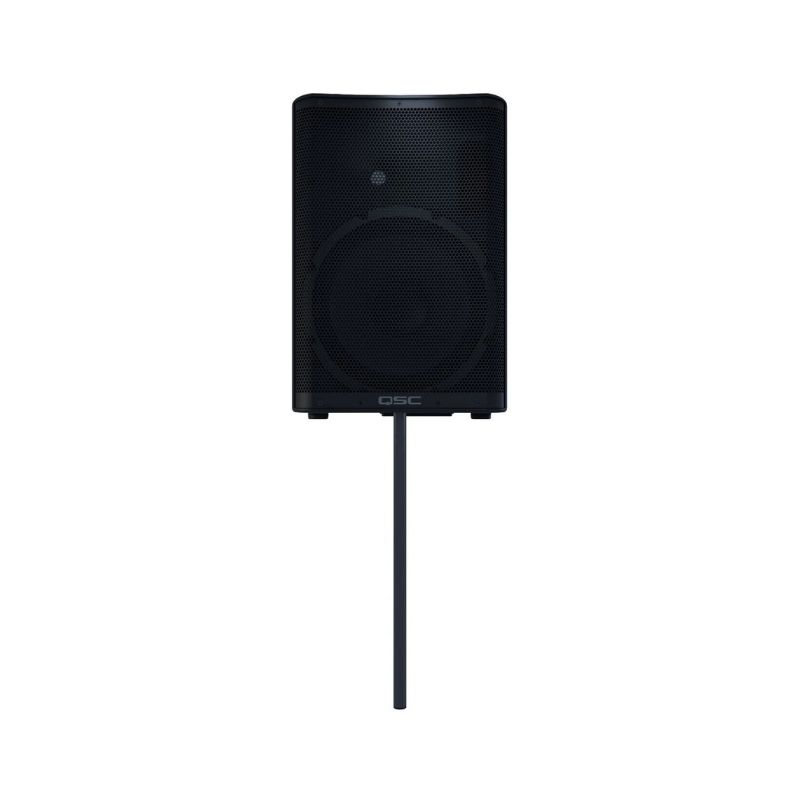

Stand Mount: 1 x 1.38″ / 35 mm Pole Socket (Bottom)
Suspension Points: 2 x M8 Bracket Point
Handles: 1x Top / 1x Side
Construction Material: Metal Grille, Polypropylene
Environmental Resistance: No
Dimensions: 20.3 x 13.8 x 12.7″ / 516 x 350 x 323 mm
Weight: 30.3 lb / 13.7 kg
