Description

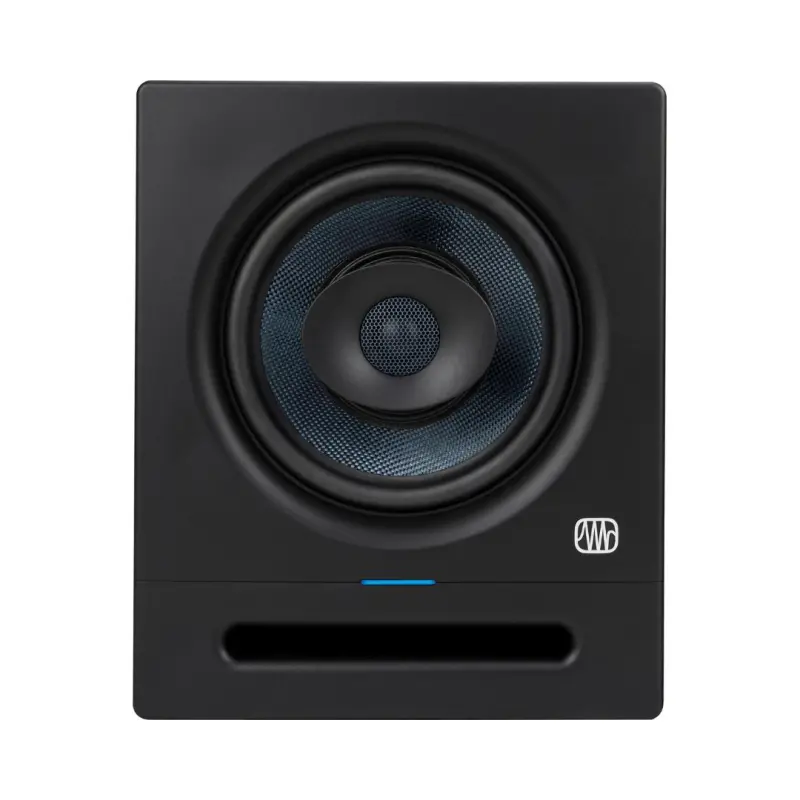

Single Point-Source Coaxial Design
The Eris® Pro 8 boasts a single point-source coaxial design, ensuring wider sweet spots and improved phase alignment between components. This design enhances clarity, widens stereo imaging, and produces symmetrical dispersion patterns, ideal for immersive Dolby Atmos rooms and stereo mix environments.
Versatile Acoustic Tuning Controls
Equipped with comprehensive acoustic tuning controls, the Eris Pro 8 allows you to customize the monitor's response to your room environment. Adjust Acoustic Space, High Frequency, Mid Frequency, and Low Cut settings to achieve the flattest frequency response possible. Whether placed against a wall or in a corner, these controls ensure optimal sonic performance in any setup.
- Single point-source coaxial design for wider sweet spot and better phase alignment
- 8-inch, woven-composite, low-frequency driver
- 1.25-inch, silk-dome, high-frequency driver
- 140W, Class AB amplification
- 35 Hz to 20 kHz frequency response
- 108 dB SPL (Peak, @ 1 meter
- Acoustic Tuning Controls: Acoustic Space (Flat, -2 dB, -4 dB), High Frequency (±6 dB, center 10 kHz, continuously variable), Mid Frequency (±6 dB, center 1 kHz, continuously variable), Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
- XLR and ¼-inch TRS balanced and RCA unbalanced rear-panel inputs
- Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter
- Power Saver mode (engages after 40 minutes of no audio)
- Wall and ceiling mountable
Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
Protections:
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Audio Switches: Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls: VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL: 108 dB (@ 1 Meter)
Crossover Frequency: 3.1 kHz
Monitor Inputs: 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
HF Transducers: 1.25” Silk Dome Tweeter (Coaxial)
LF Transducers: 8″ Woven Glass Fiber Composite (Coaxial)
Frequency Response: 35 Hz – 20 kHz
Input Impedance: 10 kΩ
Monitor Amplifier Power: 140W Bi-Amped
Voltage Requirements: 100-240 VAC, 50-60 Hz
Connection Type: IEC
