Description
High-Torque Motor
The Pioneer PLX-500 features a high-torque motor capable of at least 1.6 kg/cm of torque, reaching 33-1/3 rpm in one second or less. This ensures quick start-ups and precise control, ideal for personal listening and DJing at parties or clubs.
Superior Sound Quality
Designed to reproduce high-quality vinyl sound, the PLX-500 uses the shortest possible audio routing from the stylus to the outputs to minimize distortion. The phono/line switch allows for flexible connections to DJ mixers, sound systems, or powered speakers without needing a turntable preamp.
Easy Digital Recording
The USB port on the PLX-500 allows for high-quality digital recordings directly to your Mac or PC. This feature makes it easy to digitize your vinyl collection for archival purposes or for playing on digital devices.
Complete Accessory Kit

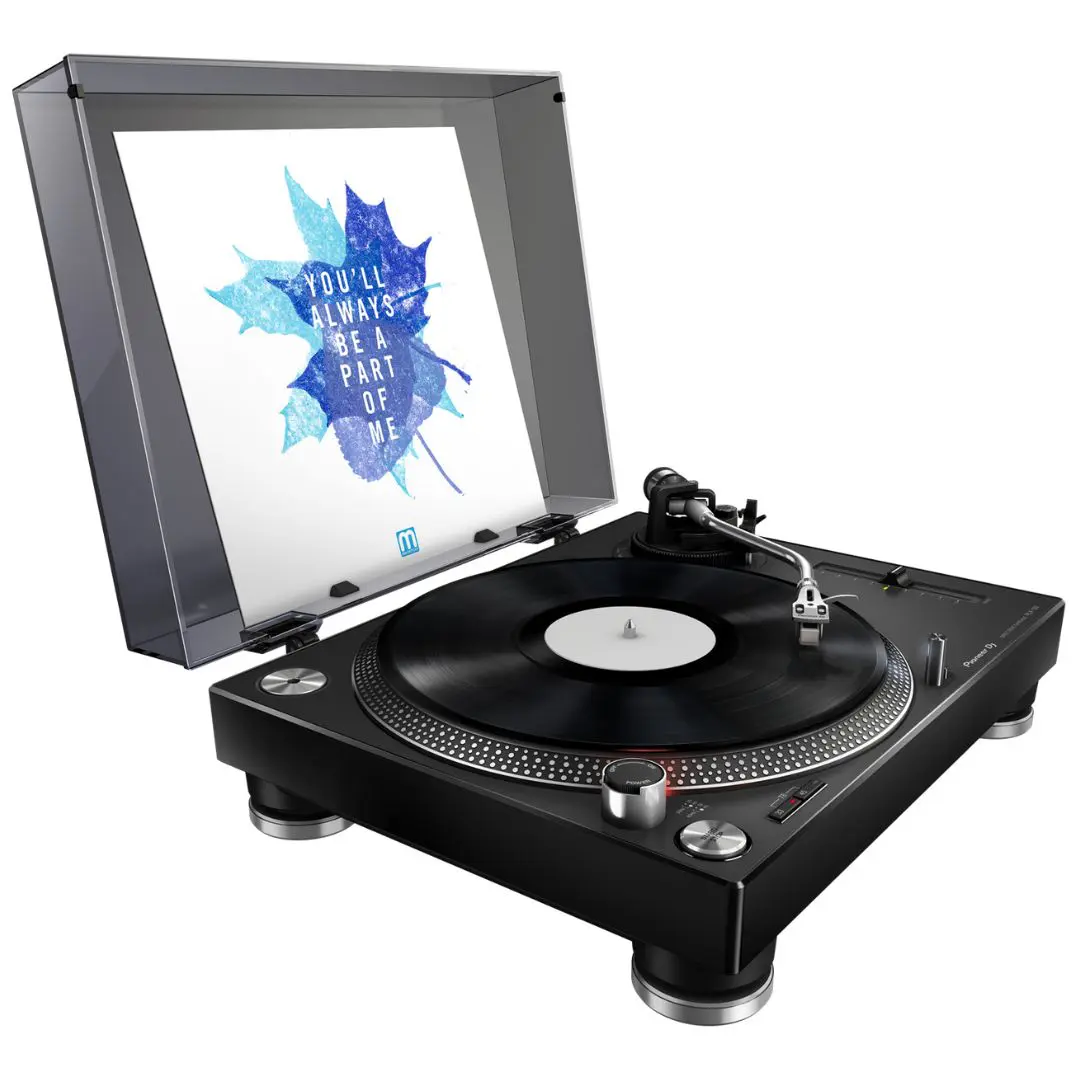

The PLX-500 comes with all the accessories needed to start spinning records immediately. It includes a headshell with a cartridge and stylus, a slip mat, a dust cover with a jacket stand, a balance weight, a shell weight, an EP record adapter, power cord, USB cable, and an audio adapter cable.
- User-Friendly Control Layout
- High-Torque Direct-Drive Motor System
- Tempo Control with ±8%
- Built with Vibration Damping
- USB Output
- Switchable Phono / Line Output
- rekordbox Compatible
- Includes USB, Audio & Power Cables
- Includes Headshell with Cartridge
- Includes Slipmat, Dust Cover & 45 Adapter
Drive Method: Servo type direct drive
Motor: 3-phase brushless DC motor
Brake: Electronic brake
Maximum Rotation Speed: 33⅓, 45, 78 rpm
Adjustment Range: ±8%
Wow and Flutter: 0.15% or less WRMS
S/N Ratio: 50 dB or higher
Turntable: Aluminum Die-Casting Diameter: 13.1″ / 332.0 mm
Torque: Starting Torque: 3.5 lb / 1.6 kgf-cm or more
Start Time: Within 1 sec (at 33⅓ rpm)
Arm Type: Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
Effective Arm Length: 9.1″ / 230.5 mm
Overhang: 0.6″ / 16.0 mm
Tracking Error Angle: Within 3°
Height Adjustment: 0.2″ / 6.0 mm
Stylus: Stylus Pressure Variable Range: 0 to 0.1 oz / 0 to 4.0 g (1 scale 0.1 g)
Cartridge Weight: Single Cartridge: 0.34 oz / 9.50 g or less
Output Voltage: Phono: 1.5 mV/1 kHz / Line: 150 mV/1 kHz

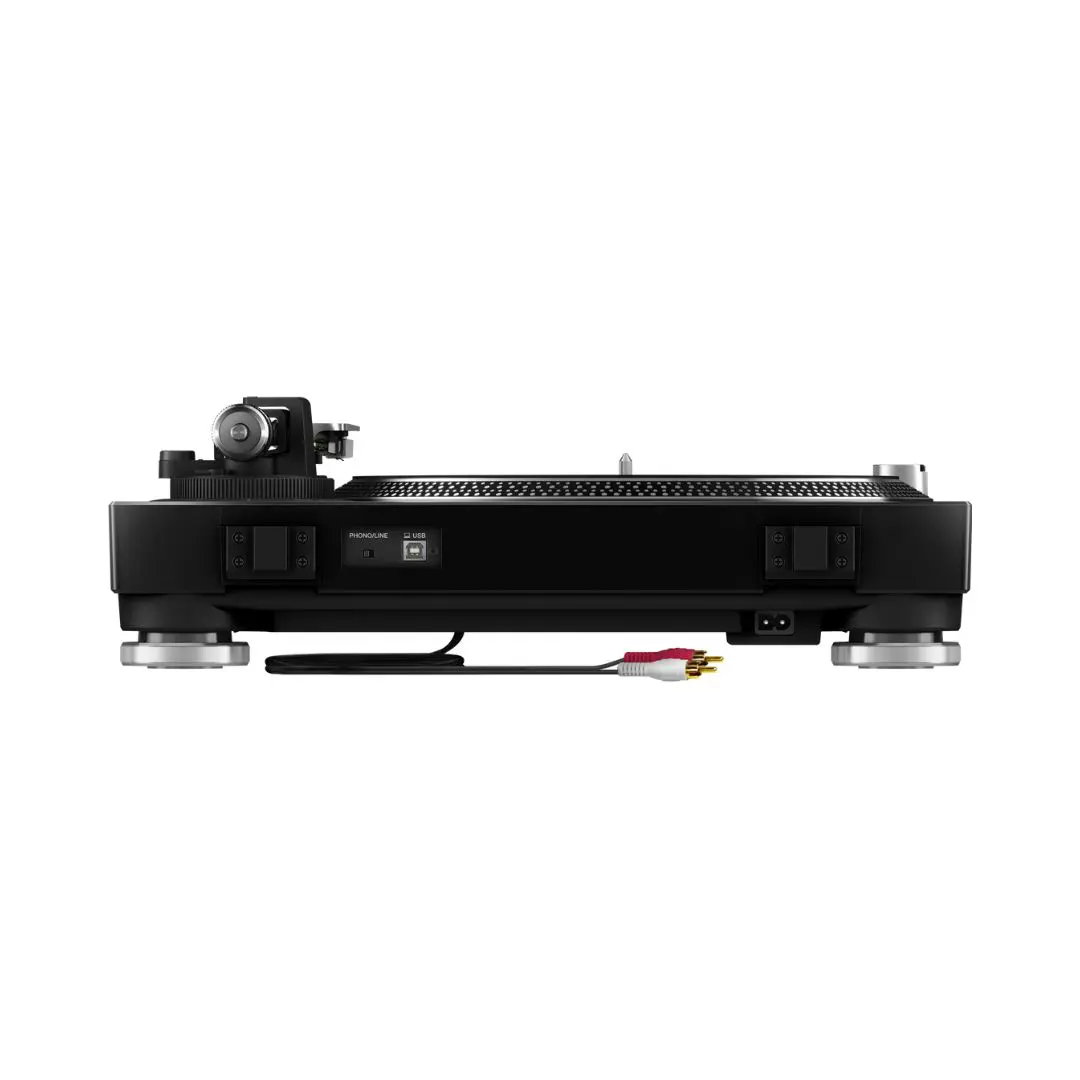

Audio Connector: 2 x RCA (left and right stereo pair)
USB: 1 x USB type-B
Power Requirements: 110 to 120 VAC or 220 to 240 VAC, 50/60 Hz
Power Consumption: 11 W
Dimensions: 17.7 x 6.3 x 14.5″ / 450.1 x 159.0 x 368.0 mm
Weight: 23.6 lb / 10.7 kg
