Description
- The Pioneer DJM-750MK2 is a professional DJ mixer, which inherits key features and design elements from the DJM-900NXS2, and is well suited for professional mobile DJs, nightclub installations, recording studios, and more. The mixer features a 4-channel layout, and an integrated USB soundcard with support for up to 4 stereo channels of 24-bit/48 kHz audio.The mixer features Pioneer’s Sound Color, Beat, and Frequency effects. There are four inputs for turntables, and four line-level inputs for digital decks. Additional features include a USB Type-B port for connecting a computer, and a USB Type-A top-mounted connector that supports iOS devices for use with synthesizers, samplers, and FX apps, such as Pioneer’s optional RMX-1000 for iPad. An independent Send & Return section allows for external effects to be used simultaneously with the internal effects. The DJM-750MK2 ships with a power cord, a USB cable, and a key activation card for rekordbox dj and rekordbox dvs.

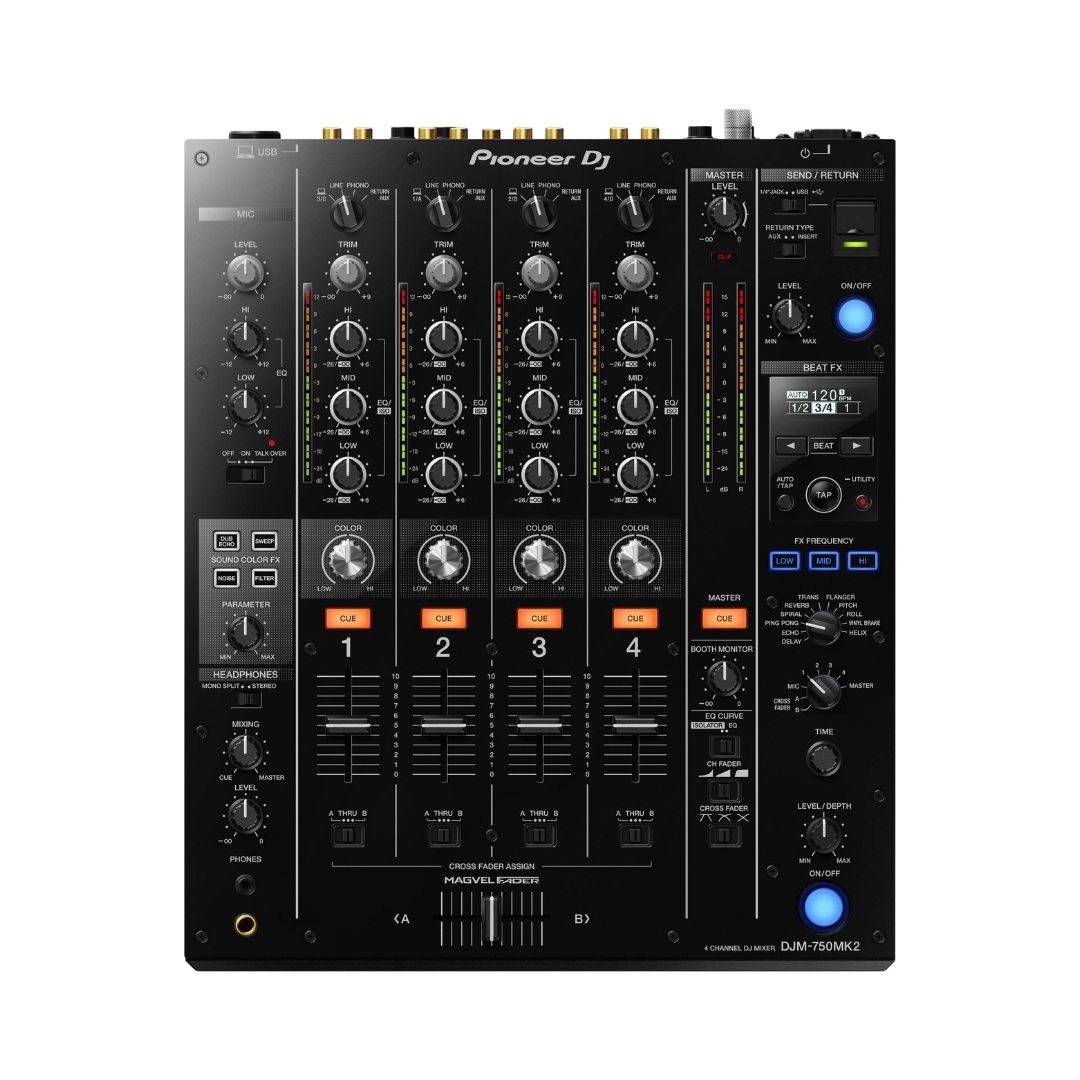

Professional layout
Mixing on the DJM-750MK2 feels instinctive thanks to the layout design with 4 channels and a display that draws on traits from the DJM-900NXS2 professional mixer, allowing you to practice in club conditions.
Pro FX with detailed control
Add texture and flair to your mixes with professional FX inherited from the DJM-900NXS2. 2 effects units combine Sound Color FX and Beat FX – including FX Frequency – giving you the freedom to be creative with sound while always in control.
Independent send/return
Choose from Aux or Insert send/return to connect different types of FX units on iOS devices such as FX apps, synthesizers and samplers, and combine them with the mixer’s internal FX. A simple USB connection will ensure high-quality sound, which you can efficiently record and easily archive via the DJM-REC app on your iPhone or iPad.
Professional sound quality
Whether you’re playing with digital or analogue sources, high-quality sound is created by the 64-bit digital signal processor and dithering technology.
- 4 Phono Inputs, and 4 Line Inputs
- 4 Input / 4 Output USB Soundcard
- Sound Color, Beat, and Frequency Effects
- Independent Send / Return for External FX
- 48 kHz / 24-Bit
- 3-Band Isolator EQ per Channel
- Two Headphone Outputs 1/4″ & 1/8″
- Two USB Ports
DVS Control: rekordbox

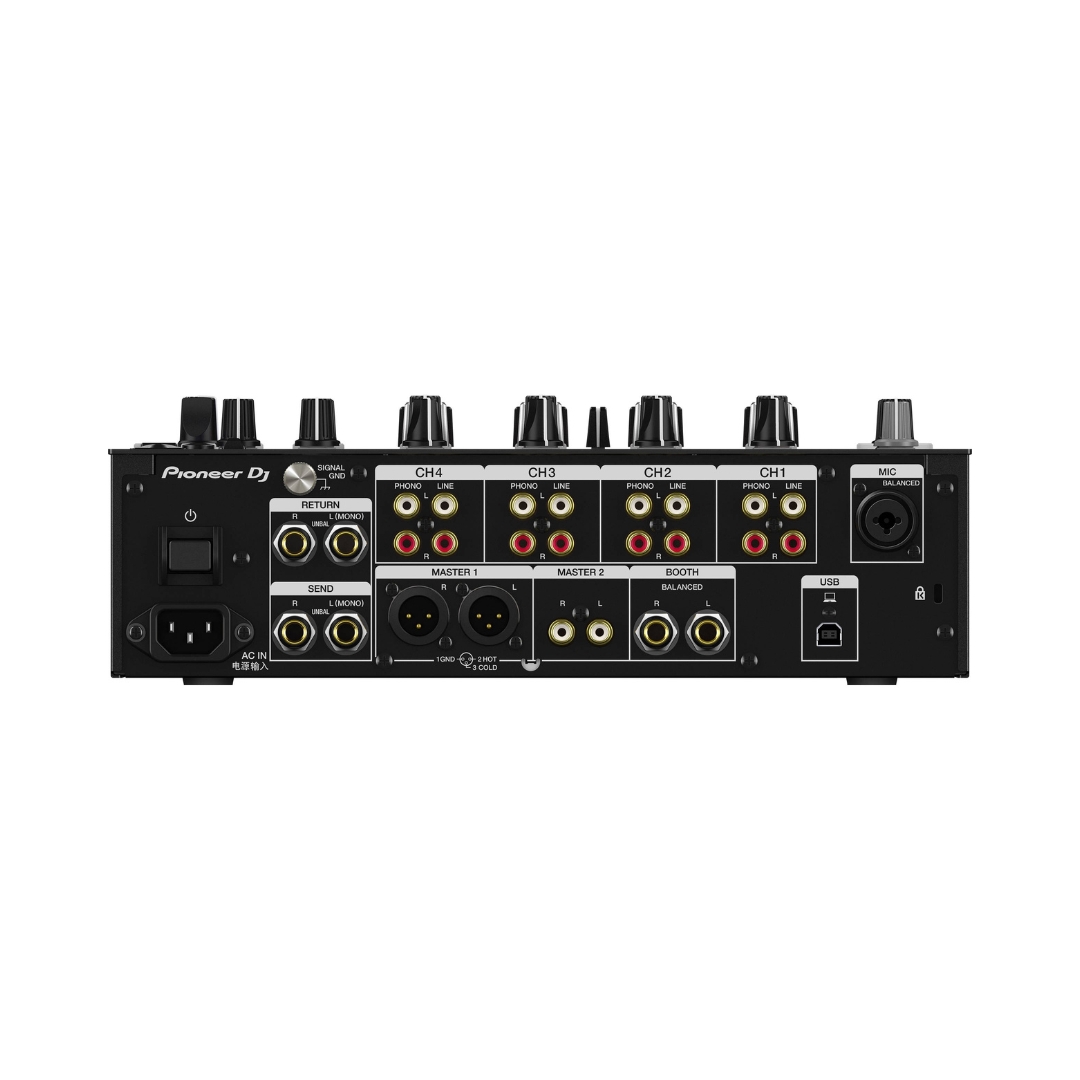

Inputs: 4 PHONO (RCA), 4 LINE (RCA), 1 MIC (XLR & 1/4 inch TRS Jack)
Send/Return: 1 SEND (1/4-inch TS jack), 1 RETURN (1/4-inch TS jack)
Outputs:2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS Jack), 2 HEADPHONE MONITOR (1/4 inch Stereo Phone Jack, 3.5mm Stereo mini-jack)
USB: 1 USB B port + 1 USB A port
EQ/ISO: 3 band
EQ/ISO Range: Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB
Frequency Range: 20 – 20000 Hz
Sampling Rate: 48 kHz
S/N Ratio Line:105 dB
Distortion: < 0.005 % (LINE)
