Description

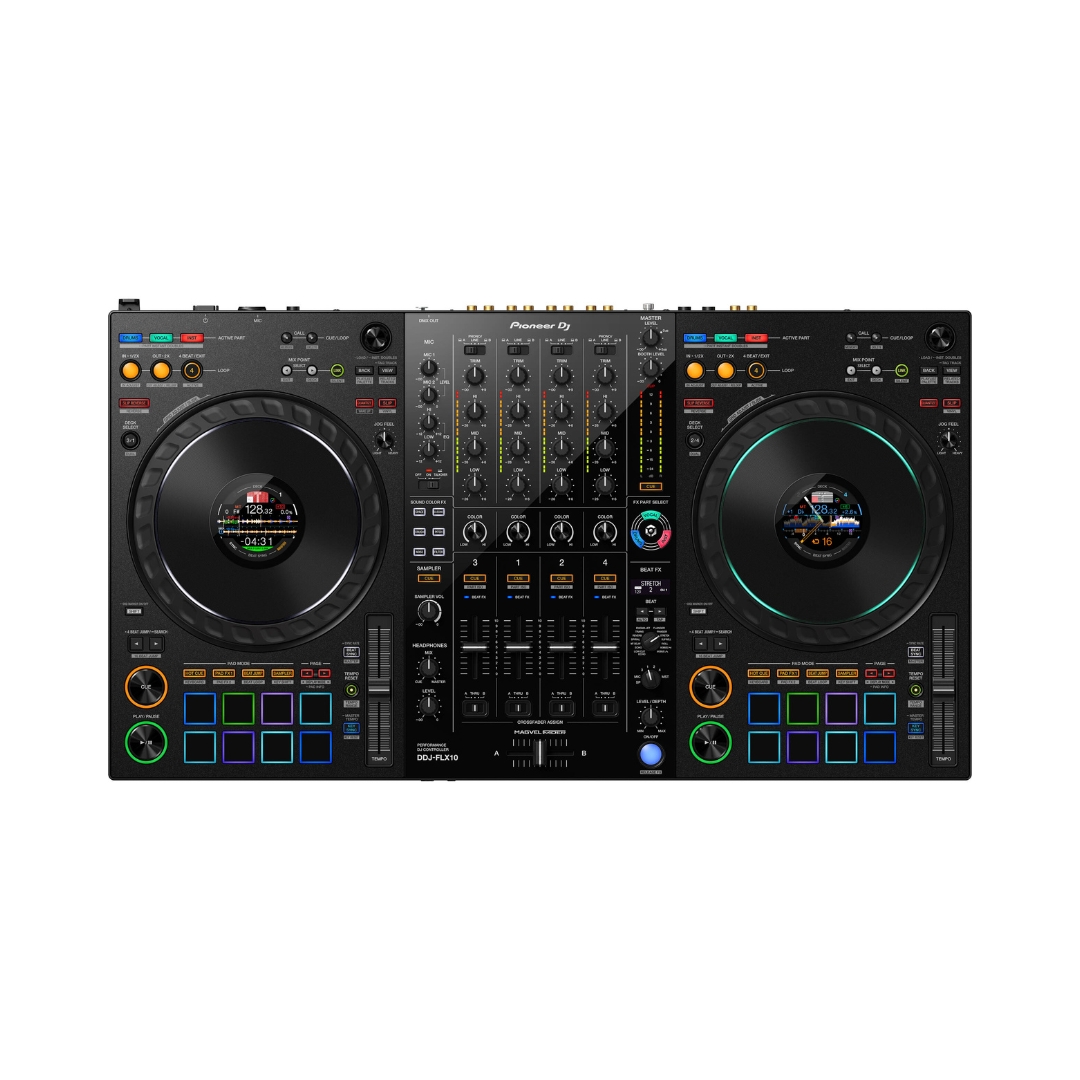

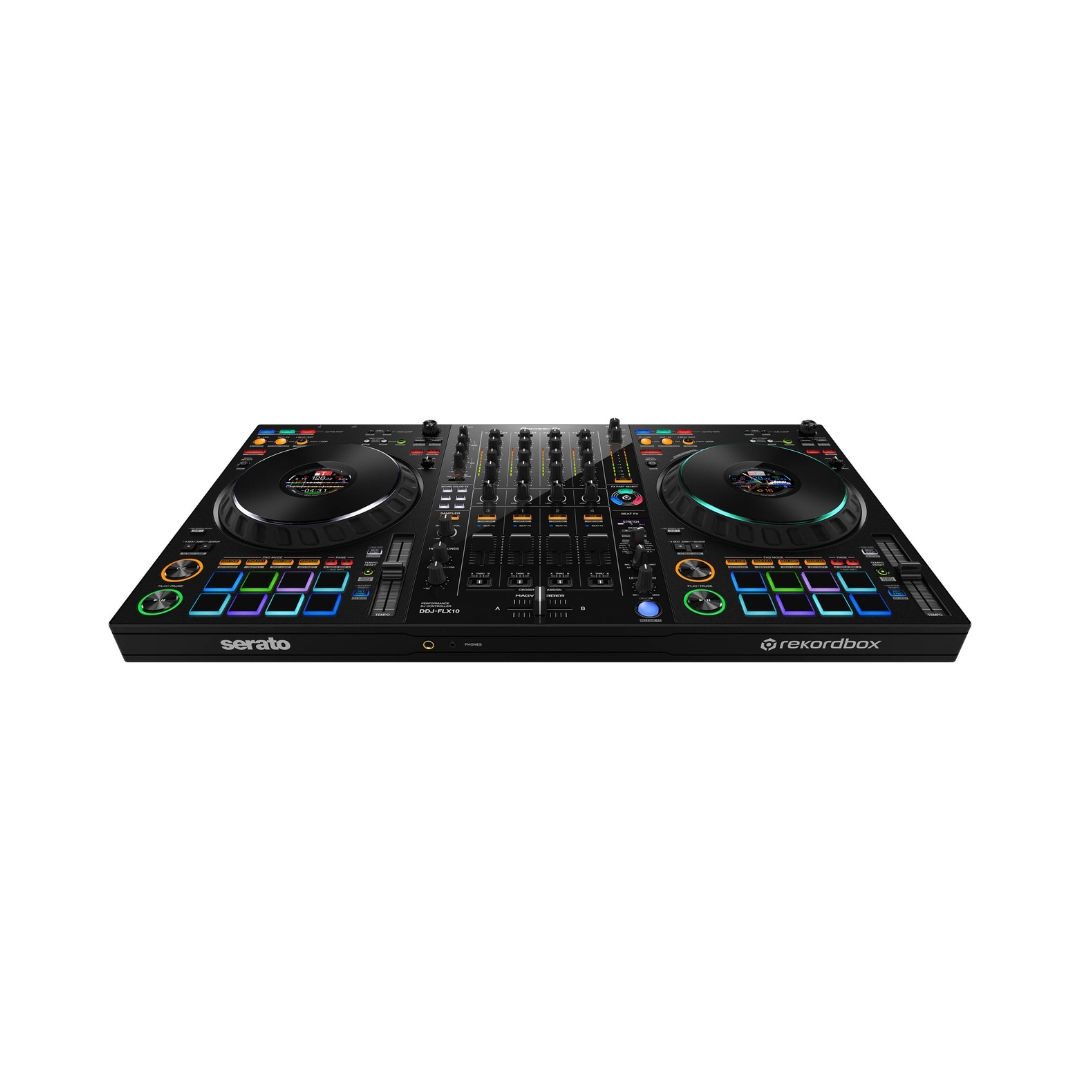

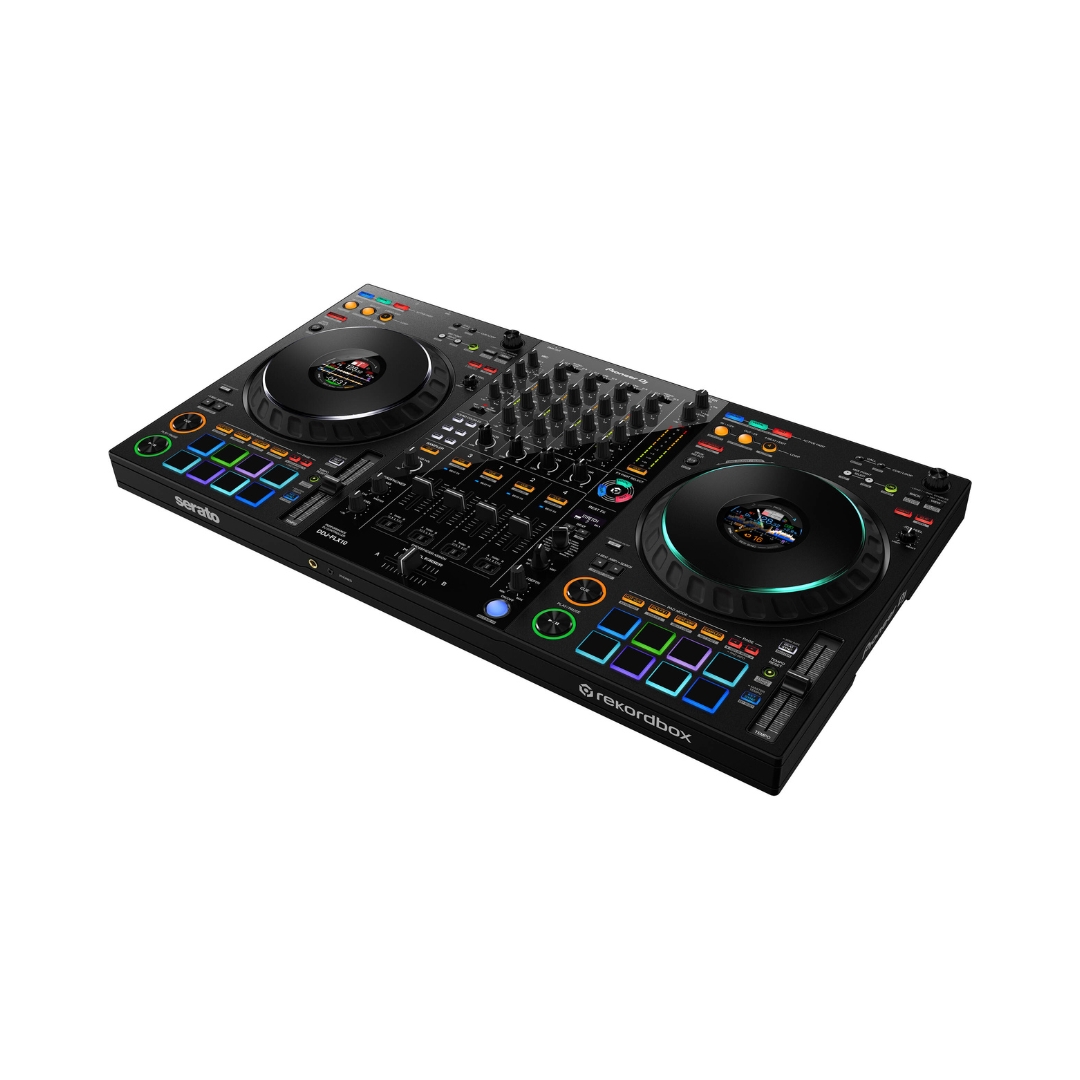

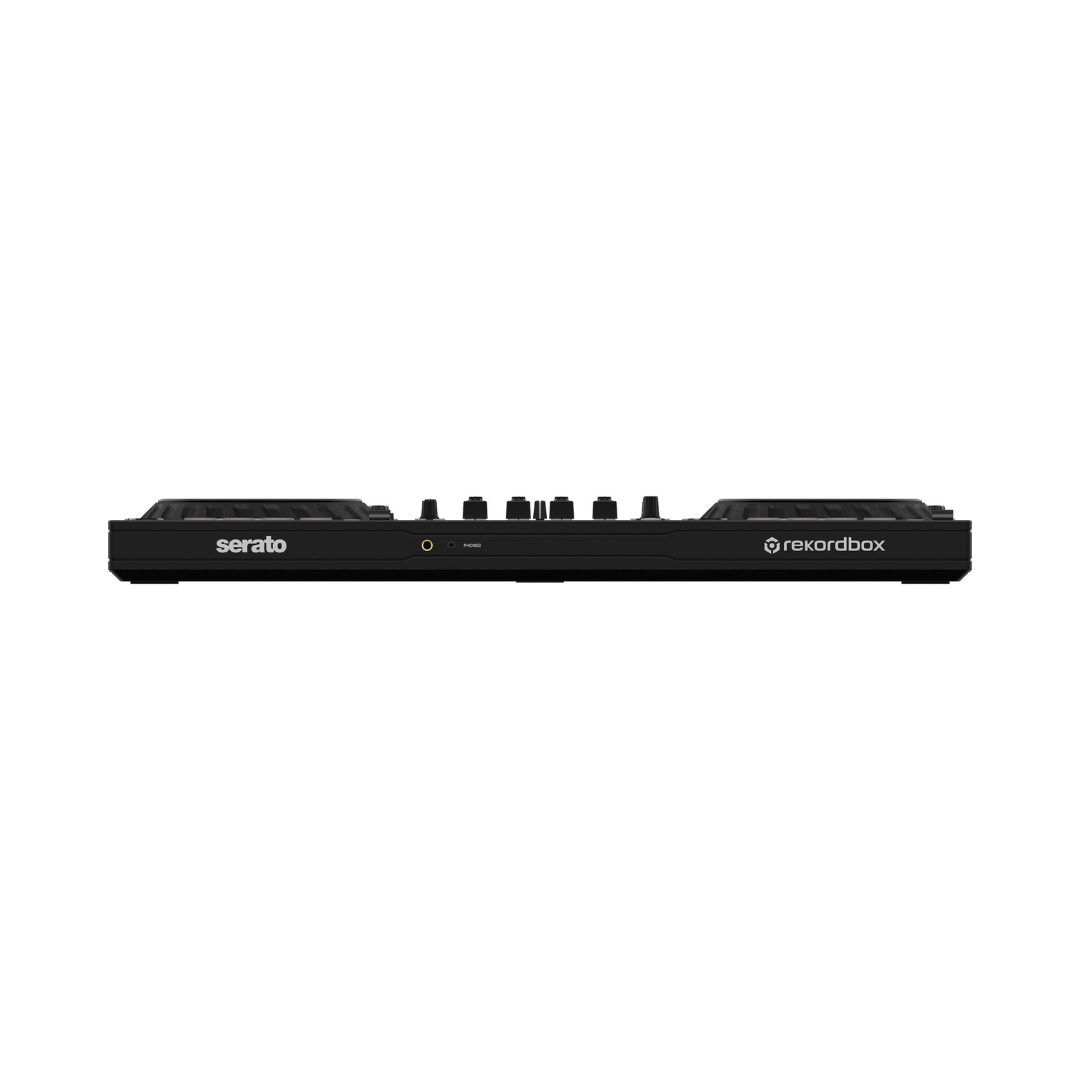

- The DDJ-FLX10 is a 4-channel performance DJ controller for rekordbox and Serato DJ Pro. It includes a host of brand-new features including Track Separation technology, which enables new creative possibilities such as the easy performance of mash-ups on the fly with no need to prepare tracks in advance.
Track Separation for innovative performances including live mashups
Remix and mash-up songs from your music library on the fly by independently controlling vocals, drums, and other instruments. Dedicated color-coded buttons make it easy to manage each part visually. Active Part & Part ISO: Adjust the volume of vocals, drums, or instruments individually, or mute them. FX Part Select: Select which parts of a track to apply effects to. Part Instant Doubles: Isolate a specific part (vocal, drums, or instrument) and transfer it to another deck.
Expanded On Jog Display
Customize jog wheel information for uninterrupted deck monitoring. Choose from 4 modes, some displaying 3 Band Waveforms (rekordbox only). Keep an eye on Mix Point Link, rekordbox vocal position analysis, and Performance Pad status. DECK INFO MODE: Displays deck information, including the Overall Waveform (for Serato DJ Pro, it shows the virtual deck of Serato DJ Pro). WAVEFORM MODE: Shows Zoomed Waveforms for 2 decks. ARTWORK DISPLAY: Displays track artwork. DJ LOGO DISPLAY: Show your logo or preferred image on each deck using the Image Transfer Tool for PC/Mac.
New Mix Point Link for seamless transitions
Take advantage of a completely new playback concept in rekordbox that enables you to create slick musical progression in your sets by linking mix points in tracks so the next song kicks in at the perfect moment. You might set the next track to start from the beginning of its melody when the vocal of the current song ends, ensuring a seamless transition without a sound clash. There’s no need to count down or press play manually, which also leaves your hands free to create mash-ups or add effects.
DMX output for rekordbox Lighting function
Liven up your performances with lighting effects that match the mood of the tracks you play. It’s easy with the rekordbox Lighting function and, thanks to the DMX output on the DDJ-FLX10, you don’t need any other equipment such as an external DMX interface. Simply connect DMX-compatible lighting equipment to the controller and use rekordbox to create custom lighting effects, or set the software to automatically adapt the color and movement of the lights to progress with the music.
Evolved MAGVEL FADER 4-sensor system
Improved from the 2-sensor system on the DDJ-1000, the MAGVEL FADER on the DDJ-FLX10 uses a 4-sensor system. This allows you to make the tiniest volume adjustments, no matter how small the movement of the crossfader, enabling more musical performances.
Rekordbox and Serato DJ Pro compatibility
The DDJ-FLX10 offers free plug-and-play compatibility with rekordbox and Serato DJ Pro, giving you hands-on control of your favorite software application. DVS support is available for rekordbox via selected subscription plans, and for Serato via a paid license/subscription to Serato DJ Expansions or Serato DJ Suite.
- Real-Time Track Separation (Stems)
- Vocal, Drums, and Instrument Separation
- Jog Wheel and Layout from CDJ and DJM
- On-Jog Display with Four Display Modes
- Eight Performance Pads per Deck
- Mix Point Link for Automixing
- 3-Band EQ on Each Channel
- 3-Pin DMX Output for Intelligent Lights
- Includes USB Cable and Power Adapter
- Includes Serato Pitch ‘n Time
Compatible DJ Software: rekordbox / Serato DJ Pro
DVS Control: rekordbox (Core plan or above) / Serato DVS (Paid upgrade)
Software System Requirements
Accessories:
Power cord
AC adaptor
USB Type-C cable
Serato voucher(Pitch ‘n Time DJ)
Quick Start Guide
Precautions for use
Warranty (selected regions only)
Frequency Range: 20 – 20000 Hz
Width: 716 mm
Height: 73.4 mm
Depth: 400.3 mm
Weight: 6.7 kg
Soundcard: 24 bit/44.1 kHz
Signal-to-Noise Ratio: 110 dB
Distortion: < 0.002 % (USB)
Power Consumption: DC 12 V, 3 000 mA
Channels: 4
Deck Control: 4
Jog Wheel (Maximum Dimensions): 206 mm
Beat FX:
LOW CUT ECHO
Echo
Multi Tap Delay
Spiral
Reverb
Trans
ENIGMA JET
Flanger
Phaser
Stretch
Slip Roll
Roll
MOBIUS (SAW)
MOBIUS (TRIANGLE)
Sound Color FX:
Space
Dub Echo
Crush
Pitch
Noise
Filter
Sampler: 16slot x 4bank
Hot Cues
16
Pad Modes rekordbox
Hot Cue
Pad FX 1
Beat Jump
Sampler
Keyboard
Pad FX 2
Beat Loop
Key Shift
Pad Modes Serato:
Hot Cue
Pad FX
Beat Jump
Sampler
Pitch Play
Roll
Auto Loop
Key Shift

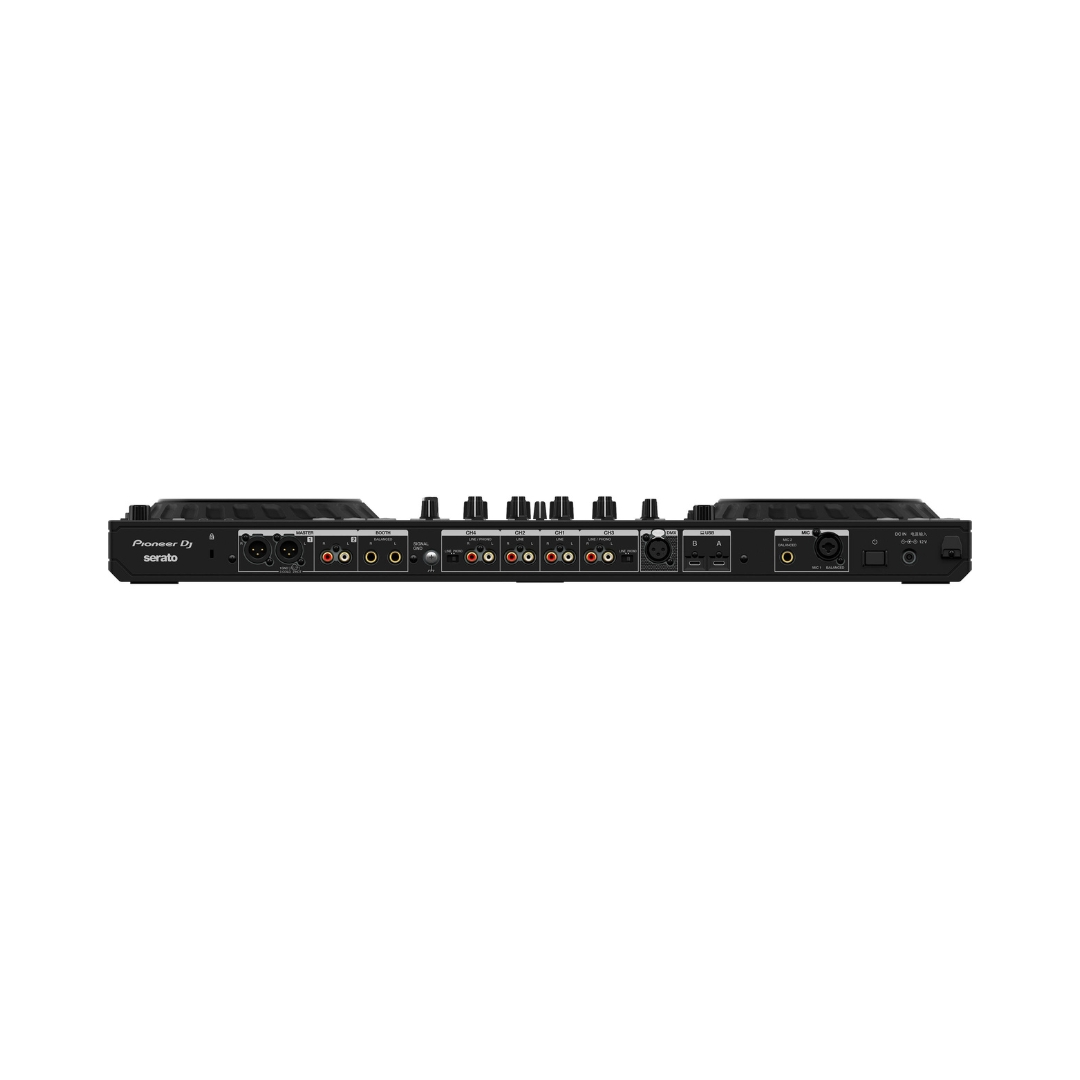

Inputs:
2 LINE (RCA)
2 PHONO/LINE (RCA)
1 MIC (XLR & 1/4 inch TRS Jack)
1 MIC (1/4 inch TRS Jack)
Outputs:
1 MASTER (XLR)
1 MASTER (RCA)
1 BOOTH (1/4 inch TRS Jack)
1 PHONES (1/4 inch stereo phone Jack)
3.5 mm stereo mini jack x 1
DMX: 1 XLR connector (3pins)
USB: 2 USB C ports
