Description
Precision Engineering

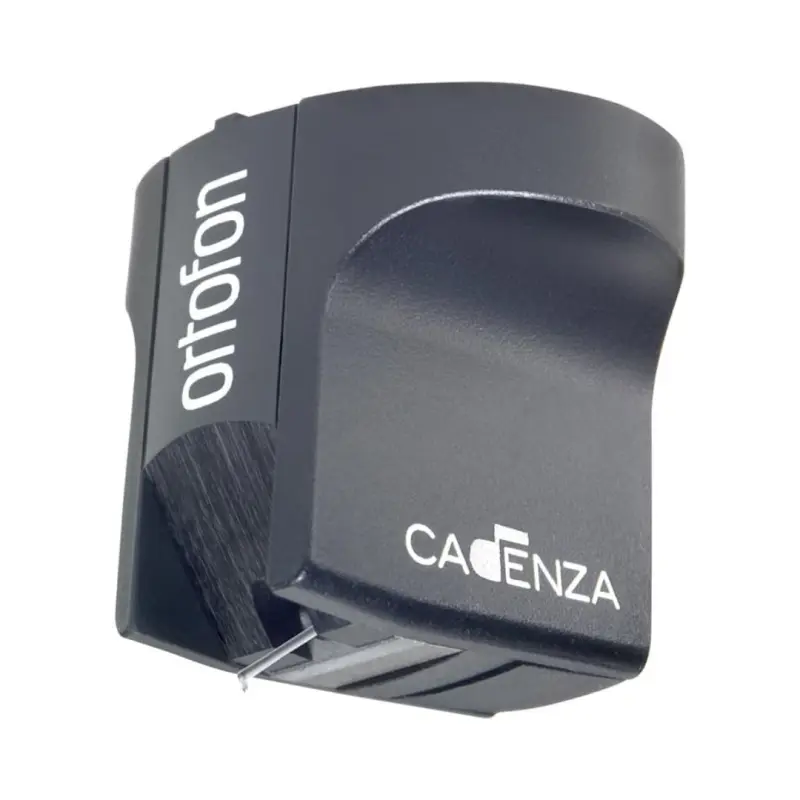

The MC Cadenza Black cartridge showcases meticulous craftsmanship with its Nude Shibata stylus and boron cantilever, achieving an exceptionally low effective mass for unparalleled accuracy in sound reproduction. This combination sets a benchmark in cartridge performance, offering unparalleled insight into every recording.
Advanced Damping System
The Cadenza Black cartridge features Ortofon's Wide Range Damping (WRD) system for precise control over high and low-frequency damping, minimizing resonance and extending frequency response. Combined with Ortofon Aucurum wire, known for detail and consistency, it pushes performance boundaries, excelling in sound staging and fidelity.
Channel balance at 1 kHz: < 0,8 dB
Output voltage at 1 kHz, 5cm/sec: 330 μV
Channel seperation at 1 kHz: > 27 dB
Channel seperation at 15 kHz: > 20 dB
Frequency response 20 Hz – 20 kHz: +1,5/0
Tracking ability at 315Hz at recommended tracking force: 90 μm
Compliance, dynamic, lateral: 16 μm/mN
Stylus type: Nude Shibata on Boron cantilever
Stylus tip radius: r/R 6/50
Tracking force range: 2,0-2,5 g
Tracking force, recommended: 2.3 g
Tracking angle: 20°
Internal impedance, DC resistance: 5 Ohm
Recommended load impedance: >10 Ohm
Cartridge body material: Stainless steel Aluminium
Cartridge colour: Black/Black
Cartridge weight: 10.7 g
