Description

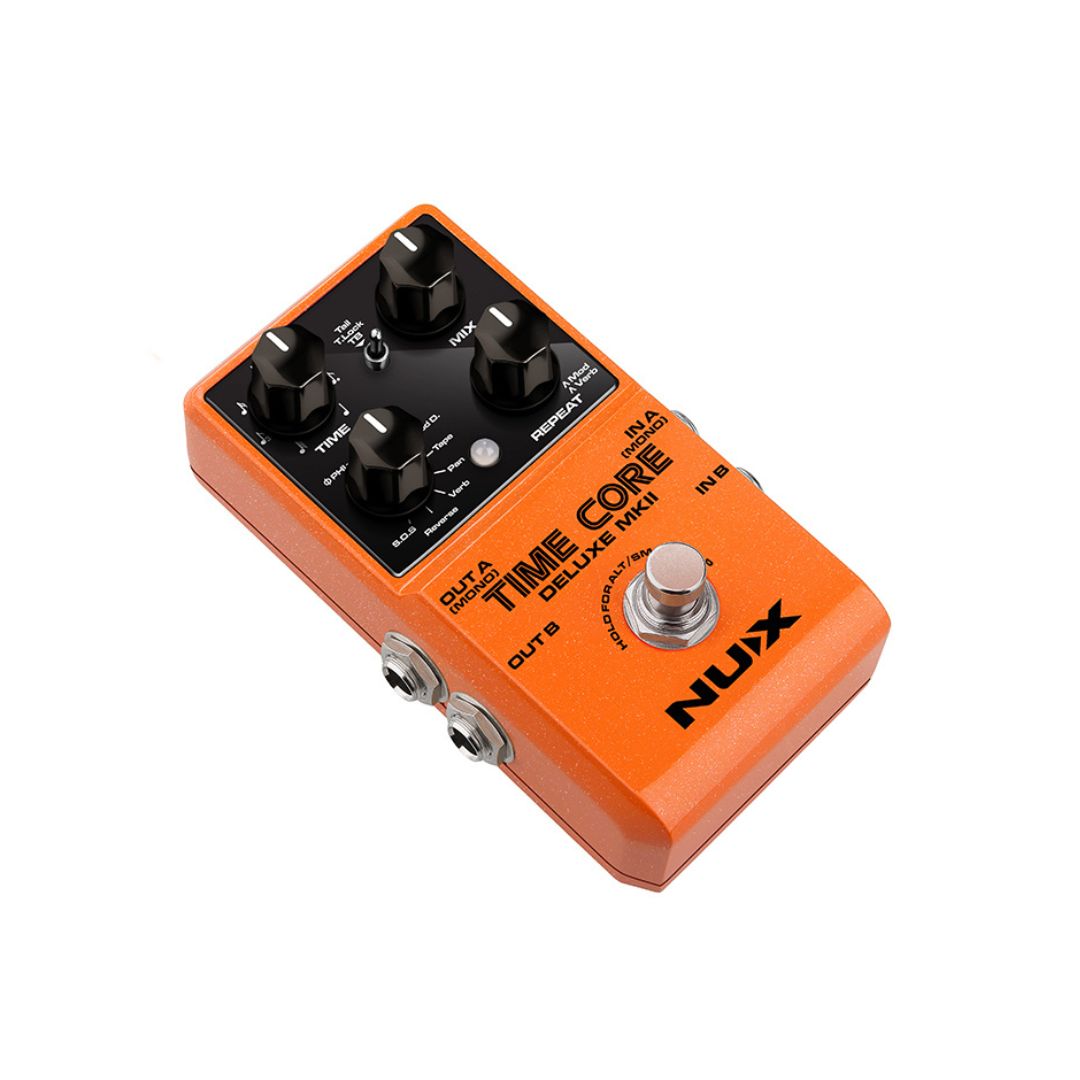

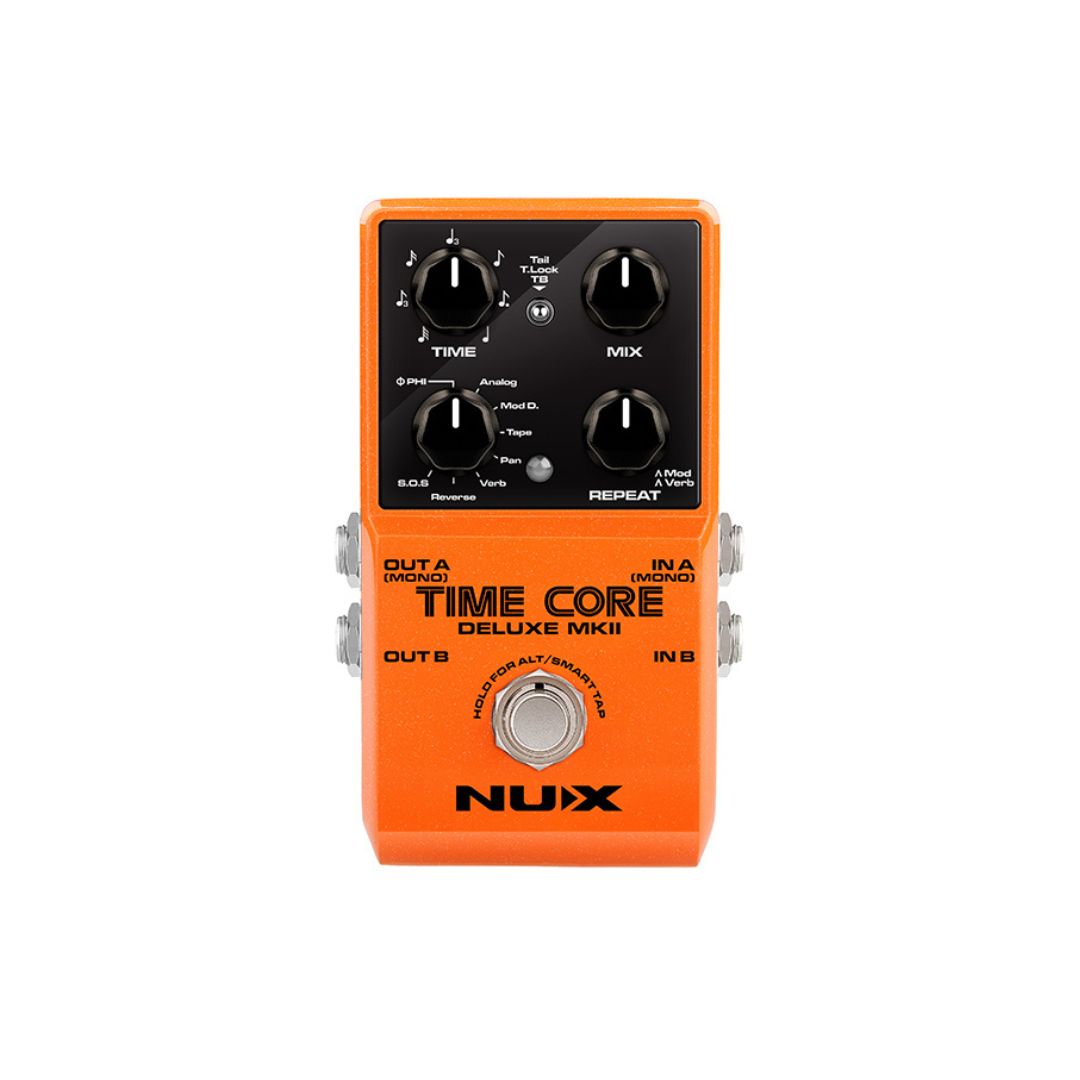

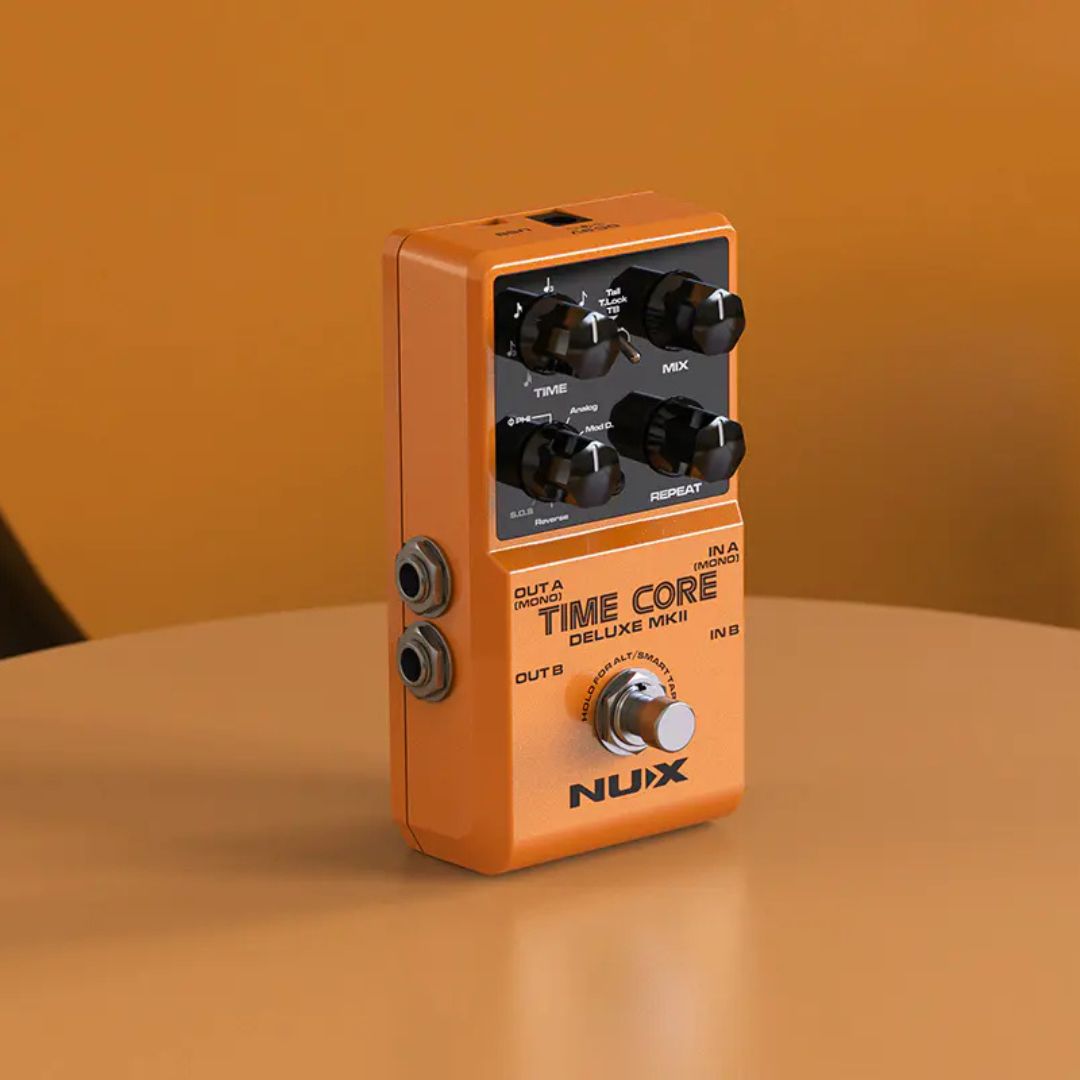

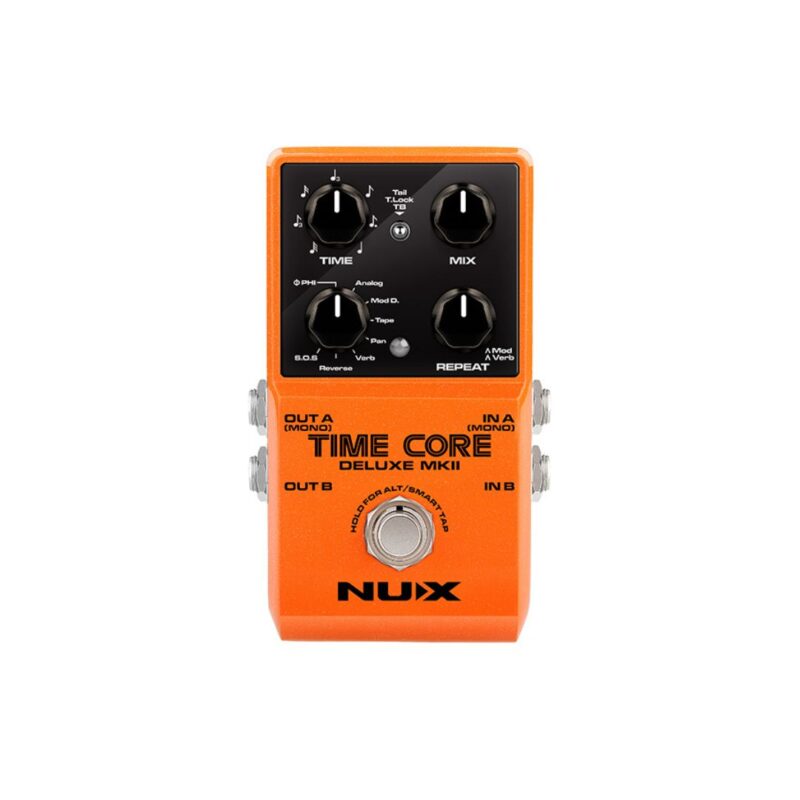

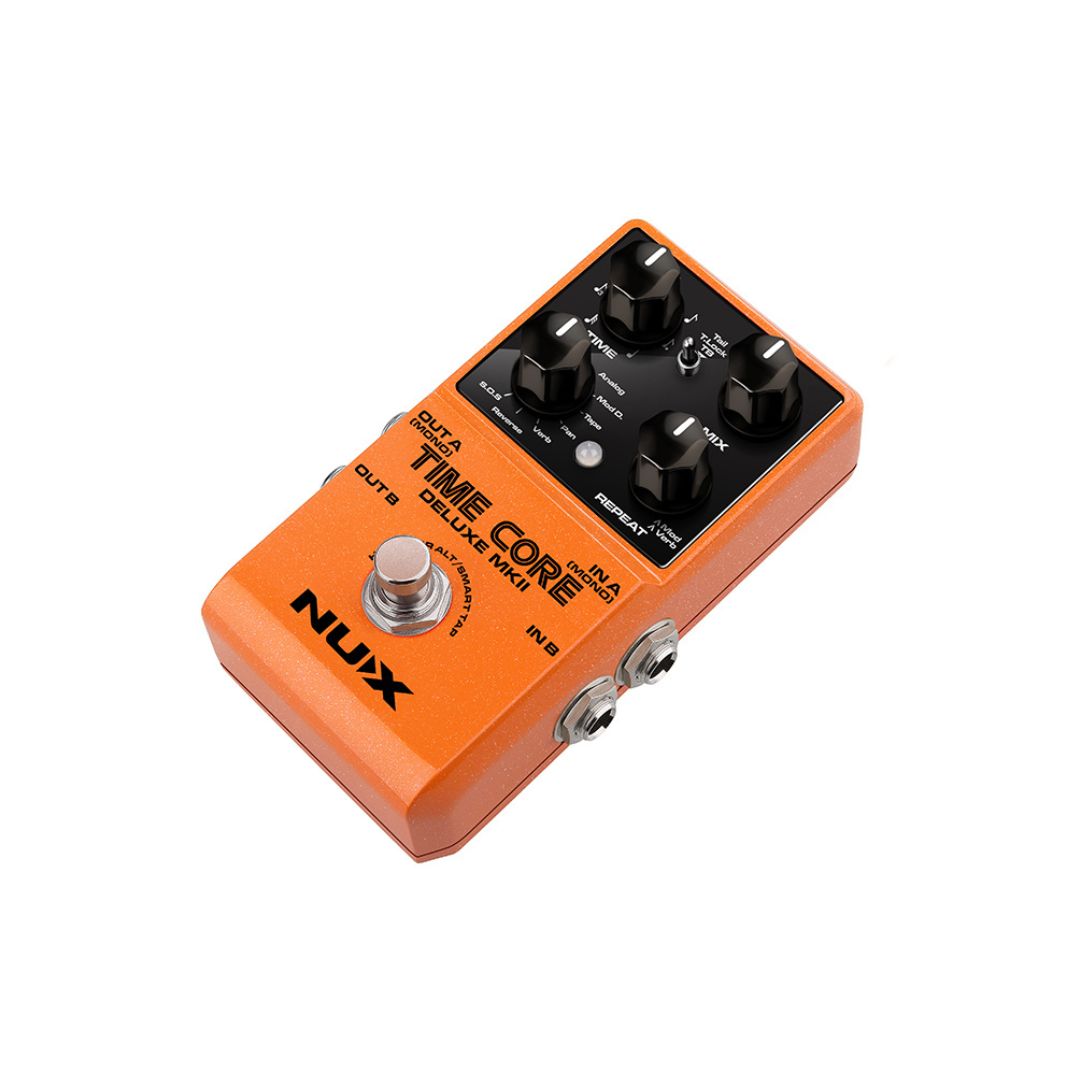

  • The NUX Time Core Deluxe MKII Delay Pedal offers versatile delay effects with 7 unique modes, including ΦPhi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, and Reverse Delay. It features a 40-second Sound On Sound looper, Smart Tap Tempo, and an intuitive interface for precise control over time, mix, and repeats. The pedal includes a Toggle Switch for bypass and Tone Lock, USB-C for firmware updates, and a Kill Dry function for parallel FX loops. Perfect for guitarists seeking rich, customizable delay effects with studio-quality sound.

7 Delay Types

Includes ΦPhi Digital, Analog, Modulation, Tape Echo, Pan, Verb, and Reverse, offering everything from warm vintage echoes to lush modulated textures and experimental reverse effects.

Stereo Looper

Record and layer up to 40 seconds of stereo audio, enabling dynamic soundscapes and looping practice without interrupting playback.

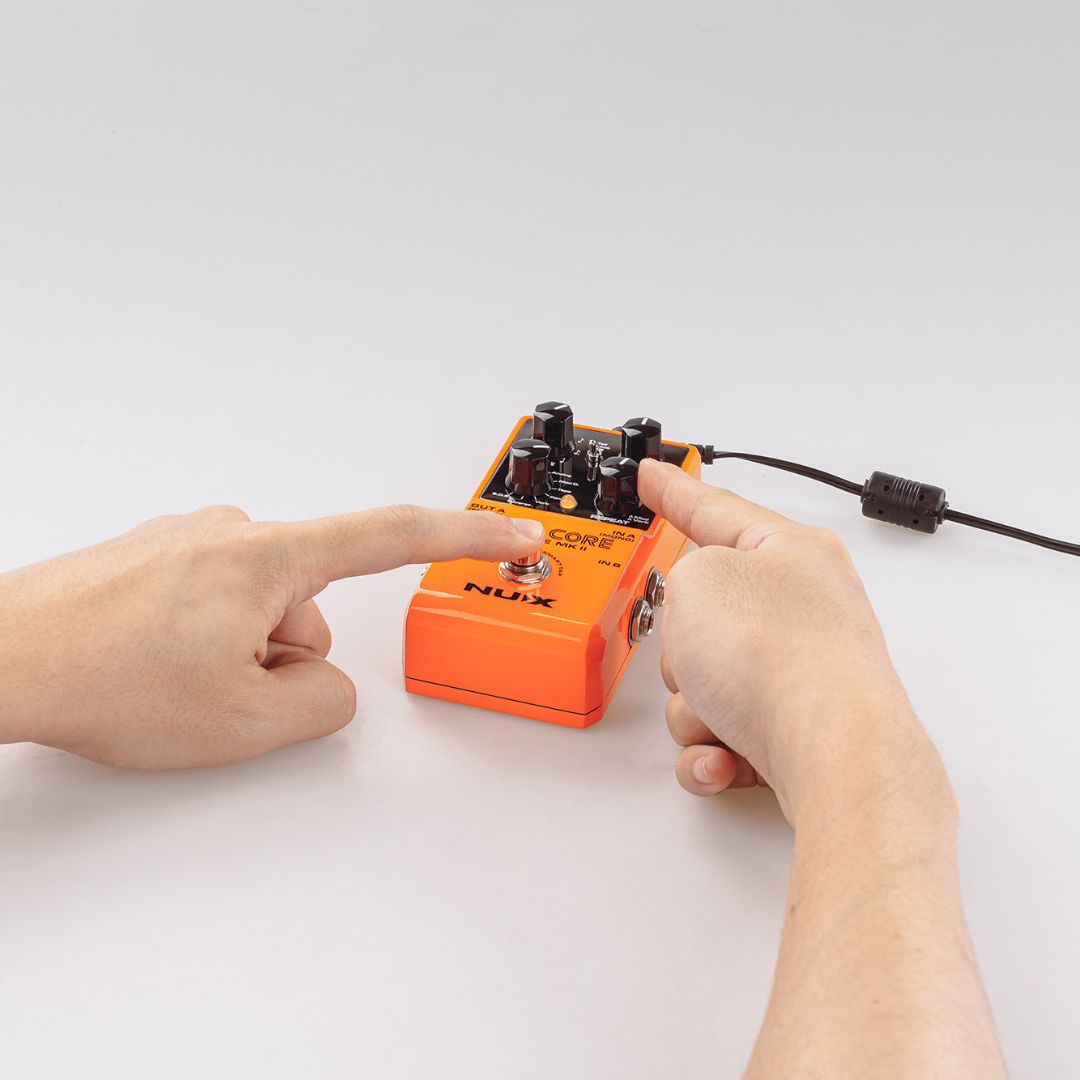

Smart Tap Tempo

Set precise delay times up to 1580ms, sync with sub-divisions for complex rhythmic patterns, ideal for live performances.

Bypass & Lock

Select True Bypass or Buffer Bypass with spillover, and lock your preferred settings to prevent accidental adjustments during live performances.

  • Compact design with seven distinct delay types
  • ΦPhi Digital Delay (80ms~1000ms)
  • Analog Delay (40ms~403ms)
  • Modulation Delay with Alt mode (20ms~1500ms)
  • Tape Echo (55ms~552ms)
  • Pan Delay with creative stereo imaging (80ms~1000ms)
  • Verb Delay with ambient Plate Reverb (80ms~1000ms)
  • Reverse Delay for classic backward effect (320ms~1240ms)
  • S.O.S: 40-second stereo phrase looper
  • Smart Tap Tempo with sub-division (Max: 1580ms)
  • True-Bypass, Buffer-Bypass, and Tone Lock modes

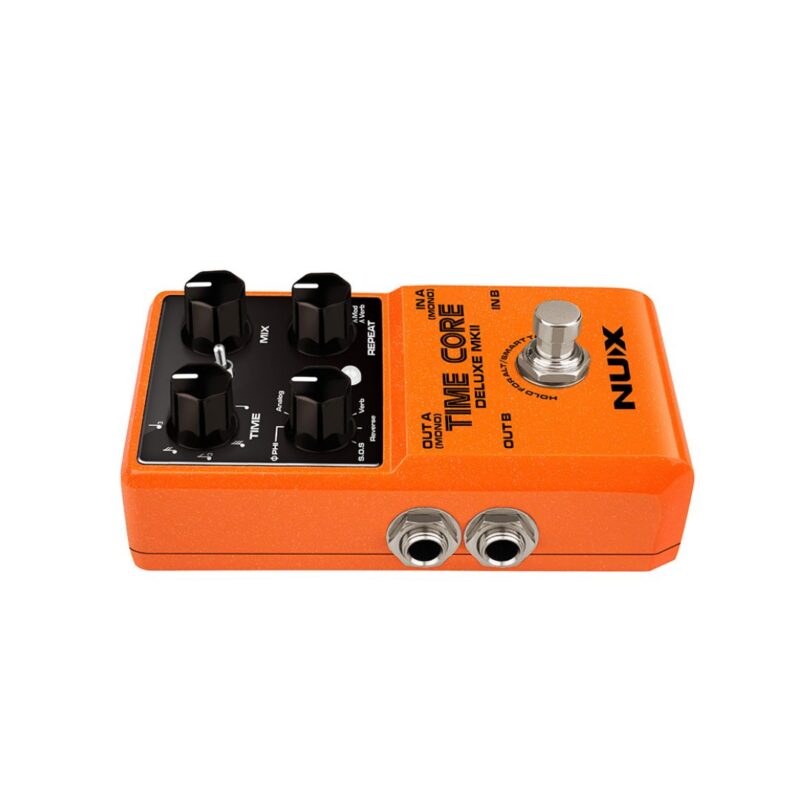

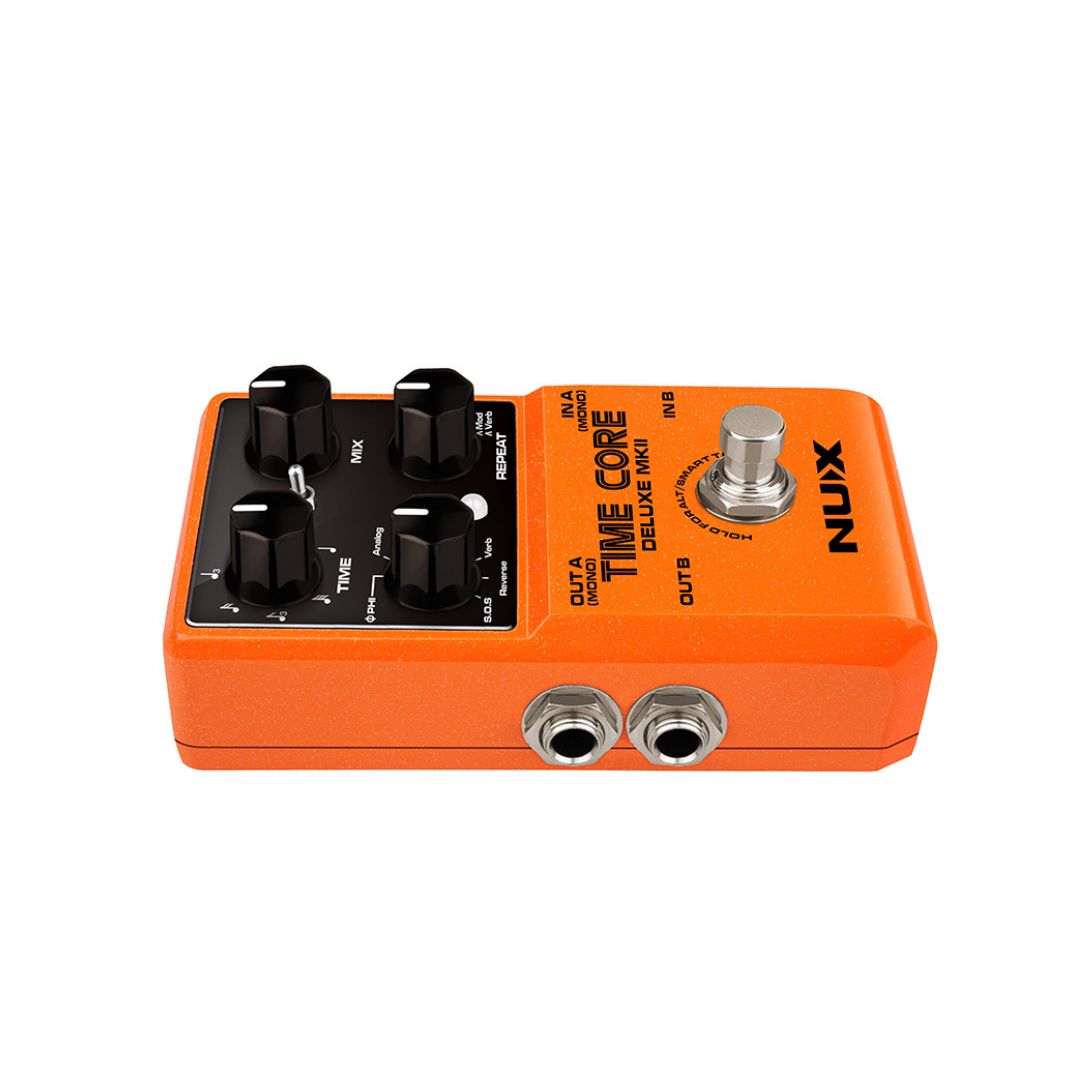

  • Stereo input/output support
  • Kill Dry mode for FX loop compatibility
  • Analog dry signal for low noise and zero latency

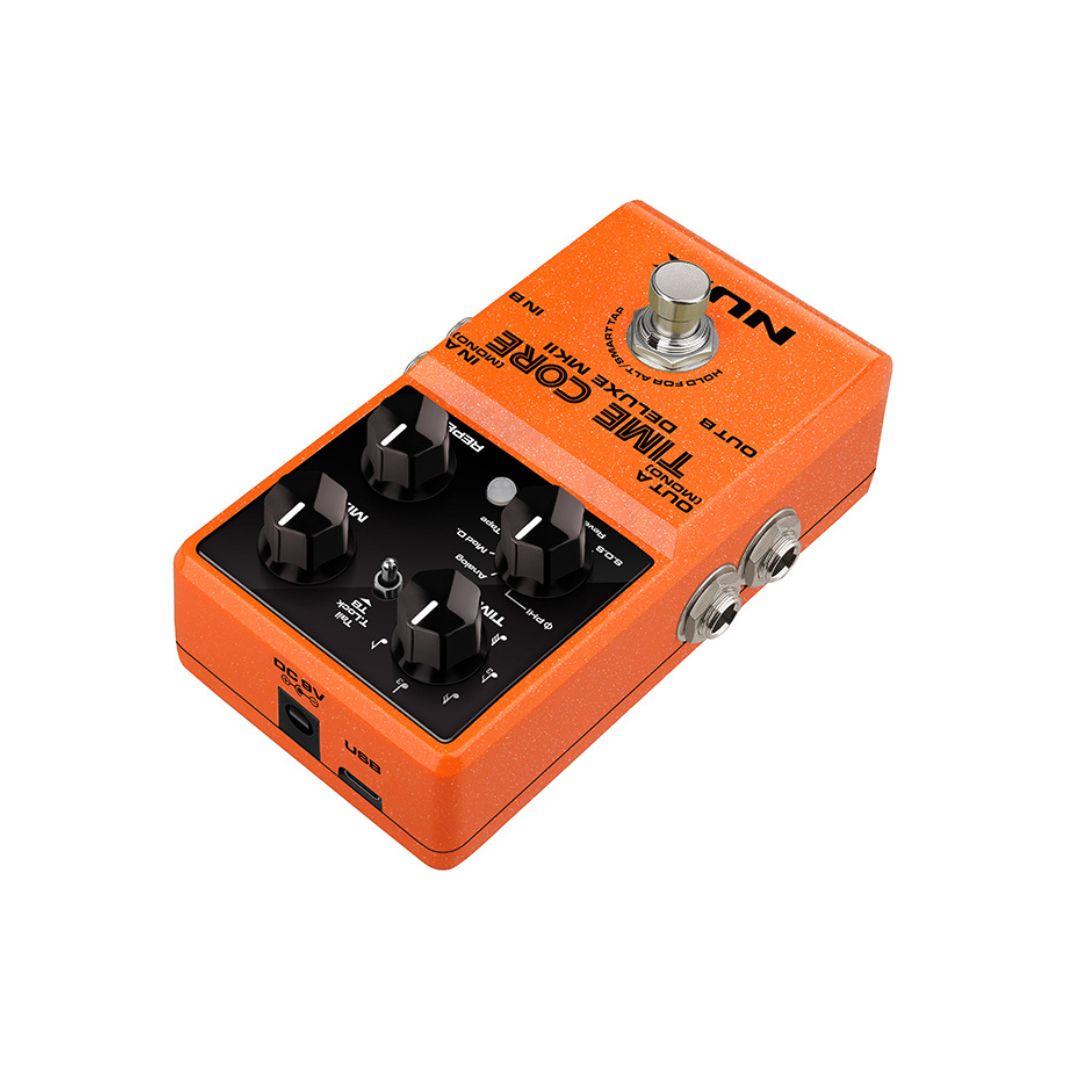

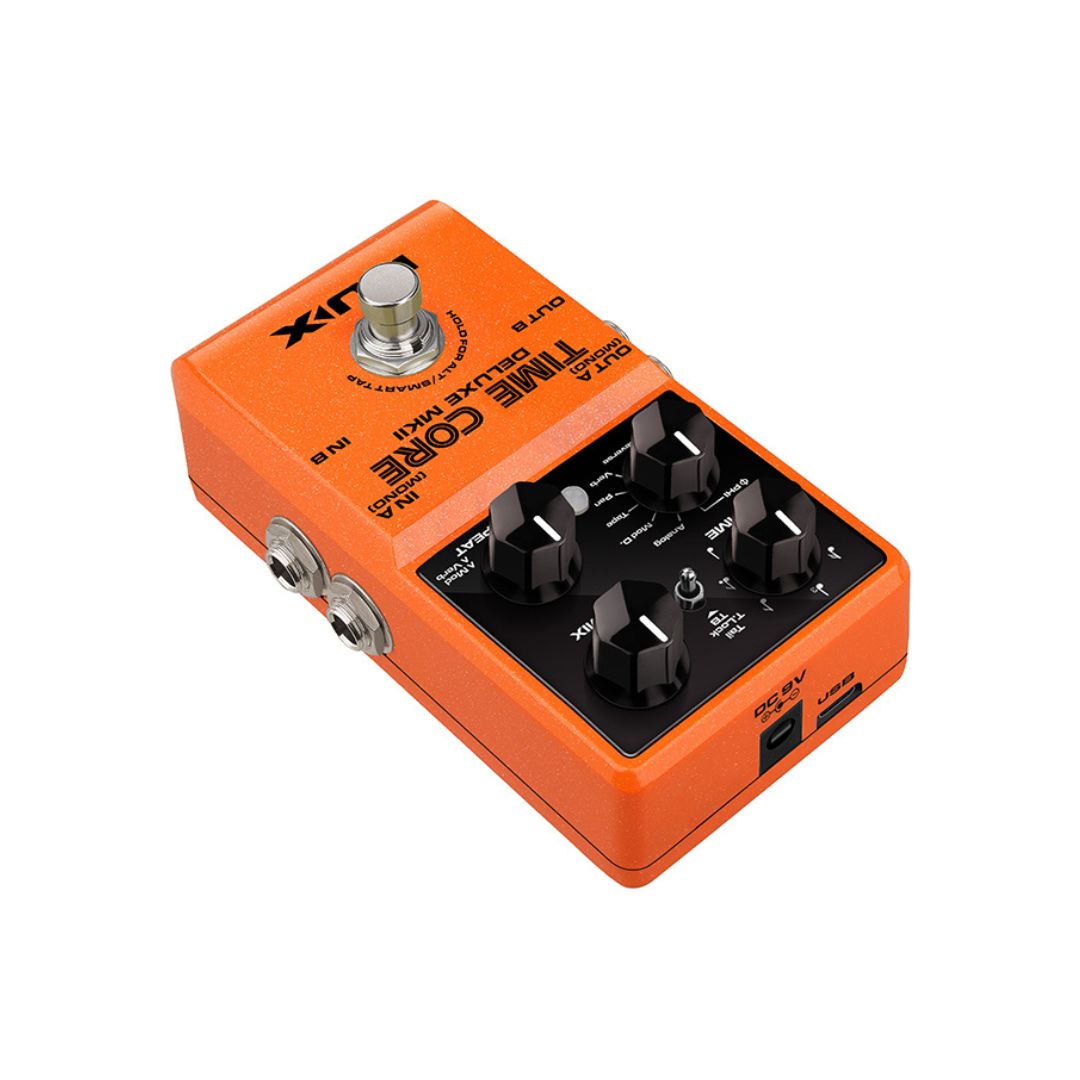

  • USB-C for firmware updates
  • Low power consumption (<125mA)
  • Input Impedance: 1MΩ

  • Output Impedance: 1kΩ

  • Dynamic Range: 104 dB

  • DSP Processing: 48KHz / 32-bit

  • A/D D/A Sampling Rate: 48KHz / 24-bit

  • Power: 9V DC(Negative tip, Optional ACD-006A adapter)

  • Current Draw: less than 120mA

  • Dimensions: 122(L) X 72(W) X 47(H)mm

  • Weight: 270g

Additional information

Weight 1 kg
Dimensions 15.24 × 10.03 × 5.72 cm
