Description
Dual-Switch Looper & Drum Controls
The JTC Pro features two independent footswitches—one for looping and one for rhythm—allowing hands-free control over recording, overdubbing, playback, and adding drum fills. Its Smart TAP function intelligently distinguishes between tempo setting and loop control, ensuring smooth transitions during live use.
Extended Recording & Storage
Capture up to 6 hours of high-quality audio across 256 loop track memories. This makes it ideal for building complex arrangements, practicing layered parts, or saving multiple song sections, all without compromising sound fidelity.
24-bit audio quality
6 hours recording time
256 memories
Drums: 25 4/4 beats, 10 3/4 drum beats, 5 shuffle beats
Drum tempo 40-240
2 start modes, 3 stop modes
One Shot player
2 Loop switch modes: Record-Play and Record-Overdub
Optional drum sound enhancement
2 Outputs, Right Output speaker emulated (optional)
3 Output modes: Guitar to L and Drums to R, Guitar and Drums to R/L, Guitar to R and Drums to L
External footswitch input to switch between loop phrases. (NMP-2 optional)
Micro-B USB input
9 V negative tip power input
- Audio Quality: 24-bit high-resolution audio ensures clear and dynamic sound reproduction.
- Recording Time: Up to 6 hours of recording capacity, allowing for extensive looping sessions.
- Memory Slots: 256 loop track memories for storing a vast array of loops and backing tracks.
- Drum Patterns: Includes 40 drum patterns—25 in 4/4 time, 10 in 3/4 time, and 5 shuffle beats—covering genres like Pop, Rock, Blues, and Metal.
- Tempo Range: Adjustable drum tempo ranging from 40 to 240 BPM, accommodating various musical styles.
- Start Modes: Two start modes:
Normal Recording: Begins recording immediately upon pressing the loop switch.
Auto-Recording: Waits for the initial input signal before starting to record, allowing for precise timing. - Stop Modes: Three stop modes:
Normal Stop: Stops playback instantly.
Fine Stop: Stops playback at the end of the current loop cycle.
Fade Out: Gradually decreases volume over 10 seconds before stopping. - One-Shot Mode: Plays loaded backing tracks once without looping, ideal for practicing or performing with full-length songs.
- Loop Modes: Two loop switch modes:
Record-Play (RP): Records and then plays the loop.
Record-Overdub (RD): Records and immediately enters overdub mode for layering. - Drum Sound Enhancement: Optional frequency optimization enhances drum sounds, especially when using guitar amplifiers.

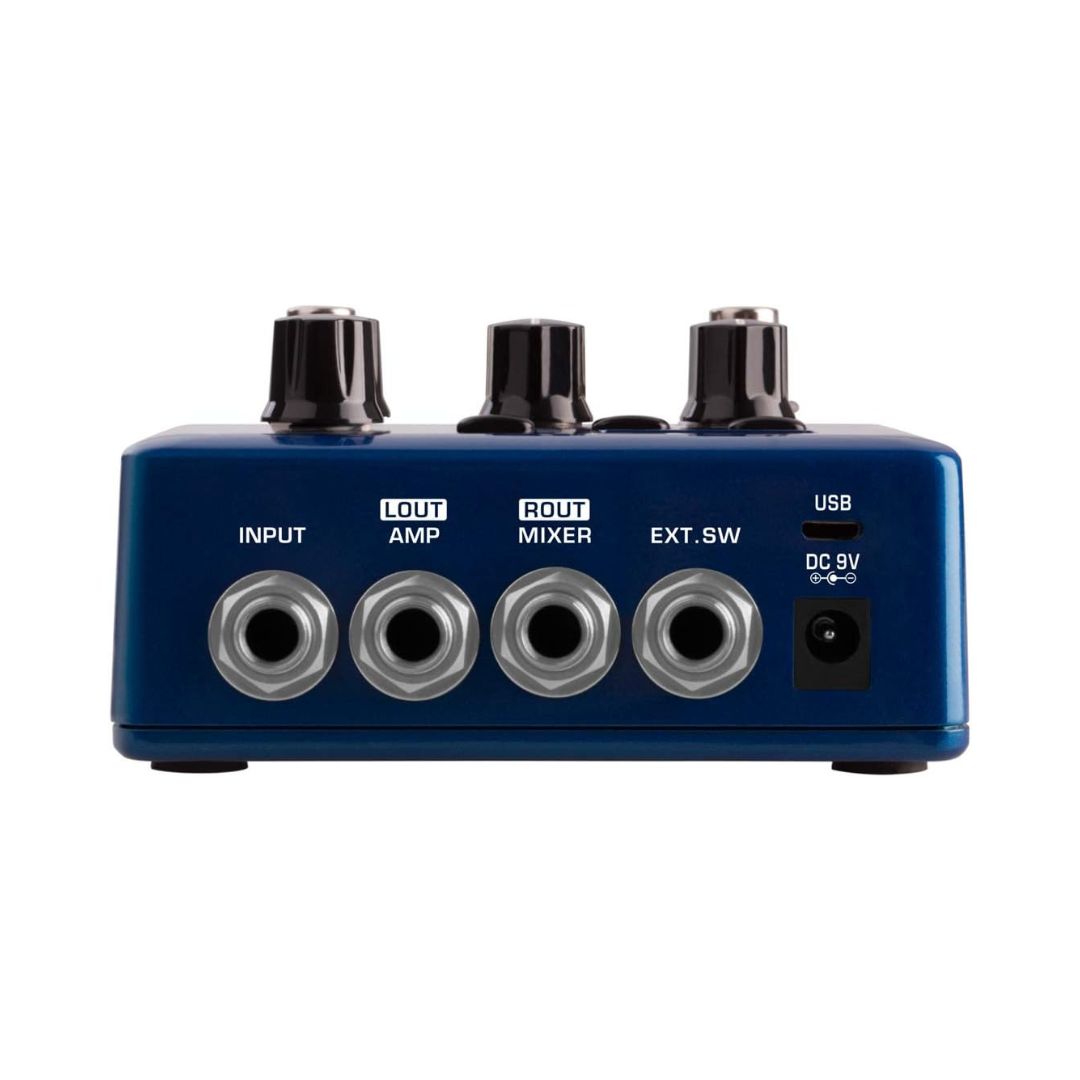

- Outputs: Two output jacks:
Left Output: Standard output for amplifiers.
Right Output: Speaker-emulated output suitable for direct connection to PA systems or mixers. - Output Modes: Three configurations:
Guitar to Left, Drums to Right: Separates signals for individual processing.
Guitar and Drums to Both Outputs: Sends combined signals to both outputs.
Guitar to Right, Drums to Left: Alternative separation for different setups. - External Footswitch Input: Compatible with the optional NUX NMP-2 footswitch for seamless switching between loop phrases.
- USB Connectivity: Micro-B USB port for loading backing tracks and firmware updates.
- Power Supply: Requires a 9V negative tip power input for operation.
