Versatile Modulation Effects

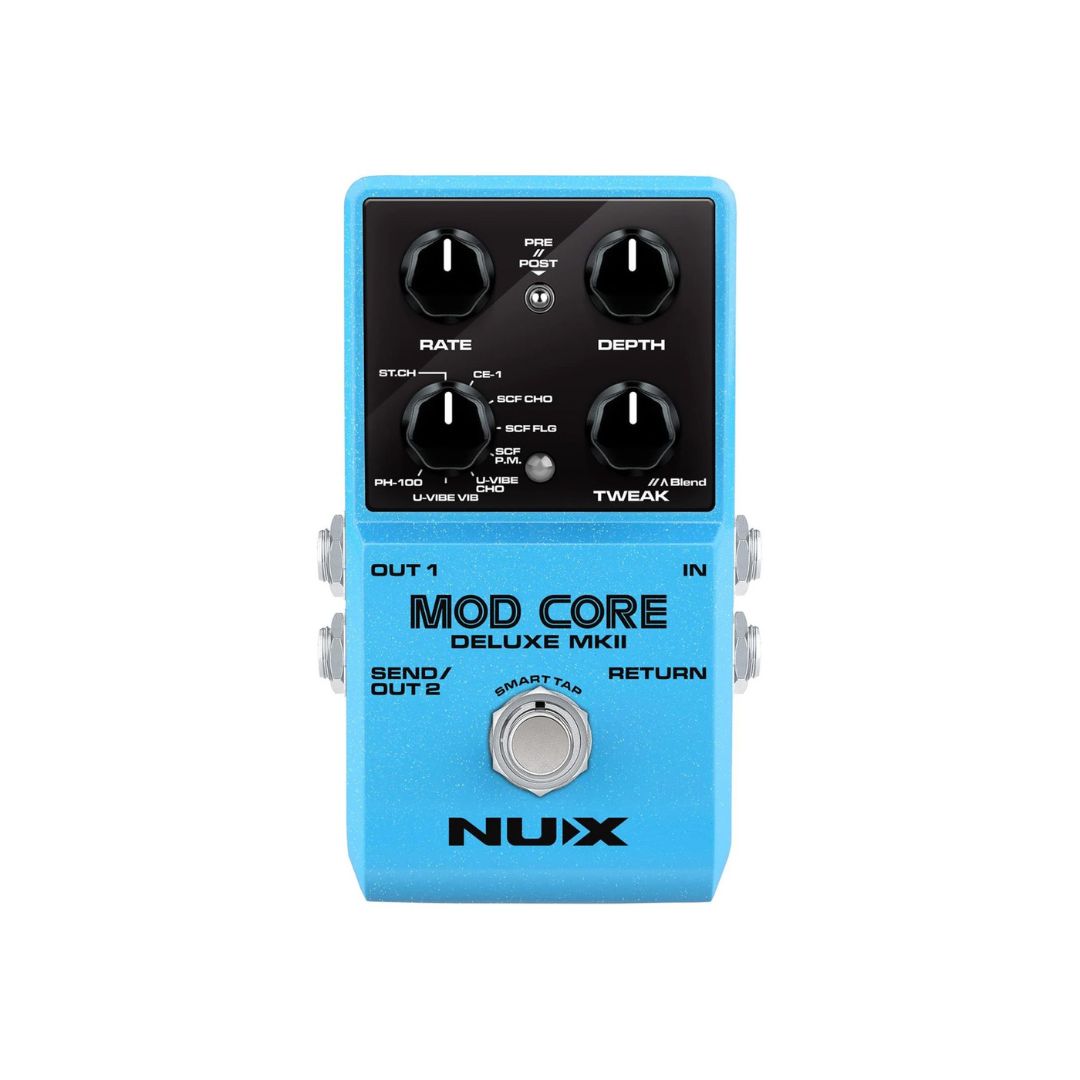

The Mod Core Deluxe MKII offers 8 modulation types with both normal and deluxe modes, allowing musicians to craft rich, dynamic sound textures. Its Rate, Depth, and Tweak controls provide deep tone-shaping capabilities for precise effect customization.
Routing & Connectivity

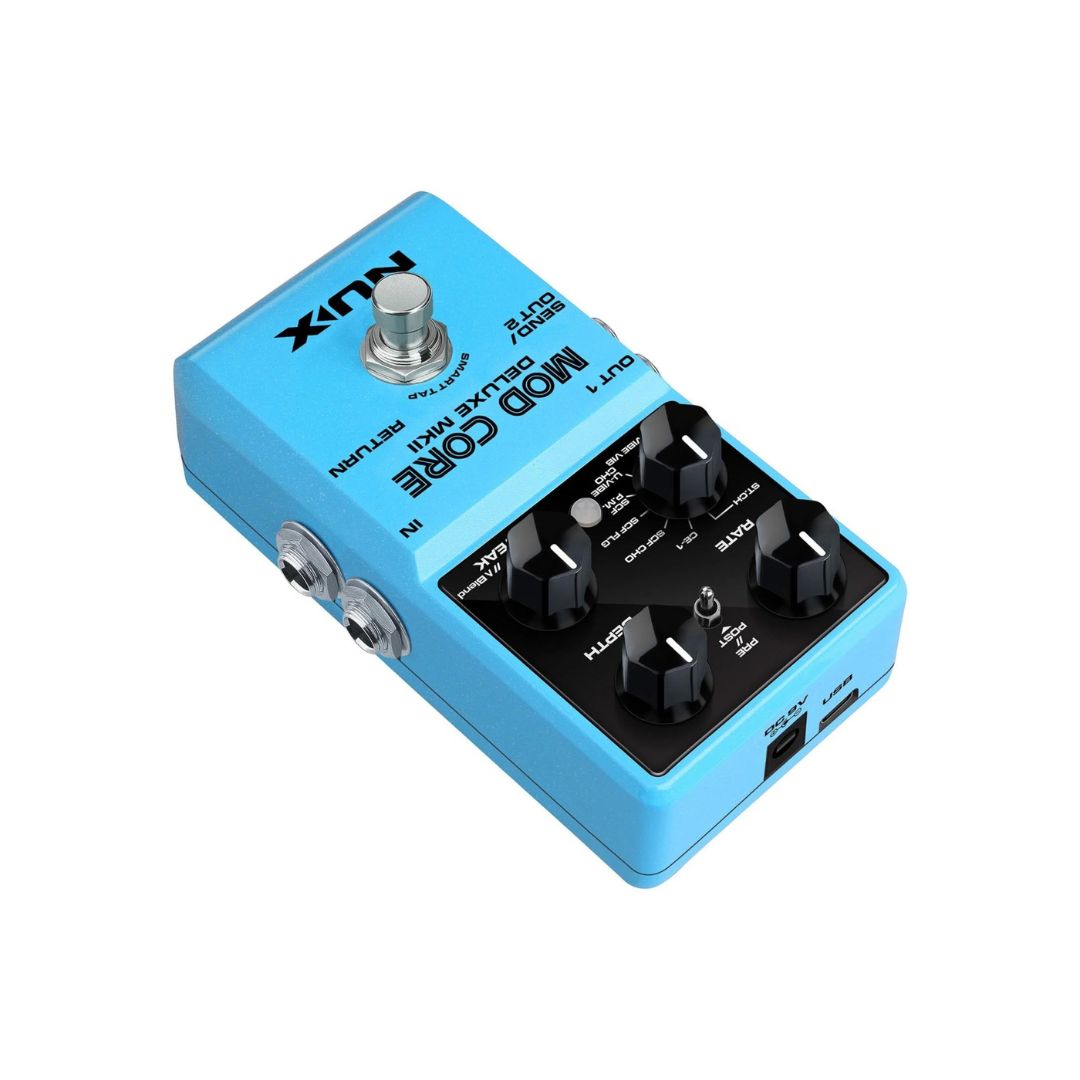

With stereo inputs/outputs, Send/Return loops, and a 3-way toggle switch, this pedal supports flexible signal routing options including parallel blending. The USB-C port enables easy firmware updates, while the Tone Lock function preserves your settings during performances.
- 8 modulation types in a compact enclosure.
- ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100.
- ST.CH is based on MXR® Stereo Chorus.
- CE-1 is based on BOSS® CE-1.
- SCF is based on TC Electronic® SCF Stereo Chorus Flanger.
- U-VIBE is based on Dunlop® UV-1 Uni-Vibe Chorus / Vibrato.
- PH-100 is based on MXR® Phase 100.
- Normal routing (mono out or stereo out) and advanced routing (PRE, // , POST).
- Parallel routing offers Blend parameter. (Alt mode, Tweak becomes Blend parameter.)
- Smart Tap Tempo. (50~200 BPM)
- Low power consumption. (less than 120mA)
- Analog dry signal for low noise and zero latency.
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Dynamic Range: 104 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw?less than 120mA
- Dimensions: 122(L) X 72(W) X 47(H)mm
- Weight: 270g
