Description

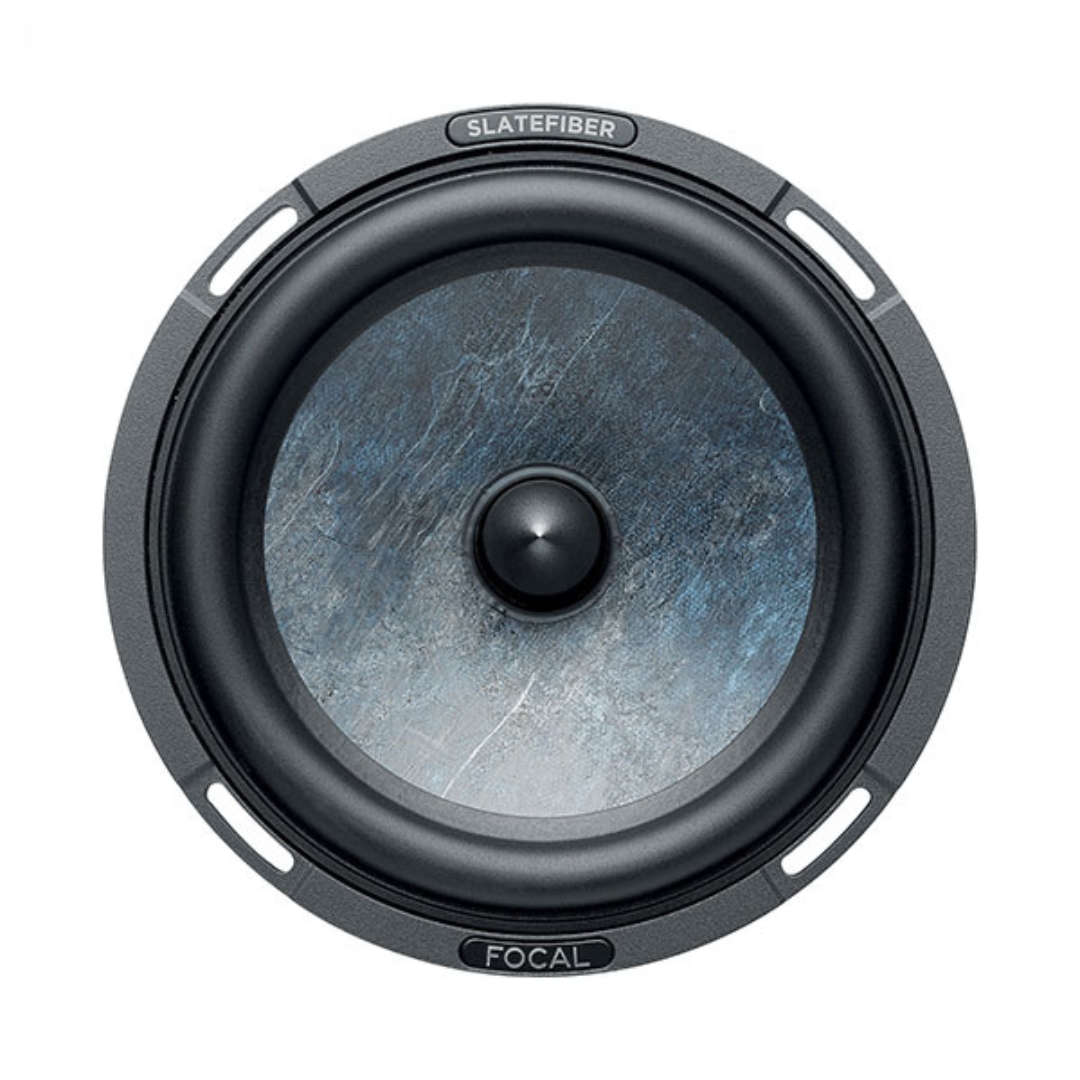

Slatefiber Woofer Technology
Exclusive to Focal and made in France, the Slatefiber cone uses recycled carbon fibers and thermoplastic polymer for rigid, lightweight, and balanced sound.
Inverted Aluminium Dome
A Focal signature since 1981, the inverted aluminium dome tweeter delivers wide spatial dispersion, low directivity, and a stable soundstage with a horizontal frequency deviation of just ±0.5 dB.
Class-D Bi-Amplification
Driven by 115W of Class-D bi-amplification, with 80W powering the woofer and 35W driving the tweeter, the Focal Alpha 80 Evo delivers precise signal control and high sound levels with low distortion.
Mounting & Connectivity

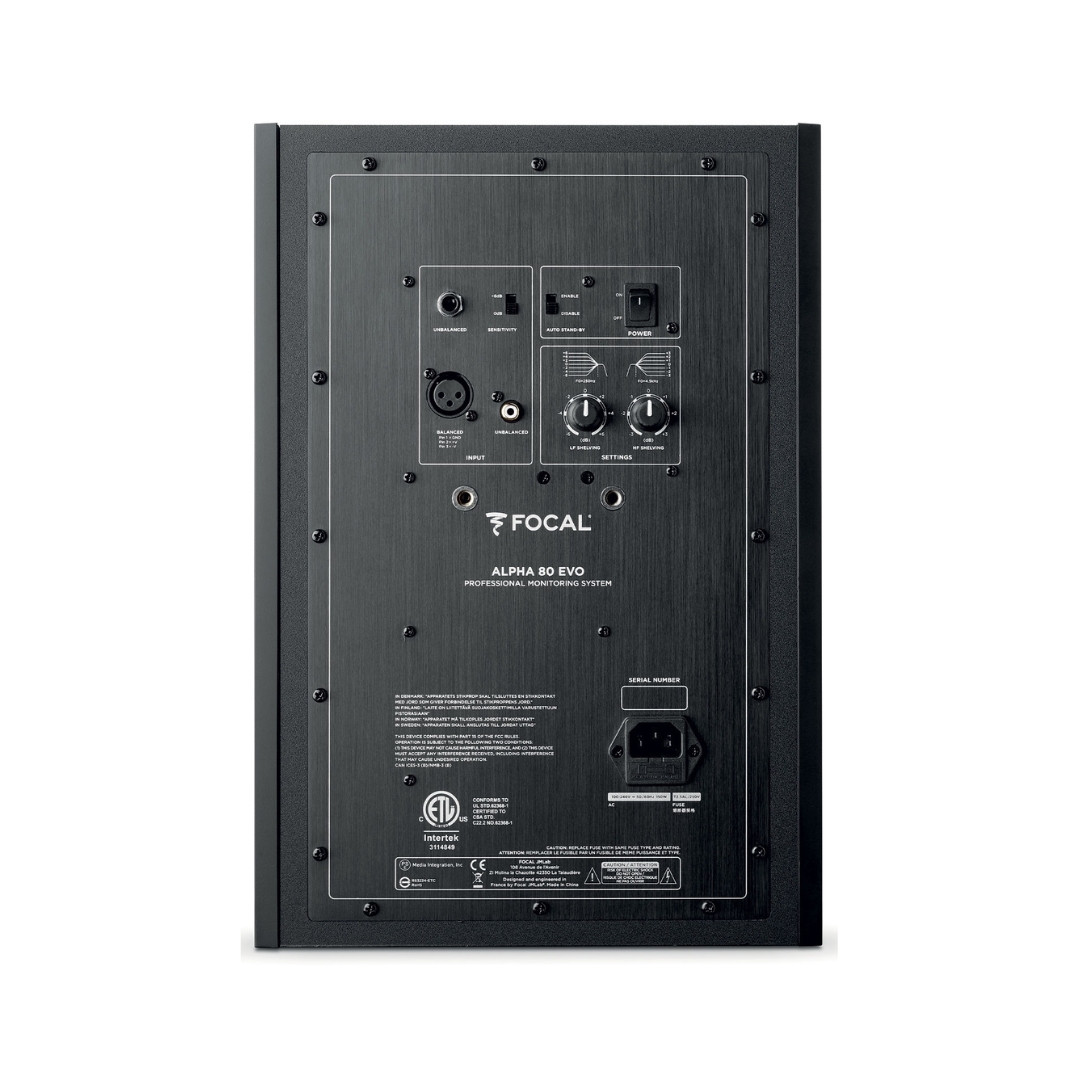

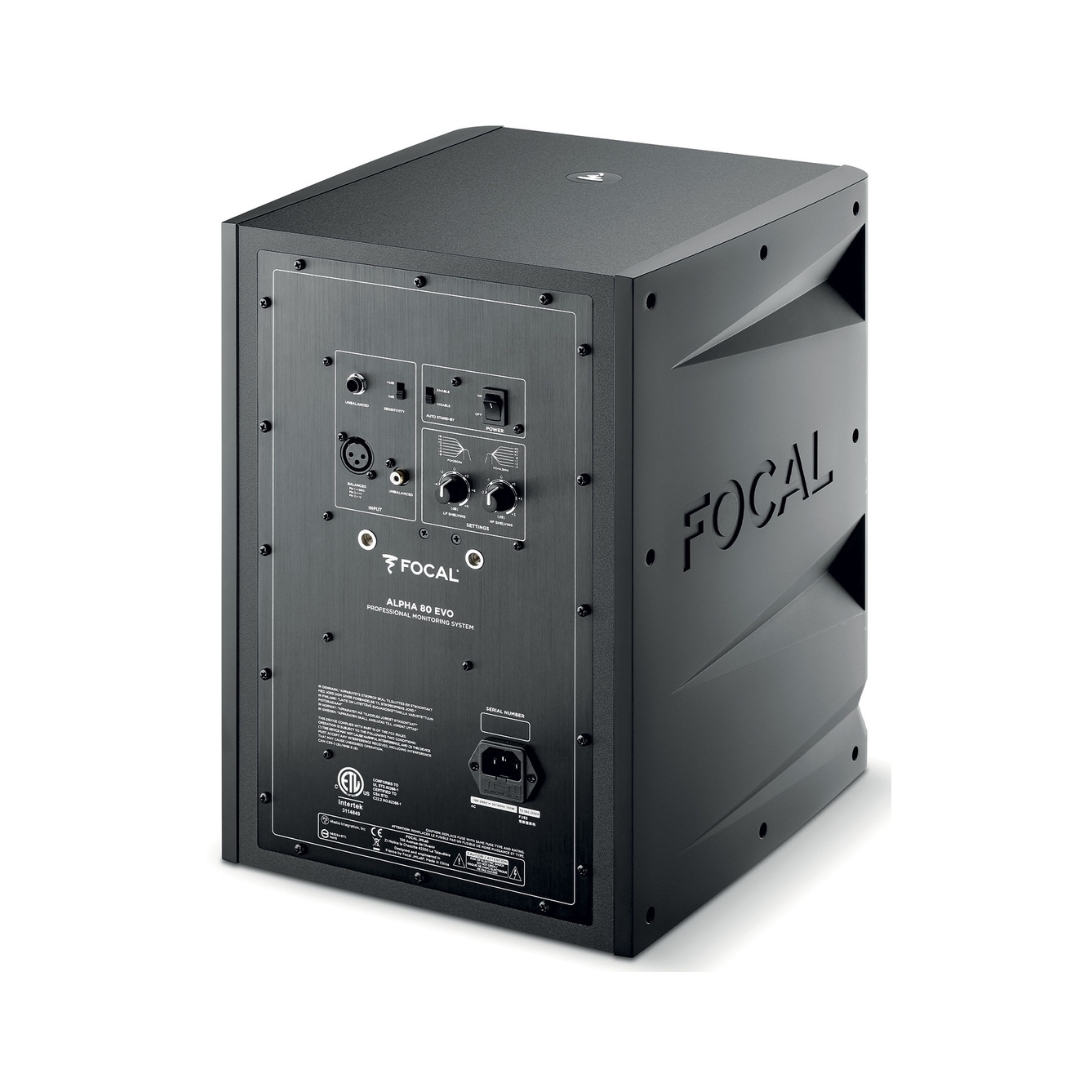

With dedicated XLR, TRS, and RCA inputs and built-in wall mounting inserts, the Alpha 80 Evo adapts effortlessly to a wide range of studio setups and immersive multichannel environments.
- 8″ Slatefiber cone woofer for neutral, low-distortion low-frequency reproduction
- 1″ aluminum inverted dome tweeter with waveguide for controlled dispersion and reduced directivity
- Frequency response: 38 Hz – 22 kHz for full-range monitoring accuracy
- Class-D bi-amplification for efficient and controlled signal delivery
- 115 W total power output (80 W LF / 35 W HF)
- Balanced XLR, TRS, and RCA inputs for universal analog connectivity
- Adjustable LF and HF shelving EQ for room compensation and tuning
- Bass-reflex (ported) cabinet design with large laminar port for low-frequency extension
- MDF cabinet construction with internal bracing for rigidity and reduced resonance
- Consistent tonal balance at low and high volume levels for reliable referencing
- Wide, stable sound dispersion for accurate stereo imaging across the listening area
- Defeatable automatic standby mode for continuous professional operation.
Monitor Type: Active 2-Way
Number of Included Monitors: Single monitor
Enclosure Type: Bass-reflex / ported
Total Power Output: 115 W
Tweeter: 1 × 1″ (25 mm) aluminum inverted dome
Woofer: 1 × 8″ (20.3 cm) Slatefiber cone
Amplifiers:
LF: 80 W Class-D
HF: 35 W Class-D
Frequency Response: 38 Hz to 22 kHz ± 3 dB
Maximum Sound Pressure Level (SPL): 106 dB (Peak)
Analog Input Sensitivity/Gain: +6 to 0 dB
EQ:
1x LF Shelf: ±6 dB at 250 Hz
1x HF Shelf: ±3 dB at 4.5 kHz
Audio I/O:
1x XLR 3-Pin Balanced Input (10 Kilohms)
1x 1/4″ TRS Balanced Input (10 Kilohms)
1x RCA Unbalanced Input (10 Kilohms)
AC Input Power: 100 to 240 VAC, 50/60 Hz
Power Consumption: 0.5 W (Standby)
Color: Black
Monitor Orientation: Vertical
Enclosure Material: MDF
Mounting Points: 2x M6 (Rear Panel)
Dimensions (W x H x D): 11.7 x 15.4 x 13″ / 29.7 x 39.1 x 33 cm
Weight: 21.6 lb / 9.8 kg
