Description

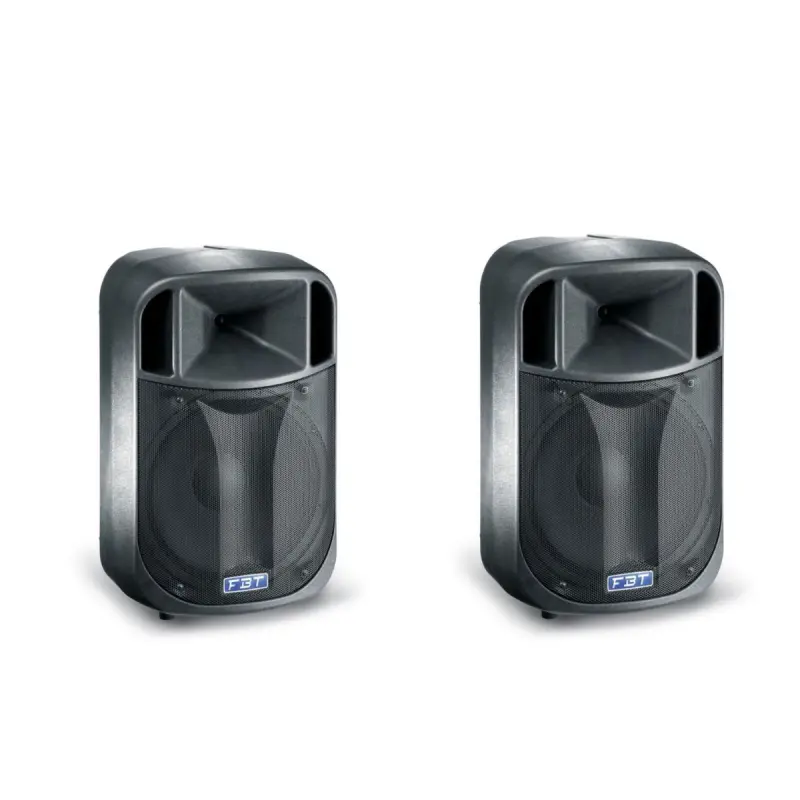

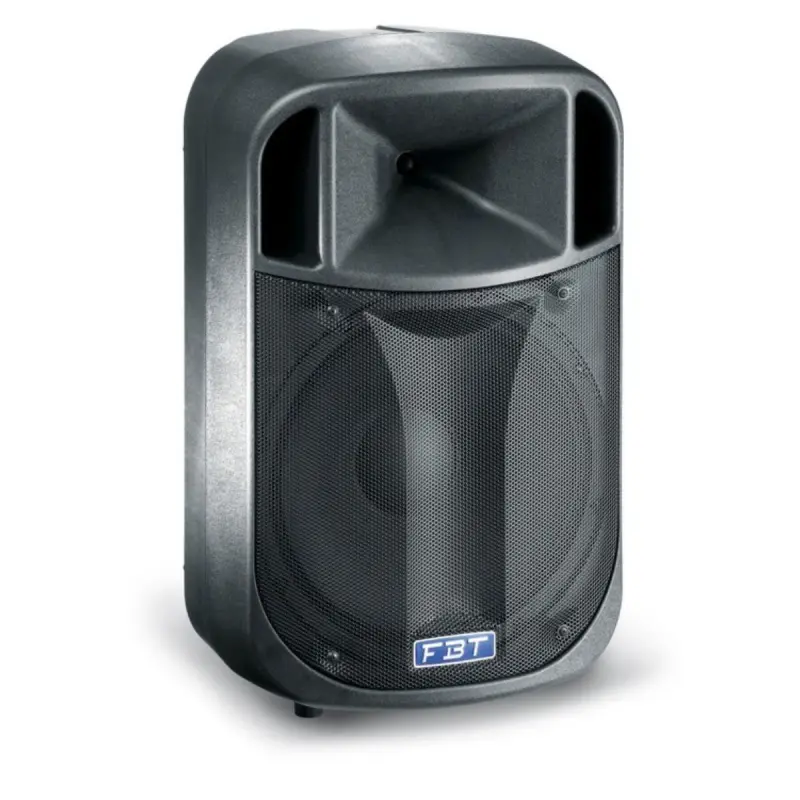

- Specially designed for DJ users the DJ 15A is an Active speaker Pair with RCA inputs and combi XLR jack inputs. It features a DSP processed amp module 350W + 100W RMS – 129dB SPL and a Standard 35mm pole mount (Per single Unit)
450 Watts of Power
The bi-amplified FBT DJ 5A active speaker features a DSP processed amp module 350W + 100W RMS – 129dB SPL and a Standard (per unit)
4 DSP preset specially designed for DJ users
This preset is tailored for DJ performances in club environments, where the emphasis is on powerful bass, crisp highs, and a balanced midrange. It enhances the overall energy and impact of the music, making it well-suited for dance floors. (per unit)
Two channel input mixer with stereo/mono OUT
The mixer provides the flexibility to choose between stereo and mono output configurations. This is particularly useful for adapting to different sound system setups and preferences (per unit).
2 Way Speaker
Enhanced Signal Control: Each amplifier is optimized for its respective frequency range. Reduced Intermodulation Distortion: Separating the amplification reduces the risk of distortion between frequency bands (per unit).
380mm (15’’) custom woofer with improved efficiency and linearity
25mm (1”) HF custom compression driver
90°H x 60°V constant directivity horn
2-way bi-amplified system in Bass-Reflex
350Wrms class D amplifier for LF and 100Wrms for HF
High efficiency switch mode power supply
On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
4 DSP preset specially designed for DJ users
Two channels input mixer with stereo/mono OUT

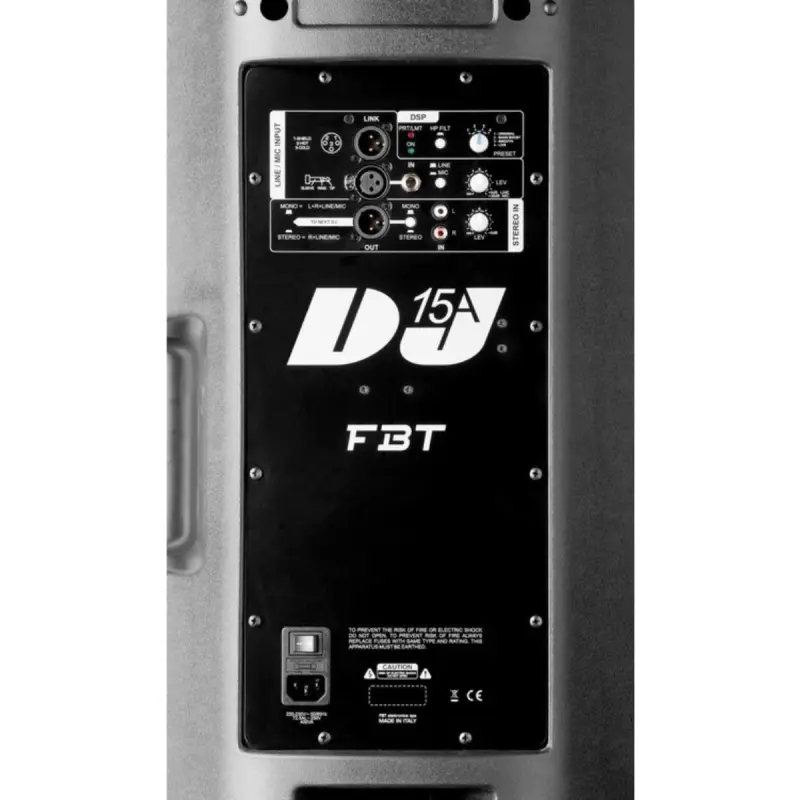

Input panel with XLR/jack input and XLR Link, Mic/Line switch, Level, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for dasy-
chaining with Stereo/Mono switch selector
Polypropylene enclosure with integrated handle
2 x M10 anchoring points
35mm Internal top hat
Features are Mentioned above for singles unit.
Configuration: 2 Way
Frequency response: 48Hz – 20Khz
Low frequency woofer: 15″ with 2″ VC
High frequency driver: 1″ with 1″ VC
Maximum SPL cont/peak: 125 / 129dB
Dispersion: 90 x 60 (HxV)
Input impedance: 220 Kohm
Crossover frequency: 1.8Khz
Input connector: XLR-Jack Combo with link out
Net Dimension (WxHxD): 410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
Specifications are Mentioned above for singles unit.
