Description
- The ATEM Mini Pro by Blackmagic Design is a versatile HD live production switcher supporting up to four HDMI inputs from gaming consoles, computers, or cameras for multi-camera streaming. It features an integrated control panel and includes advanced capabilities like live stream data monitoring, a built-in hardware encoder, simultaneous USB recording, timecode generation, program preview multiview, tally support, and integration with Blackmagic Pocket Cinema Cameras, ideal for professional live streaming and broadcast environments.

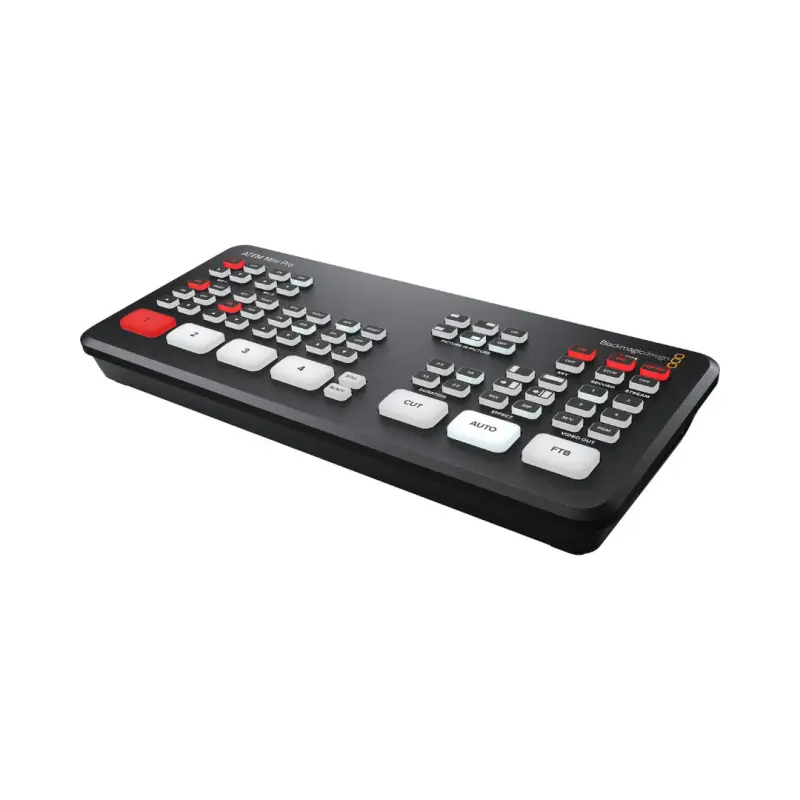

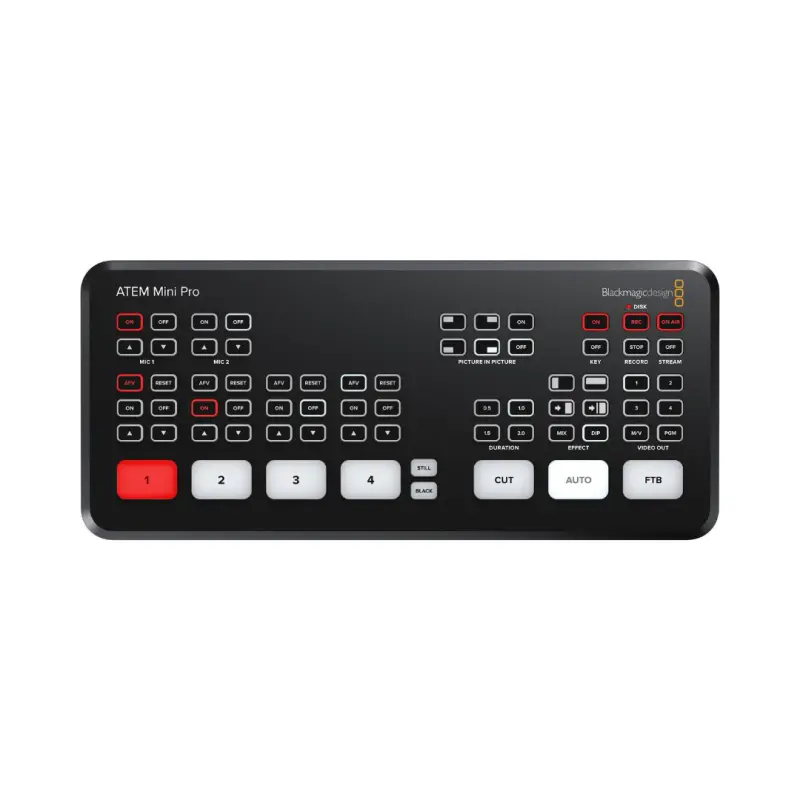

Integrated Control Panel and HDMI Inputs
The ATEM Mini Pro features an integrated control panel and four HDMI inputs, supporting multi-camera live streaming up to HD from various sources like gaming consoles, computers, or HD cameras. It simplifies live production setups with easy connectivity and control.

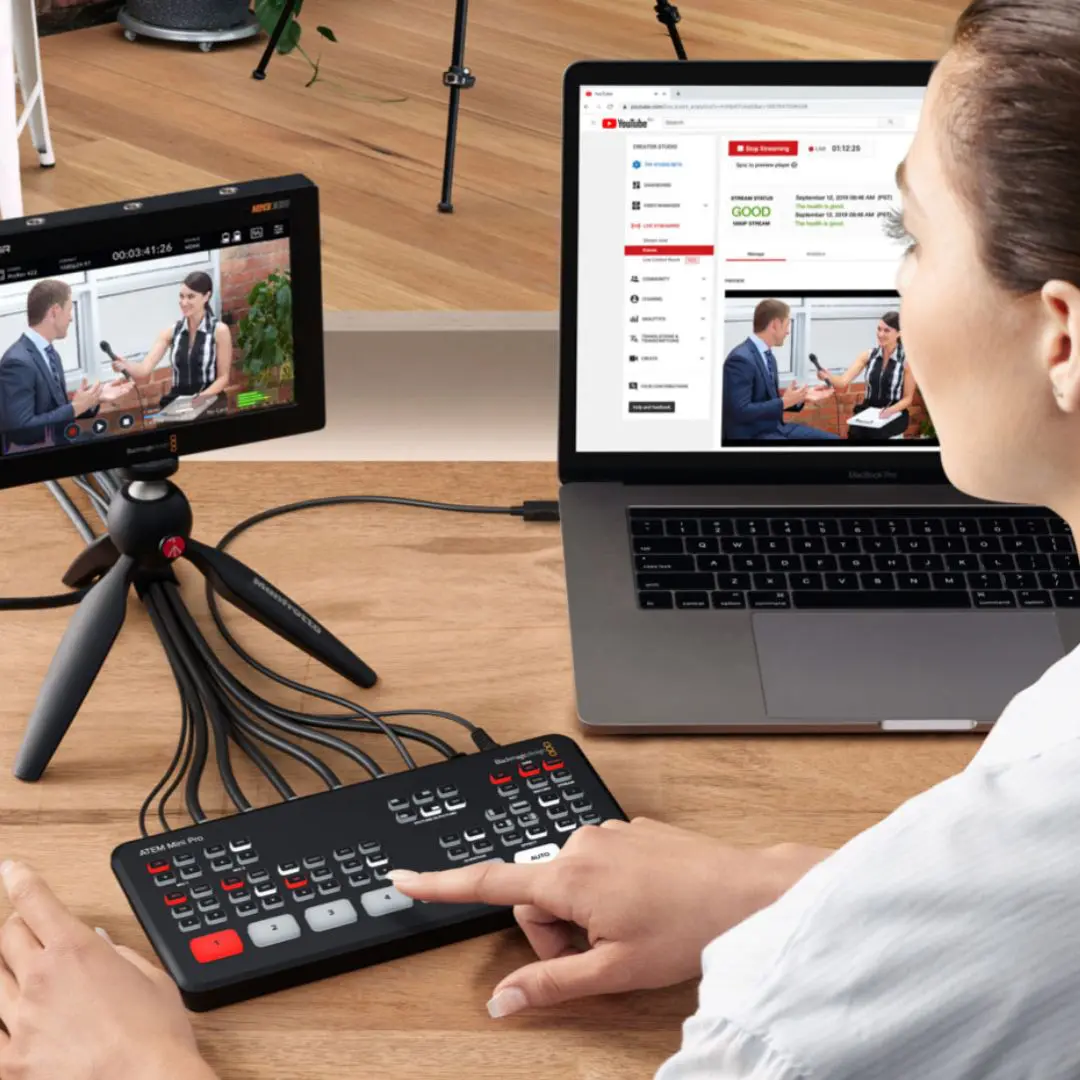

Advanced Streaming and Recording
Enhancing the ATEM Mini, the Pro version includes a built-in hardware encoder and supports simultaneous recording to USB drives. It enables direct live streaming via Ethernet and USB Type-C output for recording to a computer, offering flexibility and efficiency in streaming operations.
Enhanced Software Control and Customization
Controlled via ATEM Software Control Panel over USB-C or Ethernet, the ATEM Mini Pro allows monitoring of data rate, audio levels, and stream status. It supports XML configuration files for easy setup customization, ensuring streamlined operation and management.
Versatile Keying and Transitions
With powerful upstream and downstream keyers, the ATEM Mini Pro supports advanced keying options like luma, linear, chroma, and pattern keying. It offers a range of transitions including cuts, mixes, dips, wipes, and DVE effects, empowering users to create professional-grade live broadcasts with ease.

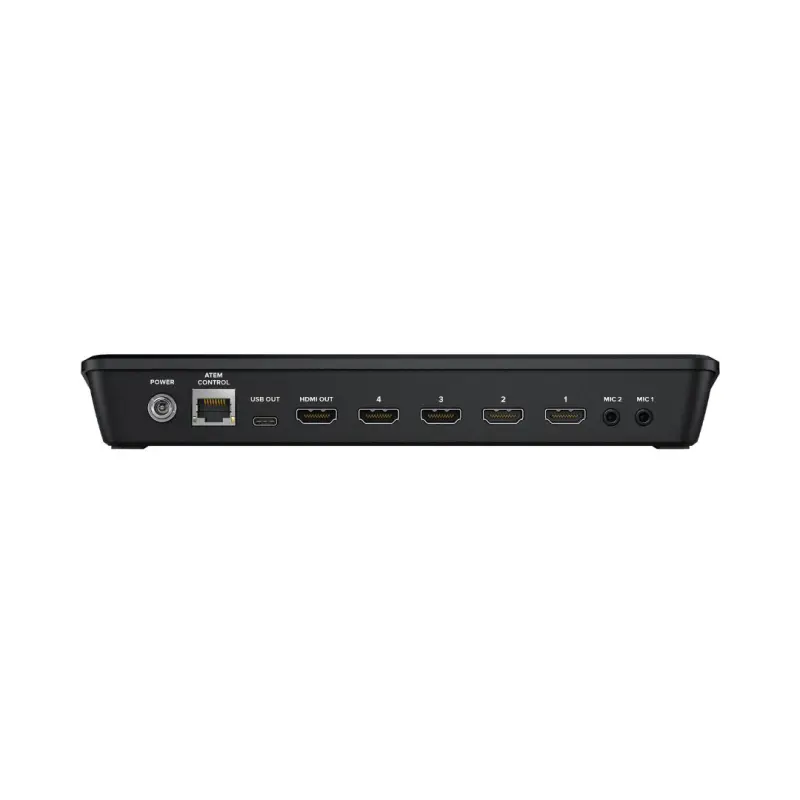

- Same rear panel as ATEM Mini with added buttons and software features
- Stream video up to 1080p HD
- Quick stream, on-air and record buttons
- Hardware encoder, so there’s no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K and 4K cameras
- Simultaneous USB recording to computer via USB-C
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on air status, audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
Available M/E Layers: 5 M/E
Effect Types: 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys
1x Chroma, DVE
2x LumaAudio Mixing
2-Channel Mixing- Switching Type: Pushbutton
- Number of Video Input Sources: 4
- Video Inputs: 4x HDMI Female
- Input Video Format:
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps - Audio Inputs: 2x 1/8″ / 3.5 mm TRS Stereo Analog Female
- Embedded Audio Input: HDMI: 2-Channel (per Input)
- Video Output Channels: 1
- Video Outputs: 1x HDMI
- Output Video Format:
HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps - Embedded Audio Output: HDMI: 2-Channel (per Output)
- Multiview Output: Yes
- Monitor Output: 1x HDMI
- Other I/O:
1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output
1x USB-C Control, Firmware Input/Output
- OS Compatibility:
macOS 10.14 or Later
Windows 10 - Processor: Not Specified by Manufacturer
- Wi-Fi: No
- Bluetooth: No
- Power I/O: 1x Barrel (12 VDC ) Input
- Power Consumption: 36 W
- Operating Temperature: 41 to 104°F / 5 to 40°C
- Storage Temperature: 14 to 140°F / -10 to 60°C
- Operating Humidity: 0 to 90%
- Dimensions: 9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm
- Weight: 19.4 oz / 550 g
