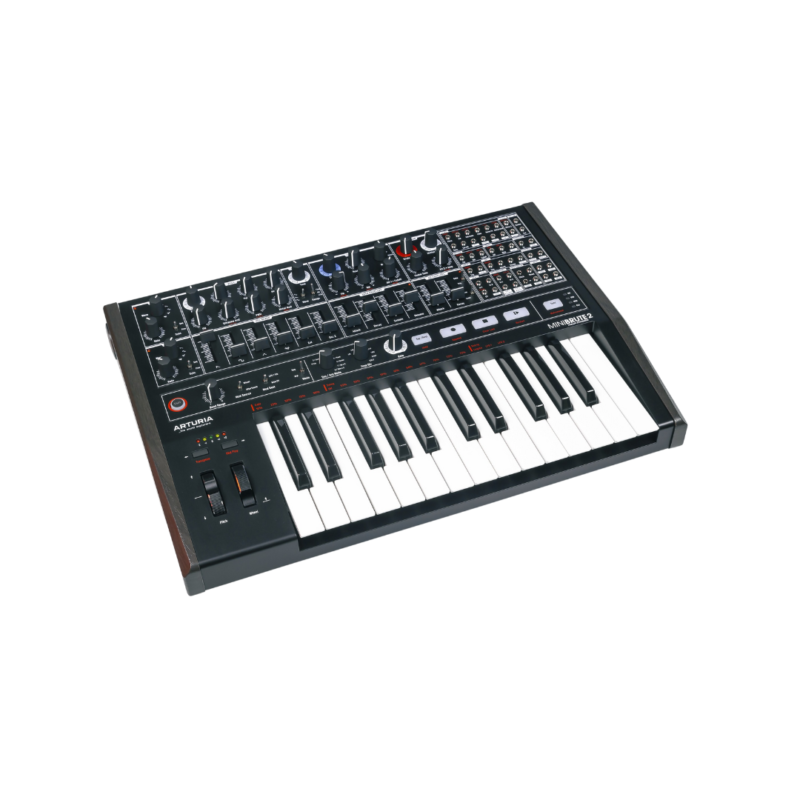

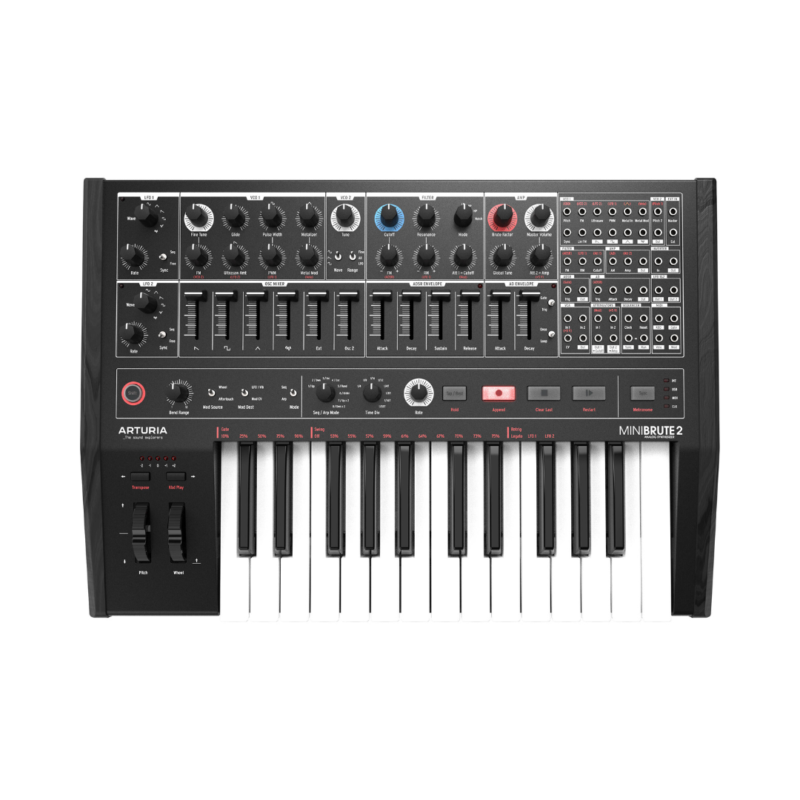

Arturia MiniBrute 2 Noir Edition Monophonic Analog Synthesizer

Synthesizer Type: Monophonic

Analog Audio Signal Path: 100%

Multimode Filter:
Steiner-Parker 12 dB per Octave (2-Pole): Low-Pass, Band-Pass, High-Pass, Notch
Filter Controls:
Cutoff
Resonance
Mode
FM (Controls the Amplitude and Polarity of the Envelope Signal Sent to Modulate the Filter Cutoff Frequency)
Resonance Modulation (RM): Modulates the Level of Resonance at the Cutoff Frequency, Prewired to LFO1 with Bipolar Control
ATT 1 > Cutoff: Attenuator 1 Provides Another Way of Modulating the Filter Cutoff Frequency, Prewired Between Pressure-Sensitivity and the Filter Cutoff.

Oscillators:
VCO1: Saw + UltraSaw, Square + Pulse width, Triangle + Metalizer (Waveform Mixing)
VCO2: Sine, Saw, Square Waveforms
VCO2 Tuning Range: Fine, All, LFO

Oscillator Mixer: Yes (Sawtooth, Square, Triangle, White Noise, External Audio In, Osc 2)

Signal Enhancers:
VCO 1 Controls
Fine Tune (Controls Pitch Over 1 Octave – Does Not Affect VCO 2)
Glide (Portamento)
Pulse Width (Alters Width of Square Wave)
Metalizer (Bringing Extreme Triangle Harmonics)
Frequency Modulation (FM) (Default VCO 2 Modulates VCO 1)
UltraSaw Amount (Generates Shimmering Sawtooth Waveforms)
PWM (Pulse Width Modulation) (Default LFO Modulates Pulse Width)
Metal Mod (Default Velocity Controls Metal Amount)

LFO:
LFO 1 and 2 Waveforms: Sine, Tri, Saw, Square, Random, Slew Random
Clock Syncable to Sequencer/Arpeggiator

Envelope Generators
ADSR (Attack, Decay, Sustain, Release)
AD (Attack, Decay)

Keyboard Tracking: Yes (on the VCF Cutoff)

Keyboard Type: 25-Note Keyboard with Velocity

Aftertouch: Yes

Mod Wheel:
Modulation Wheel: Assignable from Patchbay (Default to Filter Cutoff via Att 1>Cutoff Knob)
Mod Destination Switch: LFO 1 Vib = The Mod Wheel Controls the Amount of LFO 1, which by Default will Introduce Vibrato
Mod CV = The Mod Wheel Becomes a Modulation Source in the Patch Bay via the Mod Jack in the MIDI Section

Pitch Wheel: Yes (with Selectable Bend Range)

Octave Selector: Yes (-2 to +2 Octaves)

External Analog Audio Input: Yes

CV In/Out Controls:
Patchbay
1/8″ / 3.5 mm Miniature Mono Jacks
CV Inputs: Eurorack Level Signals, 100 Kilohms, ±5 Vx (Exception: Pitch CV Inputs are 6.8 Megohms Impedance)
CV Outputs: Eurorack Level Signals, 680 Ohms, ±5 V
Clocks / Gates Inputs: Eurorack Level Signals, 68 Kilohms, 0 V/+5 V
Clocks / Gates Outputs: Eurorack Level Signals, 2 kR, 0 V/+5 V

MIDI Input: Yes (5-Pin DIN Connector)

MIDI Output: Yes (5-Pin DIN Connector)

USB MIDI Input: Yes

USB MIDI Output: Yes

Audio Output: 1 x 1/4″ / 6.3 mm Audio Jack

Headphone Output: 1 x 1/4″ / 6.3 mm Headphone Jack

Full Function Arpeggiator:
8 x Modes
8 x Time Divisions x 6
11 x Swing Selections
1 x Hold Function

Tempo Knob: Yes

Tap Tempo: Yes

MIDI Sync: Yes

Enclosure: Rugged Aluminum and Wood Enclosure

Power Supply: 12 VDC / 2 A

Dimensions: 19.0 x 13.2 x 2.3″ / 48.4 x 33.6 x 5.8 cm

Weight: 10.6 lb / 4.8 kg
