Description

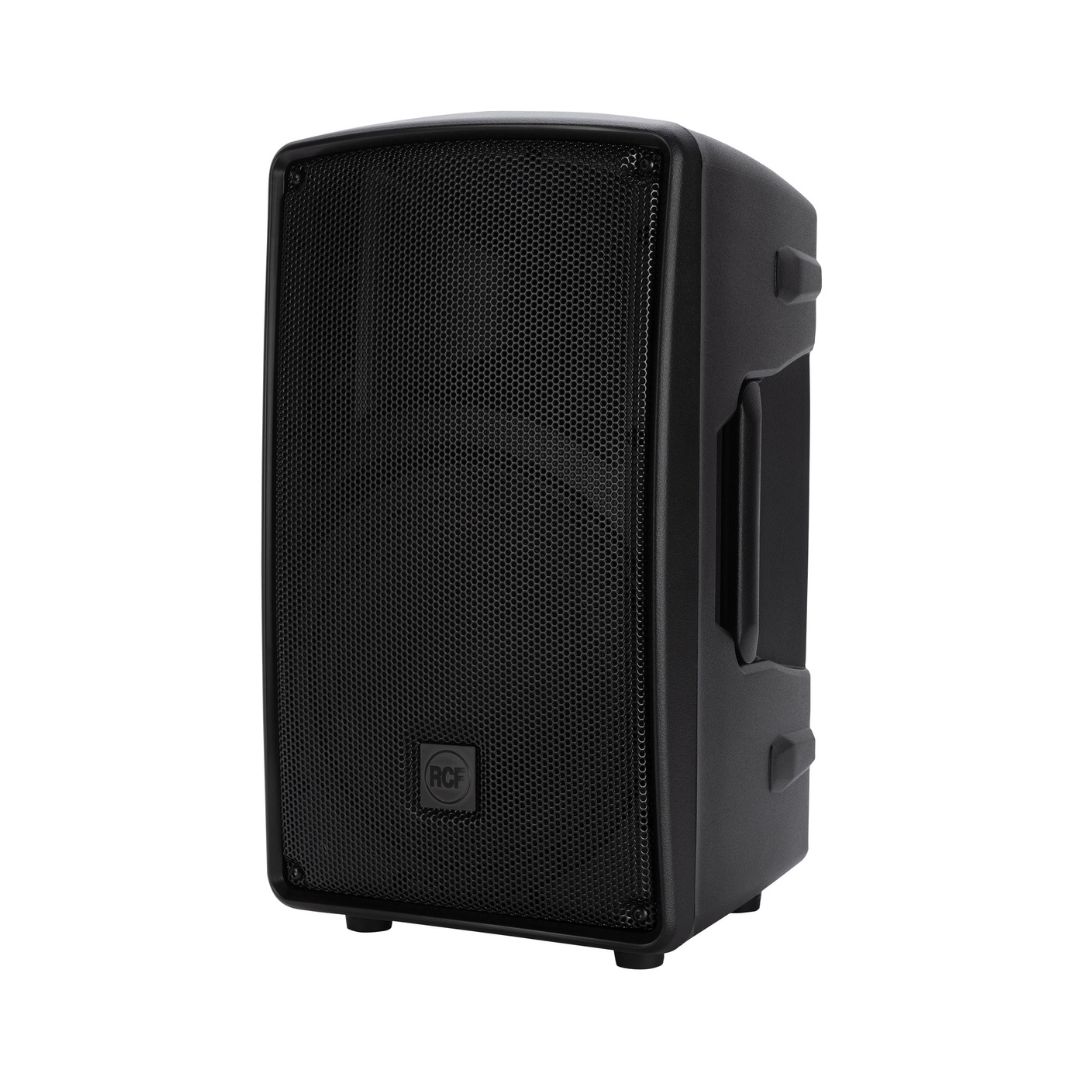

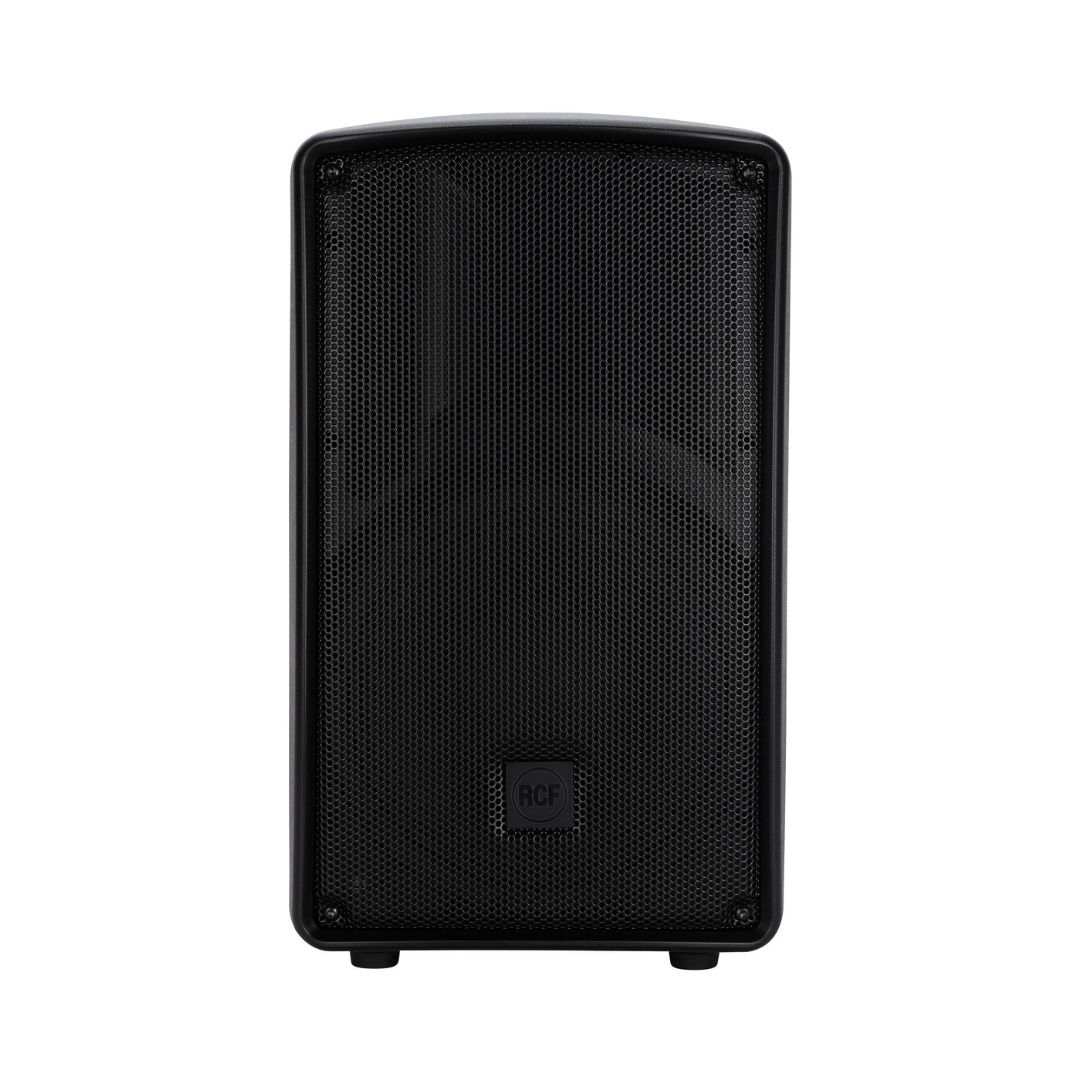

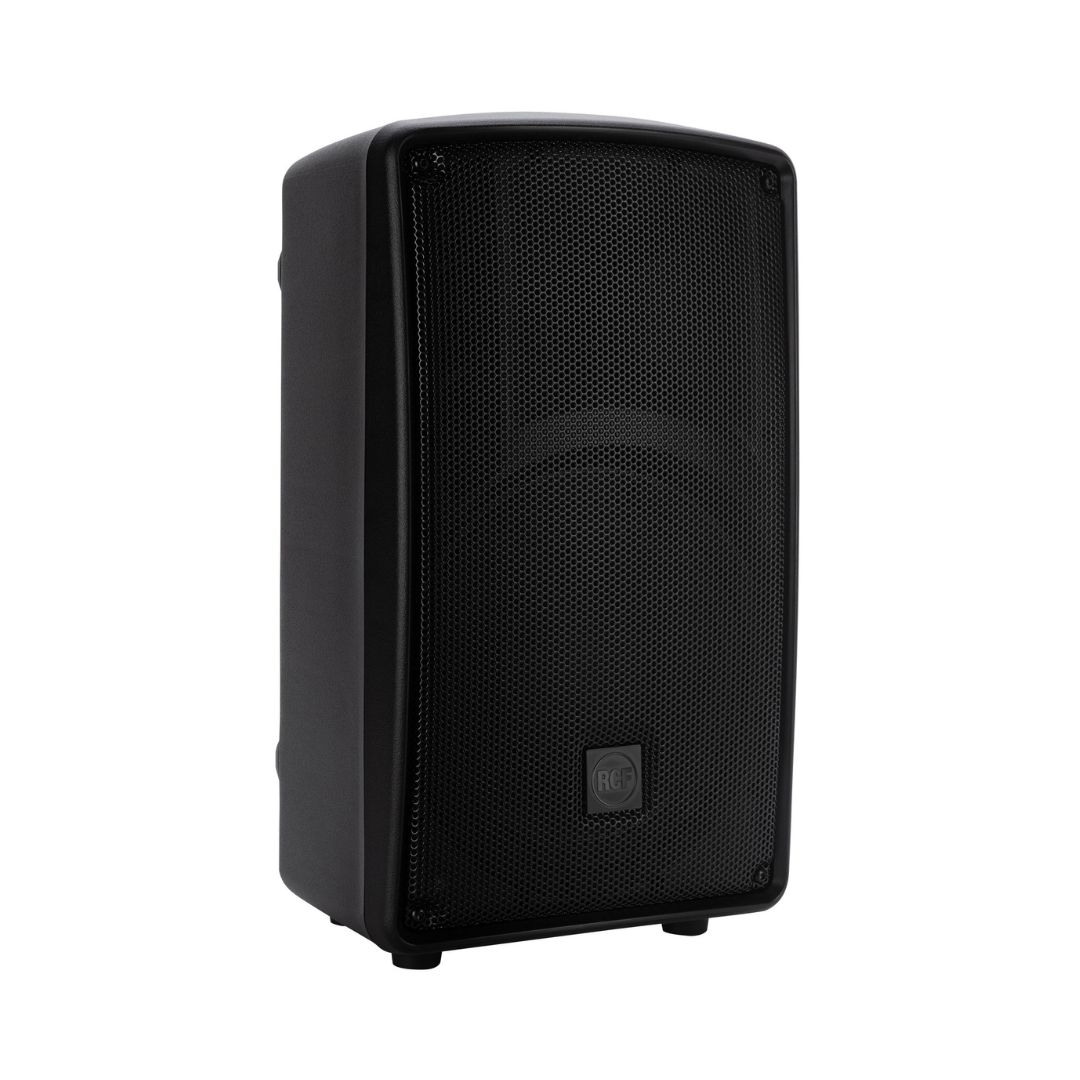

The RCF HD 10-A MK5 is a compact and powerful active speaker designed for professional live sound and installation use. It features an 800W Class-D amplifier powering a 10″ woofer and 1″ compression driver, delivering up to 128 dB SPL with wide 90° x 60° coverage. With onboard DSP, FiRPHASE, and Bass Motion Control, it ensures natural, detailed sound with enhanced low-frequency control. The fanless design, durable polypropylene cabinet, and versatile mounting options make it ideal for mobile performers and fixed installations alike.

Precision Drivers

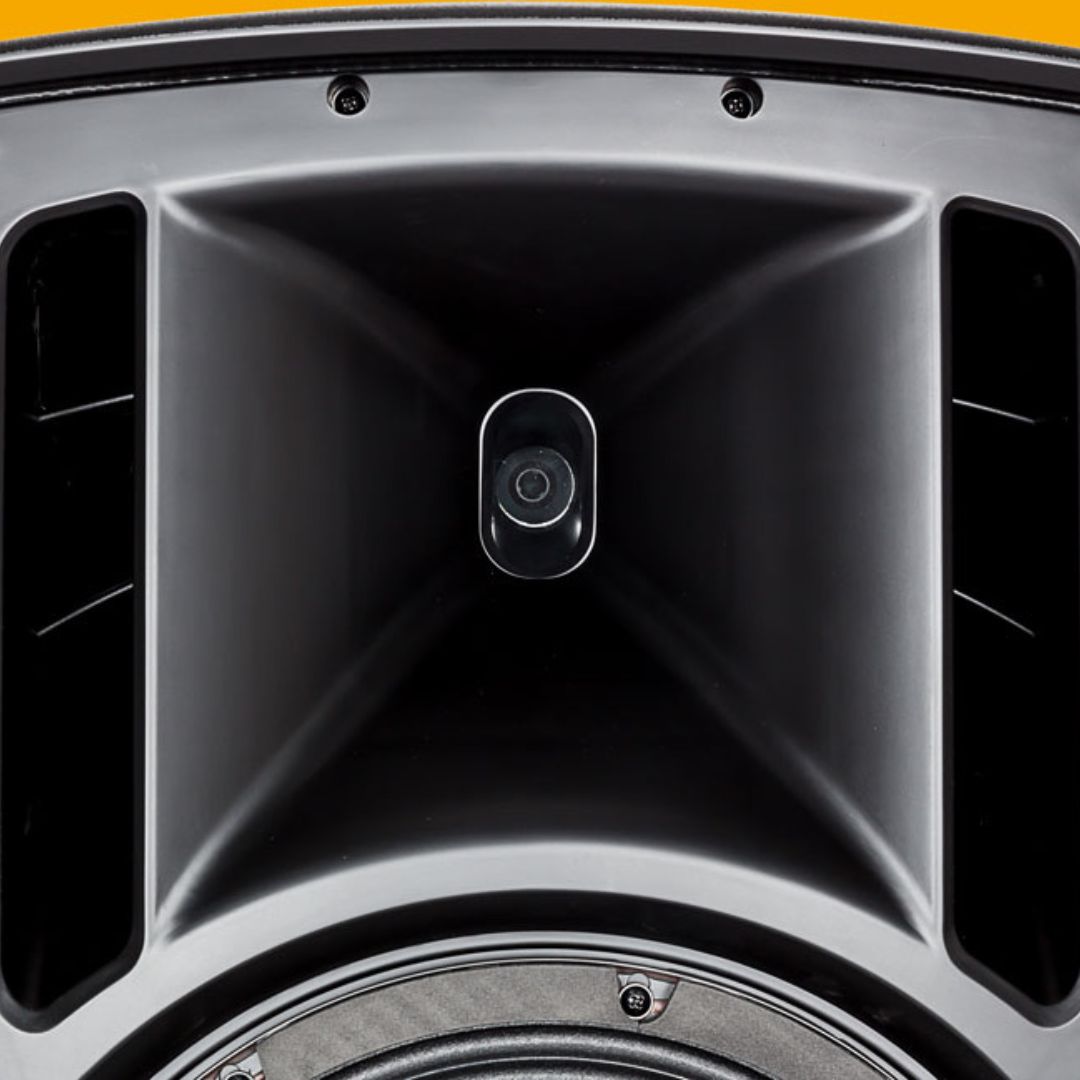

Equipped with a high-efficiency 10" woofer and a 1” HF compression driver, the speaker delivers accurate midrange and crystal-clear highs. It reaches up to 128 dB SPL with wide 90° x 60° dispersion for optimal coverage. RCF’s in-house transducers are designed for detailed performance and lasting durability.

800W Class-D Bi-Amplifier
The HD 10-A MK5 is powered by an efficient 800W Class-D amplifier that delivers fast transient response, high output, and low heat generation. Its fanless design ensures silent operation, making it ideal for both live sound and installations. The amplifier is housed in a solid aluminum structure for thermal stability and long-term reliability.

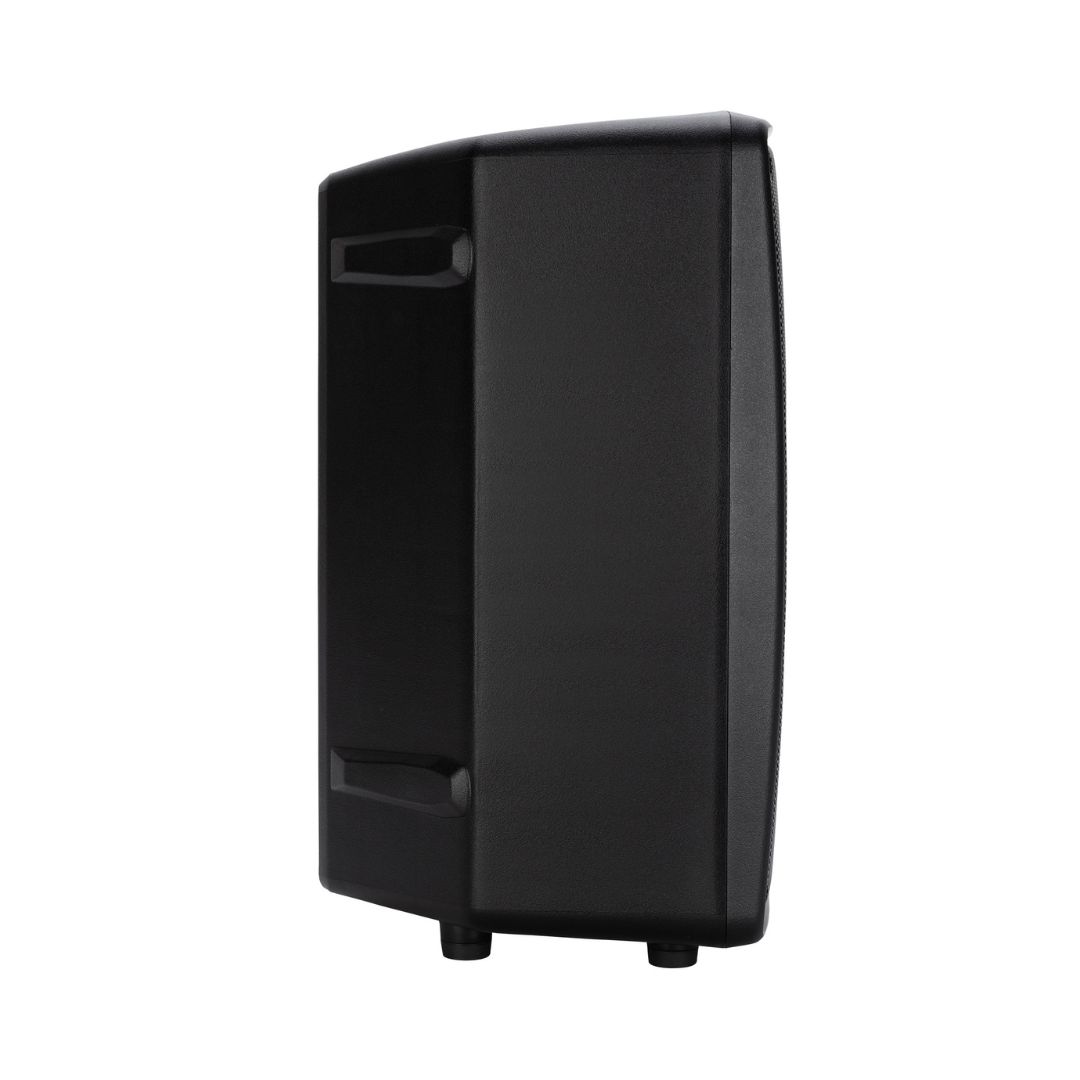

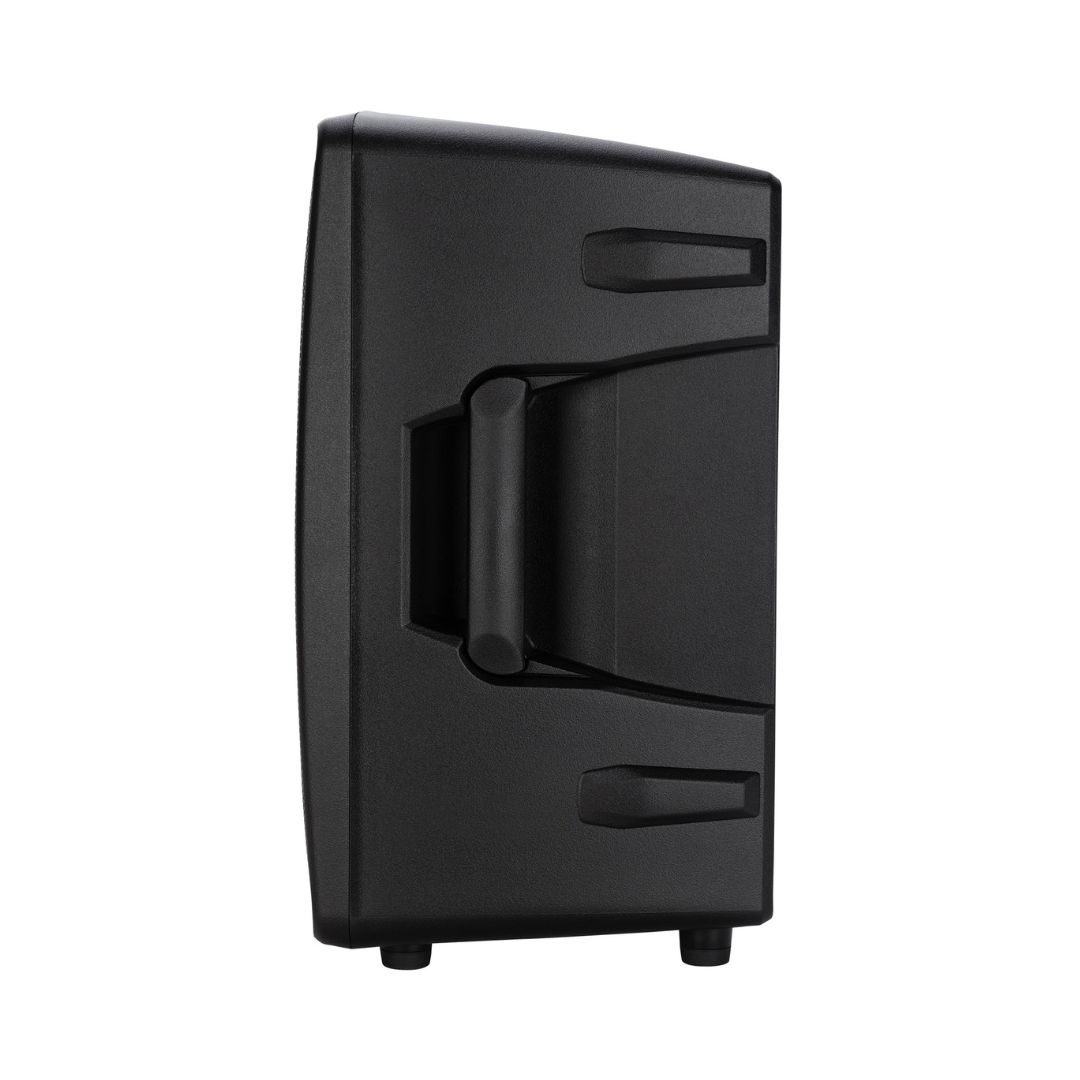

Durable, Lightweight Cabinet

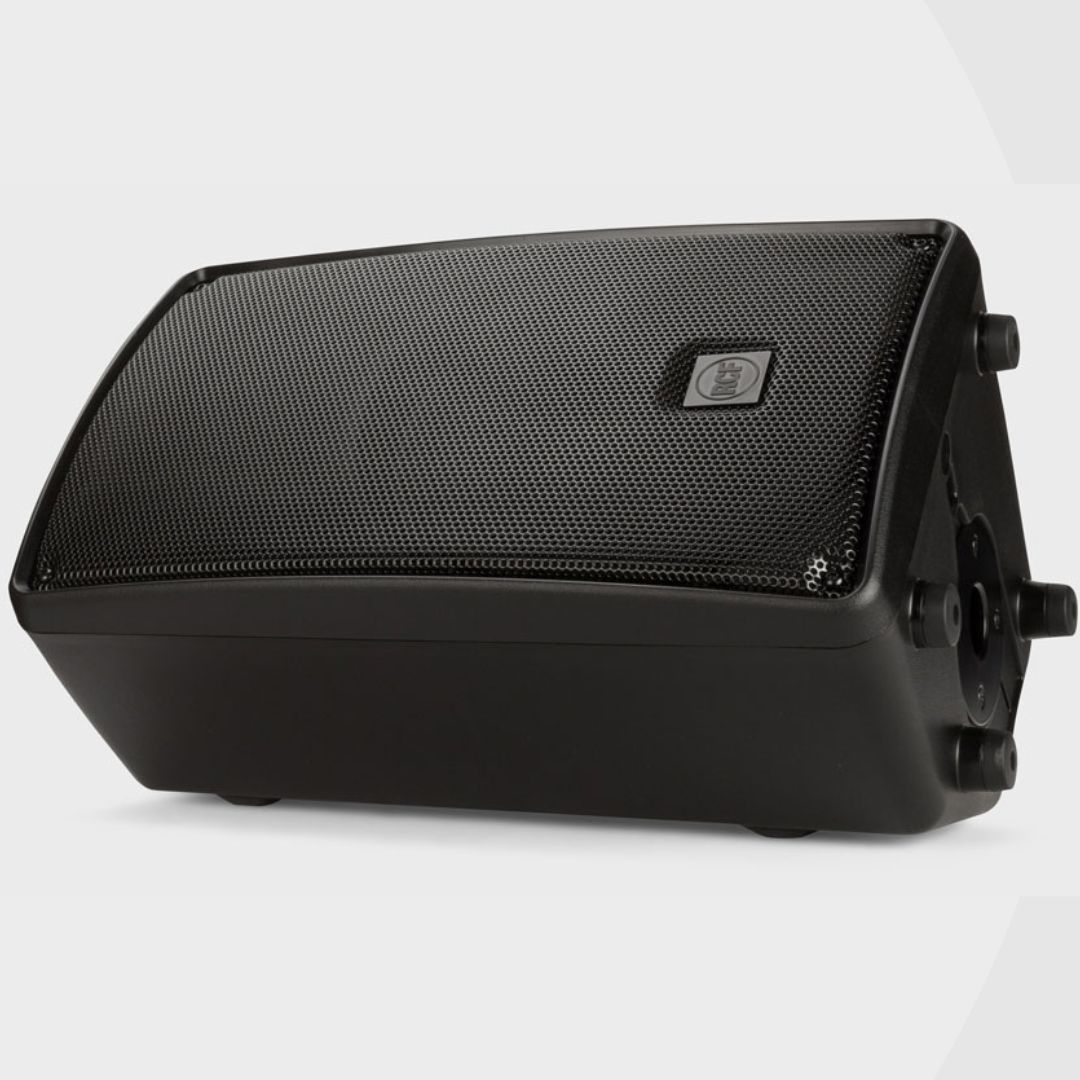

The polypropylene cabinet is reinforced internally to prevent vibration and withstand the demands of touring and rental use. Its ergonomic design includes rubber handgrips, a steel pole mount, and M10 rigging points for flexible setup. The cabinet also doubles as a wedge monitor for stage applications.

FiRPHASE & Bass Motion Control DSP
FiRPHASE technology ensures clear, phase-aligned sound while Bass Motion Control maintains deep, controlled low frequencies. This DSP combination enhances clarity, imaging, and consistency across the listening area. Ideal for high-SPL environments with minimal distortion.
128 dB maximum SPL for loud, clear audio performance.
800W Class-D bi-amplifier for efficient power delivery.
10″ woofer and 1″ compression driver for balanced sound.
FiRPHASE and Bass Motion Control for precise audio and deep bass.
90° x 60° wide dispersion horn for consistent coverage.
Fanless design with aluminum heat sink for silent operation.
Durable polypropylene cabinet with internal reinforcement.

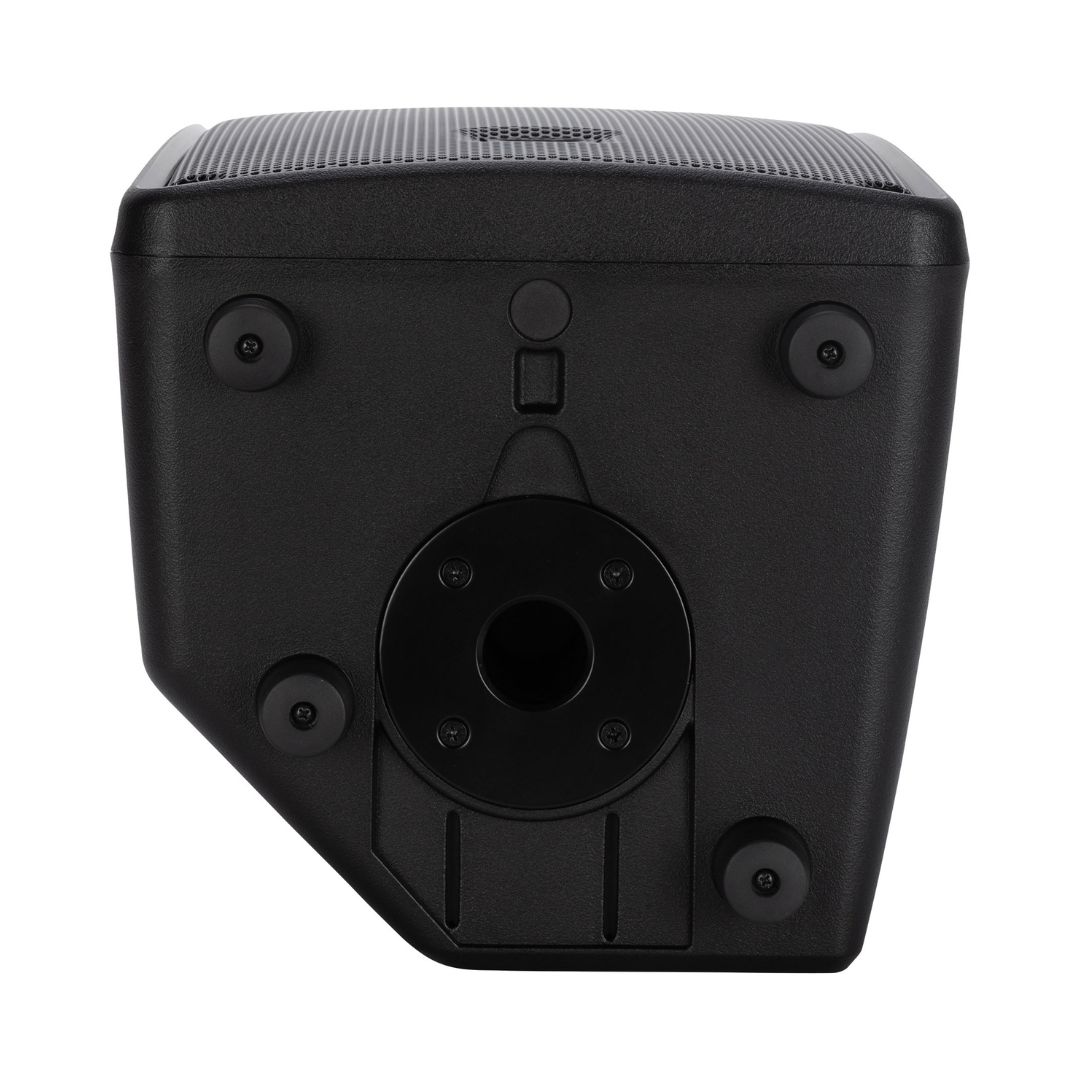

Pole mount, M10 rigging points, and wedge shape for flexible use.
Switchable Flat/Boost EQ presets for tailored sound.

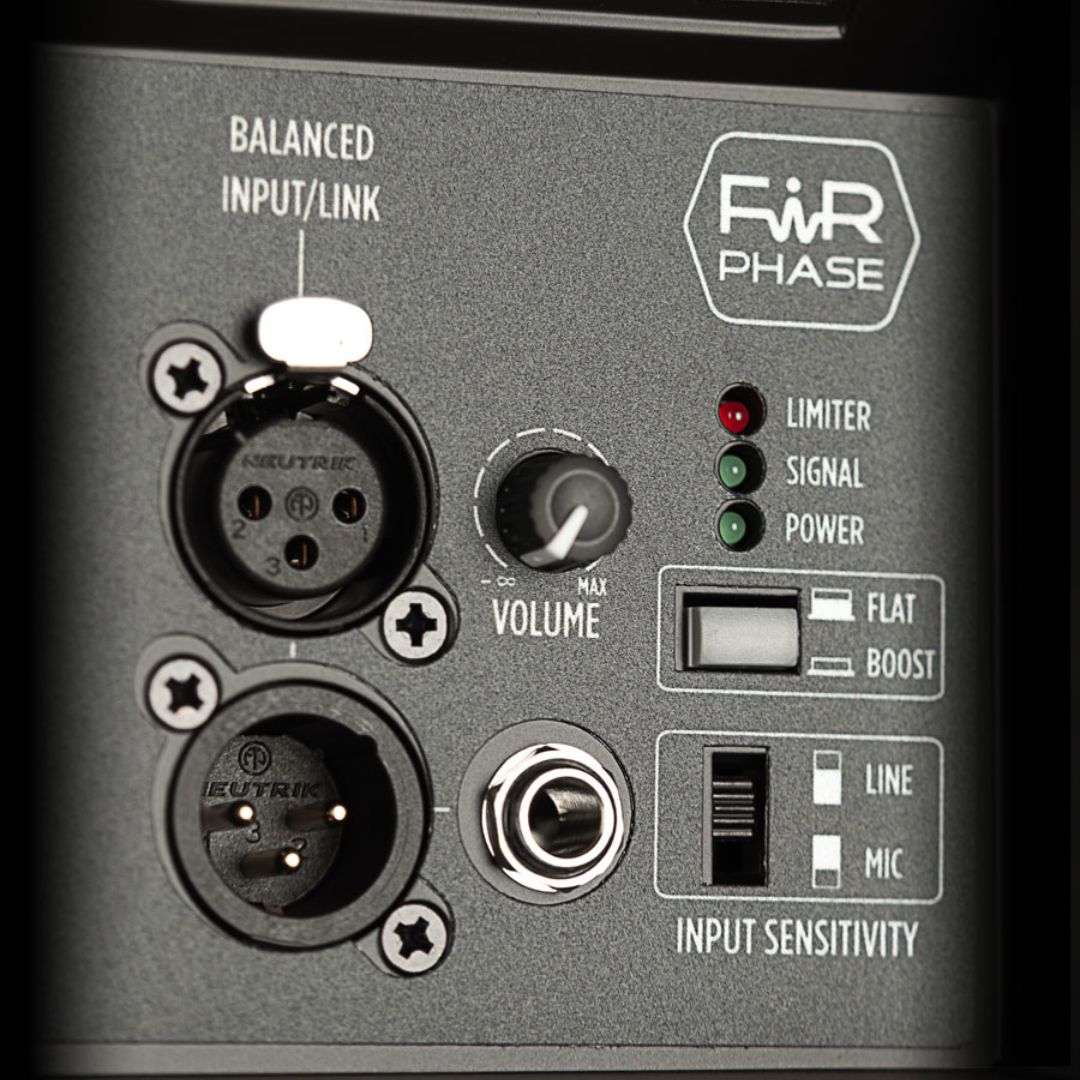

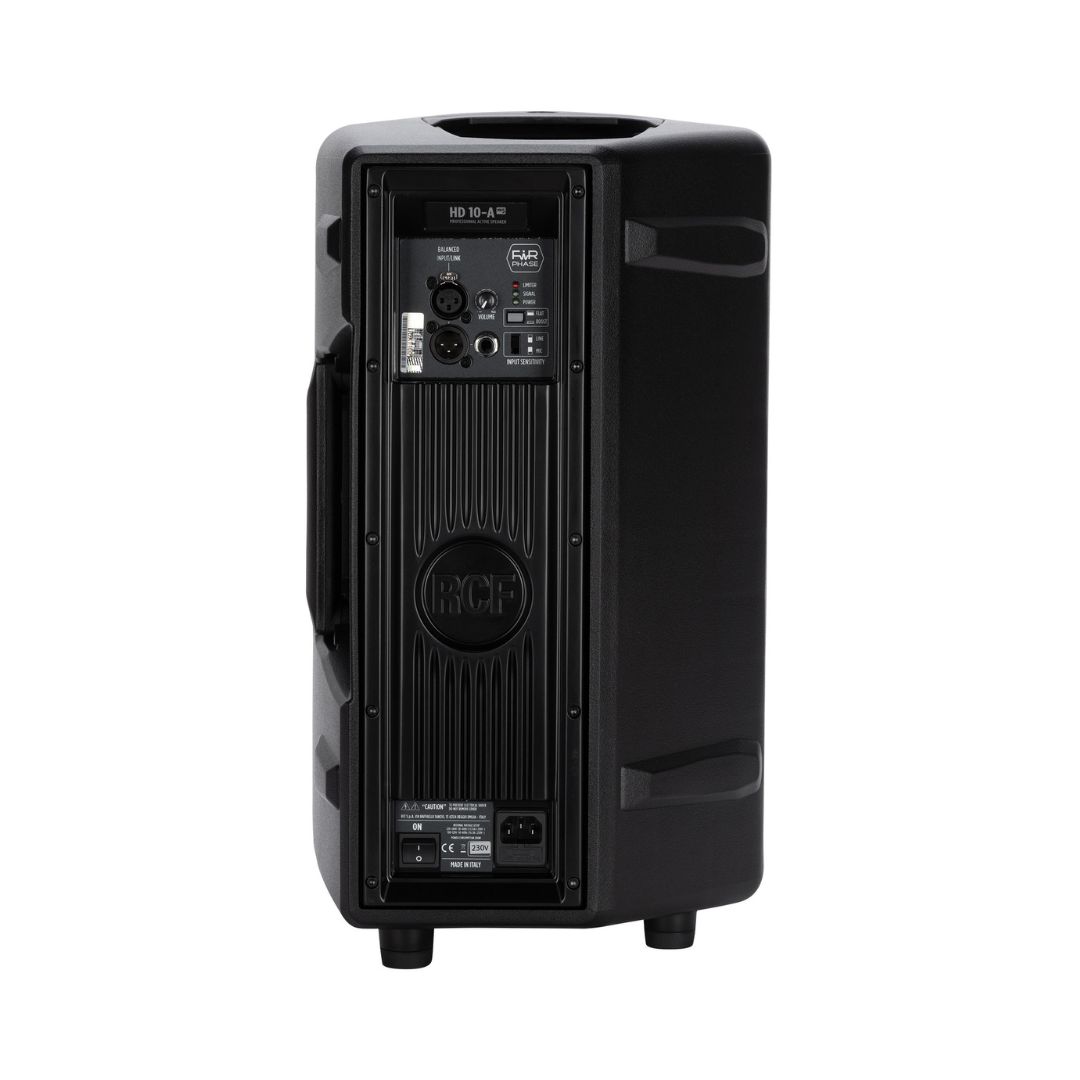

XLR/jack input, XLR output, and mic/line switch for easy connection.
Amplifier Class: Class-D
Maximum SPL: 128 dB
Coverage Angle: 90° H x 60° V
Protections: RMS, Thermal
Dynamic Processing: Soft Limiter
Alignment Delay: No
Audio I/O:
1x XLR 3-Pin Mic/Line Input
1x 1/4″ TRS Line Input
1x XLR 3-Pin Line Output
AC Input Power:
100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
AC Power I/O: 1x VDE

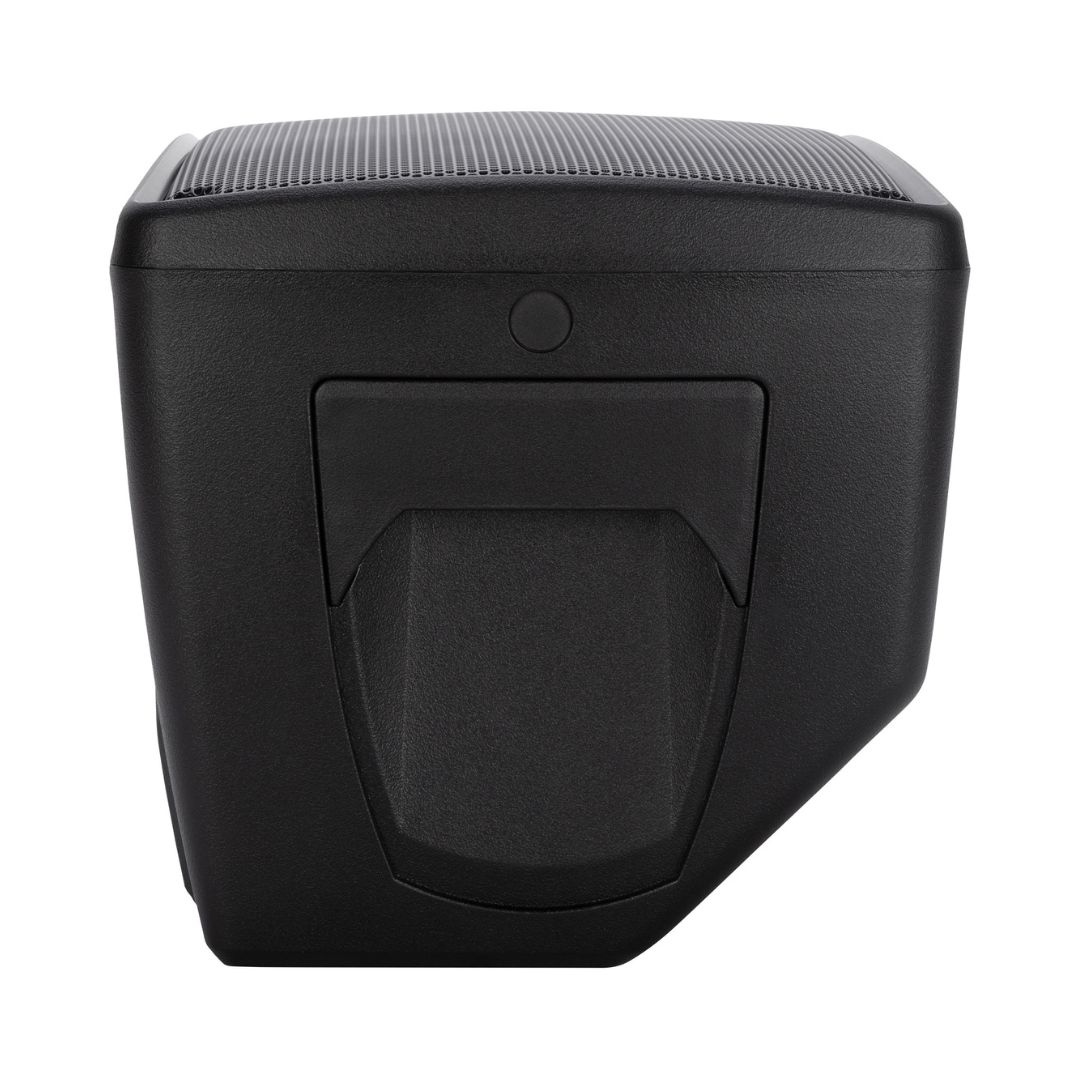

Handles:
1x Top
1x Side
Construction Material: Polypropylene, Steel
Dimensions: 20.8 x 11.9 x 11.9″ / 528.3 x 302.3 x 302.3 mm
Weight: 26 lb / 11.8 kg
