Description
Channel Control & Compression
The mixer offers 6 mic preamps with phantom power, 4 single-knob compressors for easy dynamics control, and precise EQ—3-band on mono and 2-band on stereo channels—giving you flexible tone shaping and clean signal management for live or studio use.
DSP FX & USB Recording
Equipped with 24-bit internal DSP featuring 16 professional-grade FX presets—like reverb, delay, and chorus—the F 12XR delivers polished sound without external processors. The integrated USB interface allows easy stereo recording and playback on Windows, Mac, or iOS devices.
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
- 4 single control compressors
- Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
- Robust, compact and attractive design.
- Designed and Engineered in Italy
- Internal Universal Power Supply
Mix Routing: Main Mix / FX Bus / Bus/Subgroup
Faders & Level Adjustment: 8x Channel Fader
Meters: 2x 10-Segment LED
EQ:
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
I/O Impedance:
Headphone Output: 150 Ohms
Mic Input: 14 Kilohms
Line Input: 21 Kilohms
Line/Stereo Input: 15 Kilohms
THD+N: < 0.02% at +20 dB Gain (0 dBu, A-Weighted)
Analog Inputs:
4x XLR 3-Pin Input
2x 1/4″ Input
8x 1/4″ Input (4 Stereo Pairs)
2x Stereo RCA Input
1x 1/4″ Footswitch Input

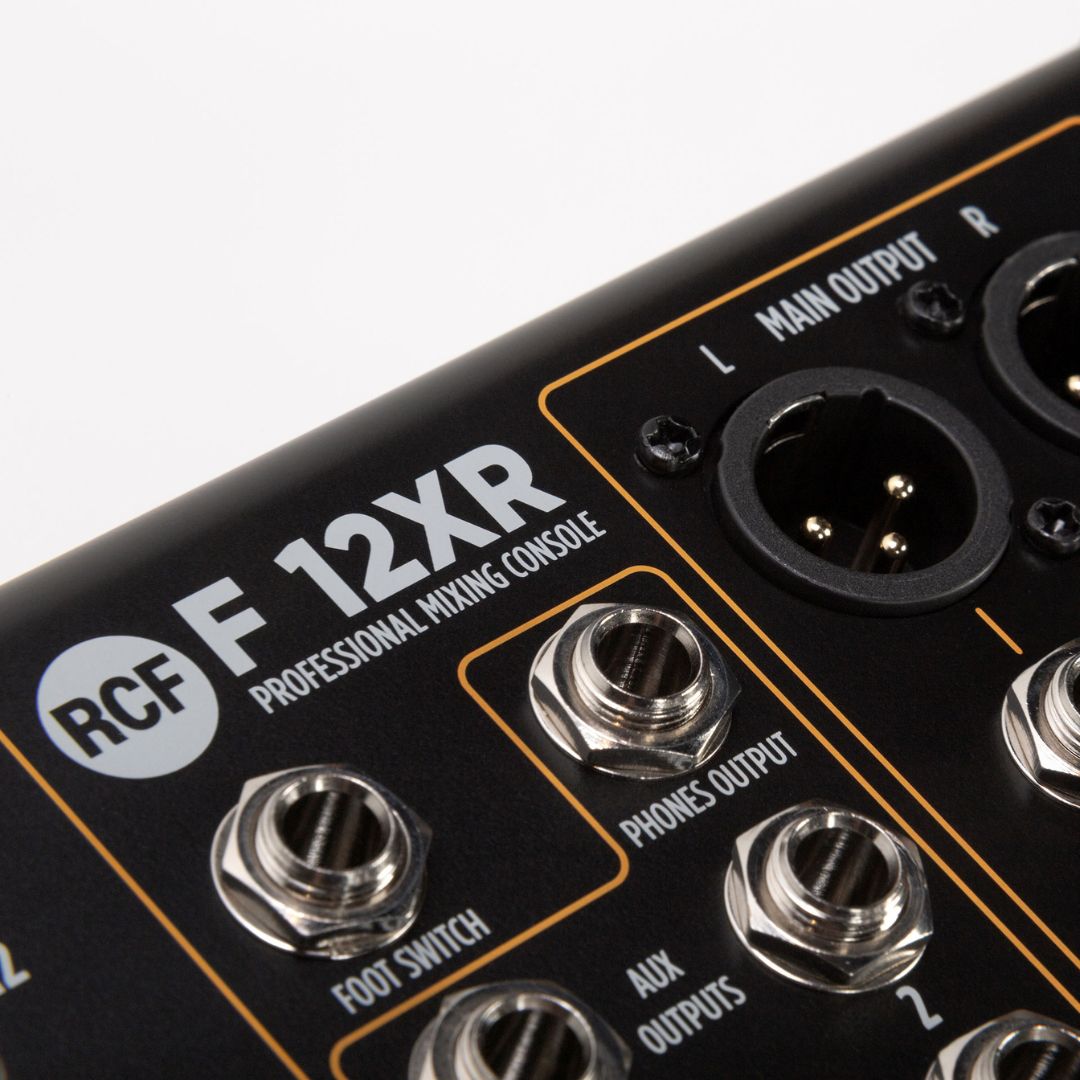

Analog Outputs:
2x XLR 3-Pin Main Output
2x 1/4″ Main Output
2x 1/4″ Control Room Output
1x 1/4″ Aux Output
1x 1/4″ TRS Headphone Output
Phantom Power: +48 V
USB I/O: 1x USB-B
USB I/O Capacity: 2x Input / 2x Output
OS Compatibility: Windows / macOS
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Dimensions: 10.8 x 3.2 x 11.6″ / 27.5 x 8.2 x 29.4 cm
 Weight: 6.2 lb / 2.8 kg
