Description
- The DDJ-REV7 is built to help you get the most from the Serato DJ Pro and rekordbox performance software and boasts a brand-new design that includes large, motorized jog wheels with On Jog Display to create a tactile connection between you and your music. The layout of this 2-channel unit emulates a professional DJM-S mixer + PLX turntable setup, and includes specialized features for open-format and scratch DJs.
Brand-new motorized, VINYLIZED JOG
At the heart of each deck on the DDJ-REV7 is the new 7-inch motorized jog wheel which features the same rotational stability as a 12-inch turntable and is built to feel like you’re playing with real records.
VINYLIZED JOG: Customize the feeling
The acrylic top plate is finished with a vinyl-like texture for effortless finger grip, and you can choose between low and high torque settings and use the two slip sheets included inside each deck to find your preferred amount of friction. Switch between a rotation speed of 33⅓ or 45rpm whenever you like and use the Stop Time setting to adjust how long it takes for the music to end when you press pause.
On Jog Display: Keep an eye on essential information
In the center of each jog wheel, a 3.5-inch LCD keeps important information at your fingertips so there’s far less need to switch your gaze between the decks and your laptop. Thanks to an omnidirectional viewing angle, you can see what’s being displayed from any angle, and you can turn off the digital marker that indicates the playback position whenever you want. You can also mark each jog wheel with the included stickers if you prefer this method to the digital marker.
Instant Scratch: Rapidly fire samples with dedicated buttons
The DDJ-REV7 has 4 original scratch samples that you can trigger by pressing the corresponding hardware buttons. Because the sounds are built in, you can fire them at any time – even if the controller isn’t connected to your laptop. If you want to use your own samples in your set, you can instantly load scratch samples from 4 banks that you’ve assigned in Serato DJ Pro or rekordbox with the Scratch Bank feature (Sample Scrach if you're using rekordbox).
- Serato DJ Pro with Pitch ‘n Time DJ
- 7″ Motorized Jog Wheels
- Customizable Color LCD Jog Display
- Eight Performance Pads per Deck
- 22 Beat FX and 5 Sound Color FX
- Instant Scratch with Dedicated Buttons
- Advanced ESS Technology DAC
- 3-Band EQ on Each Channel
- Updated Magvel Crossfader
- Includes Power Supply and USB Cable
Configuration: Dual-Deck
Number of Channels:
2x Stereo
2x Mic
Platter/Jog Wheel: 2x 7.0″ / 17.8 cm Touch-Sensitive
Motorized Platters: Yes
Faders:
2x Channel Level
1x Crossfader (Replaceable)
2x Tempo/Pitch
Sample Pads: 8x Assignable per Deck (Backlit)
EQ:
Channel EQ:
Hi
Mid
Low
Mic EQ:
Hi
Low
Performance Controls: Band-Pass Filter, Beat Sync, Brake, Cues, EQ, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Pitch Control, Scratch, Search, Slip Mode, Tempo Control, Transport Controls, Vinyl Mode
Built-In Effects: Delay (Tap), Echo (Type Unspecified), Flanger, Phaser, Reverb
Sample Rates: 44.1 kHz
Bit Depths:
24-Bit (A/D Conversion)
32-Bit (D/A Conversion)
Stems Processing: via Software

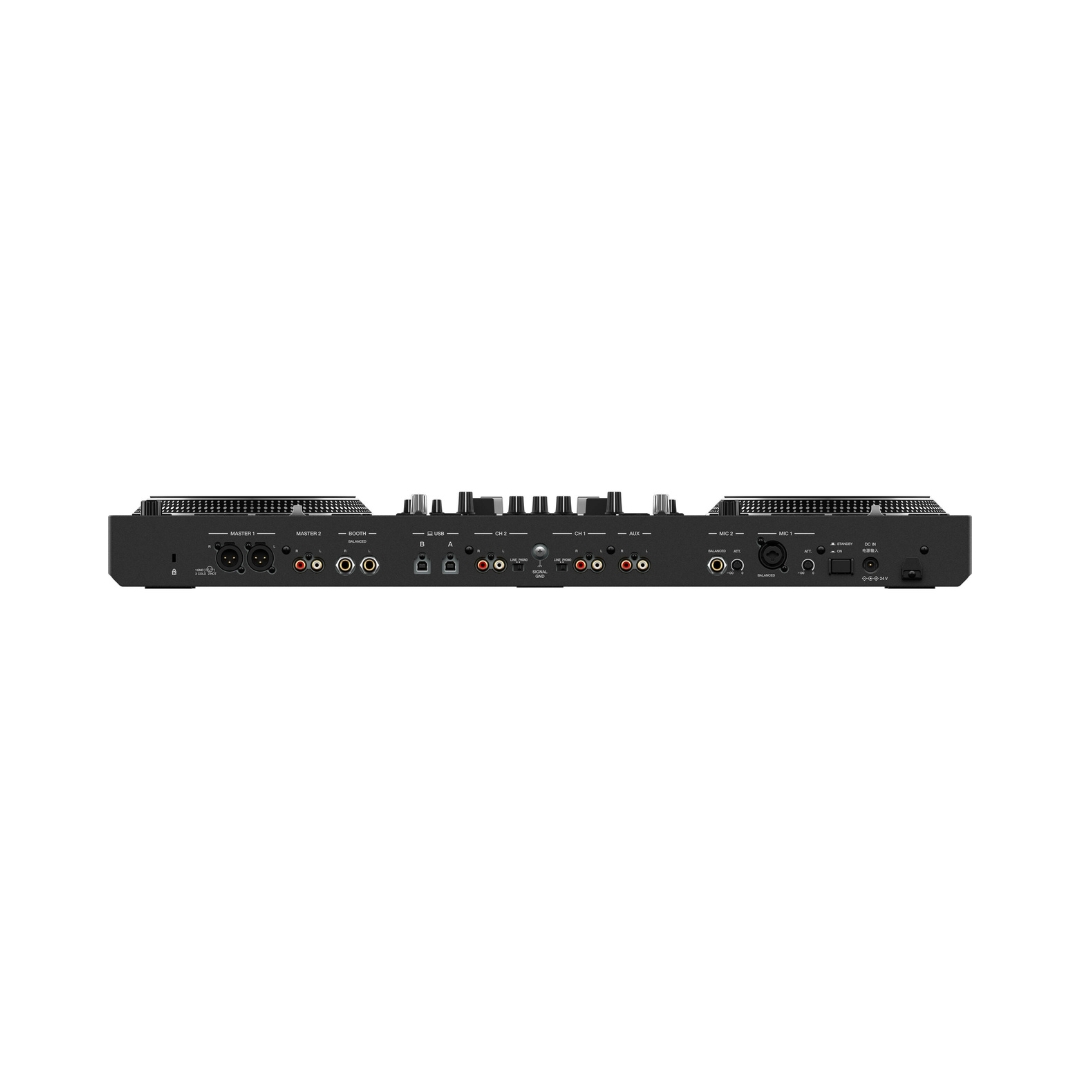

Audio Inputs:
2x Stereo 2RCA Coaxial Line/Phono Input
2x Stereo 2RCA Coaxial Aux Input
1x Combo XLR-1/4″ TRS Mic Input
1x 1/4″ TRS Mic Input
Audio Outputs:
1x 1/4″ TRS Headphone Output
1x 1/8″ / 3.5 mm TRS Headphone Output
2x XLR 3-Pin Master Output
2x Stereo 2RCA Coaxial Master Output
2x 1/4″ TRS Booth Output
Other I/O: 1x Phono Ground Terminal
USB: 2x USB-B
Frequency Response: 20 Hz to 20 kHz
SNR:
USB: 110 dB
Line: 95 dB
Phono: 84 dB
THD:
USB: 0.003%
Line: 0.005%
Phono: 0.017%
Included Software:
Serato DJ Pro
Serato Pitch ‘n Time DJ
Compatible Software (Not Included): rekordbox
OS Compatibility: Windows 7 or Later / macOS 10.11 to 10.13
Processor Requirement: 2.0 GHz Intel Core
RAM Requirements: 4 GB
Storage Requirements: 250 MB
Minimum Display Resolution: 1280 x 768
Required Hardware: Available USB 2.0 Port
Internet Connection: Required for Software/Driver Download
Power Requirements: AC/DC Power Adapter (Included)
Power Supply Output: 24 VDC at 1 A
AC Input Power: 100 to 240 VAC, 50/60 Hz
Anti-Theft Features: Kensington Security Slot
Operating Conditions: 41 to 95°F / 5 to 35°C at 5 to 85% Humidity
Dimensions (W x D x H): 28.8 x 15.0 x 3.2″ / 0.7 x 0.4 x 0.1 m
Weight: 23.6 lb / 10.7 kg
