Description
MLD EQ Control
Developed with Melvin Lee Davis, the 3-band EQ includes a fully sweepable midrange (160Hz–1kHz), offering detailed tone control suitable for extended-range bass guitars from 4 to 7 strings.

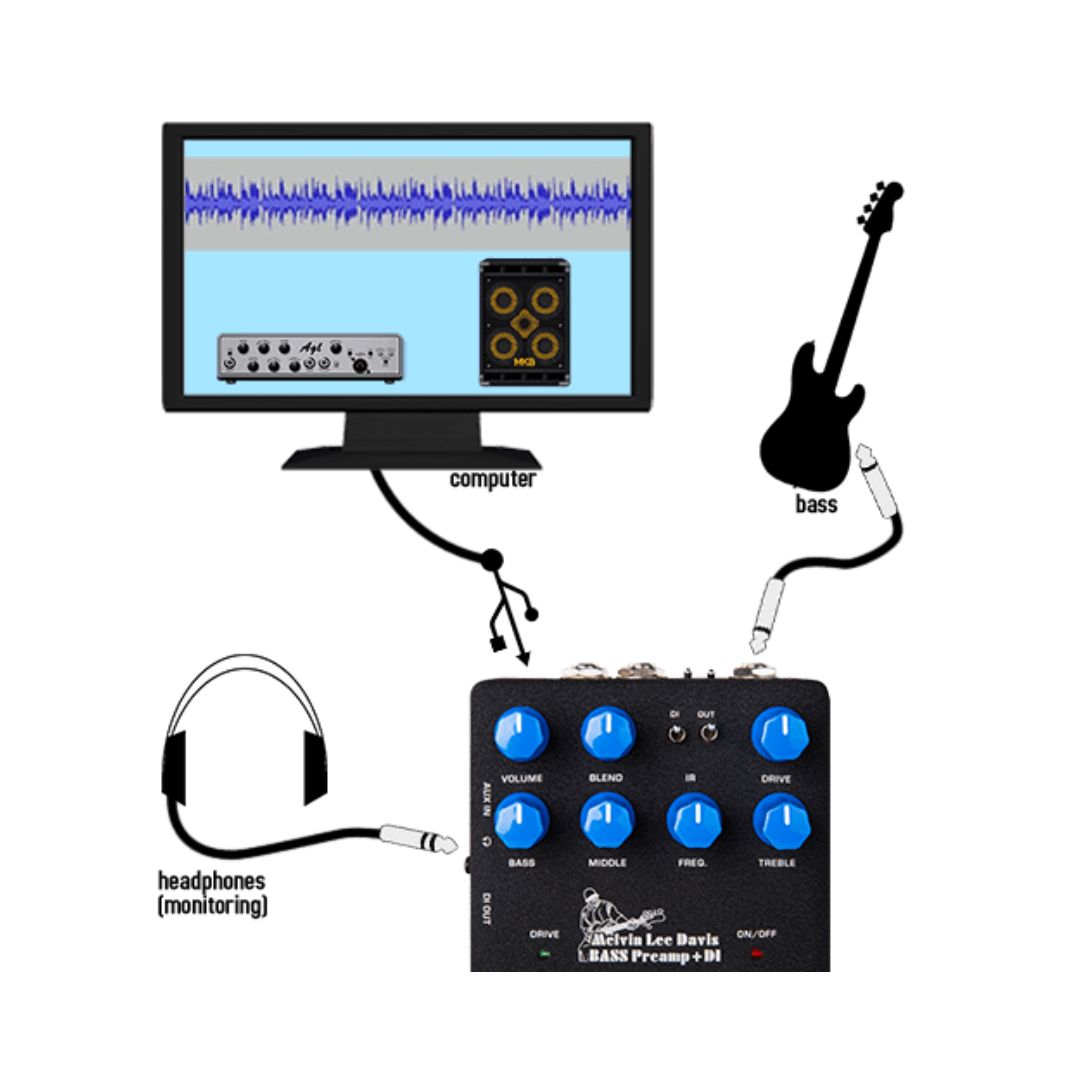

USB Interface + IR
Functions as a full-featured USB audio interface with impulse response cabinet simulation, allowing direct recording, silent practice, and flexible output routing with onboard and user-loaded IRs.
- 24-bit, 48KHz
- Impulse Response: 1024 length (20.33ms)
- Latency: 1ms

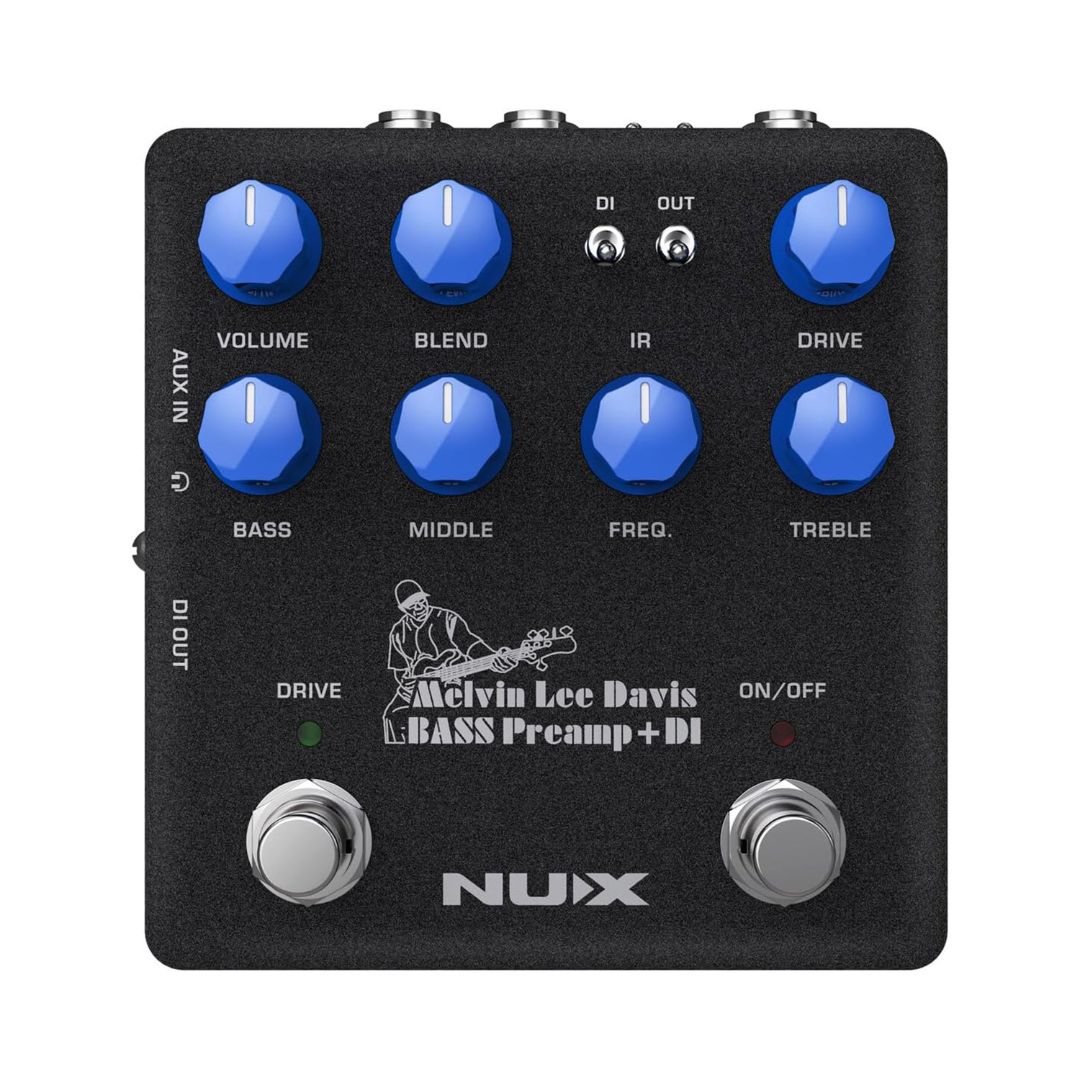

- 3-band EQ with Middle-frequency selector
- Drive with blend control
- Built-in noise reduction
- Impulse Response loader, speaker cabinet simulation
- 1/4″ instrument input

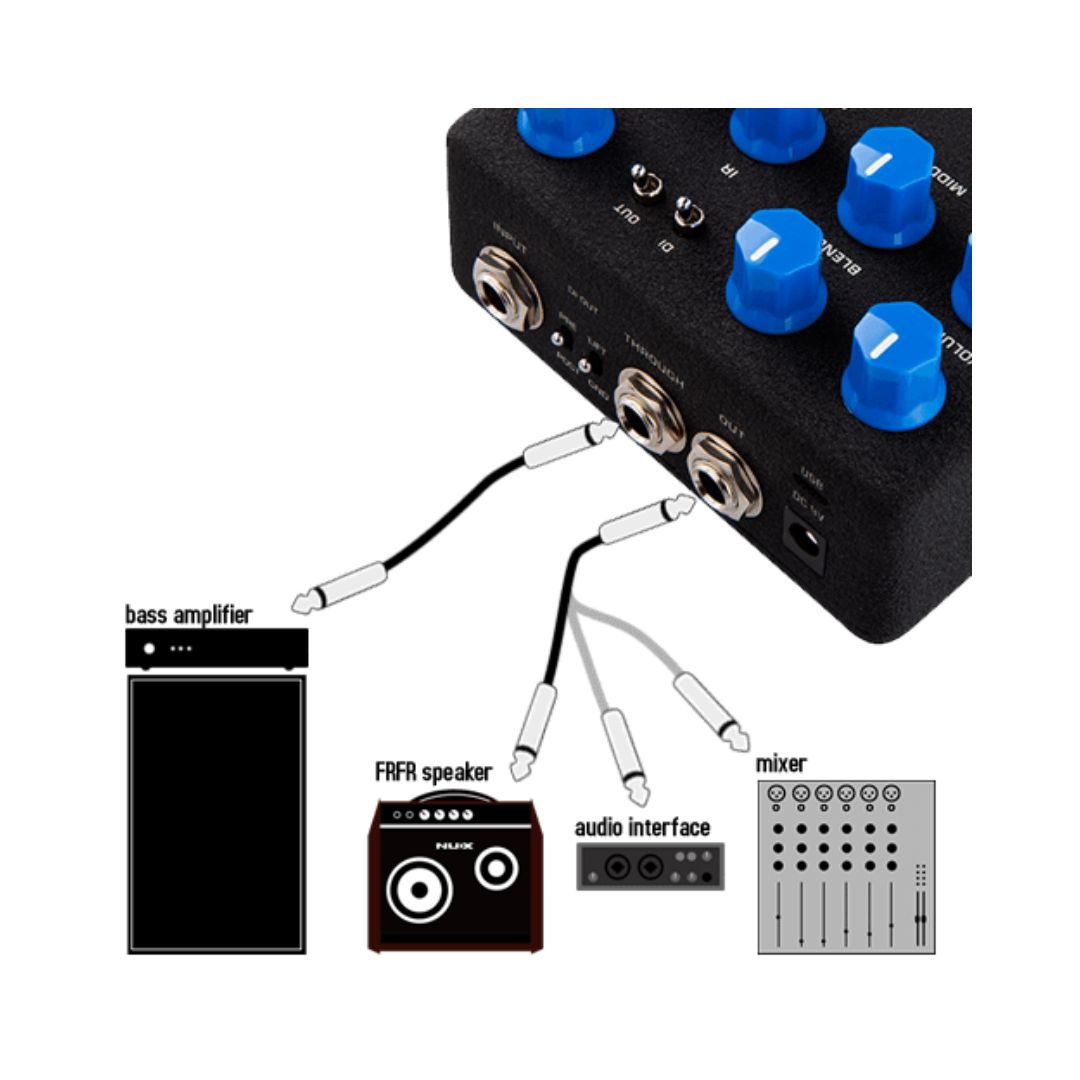

- 1/4″ through output and main output
- XLR DI output
- 1/8″ headphone output
- 1/8″ Auxillary in for music player connection
- Micro B USB input for firmware update, software control, IR loading, and audio stream
- Audio Quality: 24-bit / 48 kHz resolution with ultra-low 1ms latency
- Impulse Response (IR): Supports 1024-sample IRs (20.33ms length)
- EQ Controls:
Bass: ±12dB at 40Hz
Middle: ±17dB, sweepable from 160Hz to 1000Hz
Treble: ±12dB at 8000Hz - Drive Section: Adjustable gain with blend control for mixing clean and overdriven signals
- Noise Reduction: Built-in with adjustable decay and threshold settings

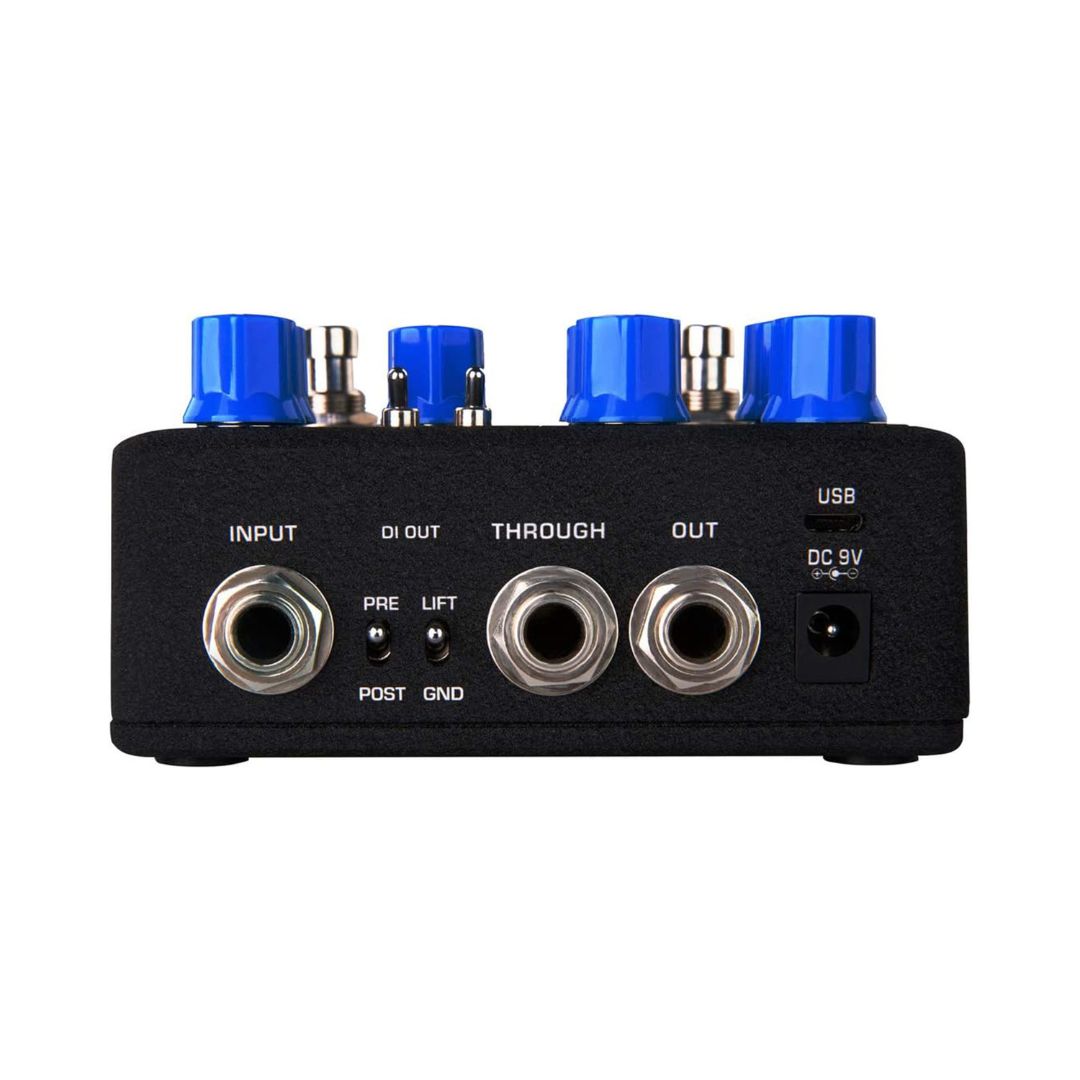

- Inputs:
1/4″ instrument input

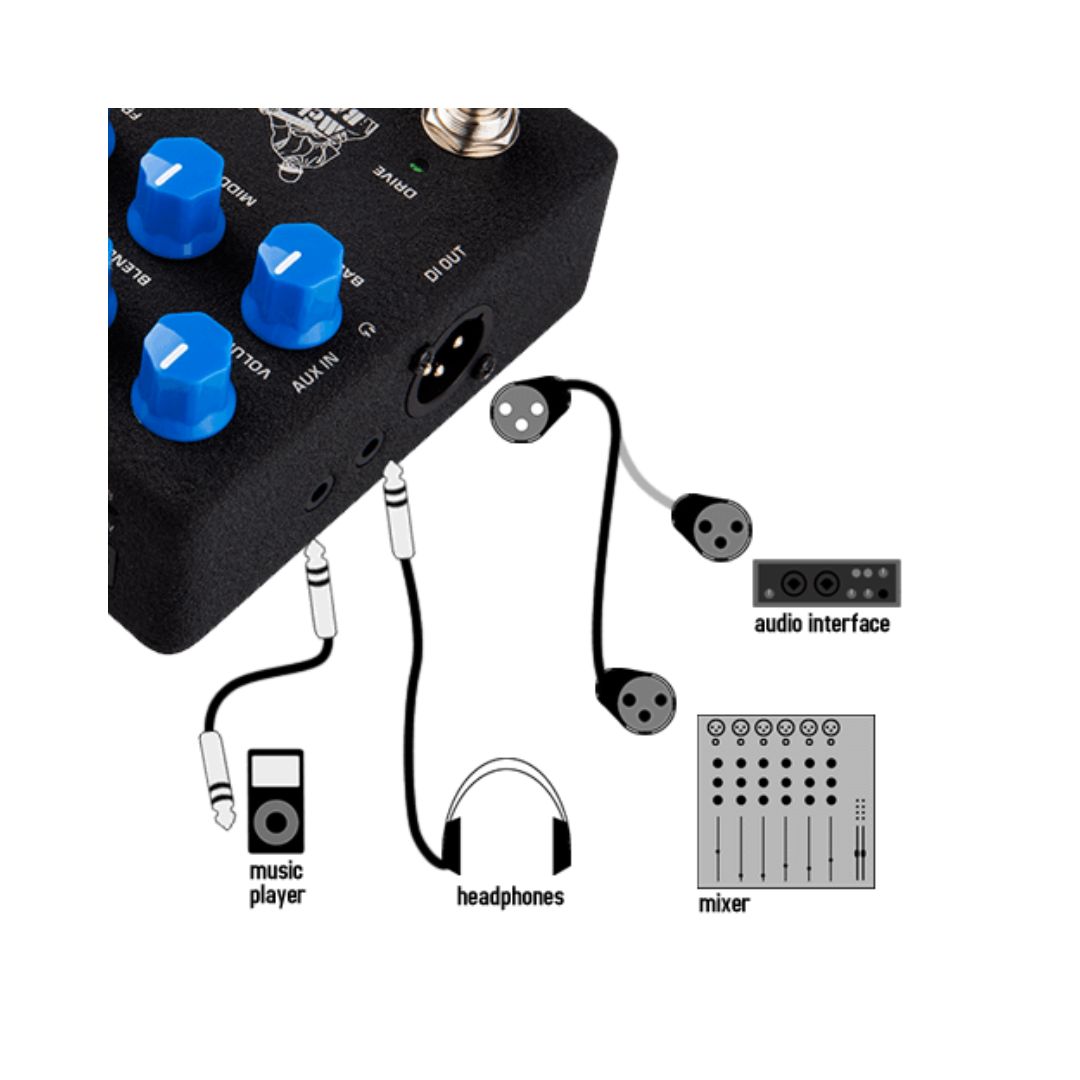

1/8″ (3.5mm) auxiliary input for external audio sources - Outputs:
1/4″ main output
1/4″ through output (dry signal)
Balanced XLR DI output with ground lift switch
1/8″ (3.5mm) headphone output - USB: Micro B USB port for firmware updates, software control, IR loading, and audio streaming
- Firmware V3:
Includes 3 bass amplifier models
16 IR slots (8 factory presets and 8 user slots)
Drum and loop functionality for practice sessions - NBP-5 Edit Software:
Compatible with Windows and macOS
Allows loading of custom IR files (48 kHz / 24-bit, 1024 samples)
Provides control over various pedal settings - Dimensions: 115 mm (W) x 105 mm (D) x 58 mm (H)
- Weight: 460 grams
- Power Requirement: 9V DC adapter (center-negative, not included), current consumption less than 150 mA
