Description
Dual-Diaphragm Capsule

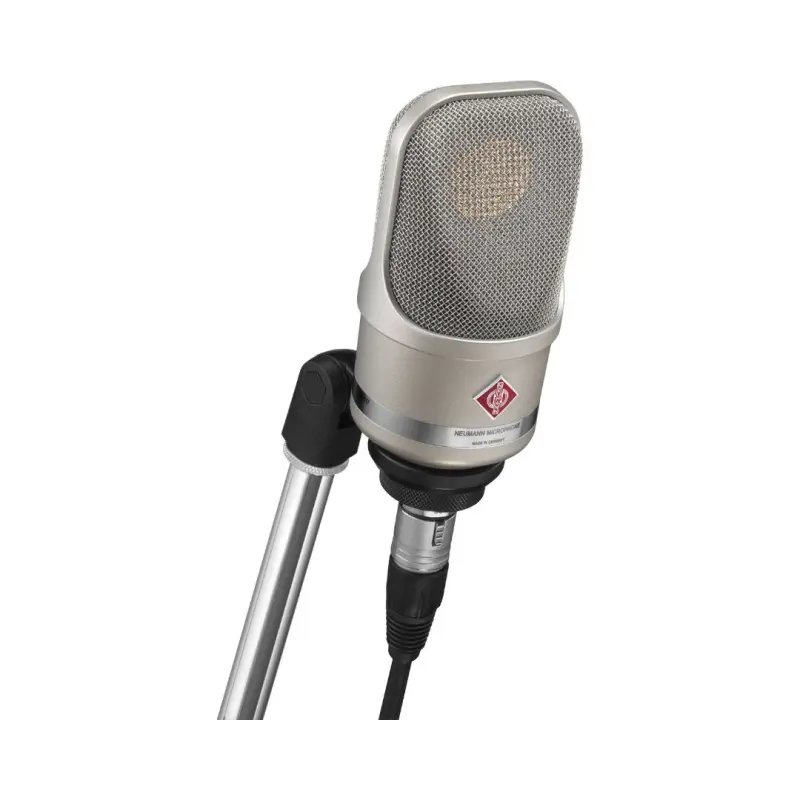

The Neumann TLM 107 features a specially developed dual-diaphragm capsule that provides a balanced tone across its five selectable polar patterns. This makes it ideal for capturing vocals and instruments without coloration, offering outstanding transient response and an extended, carefully balanced frequency response for all polar patterns.
Versatile Controls
A single control on the rear of the mic allows easy adjustment of polar patterns, pad (-6 or -12 dB), and low-cut filter (40 or 100 Hz). This user-friendly navigation toggle enables precise control over recording settings, ensuring optimal performance for various recording scenarios.
High SPL Handling
With the -12 dB pad engaged, the TLM 107 can handle sound sources up to 153 dB SPL without distortion, making it suitable for recording loud instruments such as percussion, drums, and amplifiers. Its transformerless circuitry further ensures ultra-transparent sound even at high levels.
Low Self-Noise
The TLM 107 boasts an impressively low self-noise of just 10 dBA, maintaining transparent sound quality with minimal coloration. This makes it perfect for high-definition sound recording in project studios and home setups, capturing an uncolored sound image true to the original source.
- State of the art, yet affordable large-diaphragm microphone
- Versatile studio workhorse for vocals and instruments
- Dual-diaphragm condenser capsule
- Five polar patterns and multiple pad and low-cut options
- Transformerless circuitry for ultra-transparent sound
- Extremely low self-noise
- Distortion-free, even at highest sound pressure levels
- XLR 3-pin output connector
- 48V phantom powered

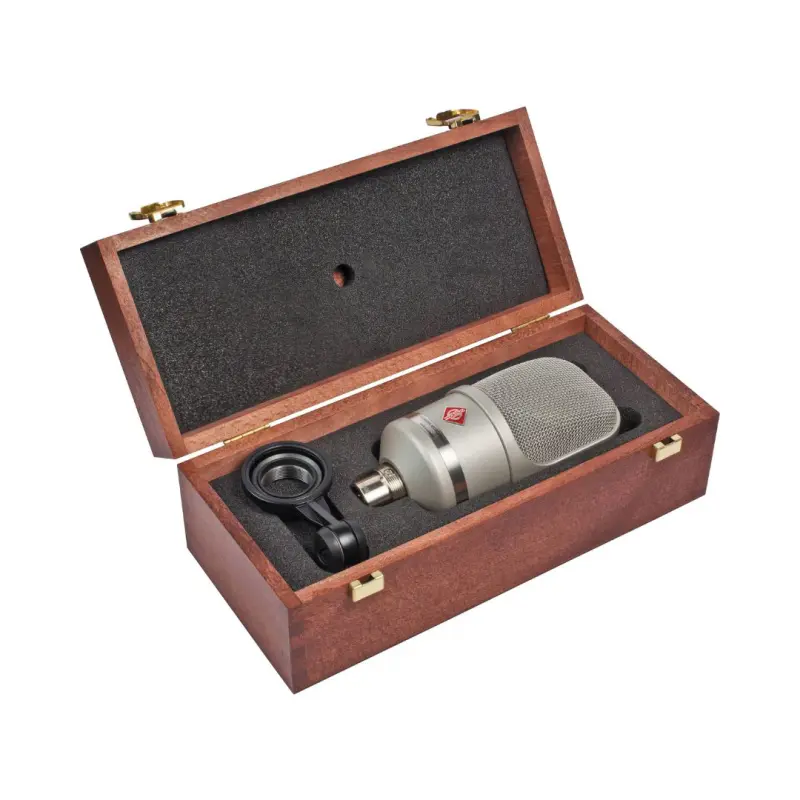

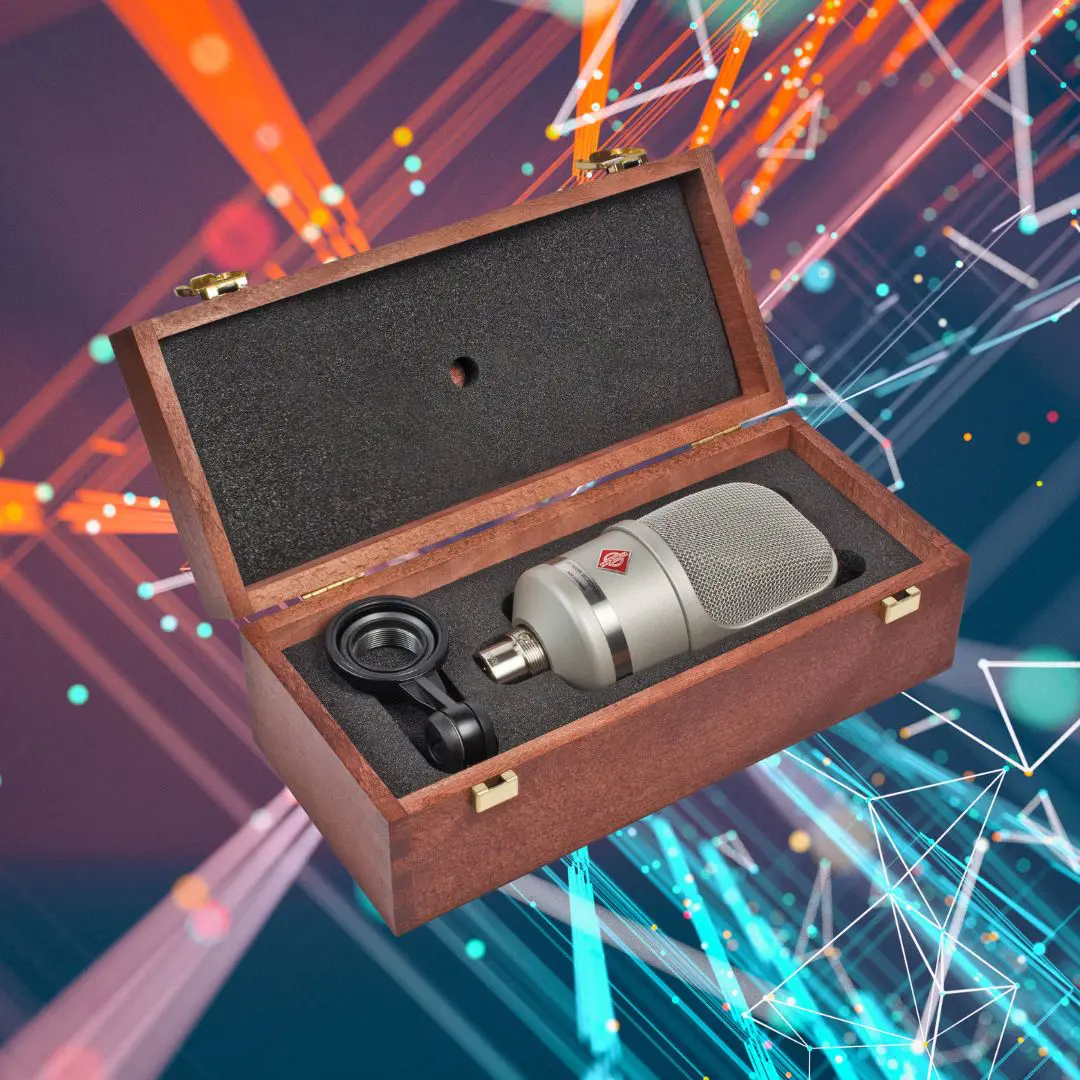

- Includes compact swivel mount and wooden box
Primary Applications: Studio Recording
Form Factor: Large Diaphragm Mic / Stand / Boom Mount
Intended Sound Sources: Vocals, Instruments
Sound Field: Mono
Element Type: Condenser
Polar Pattern: Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
Pattern Selection: Switched (Adjustable on Mic)
Orientation: Side Address
Circuitry: Solid-State
Pad: -6 dB / -12 dB
High-Pass Filter: 40 Hz / 100 Hz
On-Board Controls: High-Pass Filter, Pad, Polar Pattern
Frequency Range: 20 Hz to 20 kHz
Maximum SPL:
141 dB SPL (.5% THD)
153 dB SPL (.5% THD, with Pad)Impedance: 50 Ohms
Load Impedance: 1000 Ohms (Rated)
Sensitivity: 11 mV/Pa at 1 kHz into 1 Kilohm
Dynamic Range: 131 dB
Signal-to-Noise Ratio:
84 dB A-Weighted
72 dB CCIREquivalent Noise Level:
10 dB A-Weighted
22 dB CCIRAnalog Output: 1x XLR 3-Pin Male (on Mic)
Power Sources: Phantom Power
Color: Nickel
Mounting Thread Size: 5/8″-27 Female
Dimensions: ø: 2.5 x L: 5.7″ / ø: 6.4 x L: 14.5 cm
Weight: 15.7 oz / 445 g
