Description
Versatile Connectivity
The KL series by dBTechnologies offers unparalleled connectivity with Bluetooth® connection and three INPUT channels. Whether using a balanced combo XLR/6.3 mm Jack line/mic INPUT, a balanced XLR and TRS jack IN, or CH 3 for Bluetooth® devices, users have the flexibility to connect various audio sources.
Advanced Signal Processing
Featuring powerful DSP processing with linear phase FIR filters, the KL 10 speaker ensures accurate sound reproduction and a coherent audio performance. Users can enhance lower and upper frequencies using convenient DSP presets, allowing for customization of the sound to suit different preferences and environments.
- Active 2-way speakers
- Bluetooth®connection
- 3 Channel IN
- 1 link OUT with link/mix switch
- Linear Phase FIR Filters for accurate sound reproduction
- DSP presets for wide versatility

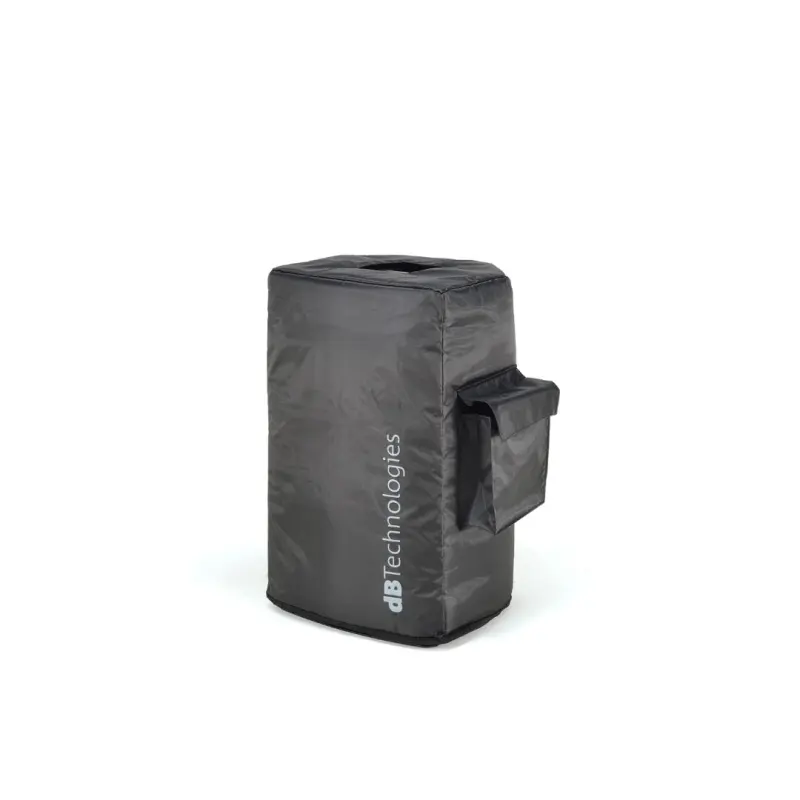

- Soft cover included
- Speaker Type: 2-Way Active Speaker
- Frequency Response [-10dB]: 55 – 18.000 Hz
- Max SPL: 125 dB
- HF: 1″ CD, 1″v.c
- LF; 10″, 2″ v.c.
- Dispersion: 90°x60°
- Crossover Frequency: 2000 Hz (24 dB/oct.)
- Amp Technology: Class D(LF)+Class AB (HF)
- Power Peak (LF+HF): 400 W
- Controls: 1xVolume, 1xslide switch mic/line
- Indicators: power on/signal/limiter LEDs
- Controller: DSP 20/56 bit
- AD/DA Converter: 24 bit/ 48 Hz
- Systems Presets: Playback, Flat, Bass Boost, Wedge
- Limiter: Peak, RMS, Thermal
- Advanced DSP Functions: Linear Phase FIR Filters
- Signal Input: 1x Combo(XLR/Jack), Mic/Line, 1xXLR/TRS
- Bluetooth Input: 1xBluetooth receiver
- SIGNAL Out: 1xXLR Male (LINK/MIX)
- Housing: Polypropylene
- Handles: 3 (2 on side 1 on top)
- Angles Up: Monitor Use 40°
- Pole Mount: 36 mm, double positioning
- Width: 310 mm (12.2 in)
- Height: 521 mm (20.51 in)
- Depth: 292 mm (11.51 in)
- Weight: 11.7 kg (25.79 lbs)
