AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher

Brands:
GTIN: 6971118003099 SKU: SHARKH4M Category: Tags: , , , , , , , , , , , , , , , , , Brands:

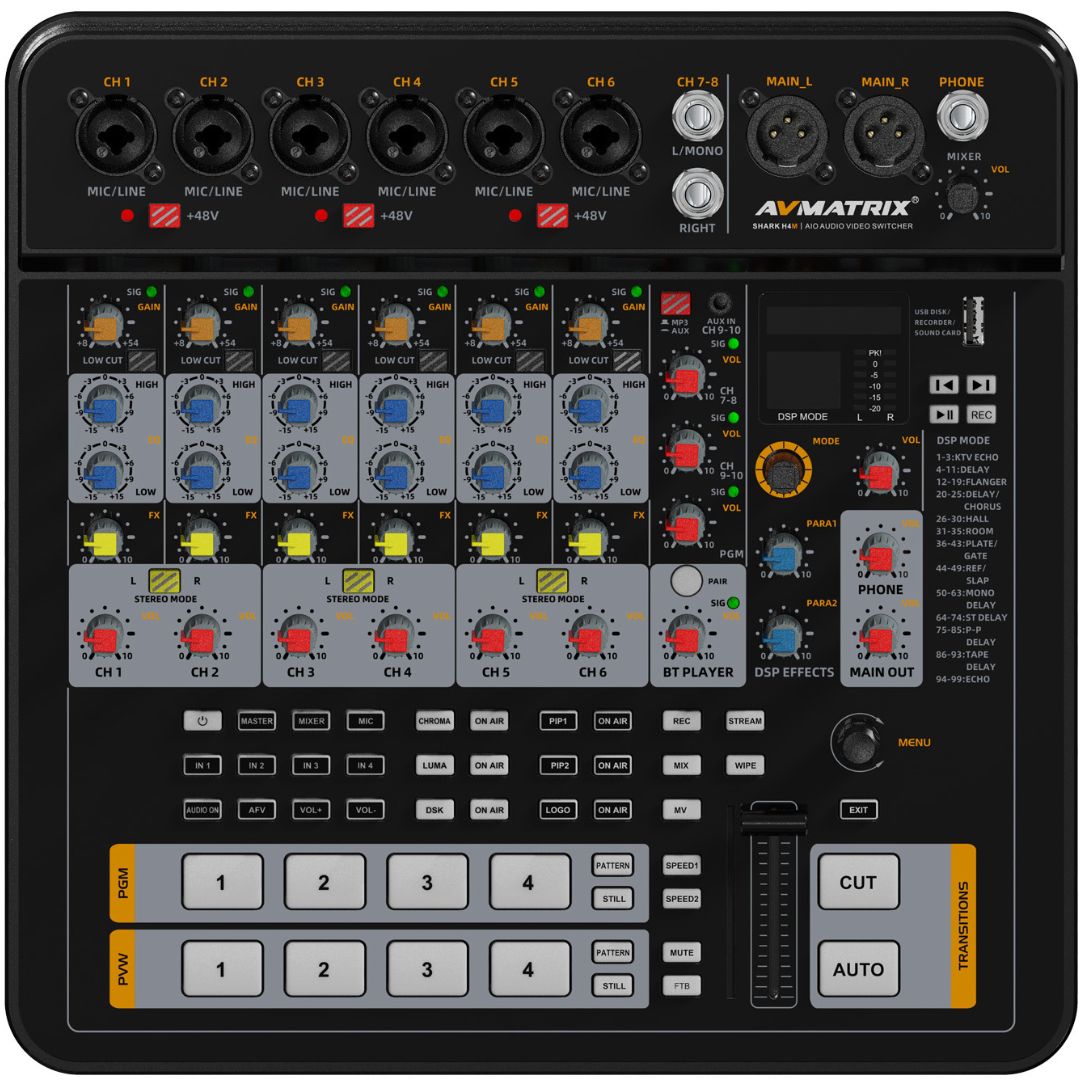

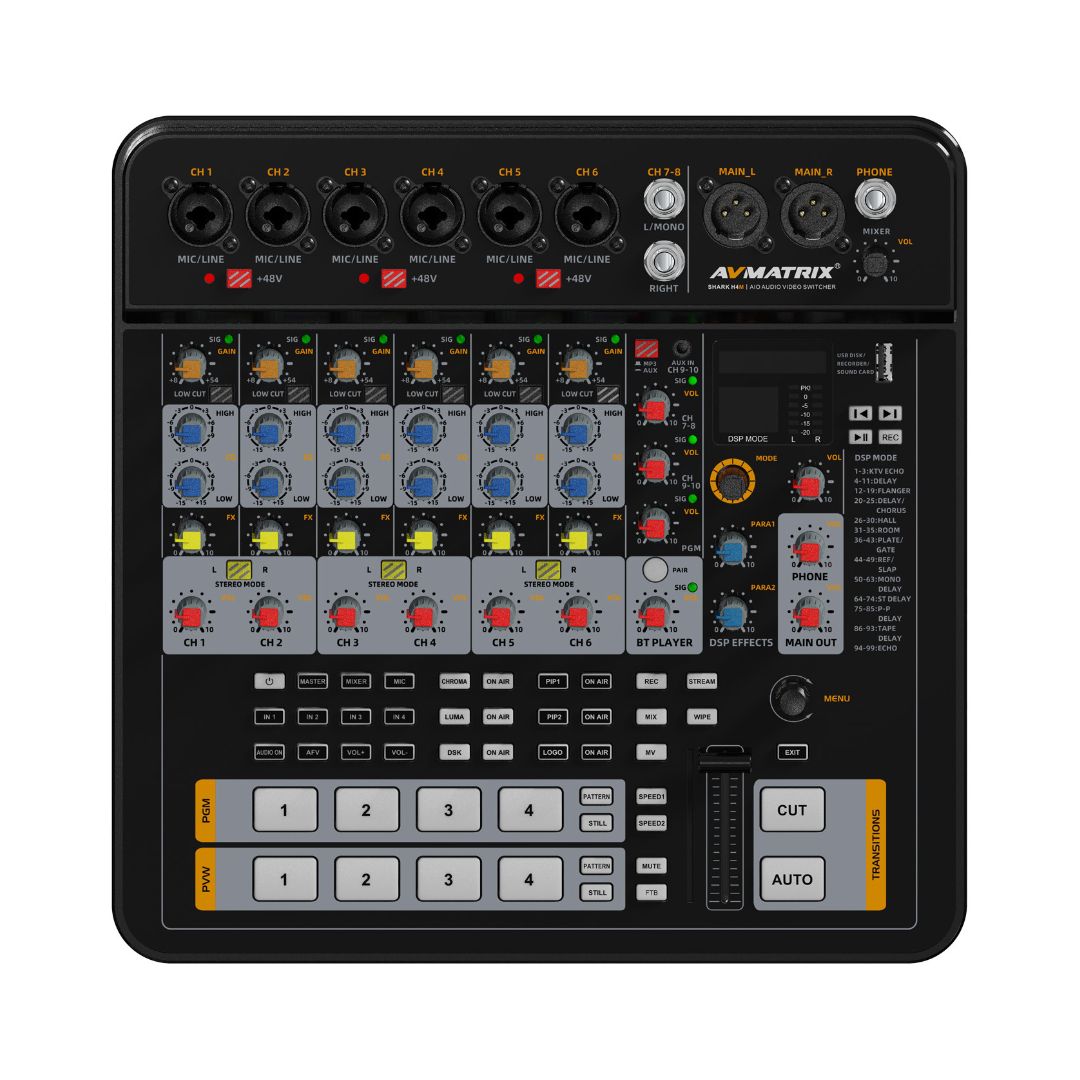

Front view of the AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher showcasing its control panel.

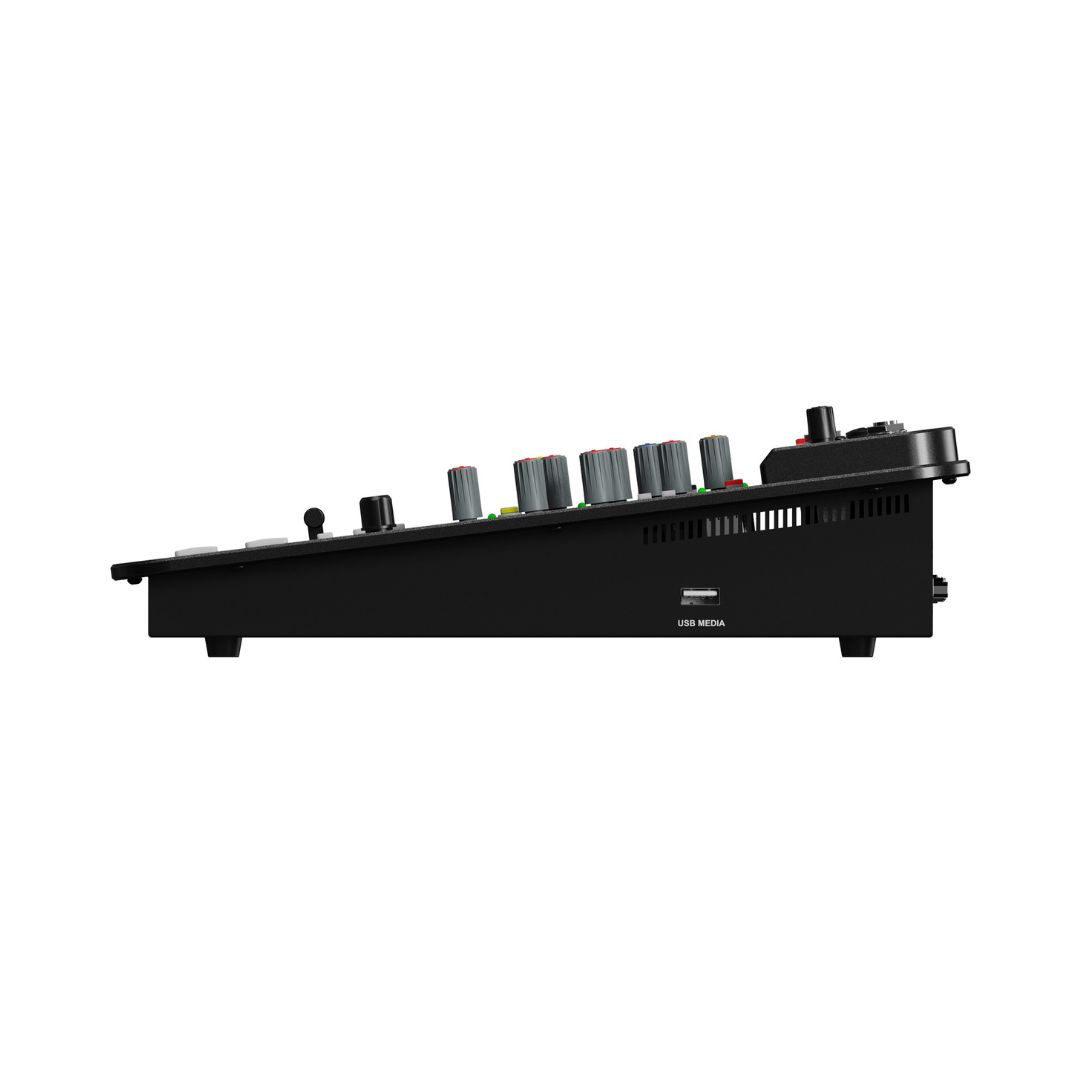

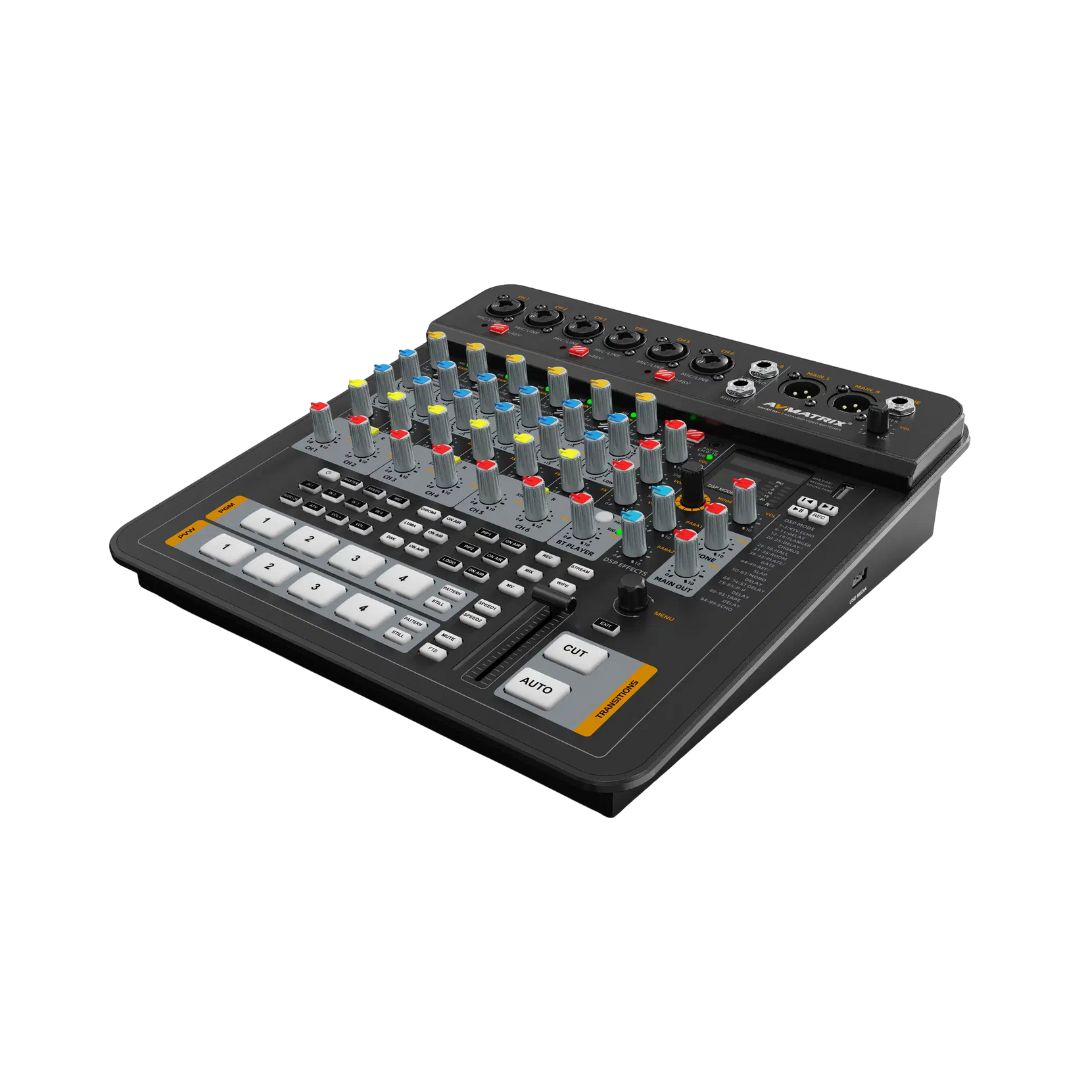

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher - Image 2

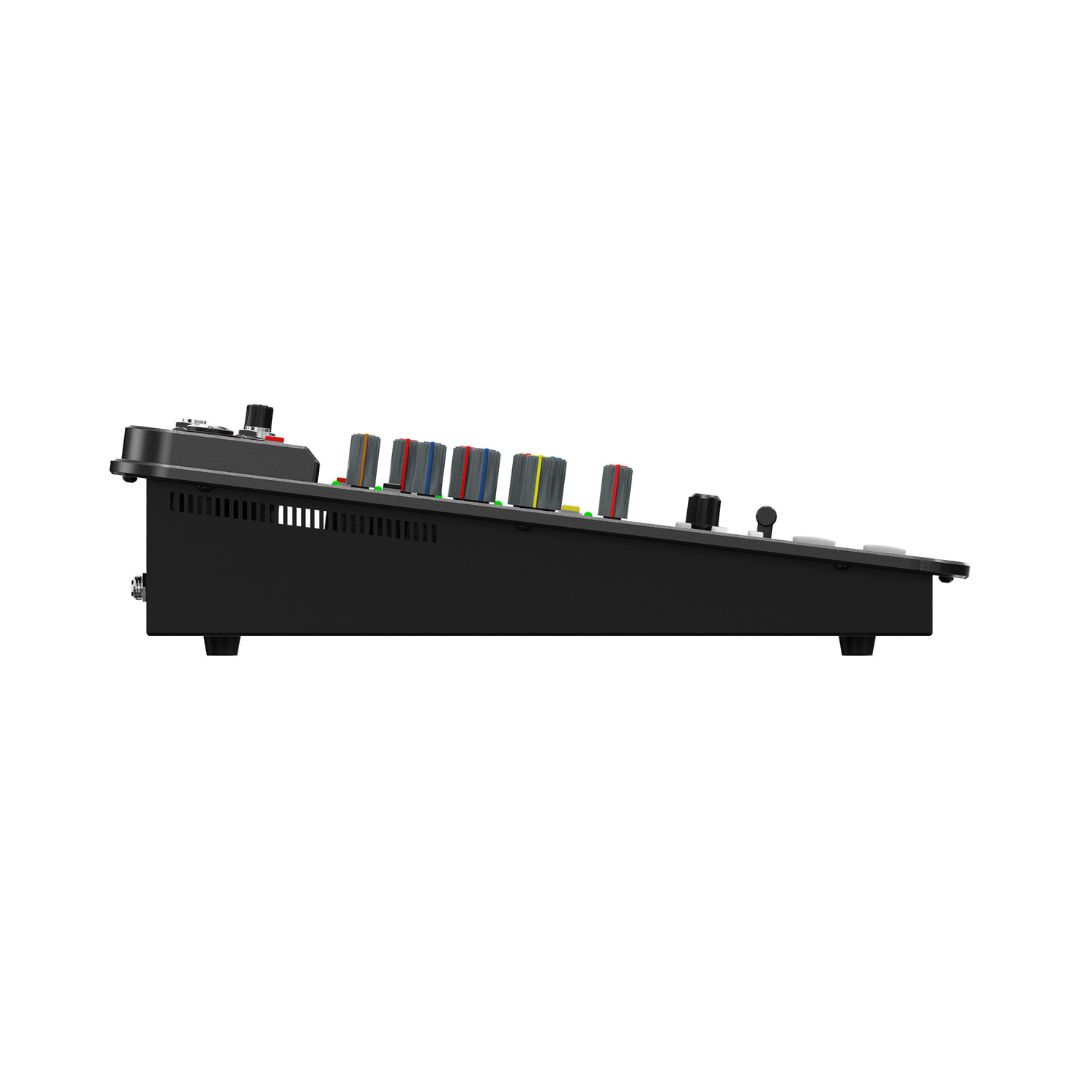

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher - Image 3
AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher - Image 4
AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher - Image 5

2,619.00 د.إ (2,494.29 د.إ exc. vat)

Availability: In Stock

1 in stock

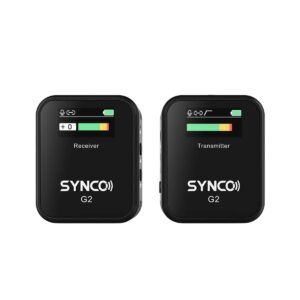

Synco G2-A2 Ultracompact 2-Person Digital Wireless Microphone System
1 × Synco G2-A2 Ultracompact 2-Person Digital Wireless Microphone System

1 in stock

699.00 د.إ (665.71 د.إ exc. vat)

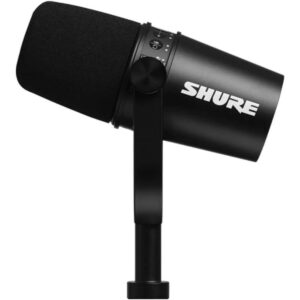

Shure MV7-K Podcasting Bundle
1 × Shure MV7-K Podcasting Bundle

3 in stock

1,279.00 د.إ (1,218.10 د.إ exc. vat)
Synco - G2A1 - 2.4G Wireless Mic-Black
1 × Synco - G2A1 - 2.4G Wireless Mic-Black

1 in stock

399.00 د.إ (380.00 د.إ exc. vat)
Request a Quote
GTIN: 6971118003099 SKU: SHARKH4M Category: Tags: , , , , , , , , , , , , , , , , , Brands:

Description

  • The AVMATRIX SHARK H4M is a compact all-in-one live production switcher combining 1080p60 video switching with powerful audio mixing for creators, educators, and event producers. It offers four HDMI inputs, dual program outputs, a multiview monitor, and direct UVC streaming via USB-C with LAN-based RTMP/SRT support. Real-time effects include chroma/luma keying, PiP/PoP layouts, transitions, DSK, and logo overlays, with recording to SD cards or USB drives. Audio features include six mic/line inputs, stereo inputs, XLR outputs, and headphone monitoring, enhanced by phantom power, low-cut filters, gain control, and 99 DSP effects. Additional tools like Bluetooth input, MP3 playback, and USB sound card functionality add flexibility. Lightweight and portable with tactile controls and web-based management, it delivers a complete multi-camera, multi-source production solution.

Versatile Multi-Source Switching

With four HDMI inputs, dual program outputs, and a dedicated multiview output, the SHARK H4M delivers seamless source selection and real-time monitoring. USB-C UVC capture and RTMP/SRT streaming via LAN make it ideal for live production, streaming, and recording.

Professional Audio Integration

Equipped with six mic/line inputs, stereo line options, XLR outputs, and 99 DSP audio effects, it provides full mixing control with EQ, filters, and phantom power. This ensures studio-grade audio for events, broadcasts, and content creation.

  • All-in-One 1080p60 AV Switcher & Mixer
  • Four HDMI AV Inputs
  • One HDMI Multiview, Two HDMI PGM Outputs
  • USB-C Port for UVC Capture
  • LAN Port for Web Control & Streaming
  • Chroma Key, Luma Key, PiP & PoP Modes
  • RTMP/SRT Streaming Support
  • Six Mono, Two Stereo Audio Inputs
  • One TRS, Two Balanced XLR Audio Outputs
  • 99 Built-In Audio Effect Modes

  • Video in: HDMI Type-A x4

  • Video Out:

    HDMI Type-A PGM x2

    HDMI Type-A Multiview Output ×1

    USB2.0 Type-C × 1(Capture)

  • LAN Port: LAN ×1 (For Streaming, web control and Upgrade)

  • Media Library: USB Type-A x1 (USB disk import and export, images and logo, firmware upgrades)

  • Tally Port: DB-15 ×1

  • Power In: DC 12V 3A x1

  • Record: SD Card/USB Disk

  • Transitions: T-Bar/ AUTO/ CUT

  • Effects: Wipe (11×3 patterns)/ Mix/ DIP/ Stillfreeze)/ MUTE/FTB

  • Layouts: 2 styles of Multiview layout (6 windows and status)

  • Keys:

    Upstream Key: Luma Key × 1/ Chroma Key × 1/PIP ×2/ POP

    Downstream Key: DSK × 1/ Logo x 1

  • Media:

    Default image: 39 preset patterns

    Local image: up to 16 imported images

    Capture image: up to 16 captured images

  • Generators: Pattern generator × 1 Color generators ×2

  • HDMI In Format Support:

    1080p 60/ 59.94/50/30/29.97/25/24/23.98

    1080i 50/59.94/60

    720p 60/59.94/50/30/29.97/ 25/24/23.98

    576i 50, 576p 50, 480p 59.94/ 60, 480Ñ– 59.94/60

  • HDMI PGM Out: 1080p 60/ 59.94/ 50/ 48/47.95/ 30/29.97/ 25/24/23.98; 1080i 60/59.94/50

  • HDMI Multiview Out: 1080p 60/ 59.94/ 50/48/47.95/30/29.97/25/ 24/23.98;1080i 60/ 59.94/50

  • HDMI Color Space: RGB/YUV

  • USB Capture Out: Up to 1080p 60

  • Media Format:

    USB disk format support: FAT32, Ext3, Ext4, up to 256GB

    Image format support: png, bmp,jpg, gif, jpeg, ppm, pb m, tif,jps, mpo, tga

    Logo format support: png, bmp, jpg, gif, jpeg, ppm, pb m, tif,jps,mpo, tga

    Logo size support: 10x 10 pixel to 600×600 pixel

  • Video BitRate: 2Mbps-32Mbps

  • Streaming Protocol: RTMP, RTSP, SRT

  • Recording Format: File System: FAT32/EXFAT/NTFS/EXT3, File Format: MP4/TS

  • Audio Input Channel:

    Mono (MIC/LINE) x6, Stereo (LINE) ×2

    USB player/Bluetooth×1

  • Audio Output Channel:

    MAIN L/R OUT ×2

    PHONES ×1

    MIXER OUT ×1

  • Audio Mixer:

    XLRX6, TRS×2, HDMI×4

    Audio delay: 0-500ms

  • CH1-6 MIC/LINE:

    Gain:-14~+40 dB

    Mic input CH 2 band EQ, 80Hz/12KHz, +15dB

    48V phantom power supply with indicator

    Peak Level LED

  • Audio Input Indicator: Audio input sensitivity adjustment

  • Main Output Level Meter: Stereo audio peak level meter with 6-segment LED display

  • Maximum Input Level: MIC+10dBu /Line +22dBu

  • Input Impedance: XLR: 10k Ω

  • Maximum Output Level: XLR+22dBu, TRS+20dBu

  • Output Impedance: XLR: 600 Ω, PHONES: 10 Ω

  • Frequency Response range: +1 dB, 20-22KHz

  • Dynamic Range: 102 dB

  • Total Harmonic Distortion @ 1KHz: <0.05%(MIX)

  • Stereo Separation: >80 dB

  • Power: 12V 2A

  • Operating power: ≤ 18W

  • Dimension (LWD): 287.7 × 286.7 × 83.2mm

  • Weight: Net: 2500g, Gross: 3140g

  • Temperature Working: -20°C~60°C, Storage: -30°C~70°C

  • Accessories

    12V 2A Power Adapter

    USB A-C Cable

    Tally Connector

Additional information

Weight4 kg
Dimensions34 × 36 × 15 cm
