Description
2 x 4 Channel Frequency Plan

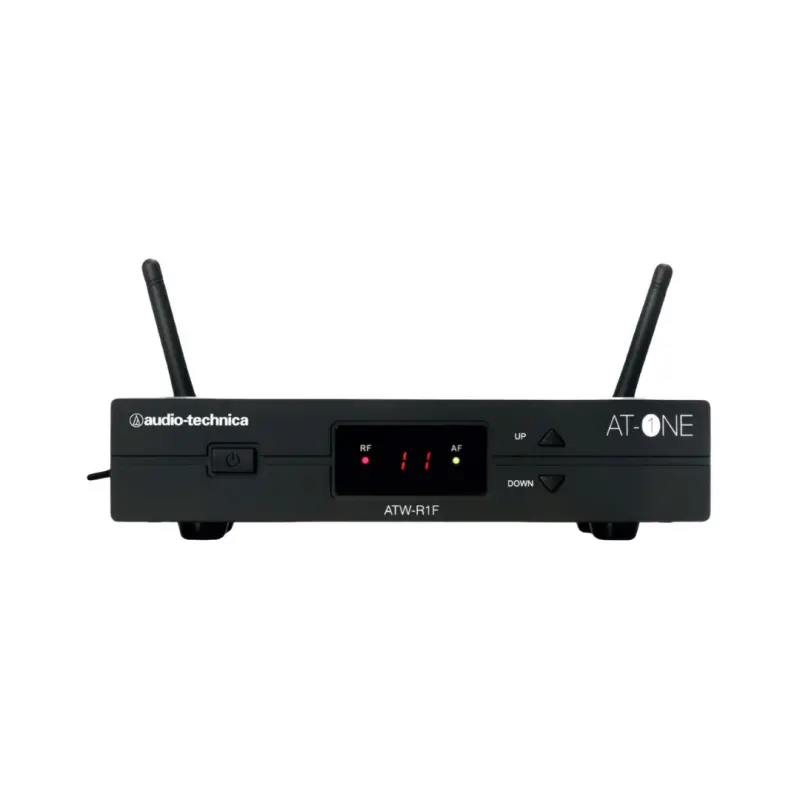

The AT-One system offers a 2 x 4 channel frequency plan, ensuring enhanced flexibility and reliable performance. It operates in the Europe-wide license-free frequency range and the LTE duplex gap, allowing users to select up to four channels from one group, making it adaptable to various environments and reducing the likelihood of interference.
Robust Beltpack Transmitter
The ATW-11F model comes with a sturdy, discreet beltpack transmitter that delivers 10mW RF output power and has a damping switch. It offers up to 10 hours of continuous use with two AA batteries, making it perfect for extended events. The beltpack features a 4-pin HRS connector, compatible with all Audio-Technica wireless microphones, ensuring seamless integration and ease of use.
2 x 4 Channel Frequency Plan
Clear Receiver Display
Rack-Mountable Design
Intuitive Receiver and Transmitter Controls
RF Indicator Light
Sturdy But Stylish Build Quality
Frequency Range: 824 – 831 MHz, 863-865 MHz
Modulation Mode: FM
Number of Frequencies: 2x 4-frequencies
Simultaneous Frequencies: 4
Maximum Deviation: +/- 33 kHz
Operating Range: 60m, typical
Operating Temperature: +5°C – +45° C
Frequency Response: 60 Hz – 16 kHz
Frequency Stability: +/- 0.005%, Phase lock loop frequency control
- Receiving System: Antenna switching diversity
- Image Rejection: 55dB minimum
- Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
- Sensitivity: 10dBμV (S/N 60dB @ 20 kHz deviation)
- Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
- Level Control: Mic / Line (0 / -20dB)
- Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each
- Audio Output: Unbalanced -2dBV / Balanced 4dBV
- Output Connectors: Unbalanced: 6.3 mm mono jack
- Balanced: XLRM-type
- Squelch Level: 2 μV (min) ~ 60 μV (max)
- Channel Select: 2-Digit 7-segment LED display
- Power Supply: 100-240 V DC12V 500mA
- Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
- Weight: 418 g without accessories
- Accessories Included: AC Adapter, Antennas, Rack mount adapter
- Optional System Accessory: AT8677 Dual rack mount kit
- RF Output Power: 10 mW
- Spurious Emissions: Following national regulatios
- Input Connections:
Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V - Batteries (not included): Two 1.5V AA alkaline
- Battery Life: 10 hours – depending on battery type and use pattern
- Dimension: 66 mm x 98 mm x 22 mm (W x H x D)
- Weight: 71 g without batteries
