Description

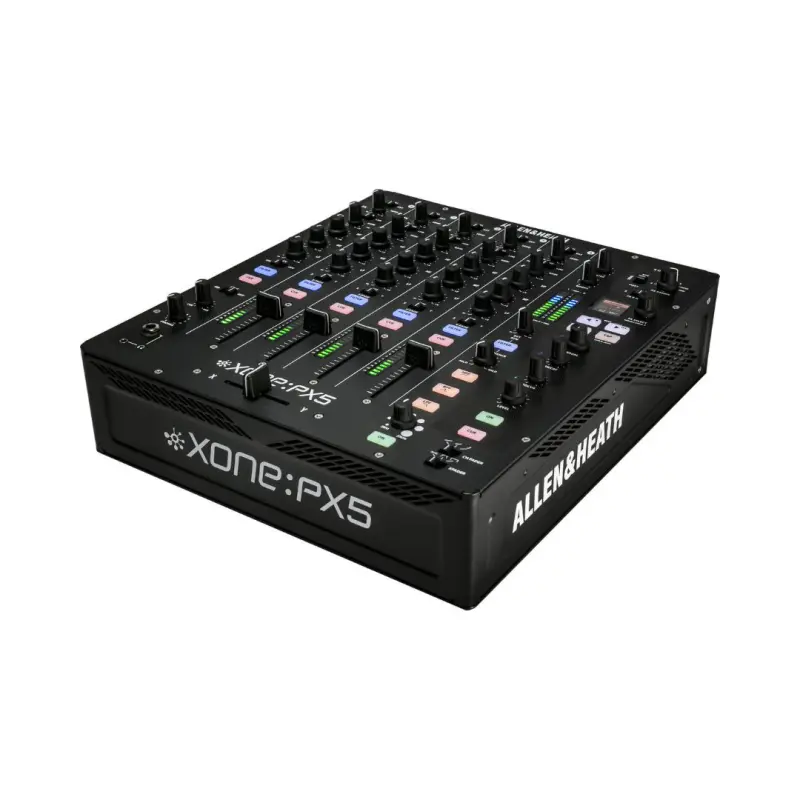

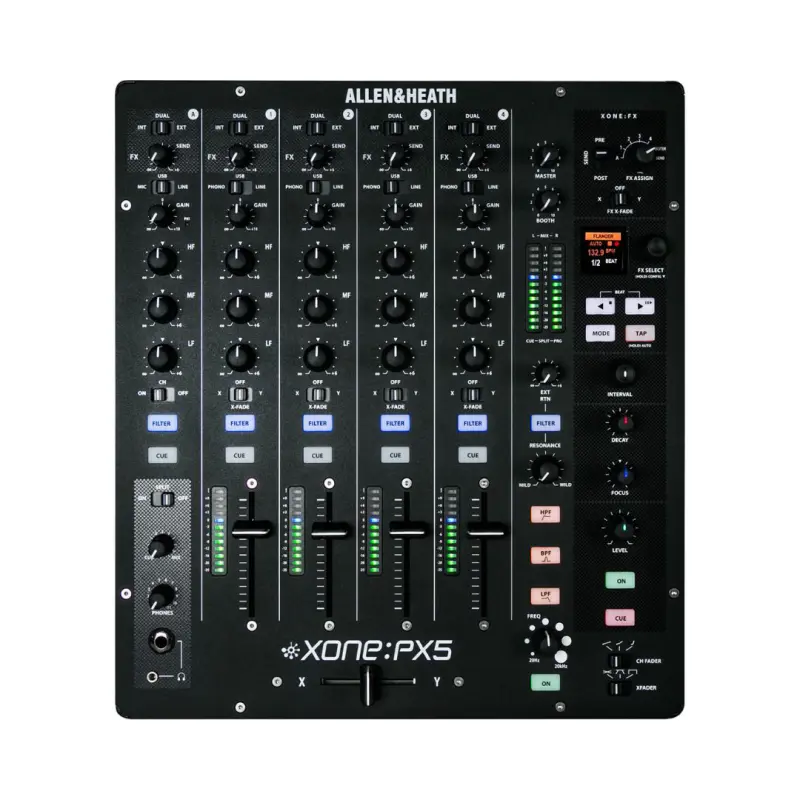

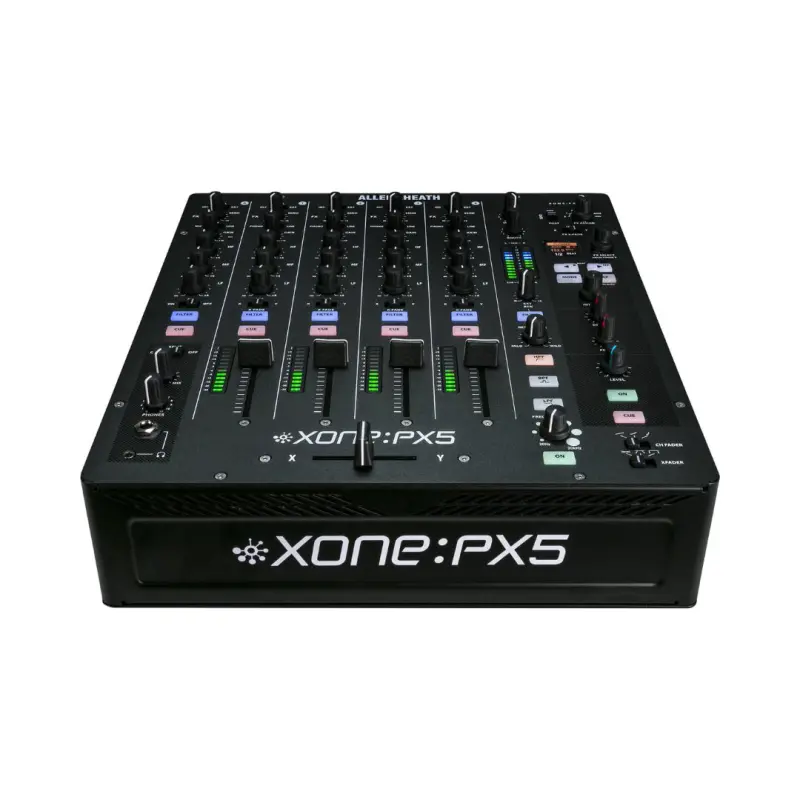

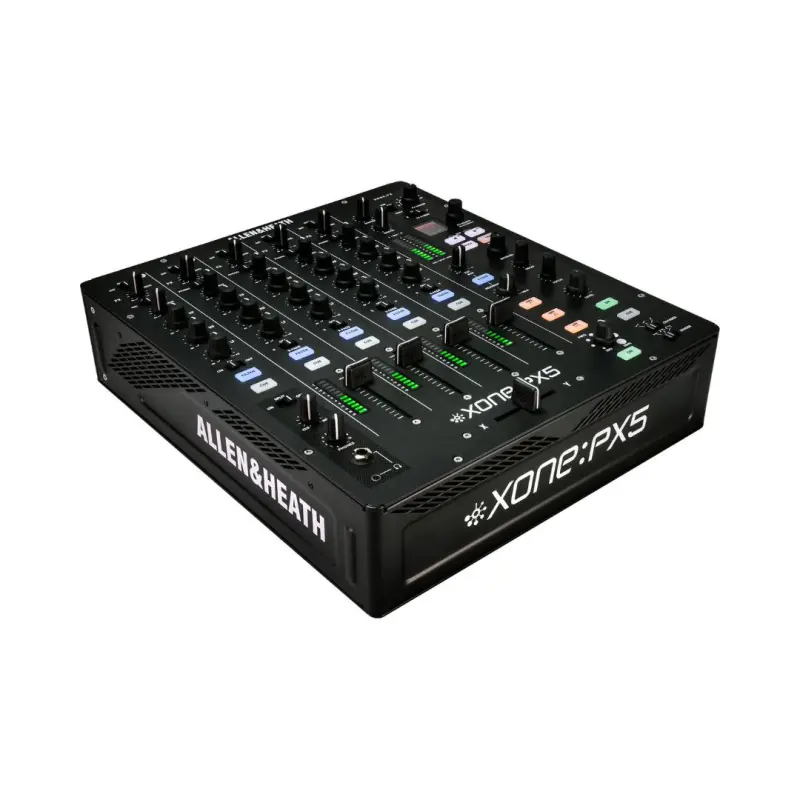

  • The Allen & Heath XONE:XP5 is a 4+1 channel DJ mixer ideal for professionals, home enthusiasts, and nightclubs. It integrates a 20-channel USB sound card with 96 kHz, 24-bit processing for seamless digital DJ setups. Featuring the XONE analog filter with high-pass, band-pass, and low-pass options, it includes the XONE:FX suite for manipulating delays, reverbs, modulators, and more. The mixer supports external FX units via X:FX send and return, offers a customizable crossfader, versatile input/output options (XLR, RCA), MIDI clock engine, X:Link for MIDI control, and is compatible with an Innofader Pro 2 crossfader upgrade.



3-Band Isolator EQ on All Channels

Each channel on the XONE:XP5 is equipped with a precise 3-band isolator EQ, allowing DJs to sculpt and fine-tune their sound with precision across high, mid, and low frequencies. This feature ensures clarity and control over the audio mix, essential for professional DJ performances.

Xone:VCF Filter & Xcite FX Suite

The XONE:XP5 integrates Allen & Heath's renowned Xone:VCF filter, offering high-pass, band-pass, and low-pass filter options with resonance control and frequency sweep. Combined with the Xone:Xcite FX suite, DJs can effortlessly apply performance-focused effects such as delays, reverbs, modulators, flangers, and distorters, enhancing creativity and musical expression.

Traktor Scratch Certified

The XONE:XP5 is Traktor Scratch certified, offering compatibility with Native Instruments' Traktor software for Digital Vinyl System (DVS) control straight out of the box. This certification ensures DJs can perform with vinyl or digital media using timecode control with the highest level of accuracy and reliability.

20 Channel 24-bit/96kHz Soundcard

Featuring a professional-grade 20-channel 24-bit/96kHz USB soundcard, the XONE:XP5 ensures pristine audio quality and seamless integration into digital DJ workflows. This high-specification soundcard supports up to 10 inputs and 10 outputs, providing DJs with extensive routing options for sophisticated mixing setups.

  • 3-band isolator EQ on all channels.
  • Legendary Xone:VCF filter and built-in Xone:Xcite FX suite.
  • 20 Channel 24-bit/96kHz soundcard.
  • Traktor Scratch certified.
  • MIDI clock & X:Link Dedicated FX send.
  • Mic/Aux return & Master insert for external hardware, FX & signal processing.
  • Number of Channels: 4x Stereo, 1x Mic/Aux

  • Platter/Jog Wheel: No

  • Faders:
    4x 2.4″ / 60 mm Channel Level (Replaceable, Adjustable Fade Curve)
    1x 1.8″ / 45 mm Crossfader (Replaceable, Adjustable Fade Curve)

  • Meters: Channel Meter: 9-Segment LED

  • Display: Color

  • Sample Pads:No

  • EQ:
    Channel EQ:
    Hi
    Mid
    Low

  • Performance Controls: BPM Counter, Band-Pass Filter, FX, High-Pass Filter, Low-Pass Filter, Tap Tempo

  • Sample Rates: 96 kHz

  • Bit Depths: 24-Bit (Sound Card)

  • Stems Processing: No

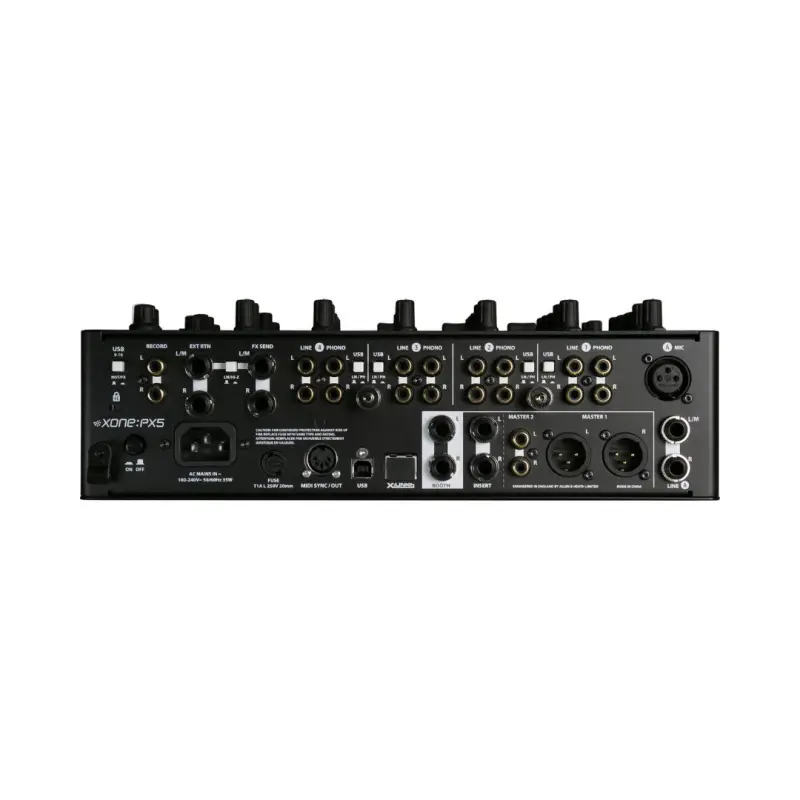

  • Audio Inputs:
    2x 1/4″ TRS Line Input
    4x Stereo 2RCA Coaxial Line/Phono Input
    4x Stereo 2RCA Coaxial Line Input
    1x XLR 3-Pin Mic Input
    2x 1/4″ TRS Return Input
  • Audio Outputs:
    2x XLR 3-Pin Balanced Master Output
    2x 1/4″ TRS Balanced Master Output
    2x 1/4″ TRS Balanced Booth Output
    1x Stereo 2RCA Coaxial Unbalanced Record Output
    4x 1/4″ TRS Send Output
    1x 1/4″ TRS Headphone Output
    1x 1/8″ / 3.5 mm TRS Headphone Output
  • Other I/O:
    1x DIN 5-Pin Input
    1x DIN 5-Pin Output
    1x RJ45 Link
    2x Phono Ground Terminal
  • Phantom Power: No
  • USB: 1x USB-B 2.0 (Class Compliant/Audio I/O)
  • Wireless: No
  • Media Card Slots: No
  • Headroom: 20 dB
  • Included Software: No
  • Compatible Software (Not Included): Traktor Pro Traktor Scratch pro 2
  • OS Compatibility: macOS / Windows
  • Mobile App Compatible: No
  • Internet Connection: Required for Registration, Software/Driver Download
  • Power Requirements: AC/DC Power Adapter (Included)
  • Power Supply Output: Included
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • AC Power I/O: 1x IEC
  • Power Consumption: 35 W (Maximum)
  • Anti-Theft Features: Kensington Security Slot
  • Dimensions (W x D x H): 12.6 x 14.8 x 4.3″ / 320.0 x 375.9 x 109.2 mm
  • Weight: 11.5 lb / 5.2 kg

Additional information

Weight 10.65 kg
Dimensions 55.5 × 47.24 × 20.32 cm
