Description
Powerful Bass Extension
The Sub10 Mk2 features a 10″ woofer driven by a 200 W RMS (300 W peak) PWM amplifier, delivering precise low frequencies down to 25 Hz with high efficiency and minimal heat, ensuring consistent performance for long studio sessions.
Flexible Control & Integration
Equipped with XLR and RCA I/Os, variable fourth-order Linkwitz-Riley crossovers, phase adjustment from 0° to 180°, and rear-panel gain/filter controls, the Sub10 Mk2 allows seamless system integration and flexible placement, while the down-firing bass reflex tube reduces ventilation noise.
10″ active studio subwoofer extending low frequencies down to 25 Hz
200 W RMS (300 W peak) PWM amplifier with high efficiency and cool operation
XLR and RCA inputs/outputs for flexible system integration
Variable fourth-order Linkwitz-Riley crossovers for musical low-end blending
Phase adjustment from 0° to 180° for flexible placement

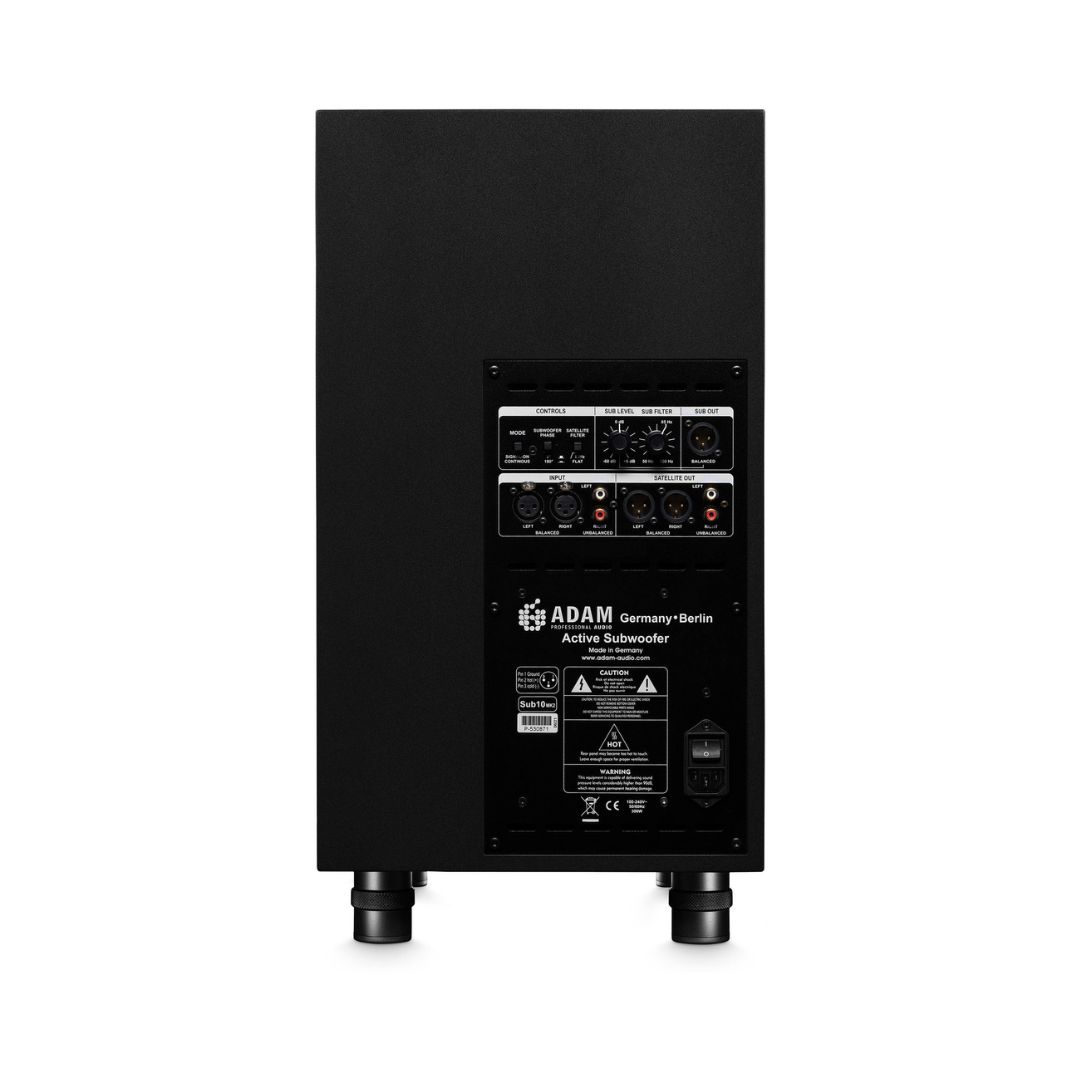

Rear-panel gain and filter controls for precise tuning
Down-firing bass reflex tube reduces ventilation noise
Multiple units can be chained for extended low-frequency coverage
High sound pressure level up to 113 dB SPL for undistorted bass
Number of Included Monitors: Single Monitor
Enclosure: Bass-Reflex/Ported, Unshielded
Total Power Output: 200 W RMS / 300 W Peak
Subwoofer Drivers:
1x 10″ / 25.4 cm Paper Cone
Voice Coil: 2″ / 50.8 mm
Amplifiers: Subwoofer: 200 W RMS / 300 W Peak Class-D
Frequency Range: 25 Hz to 150 Hz
Maximum Sound Pressure Level (SPL): 113 dB
Total Harmonic Distortion (THD): <1%
Crossover Frequency: 50 to 150 Hz
Phase Adjustment: 0 / 180° Phase Inversion
Audio I/O:
2x XLR 3-Pin Balanced Line Input (10 Kilohms)
3x XLR 3-Pin Balanced Line Output
1x Stereo 2RCA Unbalanced Line Input
1x Stereo 2RCA Unbalanced Line Output
Color: Black
Monitor Orientation: Vertical
Dimensions (W x H x D): 11.8 x 21.6 x 15.7″ / 300 x 549 x 399 mm
Weight: 46.0 lb / 21.0 kg
